Seeed XIAO RP2350
The Seeed XIAO RP2350 is a compact microcontroller board featuring the Raspberry Pi RP2350 chip - the same found on the Raspberry Pi Pico 2 - which offers dual-core processing and impressive performance for its small size.
The board has 11 digital I/O pins, 8 analogue inputs, and support for multiple programming languages, including CircuitPython, Arduino, and MicroPython. Its small size makes it ideal for wearable devices, IoT, and other space-constrained projects.
This comes in two options: board + headers and a pre-soldered board option. Please select an option before adding to cart.
Features
- Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISC‑V cores
- Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security
- Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping
- Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).
- Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications
- Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS)
- Compact Thumb-Sized Design: Measuring 21 x 17.5mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.
- Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production
-
Product number:
- Board + Loose headers: Seeed 102010550
- Pre-soldered board: 102010637
What's on Board
Specifications
| Processor | Raspberry Pi RP2350 |
| Dual Cortex-M33 @ 150MHz, FPU | |
| RAM | 520kB SRAM |
| Flash | 2MB PSRAM |
| LEDs | 1 user LED, 1 power LED，1 RGB LED |
| Interface | 19 Pins: |
| 3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM | |
| Button | 1 RESET button, 1 BOOT button |
| Security | OTP, Secure Boot, Arm TrustZone |
| Low power | 27μA |
| Software compatibility | Supports MicroPython / C, C++ |
| Working Temperature | -20°C-70°C |

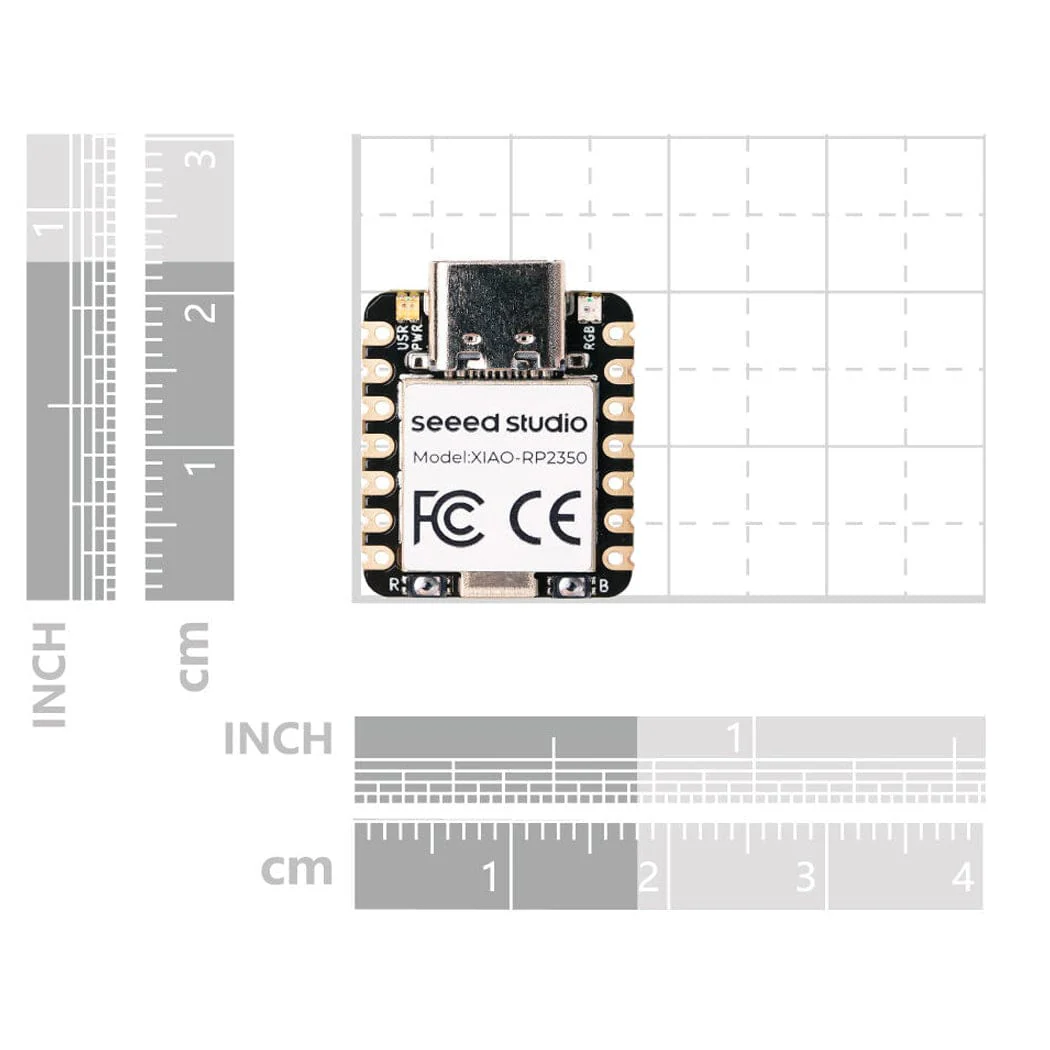

| Dimensions | 21 x 17.5 mm |
Resources
- Product Wiki

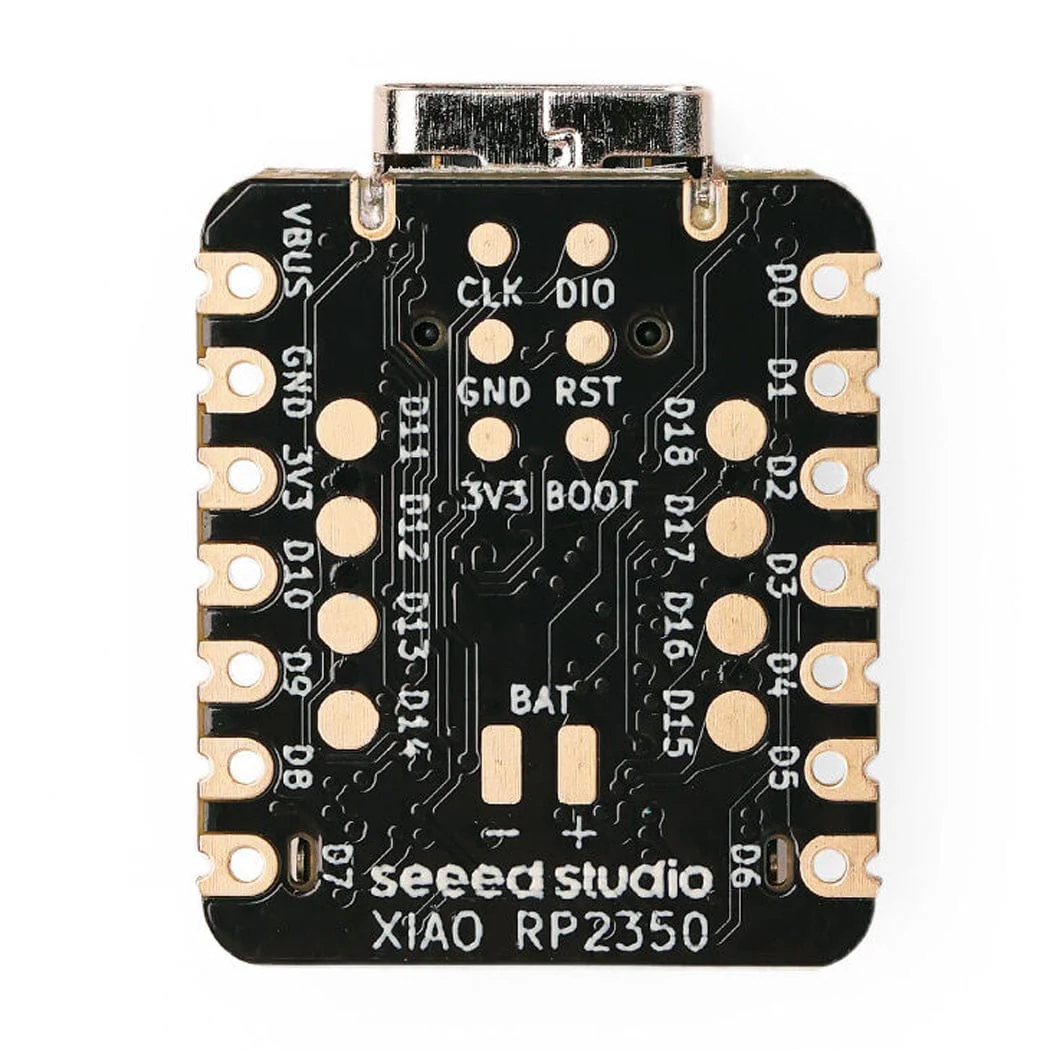

Pinout
Package Contents
- 1x XIAO RP2350

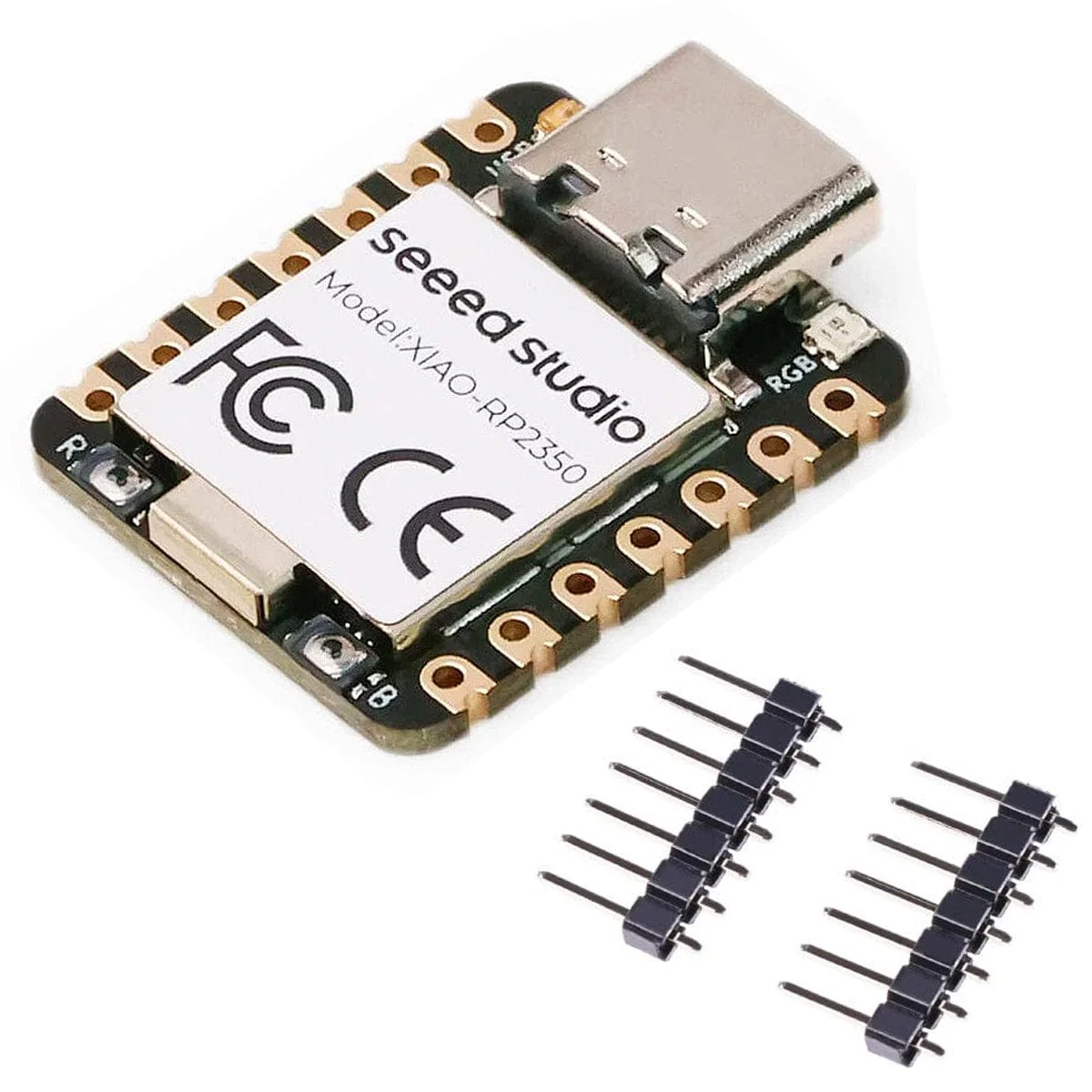

- Either pre-soldered or board + loose headers (select before adding to cart)
Description
The Seeed XIAO RP2350 is a compact microcontroller board featuring the Raspberry Pi RP2350 chip - the same found on the Raspberry Pi Pico 2 - which offers dual-core processing and impressive performance for its small size.
The board has 11 digital I/O pins, 8 analogue inputs, and support for multiple programming languages, including CircuitPython, Arduino, and MicroPython. Its small size makes it ideal for wearable devices, IoT, and other space-constrained projects.
This comes in two options: board + headers and a pre-soldered board option. Please select an option before adding to cart.
Features
- Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISC‑V cores
- Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security
- Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping
- Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).
- Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications
- Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS)
- Compact Thumb-Sized Design: Measuring 21 x 17.5mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.
- Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production
-
Product number:
- Board + Loose headers: Seeed 102010550
- Pre-soldered board: 102010637
What's on Board
Specifications
| Processor | Raspberry Pi RP2350 |
| Dual Cortex-M33 @ 150MHz, FPU | |
| RAM | 520kB SRAM |
| Flash | 2MB PSRAM |
| LEDs | 1 user LED, 1 power LED，1 RGB LED |
| Interface | 19 Pins: |
| 3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM | |
| Button | 1 RESET button, 1 BOOT button |
| Security | OTP, Secure Boot, Arm TrustZone |
| Low power | 27μA |
| Software compatibility | Supports MicroPython / C, C++ |
| Working Temperature | -20°C-70°C |
| Dimensions | 21 x 17.5 mm |
Resources
- Product Wiki
Pinout
Package Contents
- 1x XIAO RP2350
- Either pre-soldered or board + loose headers (select before adding to cart)
