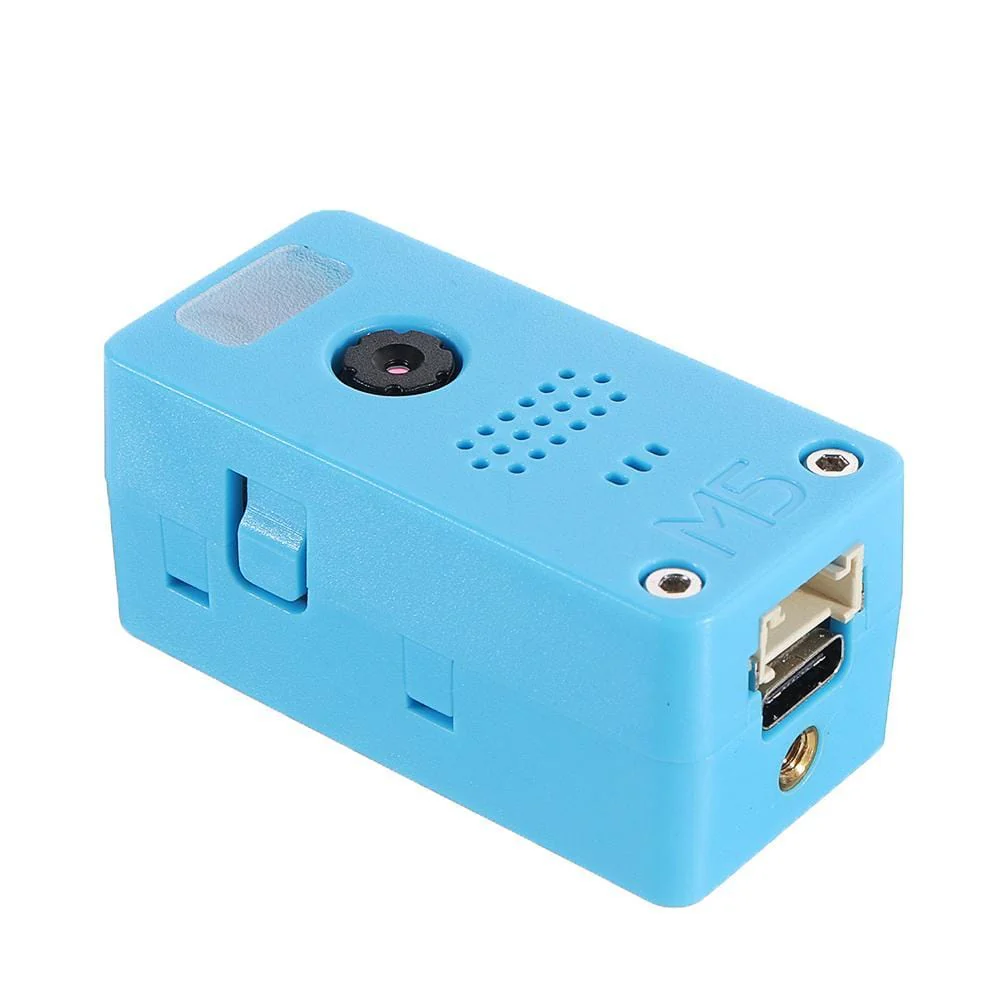

M5Stack M5StickV K210 AI Camera Development Board (Without Wifi)
A compact AI IoT camera development board with 64bit image processing capabilities.
Powered by a Kendryte K210 dual-core 64bit RISC-V CPU, advanced neural network processor and OmniVision OV7740 image sensor, M5StickV is a great option for low power embedded machine vision. It also has a speaker with built-in DAC, an IPS screen, motion sensor and inbuilt battery.
For more information and for help getting started, click here
Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
- Dual Independent Double Precision FPU
- Neural Network Processor(KPU) / 0.8Tops
- Field-Programmable IO Array (FPIOA)
- Dual hardware 512-point 16bit Complex FFT
- SPI, I2C, UART, I2S, RTC, PWM, Timer Support
- AES, SHA256 Accelerator
- Direct Memory Access Controller (DMAC)
- Micropython Support
- Firmware encryption support
- Case Material: PC + ABS

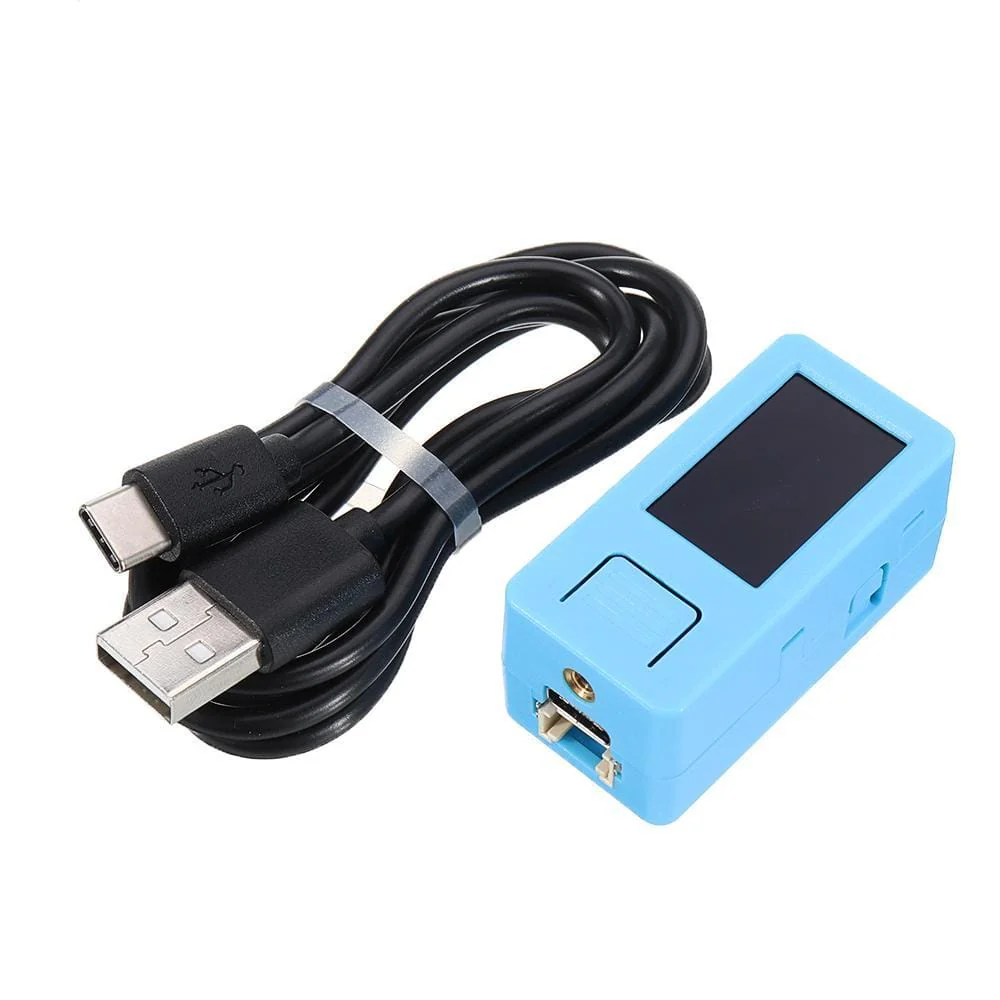

Includes
- 1x M5StickV
- 1x USB Type-C cable (100cm)

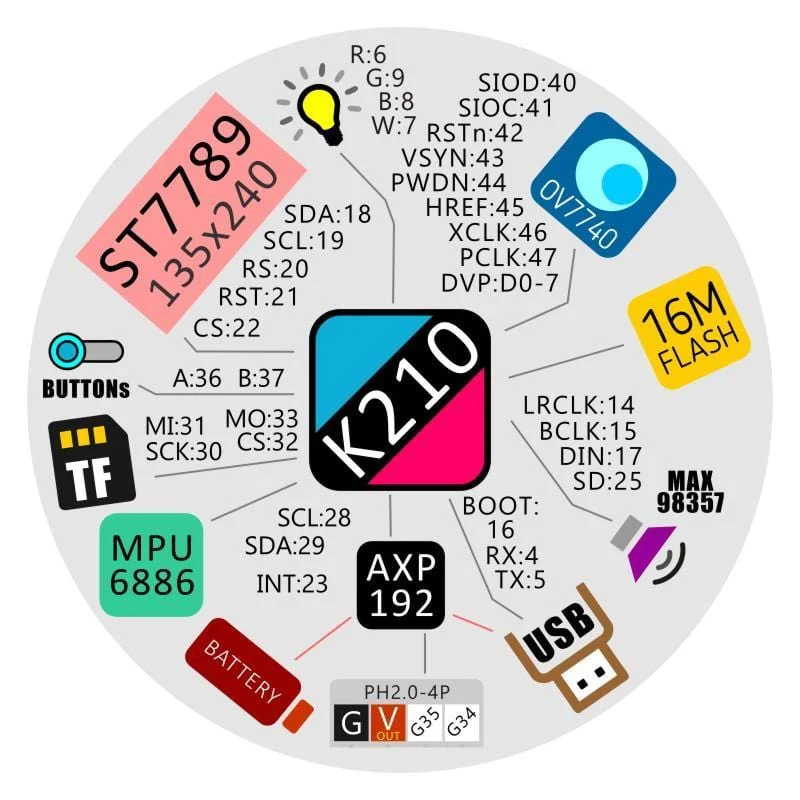

Specifications
| Resources | Parameter |
|---|---|
| Kendryte K210 | Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) |
| SRAM | 8Mbit |
| Flash | 16M |
| Power input | 5V @ 500mA |
| KPU Parameter size of neural network | 5.5MiB - 5.9MiB |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| RGB LED | RGBW x 1 |
| Button | Custom button x 2 |
| IPS screen | 1.14 TFT, 135 x 240, ST7789 |
| Camera | OV7740 |
| PMU | AXP192 |
| Battery | 200mAh |
| External storage | TF Card/Micro SD |
| MEMS | MPU6886 |
| Size | 144 x 44 x 43mm |
| Weight | 82g |
| Case Material | Plastic ( PC ) |
