M5Stack Cardputer Mesh Kit for Meshtastic
A special M5Stack Cardputer kit designed for LoRa mesh networking with Meshtastic, including a special-colour Cardputer ADV, Cap LoRa 1262 and external antenna.

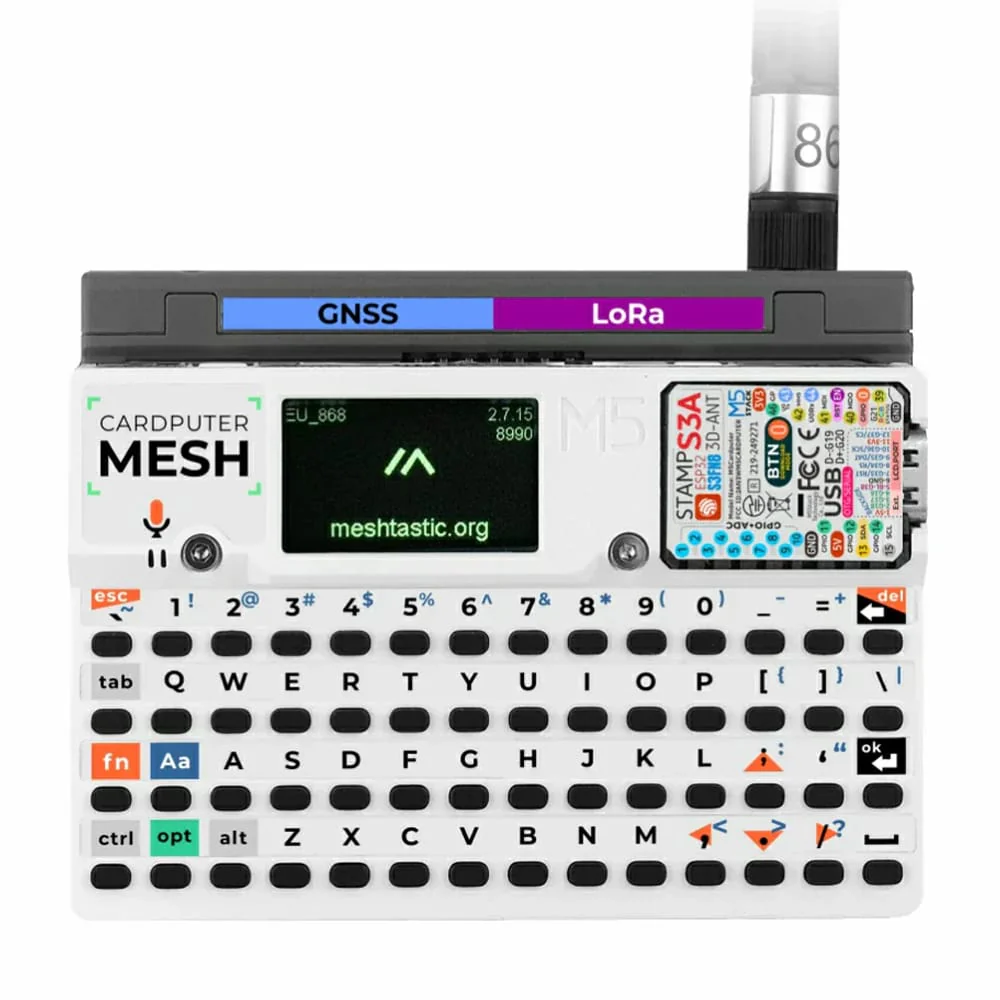

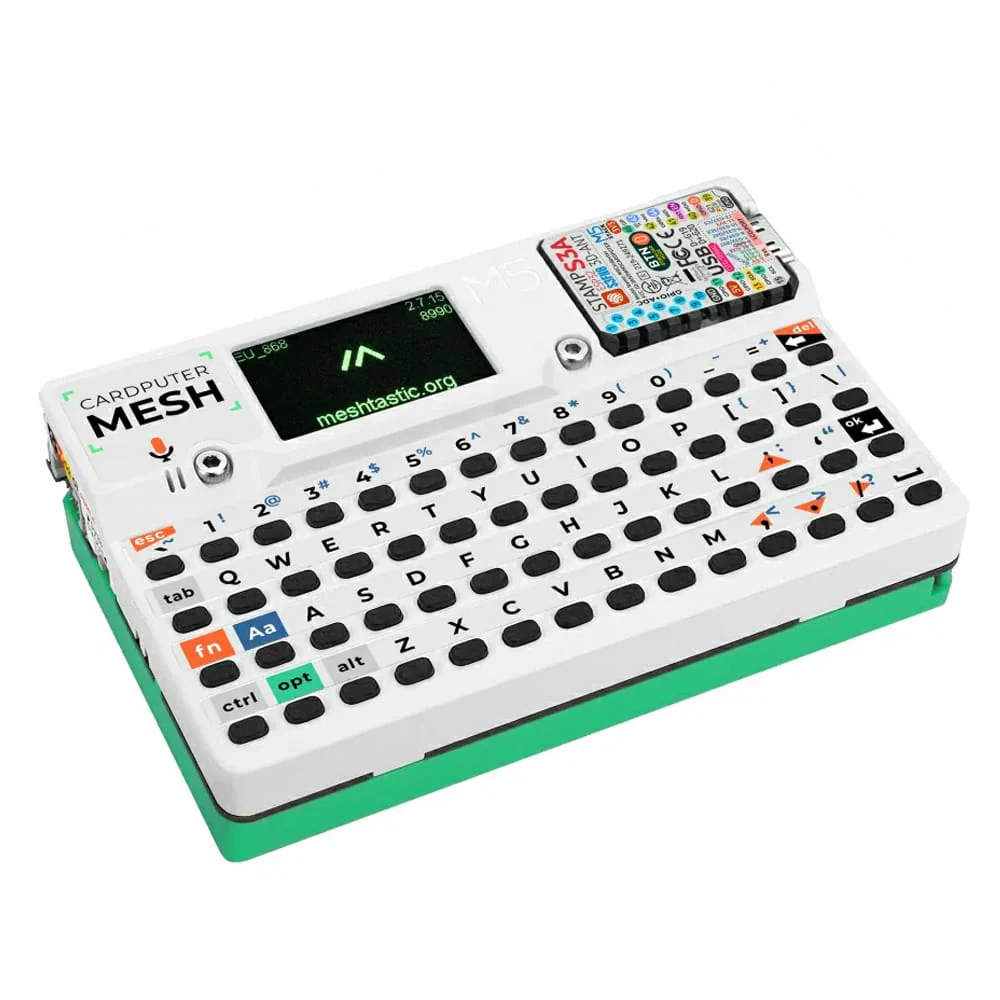

The M5Stack Cardputer Mesh Kit for Meshtastic is a portable communication terminal kit that integrates LoRa Mesh networking with global positioning capabilities. The kit centres around a special green-back version of the Cardputer Adv controller and the Cap LoRa 1262 expansion module.

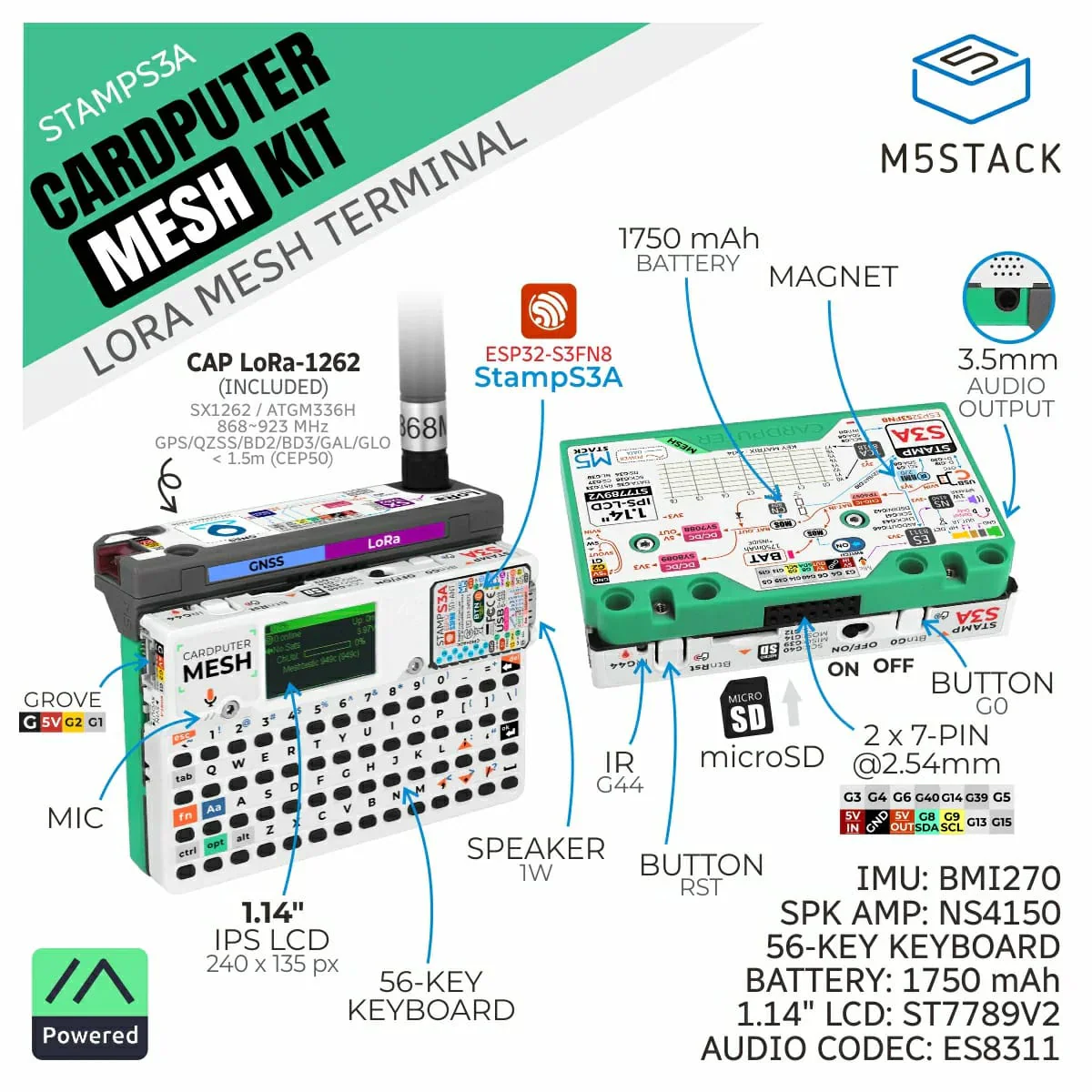

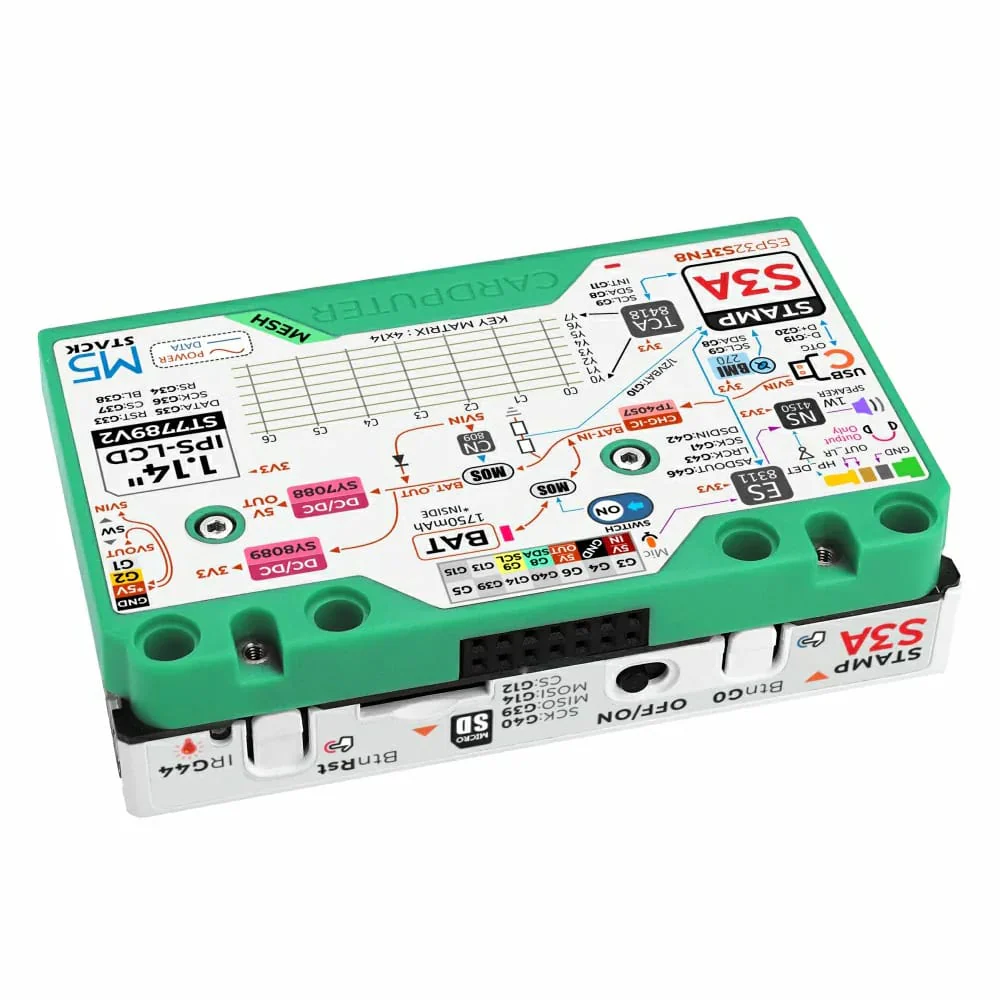

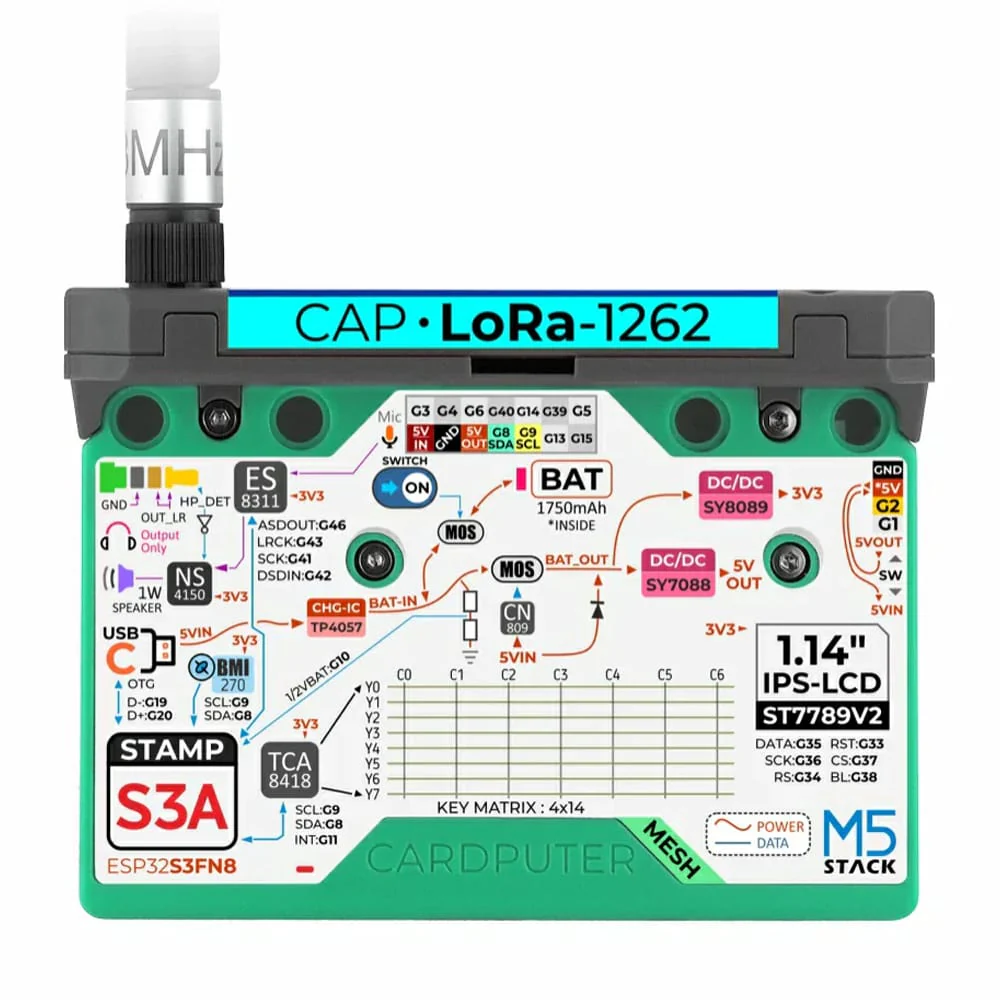

The Cardputer Adv is a card-sized portable programmable controller built on the Stamp-S3A module (based on the ESP32-S3FN8). It features a 1.14" LCD screen and a 56-key compact keyboard for convenient on-site information display and command input. A built-in 1750mAh lithium battery ensures extended standalone operation. It integrates an ES8311 audio codec, MEMS microphone, 1W speaker, and 3.5mm audio jack for voice interaction and audio output.
Additional features include a 6-axis IMU, an infrared emitter, a microSD card slot, Grove interface, and an EXT 2.54-14P expansion bus. The chassis supports magnetic attachment and is compatible with LEGO mounting holes.

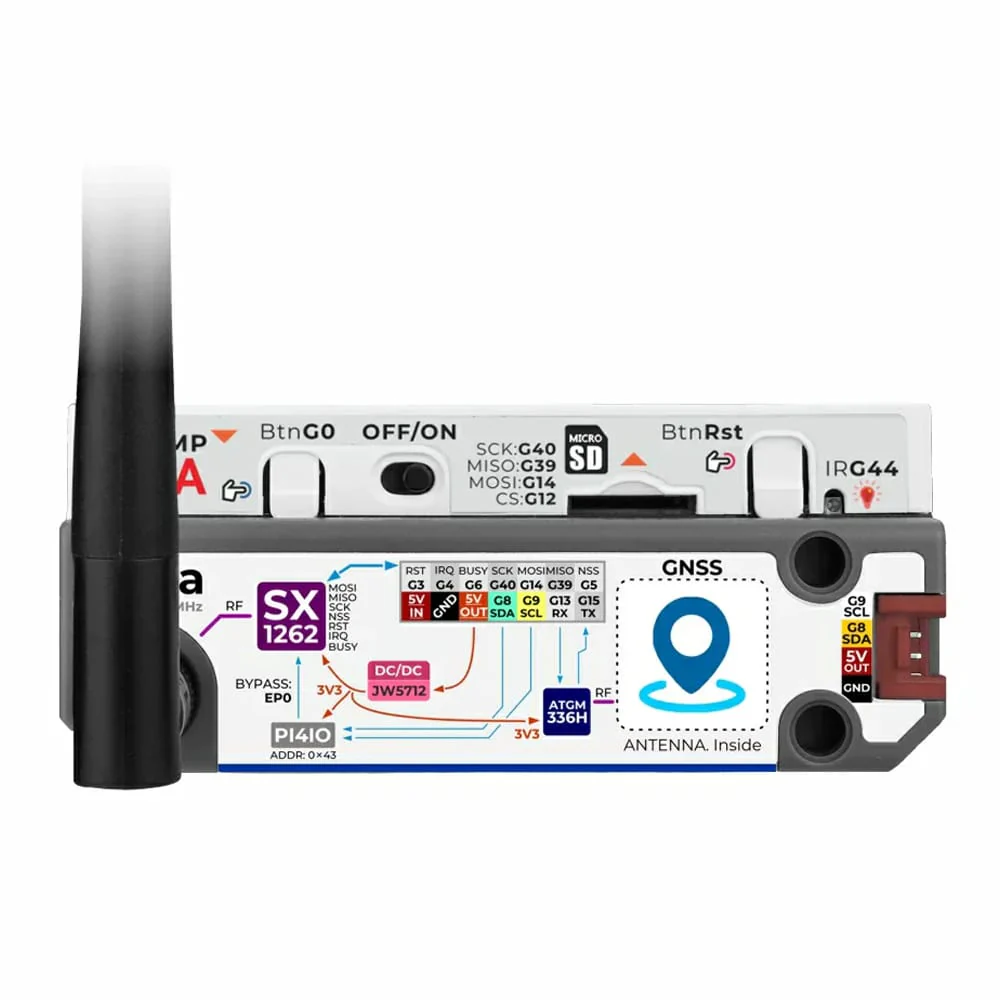

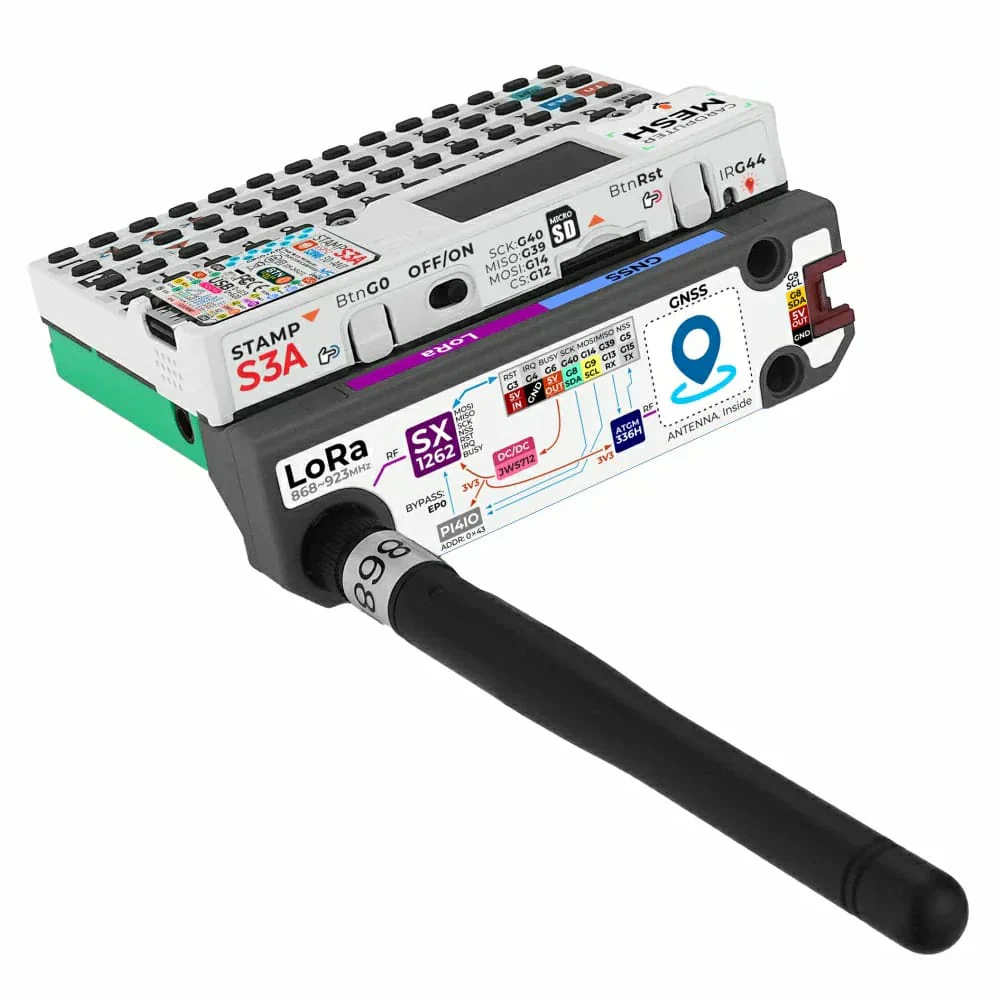

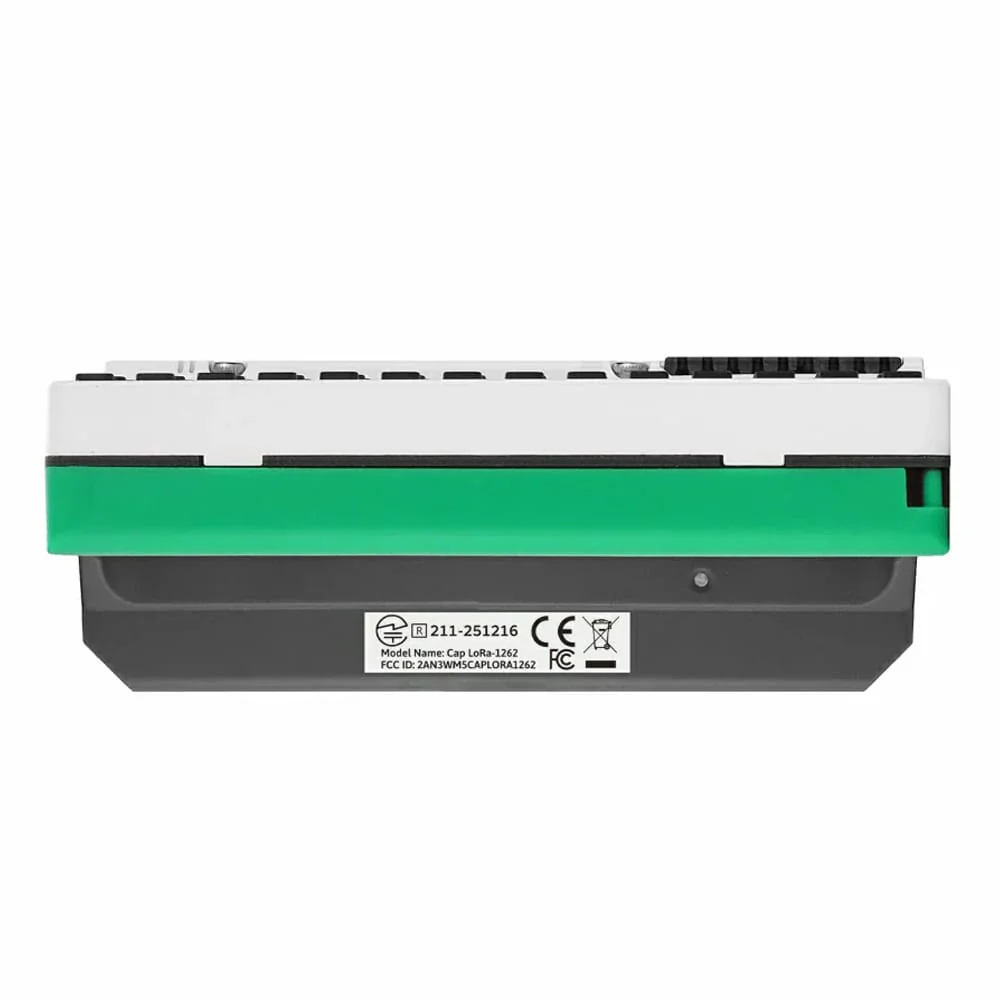

The bundled Cap LoRa 1262 serves as the communication expansion module of the kit. It connects to the Cardputer Adv via the EXT 2.54-14P interface, drawing power and control signals directly from the host - plug-and-play with no additional configuration required.
The module is built around the SX1262 LoRa solution, supporting the 868 ~ 923 MHz band with a receive sensitivity of -147 dBm and a transmit power of +22 dBm. An RP-SMA external antenna and RF shielding ensure reliable long-range communication with strong interference immunity. An integrated AT6668 GNSS module with built-in ceramic antenna supports multi-constellation positioning including GPS, BeiDou, GLONASS, and Galileo. The module also includes a Grove interface for connecting external sensors.

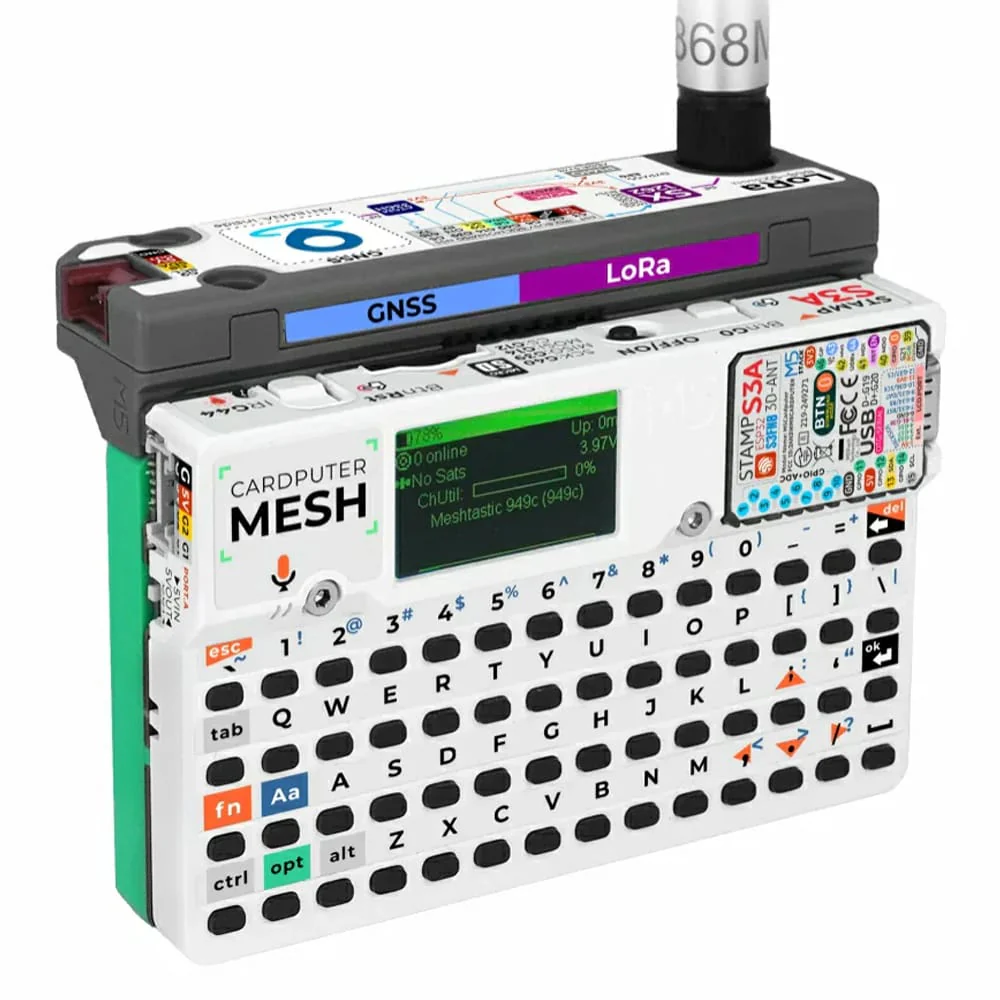

The Cardputer Mesh Kit comes pre-installed with Meshtastic firmware, making it ready to use out of the box - no complex development required to join a LoRa Mesh network. The Cardputer Adv and Cap LoRa 1262 work seamlessly together for easy configuration and intuitive positioning, making the kit well-suited for outdoor communications, node deployment, location tracking, and industrial inspection.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Core Controller (Cardputer-Adv):
- Stamp-S3A core module (ESP32-S3FN8)
- 56-key keyboard with 160gf comfortable key actuation
- 1.14" LCD screen (240 x 135px)
- ES8311 audio codec + NS4150B amplifier + 1W speaker + MEMS microphone
- 3.5mm audio output jack
- 6-axis IMU BMI270
- Infrared emitter
- microSD card slot
- Built-in 1750mAh lithium battery
- Grove interface + expansion bus
- Magnetic attachment on the back, compatible with LEGO mounting holes
Communication Module (Cap LoRa-1262):
- LoRa modulation technology + GNSS global positioning system
- Operating frequency: 868 ~ 923 MHz
- Receive sensitivity as low as -147 dBm, transmit power +22 dBm
- External RP-SMA antenna interface with built-in ceramic GPS antenna
- Supports GPS / QZSS / BD2 / BD3 / GAL / GLO multi-constellation positioning
- Grove expansion interface (for external sensor connection)
- Development Platform
- Arduino
- UiFlow2
- ESP-IDF
- PlatformIO
Specifications
| SoC | ESP32-S3FN8 @ Dual-core Xtensa LX7, up to 240MHz |
| Flash | 8MB |
| External Storage | microSD |
| Display | ST7789V2 @ 1.14", 240 x 135px |
| Keyboard | 56 keys (4 x 14), 160gf actuation force |
| Expansion Interface | HY2.0-4P (Grove) + EXT 2.54-14P |
| IR | 1 x Infrared Emitter |
| Audio Codec | ES8311 |
| Speaker | NS4150B amplifier + 8Ω @ 1W speaker |
| Microphone | MEMS microphone, SNR: 65 dB |
| IMU | BMI270 |
| Battery Capacity | 1750mAh |
| Operating Temperature | 0 ~ 40°C |
| Operating Current | DC 4.2V @ 120.2mA |
| LoRa Module | SX1262 |
| LoRa Frequency Range | 868 ~ 923 MHz |
| LoRa Programmable Bit Rate | Up to 300kbps |
| LoRa Antenna | Size: 108 x 9.3mm, Connector: RP-SMA (female), Gain: 3dBi |
| LoRa Transmit Power | +22dBm |
| LoRa Receive Sensitivity | -147dBm (low data rate mode) |
| LoRa Operating Current | DC 5V @ 163.4mA |
| Supported Modulation | FSK / GFSK / MSK / LoRa / OOK |
| GPS Module | ATGM336H-6N @ AT6668 |
| GPS Communication Interface | UART, default 115200bps @ 8N1 |
| Supported GNSS Systems | GPS / QZSS / BD2 / BD3 / GAL / GLO |
| GPS Channels | 50 channels |
| GPS Positioning Accuracy | <1.5m (CEP50) |
| GPS Update Rate | Up to 10Hz |
| GPS Time to First Fix | Cold start: 23s, Hot start: 1s |
Resources
- Product documentation
- Meshtastic Tutorial
- Datasheets
Package Contents
- 1x Cardputer Adv (Green Back Shell Version)
- 1x Cap LoRa 1262
- 1x LoRa Rubber Duck Antenna (RP-SMA Connector)
- 2x M2 4mm cap head machine screws
- 1x Hex Key (for M2 Screws)
- 1x Safety Warning Sticker
