Linear SoftPot (Ribbon Sensor) (100mm)

The Spectra Symbol SoftPot ribbon controller is a thin, adhesive-backed linear potentiometer that outputs a variable analogue voltage based on touch position, ideal for compact and responsive user input.

---

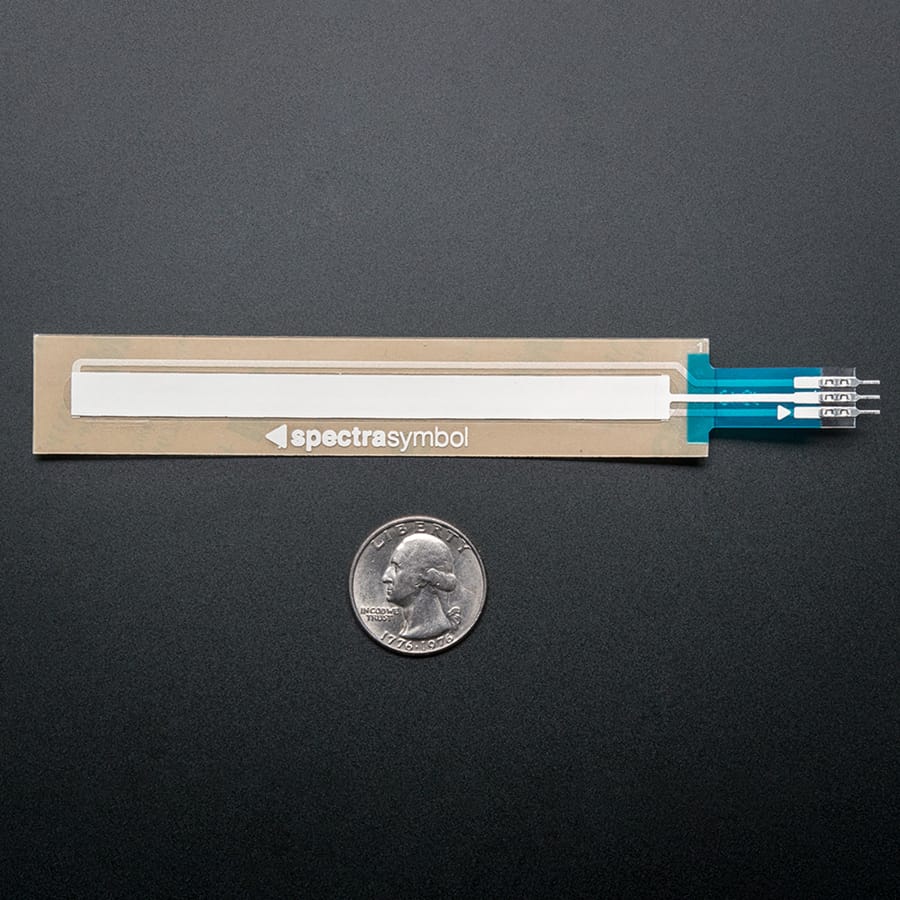

Manufactured by Spectra Symbol, these are nice little ribbon controllers (also known as 'soft potentiometers') with an adhesive backing.

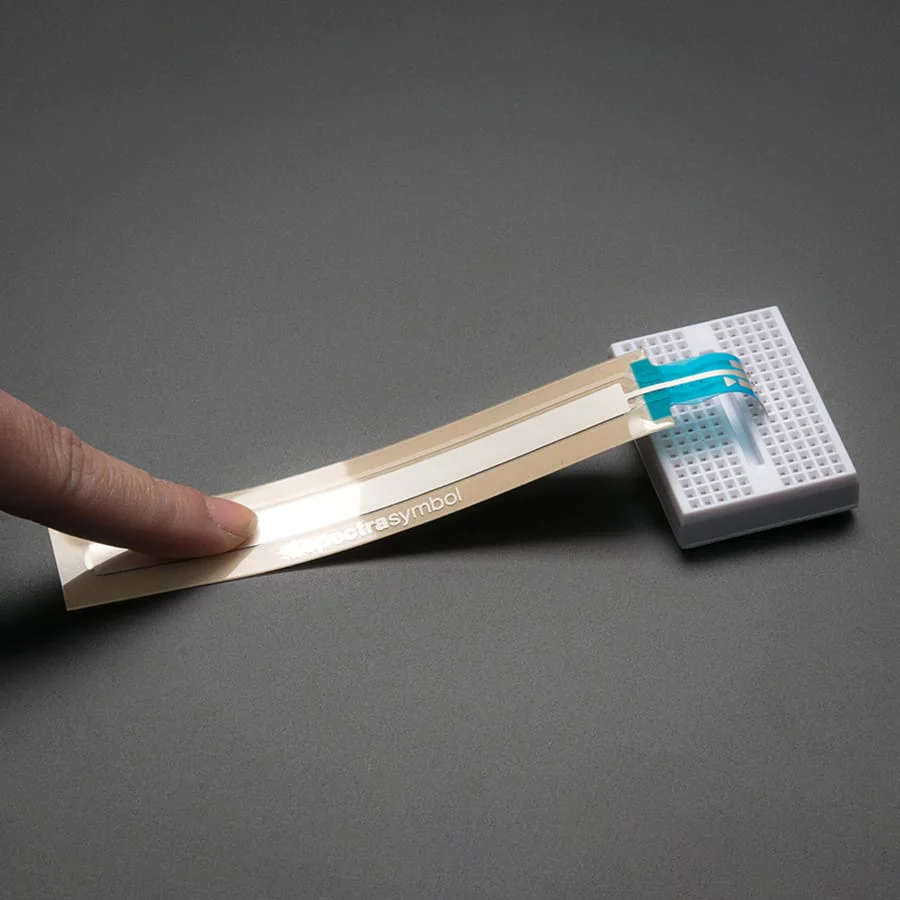

There is a nominal 10K resistance across the two outer leads. The middle pin resistance with respect to either of the outer pins changes depending on where on the strip one presses. When no pressure is applied, the middle pin floats, so be sure to use some sort of weak pullup, such as 100K ohm.

To use Connect one side pin to ground via a 10K resistor in series. Connect the other side pin to your Vcc power line (3V, 5V etc) via a different 10K resistor in series. Then read the analogue voltage on the centre pin. It will range from 1/3 Vcc to 2/3 Vcc .

Please note: Do not connect to Ground and Power directly! Breadboard not included.

Features

• Ribbon controller (soft potentiometer) with adhesive backing by Spectra Symbol
• 10K nominal resistance across outer leads
• Middle pin resistance varies based on pressure point applied
• Requires 100K ohm weak pullup resistor when no pressure applied
• Connect outer pins to ground and Vcc through 10K series resistors
• Read analogue voltage on centre pin (ranges 1/3 Vcc to 2/3 Vcc)
• Compatible with 3V and 5V systems

Specifications

• Length: 140.6mm
• Width: 20.50mm
• Thickness: 0.58mm
• Weight: 1.68g

Resources

• Product Datasheet

Package Contents

• 1x Linear SoftPot (Ribbon Sensor) (100mm)

Breadboard not included.
