Adafruit 16-Channel PWM / Servo HAT for Raspberry Pi - Mini Kit
The Raspberry Pi is a wonderful little computer, but one thing it isn't very good at is controlling DC Servo Motors - these motors need very specific and repetitive timing pulses to set the position. Instead of asking the Pi Linux kernel to send these signals, pop on this handy HAT! It adds the capability to control 16 Servos with perfect timing. It can also do PWM up to 1.6 KHz with 12-bit precision, all completely free-running.
For use with Raspberry Pi Model Zero, A+, B+, Pi 2, Pi 3, Pi 4, or Pi 5 (any Pi with a 2 x 20 header) can be used with the Model A or B if you use a tall 2 x 13 header instead of the included 2 x 20.
The Adafruit 16-Channel 12-bit PWM/Servo HAT will drive up to 16 servos or PWM outputs over I2C with only 2 pins. The onboard PWM controller will drive all 16 channels simultaneously with no additional Raspberry Pi processing overhead. What's more, you can stack up to 62 of them to control up to 992 servos - all with the same 2 pins!
Works with any servo that can be powered by 5V and take 3.3V logic level signals.
Best of all, we even have a Python library you can use, so you'll be up and running instantly, to make your robotic creation come to life. The Adafruit PWM/Servo HAT is the perfect solution for any project that requires a lot of servos or PWM outputs! Please check out our detailed tutorial for lots more information including diagrams, schematics, installation instructions, and more

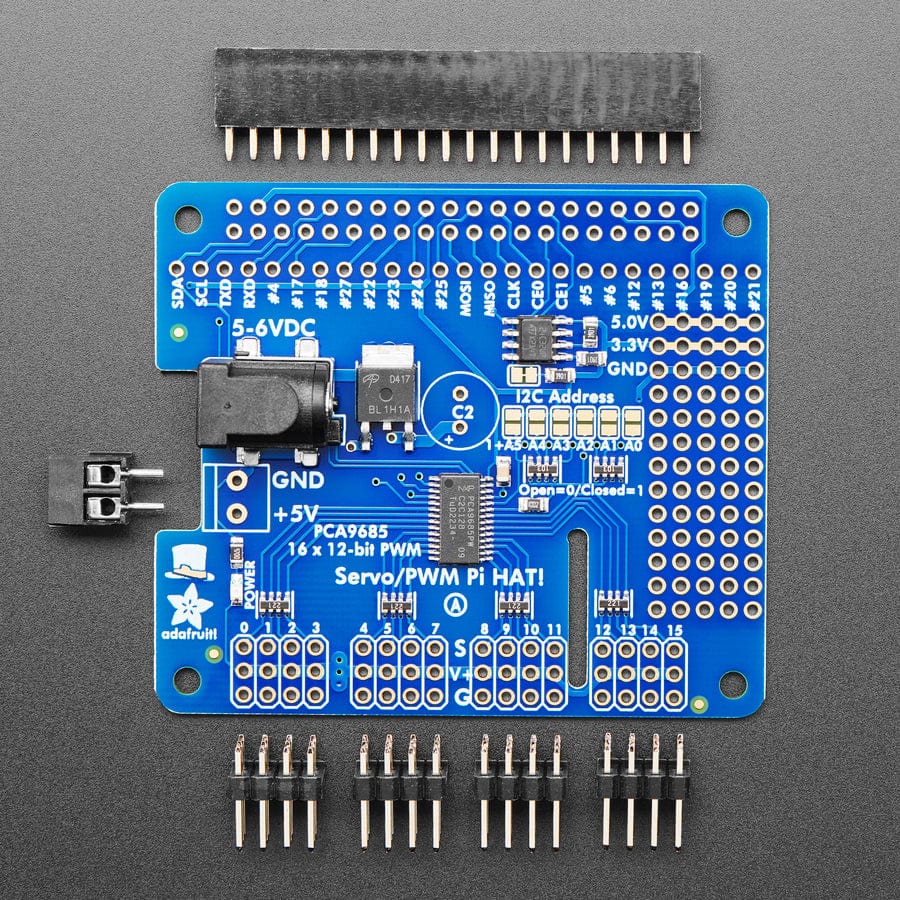

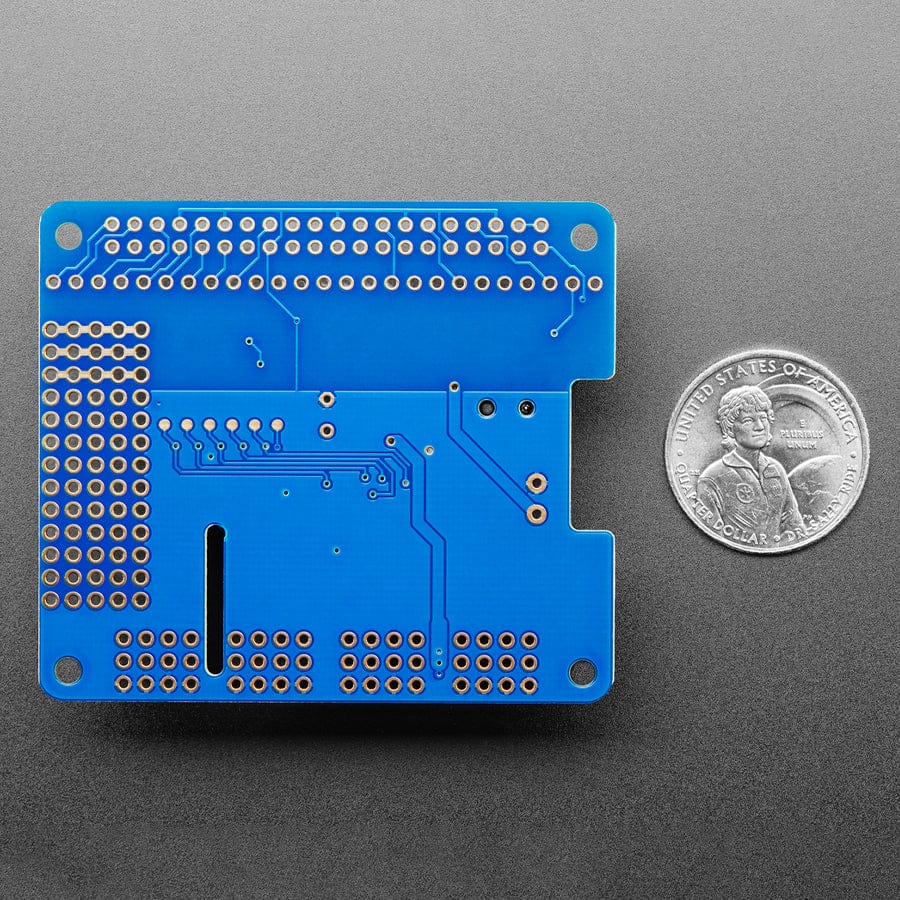

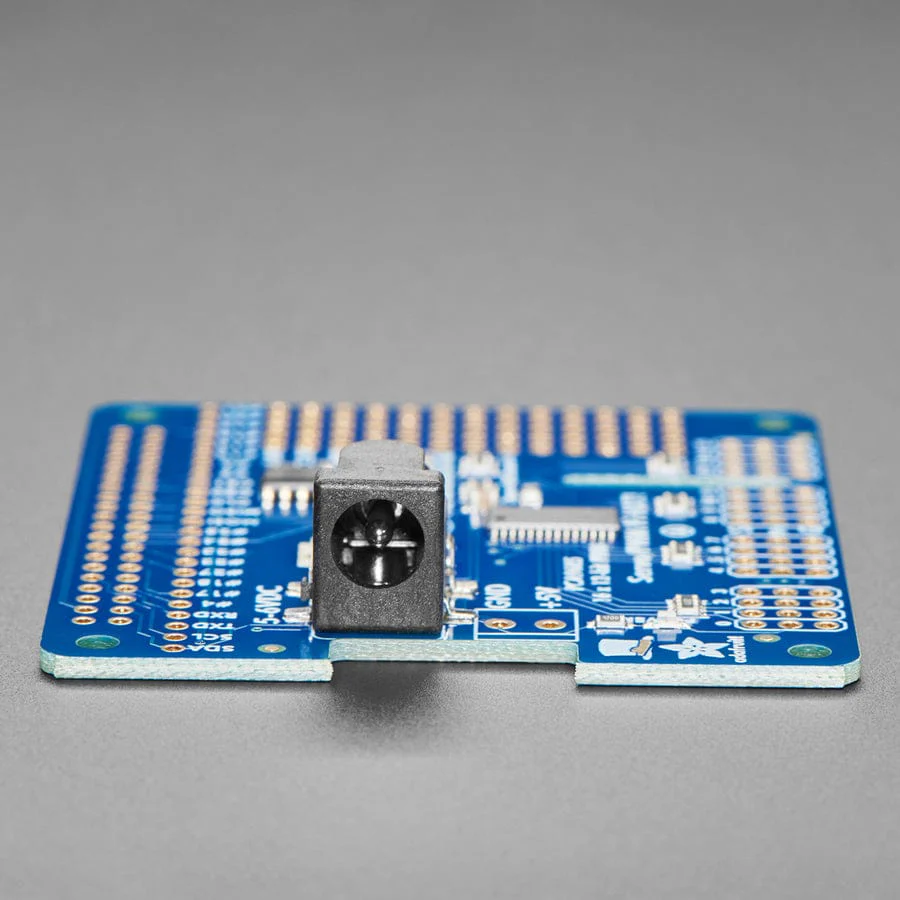

Each order comes with a Servo HAT, a 2-pin terminal block, four 3 x 4 headers, and a 2 x 20 socket header. You'll need to do some light through-hole soldering to attach the headers onto the HAT circuit board, but it's easy to do with basic soldering tools like a soldering iron and rosin core electronics solder. If you would like to stack multiple HATs onto one Pi, you can also pick up a 2 x 20 stacking header and a set of right-angle 3 x 4 headers that should be soldered on instead.
Please note! This kit does NOT come with Raspberry Pi, servos, or a required 5V power supply. We have recommendations on the required 5-6V power supply on the tutorial page, and a whole bunch of servo options in our shop, any 3-pin classic DC hobby servo will work. Also, the terminal blocks included with your product may be blue or black.
Revision History:
As of July 10, 2024 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.
Specifications
- Dimensions with components: 65mm x 56mm x 13mm
- Weight (unsoldered HAT only): 14g
Resources
- Product Tutorial
