HUZZAH - Adafruit Internet of Things Feather ESP8266 (WiFi Starter Kit)

Get started with Adafruit.io using this Feather HUZZAH ESP8266 IoT starter kit. Sense light, motion, humidity and temperature, then send data online and trigger LEDs, sound or a motor. Feather included, but no USB cable, breadboard or LiPo battery. Some soldering required.

---

If you’ve signed up for Adafruit.io and want to start building something fun and Internet-connected, this starter kit gives you a solid set of sensors and parts to get going. You can measure things like light, motion, humidity, and temperature, then send the data to Adafruit.io for storage. You can also trigger outputs like LEDs, sound, and a motor when something changes.

This kit is designed for makers who want to use the low-cost Adafruit Feather HUZZAH with ESP8266 Wi-Fi, and are comfortable using that platform to explore IoT projects. A Feather HUZZAH development board is included, so you don’t need an Arduino or any other microcontroller.

Please note: this pack does not include a USB micro-B cable (any sync + charge cable is fine — not charge-only), a solderless breadboard, or a LiPo battery. You’ll need a USB cable to program and debug the Feather HUZZAH, and you’ll need either USB power or a LiPo battery to run it. You may also want a full-size breadboard and some prototyping wires. Some soldering is required to assemble the Feather HUZZAH ESP8266 and the HDC1008 sensor.

Revision History

• As of March 7, 2022, this pack now comes with the DHT20 - AHT20 Pin Module - I2C Temperature and Humidity Sensor. We no longer carry the DHT22.
• As of June 2, 2021, the magnet door sensors now come with premium wire ends for easy breadboarding.

Resources

• Adafruit IO
• Adafruit IO Connected Animated GIF Display
• Adafruit HUZZAH ESP8266 breakout
• A Sillier Mousetrap: Logging Mouse Data to Adafruit IO with the Raspberry Pi

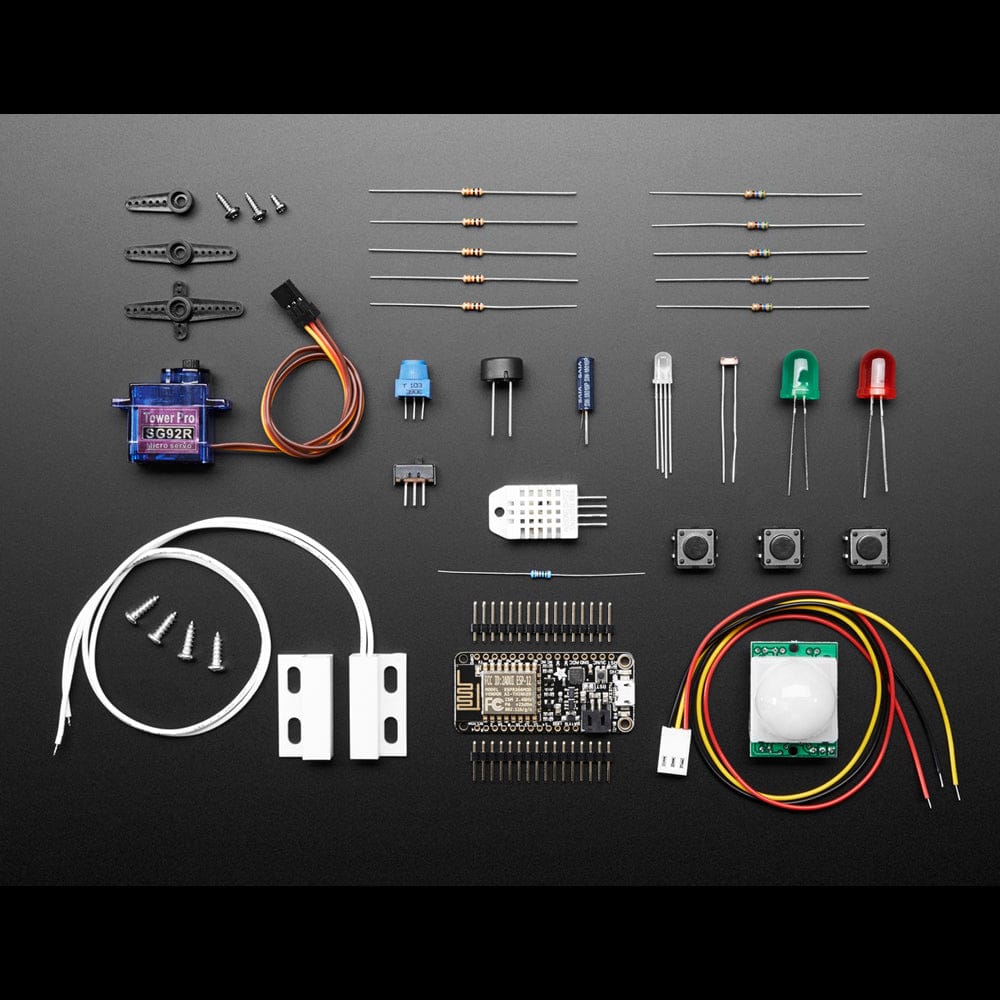

Package Contents

• Adafruit Feather HUZZAH with ESP8266 Wi-Fi
• Fast Vibration Sensor Switch (Easy to trigger)
• DHT20 - AHT20 Pin Module - I2C Temperature and Humidity Sensor
• PIR (motion) sensor
• Magnetic contact switch (door sensor)
• Micro servo
• Huzzah Starter Pack Component Bag
• 1x Breadboard-friendly SPDT Slide Switch
• 1x Diffused RGB (tri-color) LED
• 1x Piezo Buzzer
• 1x Photo cell light sensor
• 3x 12mm Tactile Switches
• 1x Diffused 10mm Red LED
• 1x Diffused 10mm Green LED
• 1x 10K Trim Potentiometer
• 5x 10K 5% 1/4W resistors
• 5x 560 ohm 5% 1/4W resistors
