Voltaic Small Solar Panel Bracket

The Voltaic BK101 Small Solar Panel Bracket provides a lightweight, durable way to mount small solar panels to poles, pipes or flat surfaces.

---

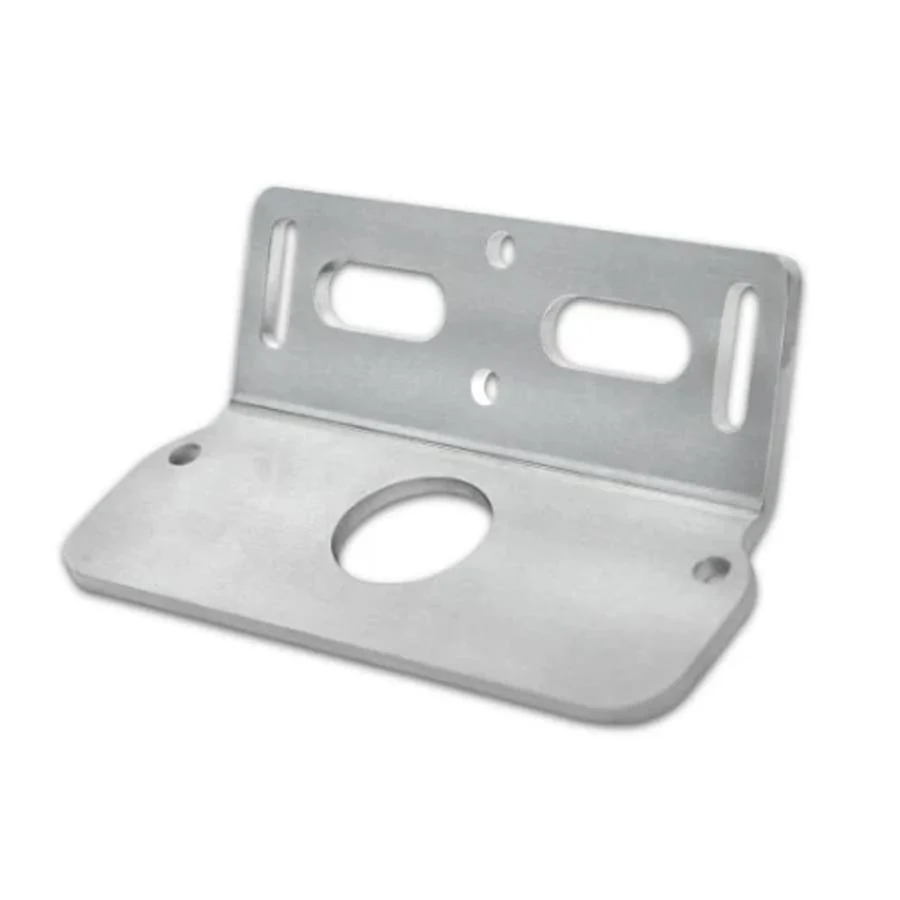

The Voltaic BK101 is a compact aluminium bracket designed for mounting the Voltaic P126 solar panel to vertical or horizontal poles/pipes, or simple flat surfaces.

Made from 2.5mm aluminium, it offers a lightweight yet durable solution built to withstand outdoor conditions and high winds. It supports installation to your intended surface using U-bolts, pipe clamps, or simple screw fixing, providing flexibility for a range of small-scale, long-term solar setups.

Screw & Washer Set (or similar DIY solution) to attach the solar panel to the bracket is required.

Bracket only - fixings and solar panel are not included.

Features

• Compact aluminium bracket for mounting small Voltaic solar panels (such as the Voltaic P126)

• Compatible with vertical or horizontal poles and pipes
• Constructed from 2.5mm aluminium for durability and lightweight design
• Resistant to outdoor conditions and high winds
• Supports surface installation via U-bolts, pipe clamps or screws (not included)
• Ideal for small-scale, long-term solar applications

Specifications

• Material: 2.5mm 6063 aluminium
• Weight: 54g
• Angle from horizontal: 40 degrees

Compatibility

Voltaic ETFE Solar Panel (P126)

• 2W Panel
• Drill hole in 2x pre-marked locations and connect to bracket using ETFE Panel Screw and Washer Set.

Voltaic Urethane Solar Panels

• 1W Panel and 2W Panel

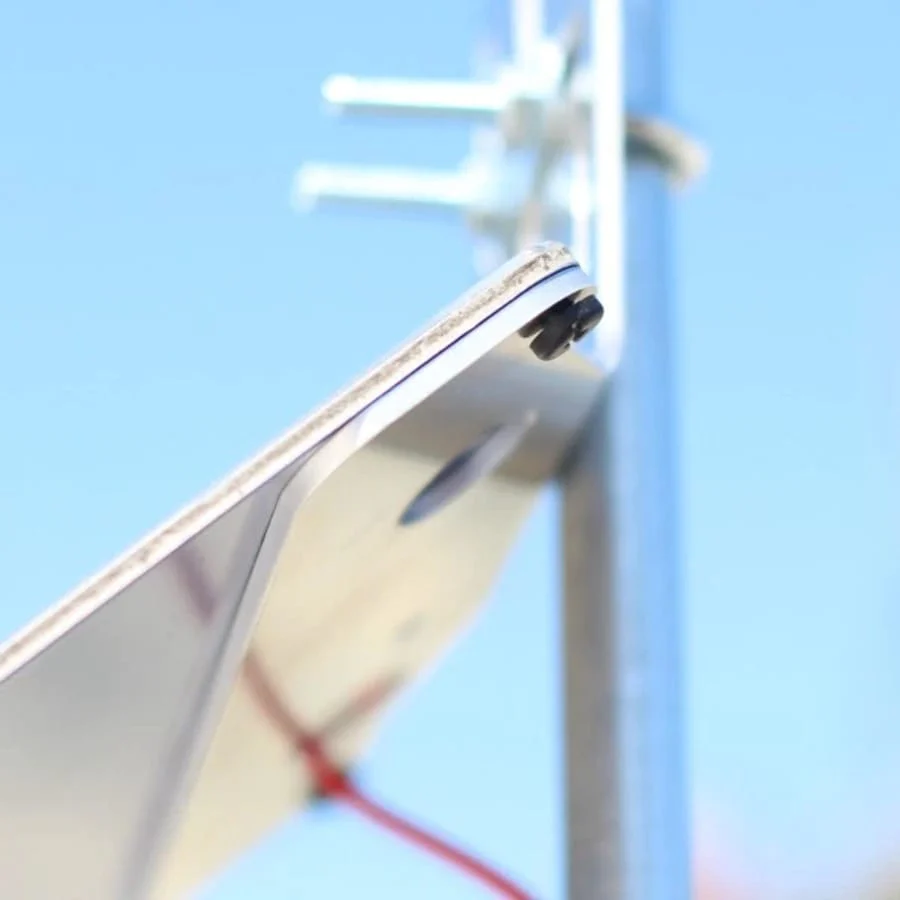

• Connect to bracket using the embedded screw and ABS post nut.

Hardware mounting

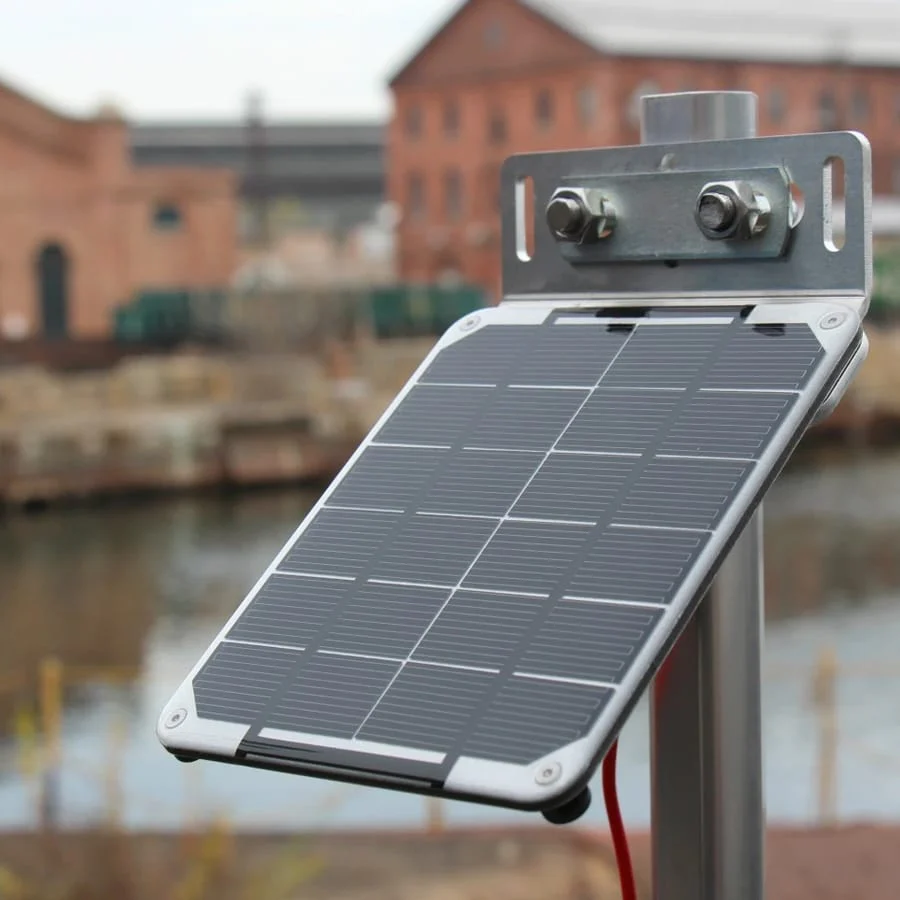

• U-Bolt compatibility for vertical pole: 0.75-2" [16mm-51mm] (will support 1/2" pipe)

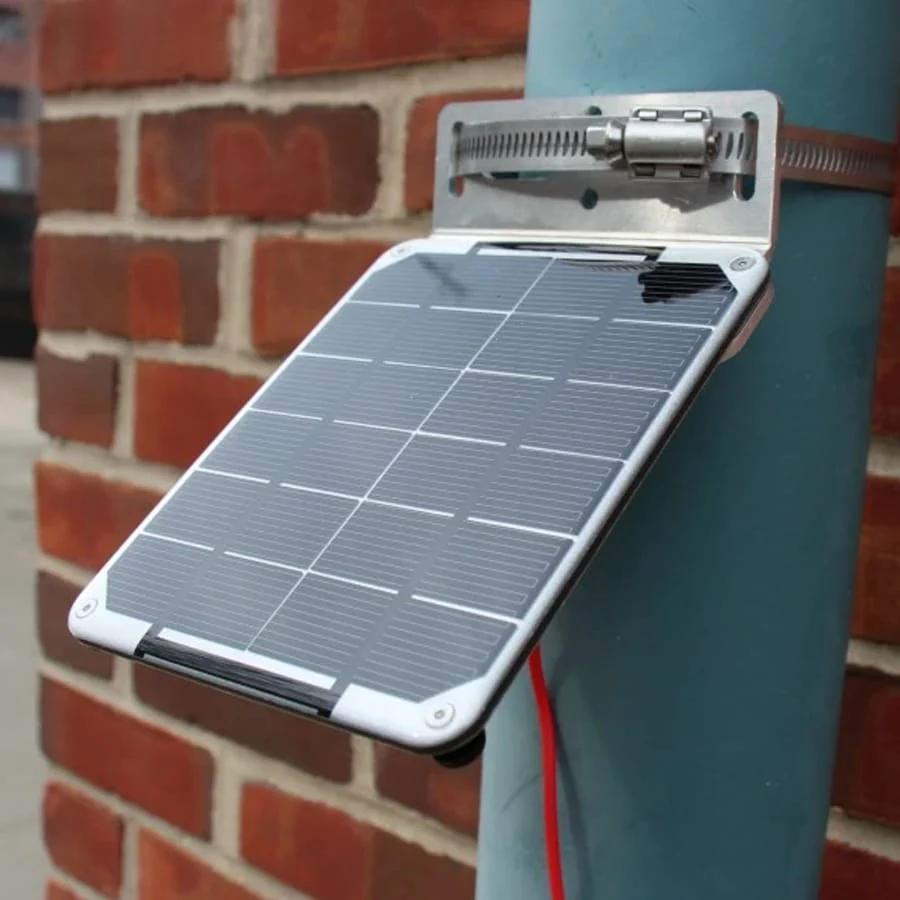

• Pipe clamp compatibility for vertical pole: +2" [+51mm]
• Max U-Bolt Thickness: 3/8" [9mm]

Resources

• Technical drawing
• Mounting option image

Package Contents

• 1x Voltaic BK101 Small Panel Bracket

Bracket only - fixings and solar panel are not included.
