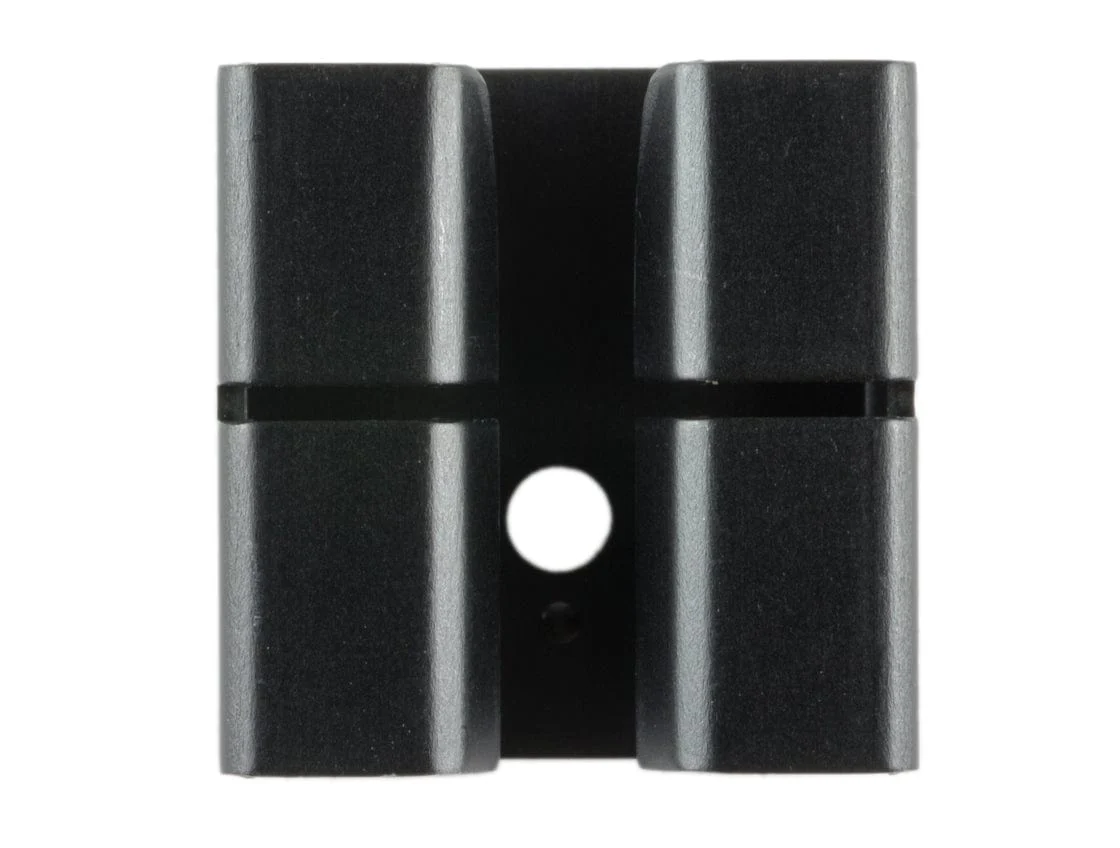

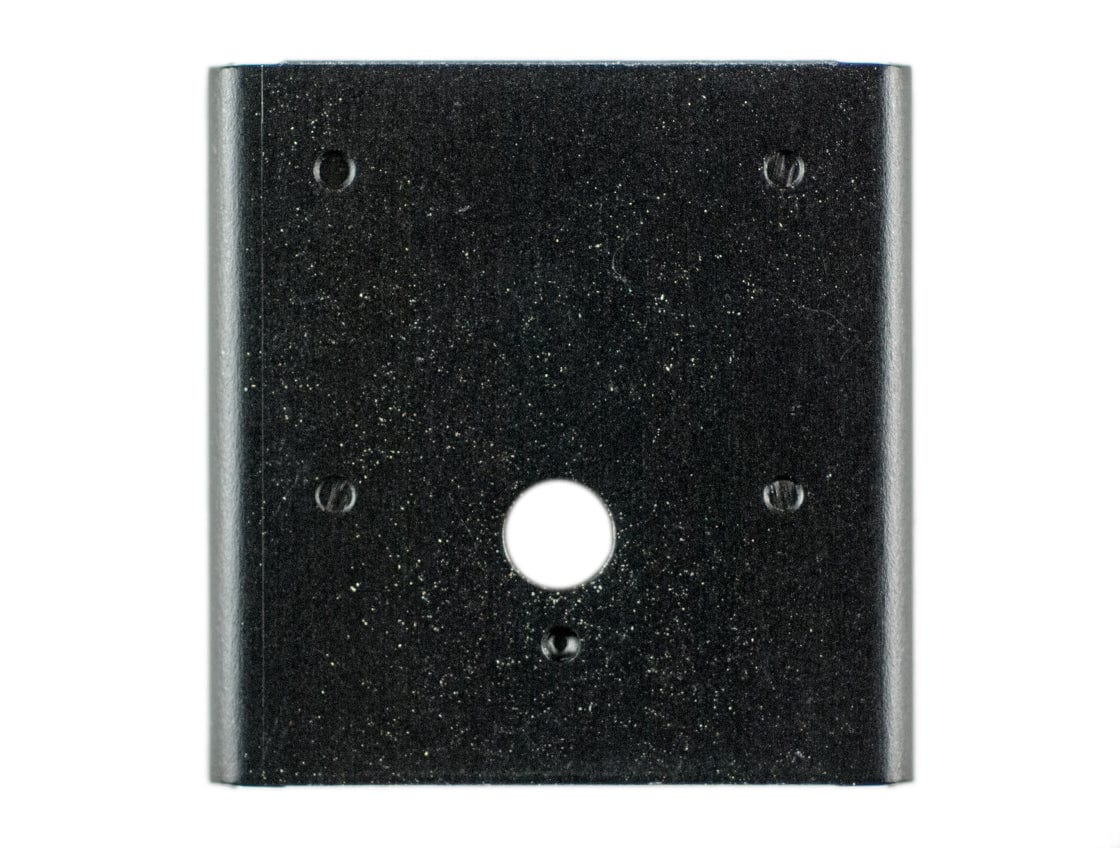

TO-220 Clip-on Heat Sink
Voltage regulators and transistors can get a little hot sometimes! Most chips state that they can cope with high currents and voltage drops, but running these devices in high-capacity situations can shorten their life.

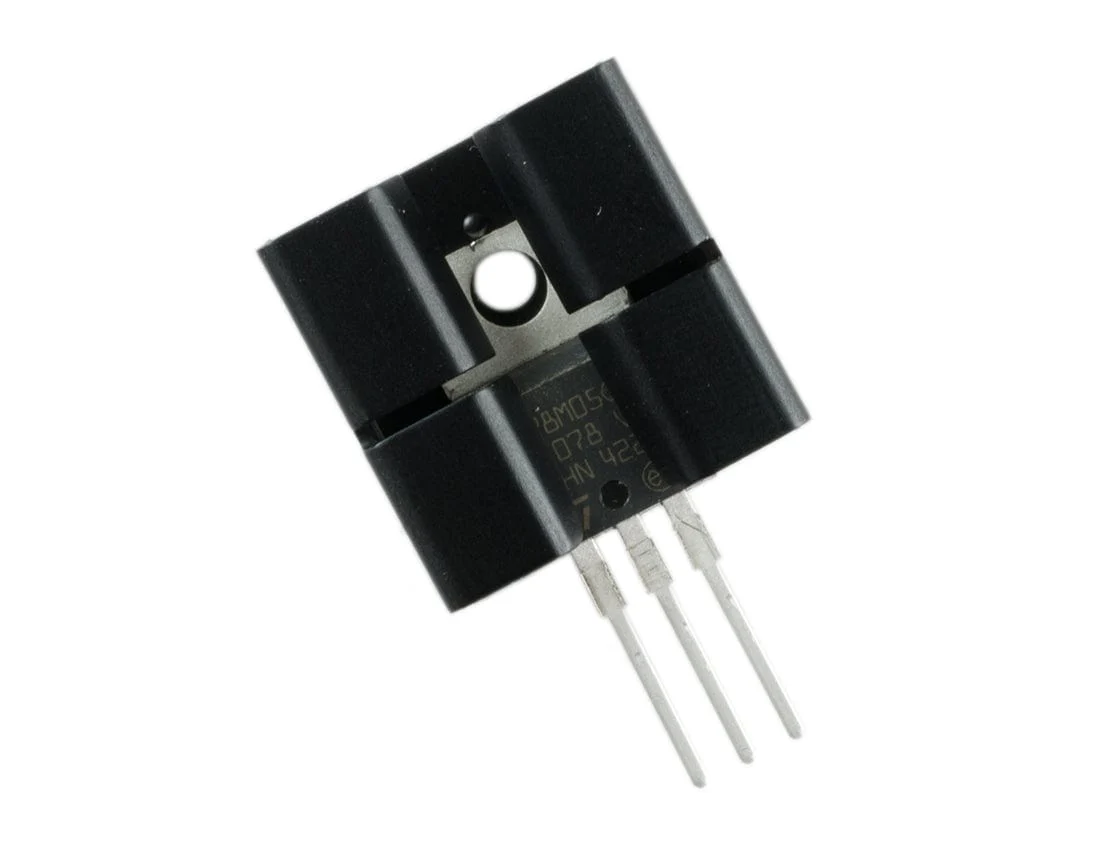

If you need to protect them from burning out, then add this nifty slide/clip-on** heat sink! No screws of thermal paste required, these heat sinks simply slide** onto any TO-220 size chip.
These heat sinks have a thermal resistance of 28°C/W when connected to a TO-220 chip, which should let you dissipate around 4 Watts of power.
** These heatsinks are slide/Clip-on but you do need to give it a good push, approaching from the side with the angled corner. TO-220 chips are tough, so don't worry about damaging the casing - it needs a good tight hold!
Specification
- Packages Cooled : TO-220
- Thermal Resistance : 28°C/W
- External Height : 20mm
- External Width : 19.7mm
- External Length : 8.1mm
- Mounting Type : Vertical / Horizontal clip-on
