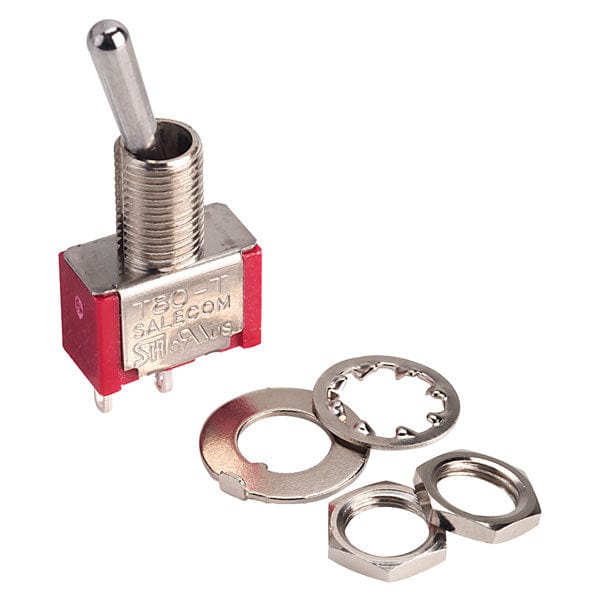

Toggle Switch (SPST) [discontinued]

Small SPST (on/off) toggle switch useful for connecting battery packs or making controls. Rated for up to 5A.

Body dimensions: 13.5mm wide x 7mm deep x 13.5mm high (including contacts). The overall height including the toggle is 33mm, and the thread diameter is 6mm.

Technical Details

• 5A Contact Current
• 125V Contact Voltage
• Copper Alloy Contact, Silver Plated
• Operating Temperature -30ºC to +85ºC
• Solder Lug Terminal
• 1/4-40UNS Thread
• 8.89mm Long Thread
• Bat Actuator
• 10.41mm Long Actuator
• Dimensions: 12.7 x 6.86 x 21.72mm
• Stainless Steel Housing
