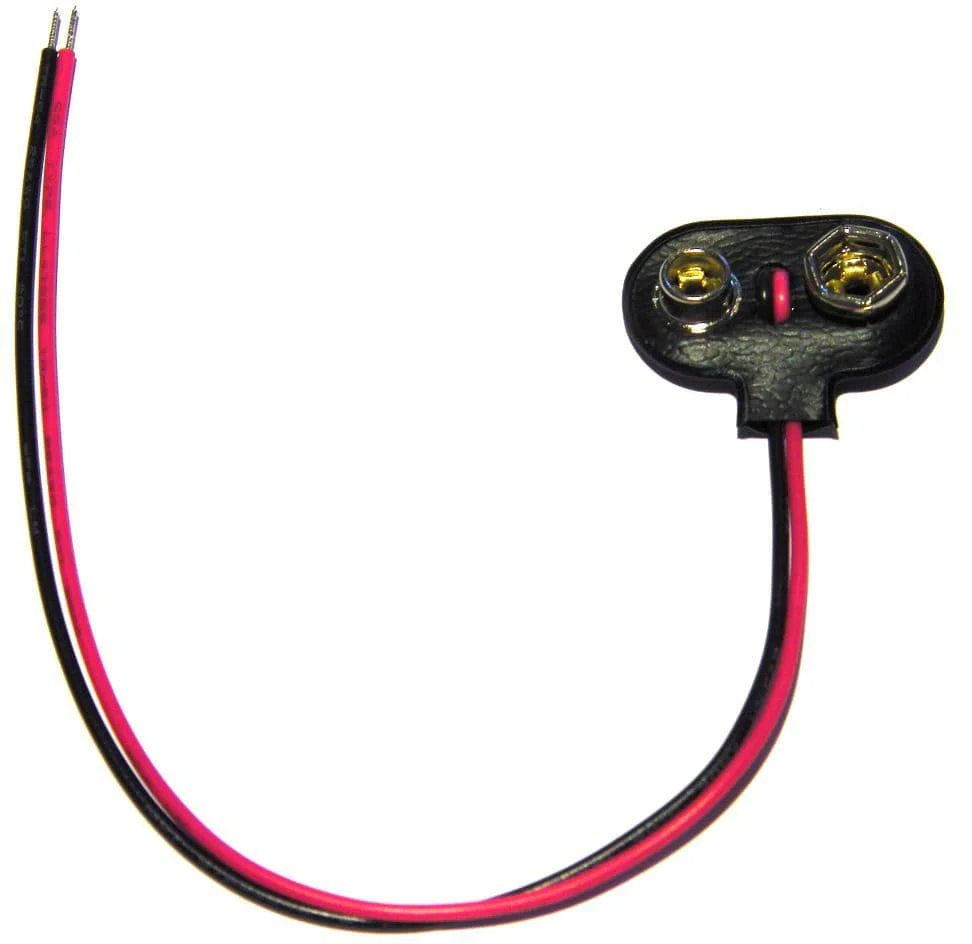

T-Shaped 9V PP3 Battery Snaps - 5 Pack [discontinued]
Battery snaps are a must-have for any electronic project featuring a 9V PP3/PP6 Type battery.
These battery snaps are T-shaped with strain relief, so you're much less likely to break them if the leads are pulled, and feature a flexible vinyl cover designed to accept 9V (PP3 and PP6 Type) batteries.
Termination is via two colour coded (red/black) insulated flexible multicore wires of approximately 150mm (6”) in length, with 6mm long tinned ends for quick soldering.
Comes fully assembled in a pack of 5 snaps.
Features
- Vinyl Base Size: 24.5mm × 13.4mm
- Comes Fully Assembled and Fully Insulated
- Completely covers the exposed metal studs
- 5-Pack
- T-Shaped 'Side Entry' with Strain Relief
- Contacts: Brass, Nickel Plate
- Wire: 26 AWG, 7/34
- Wire End Strip: 6.4mm Long, Tinned
- Wires meet UL & CSA 1007 Requirements
Description
Battery snaps are a must-have for any electronic project featuring a 9V PP3/PP6 Type battery.
These battery snaps are T-shaped with strain relief, so you're much less likely to break them if the leads are pulled, and feature a flexible vinyl cover designed to accept 9V (PP3 and PP6 Type) batteries.
Termination is via two colour coded (red/black) insulated flexible multicore wires of approximately 150mm (6”) in length, with 6mm long tinned ends for quick soldering.
Comes fully assembled in a pack of 5 snaps.
Features
- Vinyl Base Size: 24.5mm × 13.4mm
- Comes Fully Assembled and Fully Insulated
- Completely covers the exposed metal studs
- 5-Pack
- T-Shaped 'Side Entry' with Strain Relief
- Contacts: Brass, Nickel Plate
- Wire: 26 AWG, 7/34
- Wire End Strip: 6.4mm Long, Tinned
- Wires meet UL & CSA 1007 Requirements
