SupTronics X12-A1 4-Cell Battery Holder for X1209/X1203

The SupTronics X12-A1 is a 4-cell parallel 18650 battery holder designed for use with compatible UPS HATs such as the X1209 and X1203. It supports up to four 18650 batteries (batteries not included) connected in parallel, making it suitable for applications requiring increased battery capacity and longer runtimes.

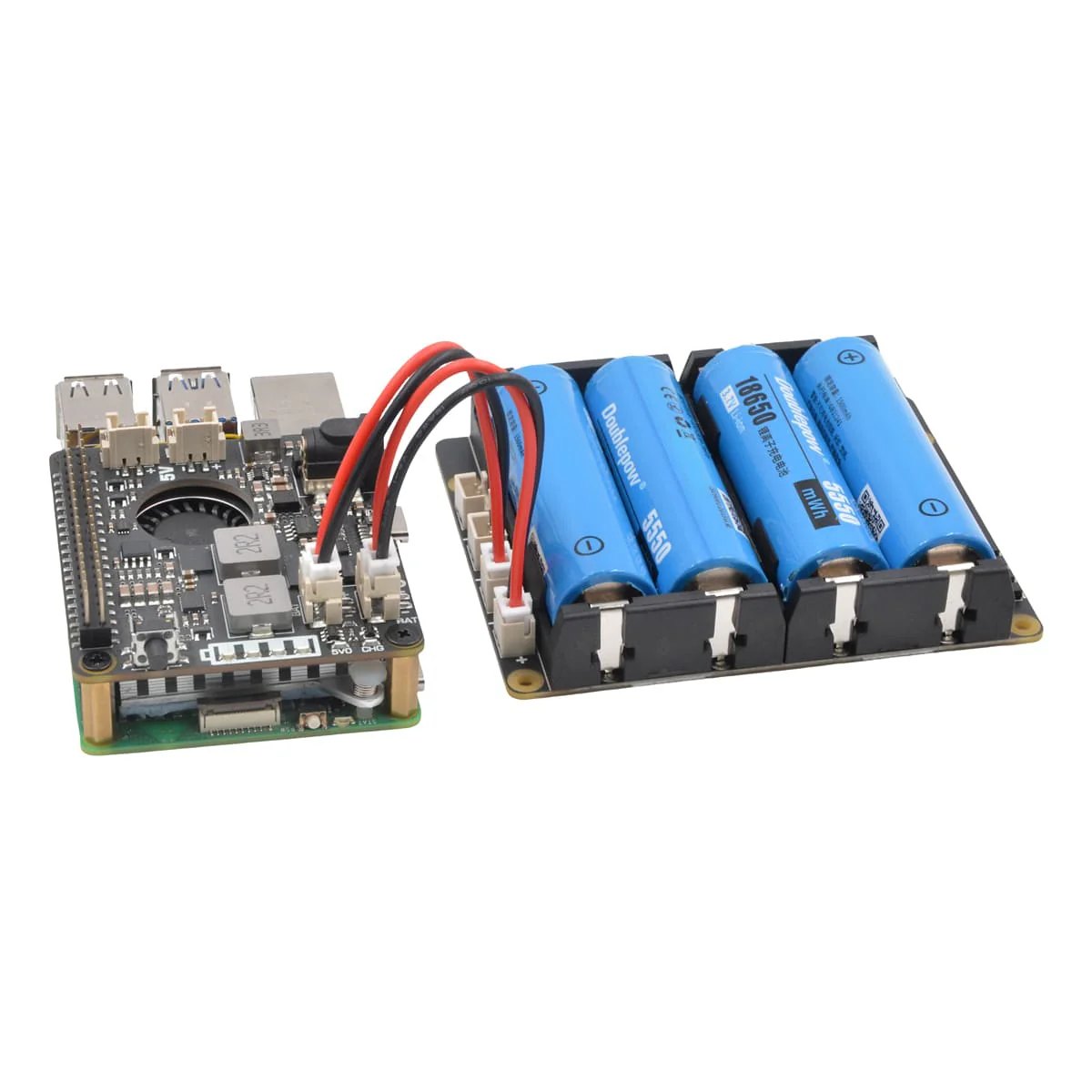

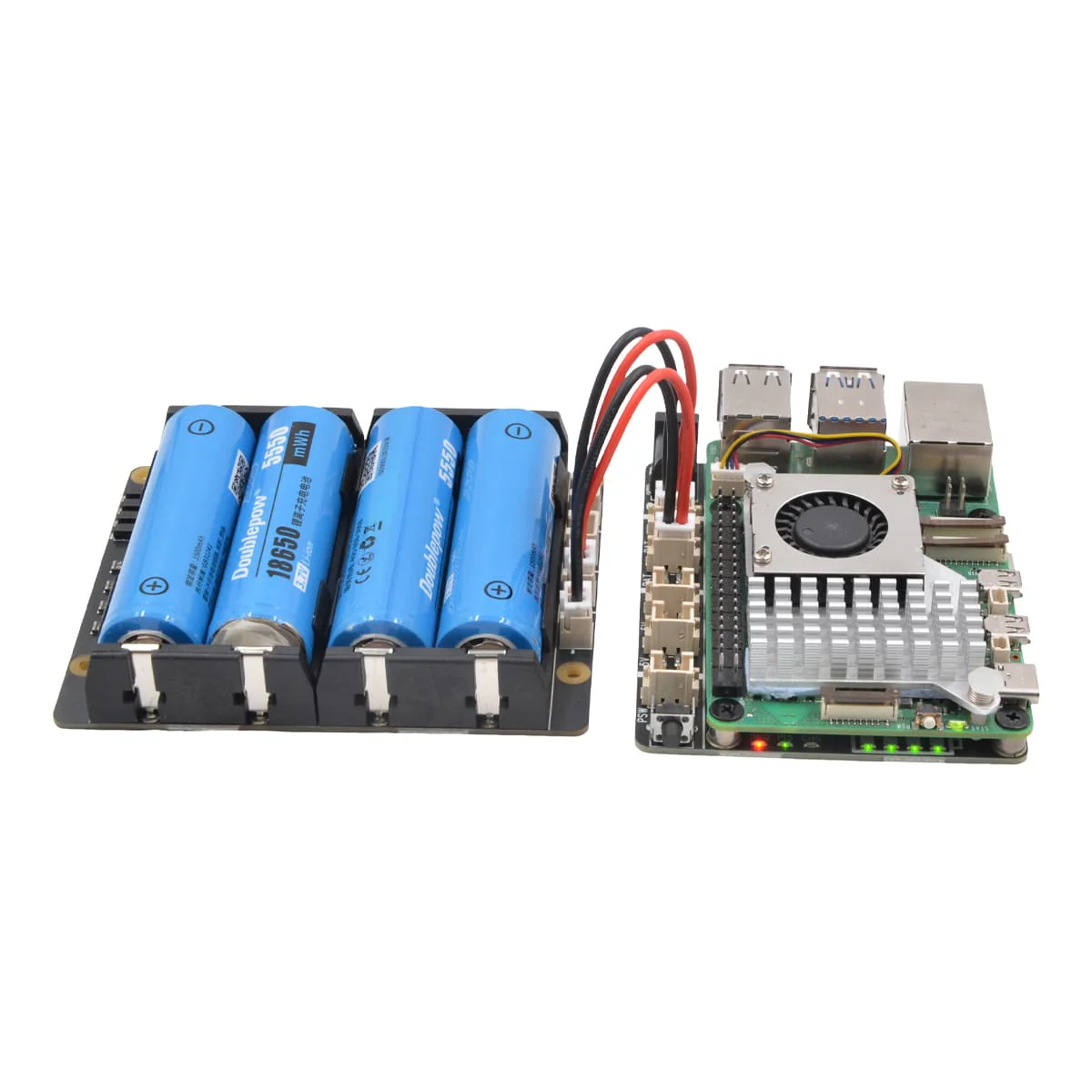

Each battery slot includes a resettable ultra-low-resistance fuse to help protect against over-discharge, improving both safety and reliability. The board also features four XH2.54 connectors for simple integration with supported UPS HAT models, including top-mount support for the X1209 and bottom-mount support for the X1203.

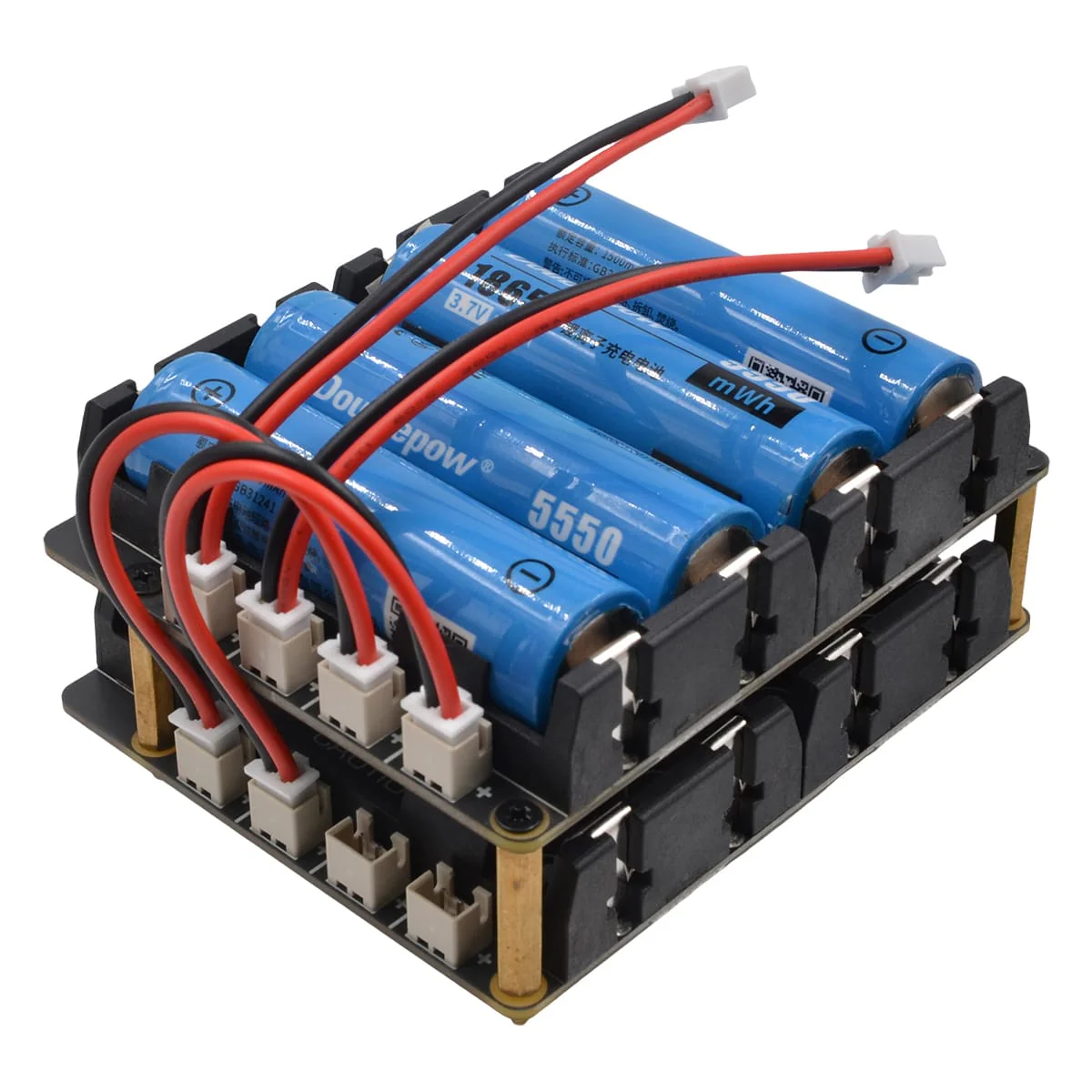

Its stackable design allows multiple holders to be connected together for further capacity expansion, making it a flexible option for larger power setups.

Please note: This is specifically designed to work with the X1209 and X1203!  Raspberry Pi and batteries are not included.

Features

• Holds 4x 18650 batteries in parallel
• Resettable fuse protection per cell
• 4x XH2.54 connectors included
• Direct compatibility with X1209/X1203 UPS HATs
• Stackable for capacity expansion

Specifications

Ports & Connectors	4-cell 18650 battery socket x1 XH2.54 2-pin Battery connector in parallel x4
PCB Size	93.9mm x 77.1mm

Safety Instructions & Warning

• It is essential to read and understand these safety instructions and warnings before charging your batteries.
• Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal injury, and damage to property if charged or used improperly.
• Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".
• Do not mix and use old batteries with new batteries, or batteries with different brand names.
• Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when they are two years old, whichever comes first.
• When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material or carpet unattended.
• Keep this product away from children to ensure their safety.

Resources

• Hardware information and assembly

Package Contents

• 1x SupTronics X12-A1 4-Cell Parallel 18650 Battery Holder
• 2x 2-pin 2.54mm pitch male-to-male cable AWG18 30cm
• 1x 2-pin 2.54mm pitch male-to-male cable AWG18 10cm (For X12-A1 stackable)
• 4x Spacer M/F 22mm (For X12-A1 stackable)
• 4x Screw M2.5x5mm (For X12-A1 stackable)
• 4x Screw nut M2.5 (For X12-A1 stackable)

Please note: Raspberry Pi and batteries are not included.
