SparkFun SOIC to DIP Adapter - 20-Pin

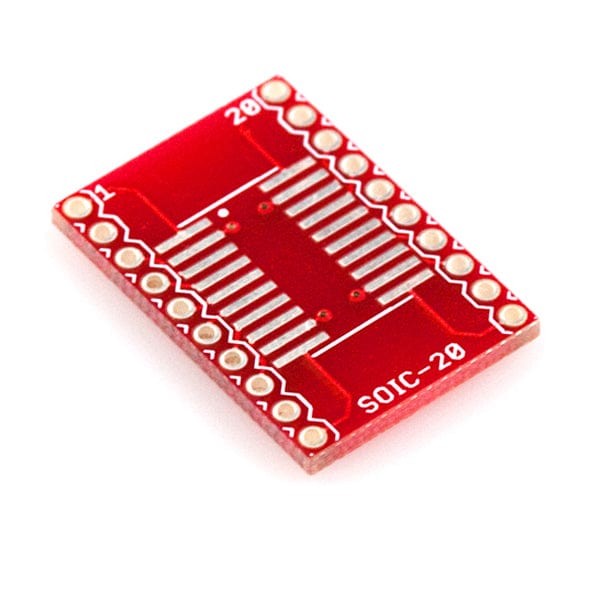

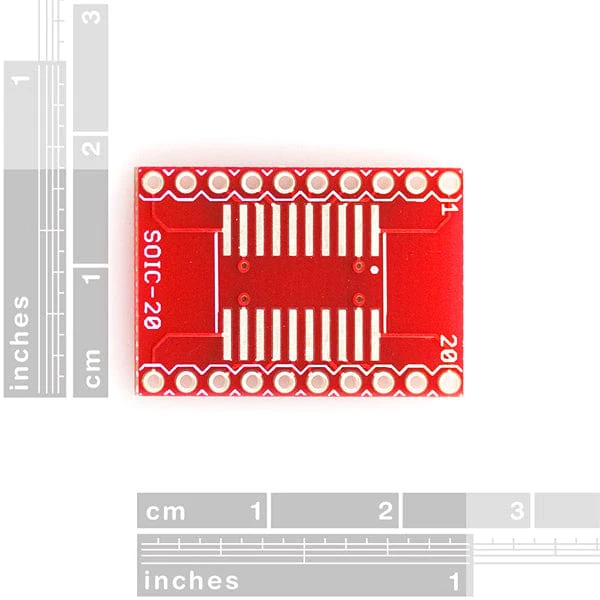

This is a low-cost, basic SOIC breakout board. This custom PCB will interface a standard SOIC package IC to 0.1" headers, which are easier to work with and integrate well with breadboards.
There is DIP-standard 0.6" spacing between the two rows of pins.
Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Specifications
- Dimensions: 0.7 x 1.1"
Resources
- Schematic
- Eagle Files
- GitHub (Design Files)
$6.54
SparkFun SOIC to DIP Adapter - 20-Pin—
$6.54
Description
This is a low-cost, basic SOIC breakout board. This custom PCB will interface a standard SOIC package IC to 0.1" headers, which are easier to work with and integrate well with breadboards.
There is DIP-standard 0.6" spacing between the two rows of pins.
Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Specifications
- Dimensions: 0.7 x 1.1"
Resources
- Schematic
- Eagle Files
- GitHub (Design Files)
