SparkFun ProtoScrewShield

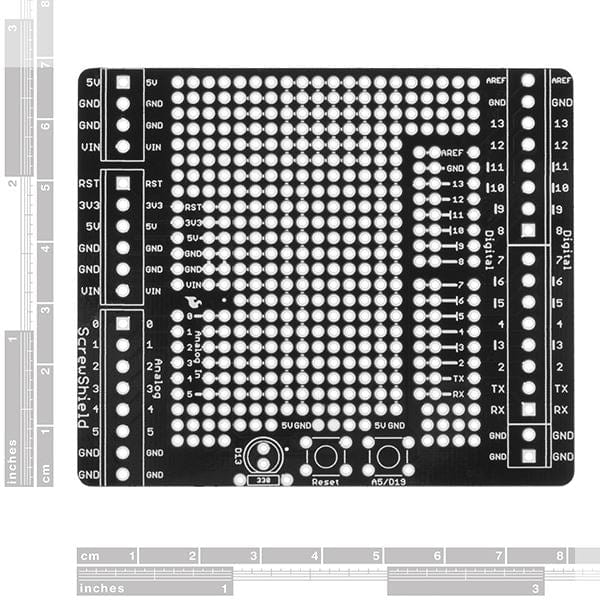

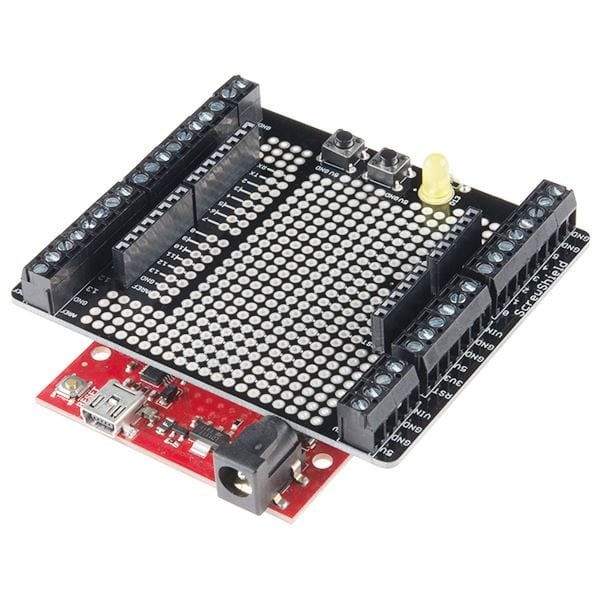

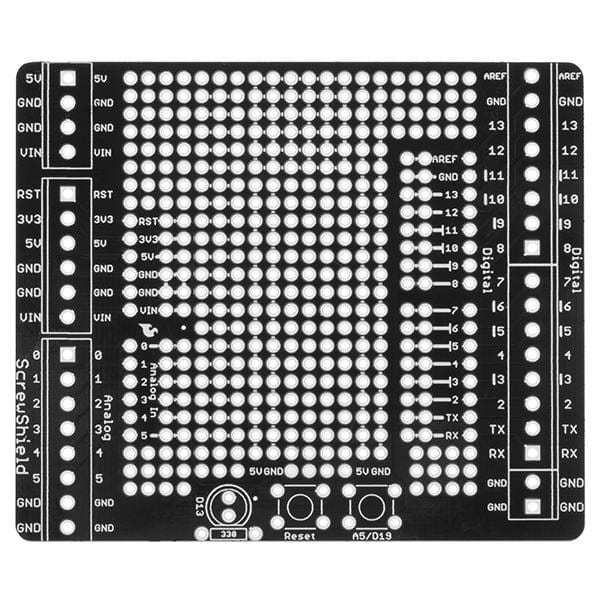

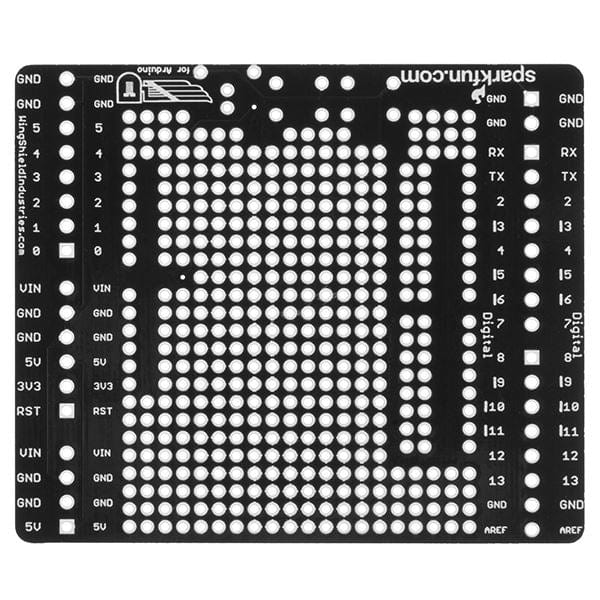

The ScrewShield extends all pins of the Arduino out to 3.5mm pitch screw terminals. It also has a lot of the utility provided by Arduino Protoshield, including: a large prototyping space of both connected and unconnected 0.1" spaced through-holes, a couple of 5V and GND busses, a reset button, general use push button, and a 5mm yellow LED.

This product includes all the parts shown and comes in kit form and must be soldered together by the end-user.

Note: This product is a collaboration with Tod Kurt, John Edgar Park, and Brian Jepson of WingShield Industries and a portion of each sale goes to them for product support and continued development.

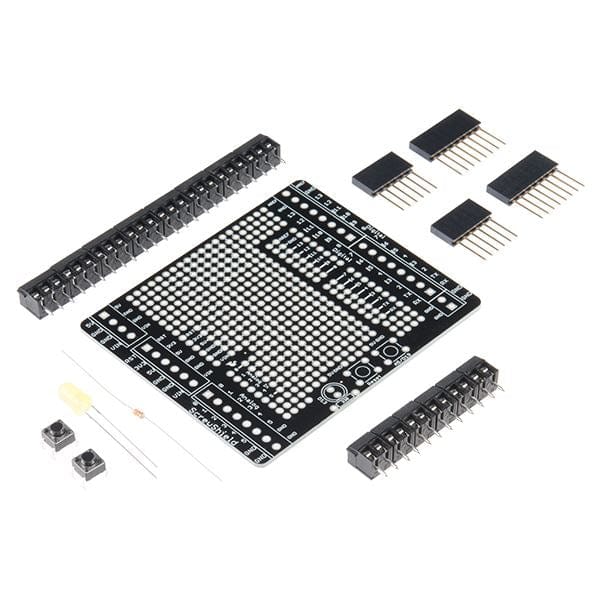

Includes

• 1x ScrewShield PCB
• 1x 5mm Yellow LED
• 1x 330Ω Resistor
• 2x 6-pin Stackable Headers
• 2x 8-pin Stackable Headers
• 2x Momentary Push Buttons
• 6x 2-pin 3.5mm Screw Terminals
• 8x 3-pin 3.5mm Screw Terminals

Documents

• Schematic
• Eagle Files
• Maker Faire Project
• Connection Diagram
• GitHub
