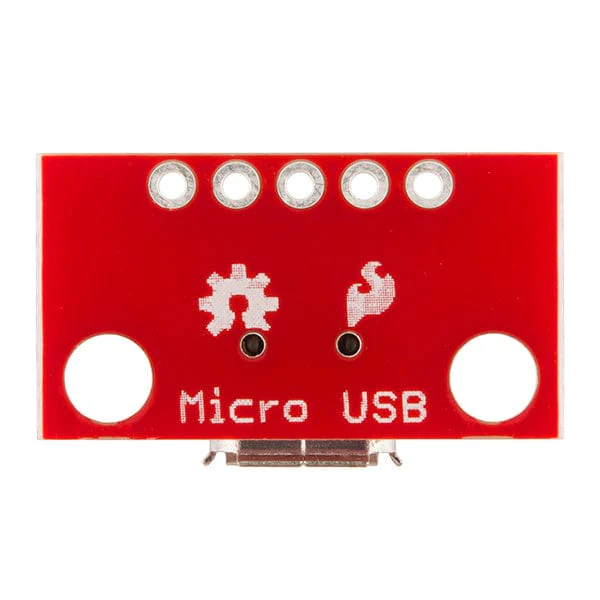

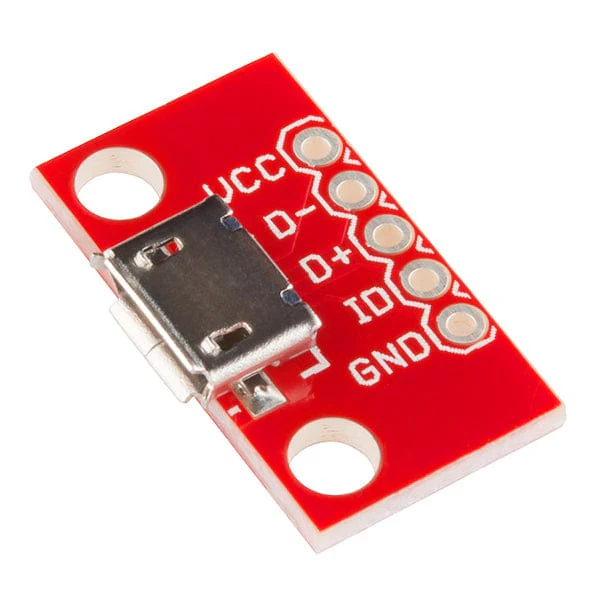

SparkFun Micro-USB Breakout

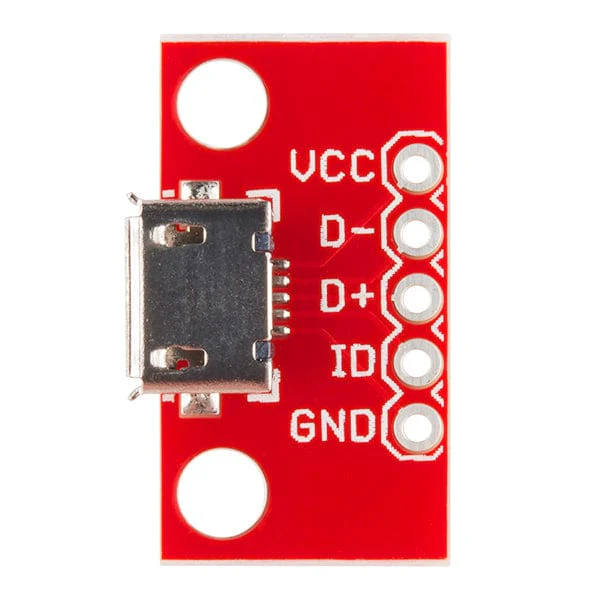

This simple board breaks out a Micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header.
If you want to add the popular Micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you!
Micro-USB cables are available here!
Specifications

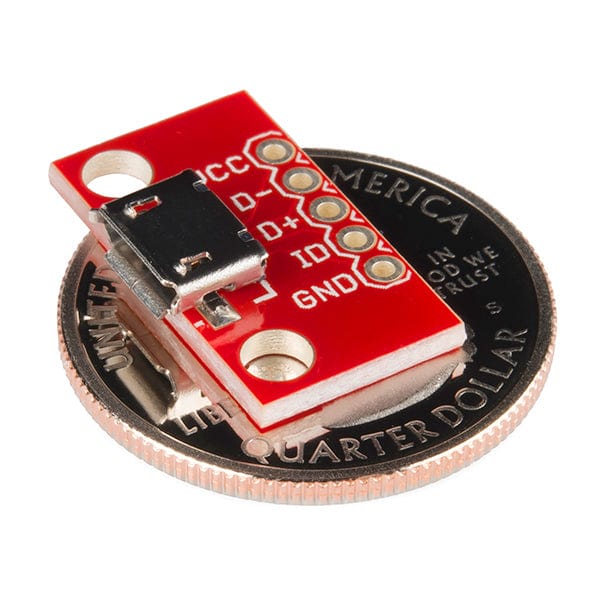

- Dimensions: 0.8 x 0.45" (20.3 x 11.4mm).
Resources
- Schematic
- Eagle Files
- GitHub
$3.95
SparkFun Micro-USB Breakout—
$3.95
Description
This simple board breaks out a Micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header.
If you want to add the popular Micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you!
Micro-USB cables are available here!
Specifications
- Dimensions: 0.8 x 0.45" (20.3 x 11.4mm).
Resources
- Schematic
- Eagle Files
- GitHub
