SparkFun DE9 Breakout - Female
The SparkFun Female DE9 Breakout includes a female DE9 connector with all nine pins and two ground connections routed to a 0.1" PTH header, measuring 31.75mm x 22.86mm with two 4-40 mounting holes.

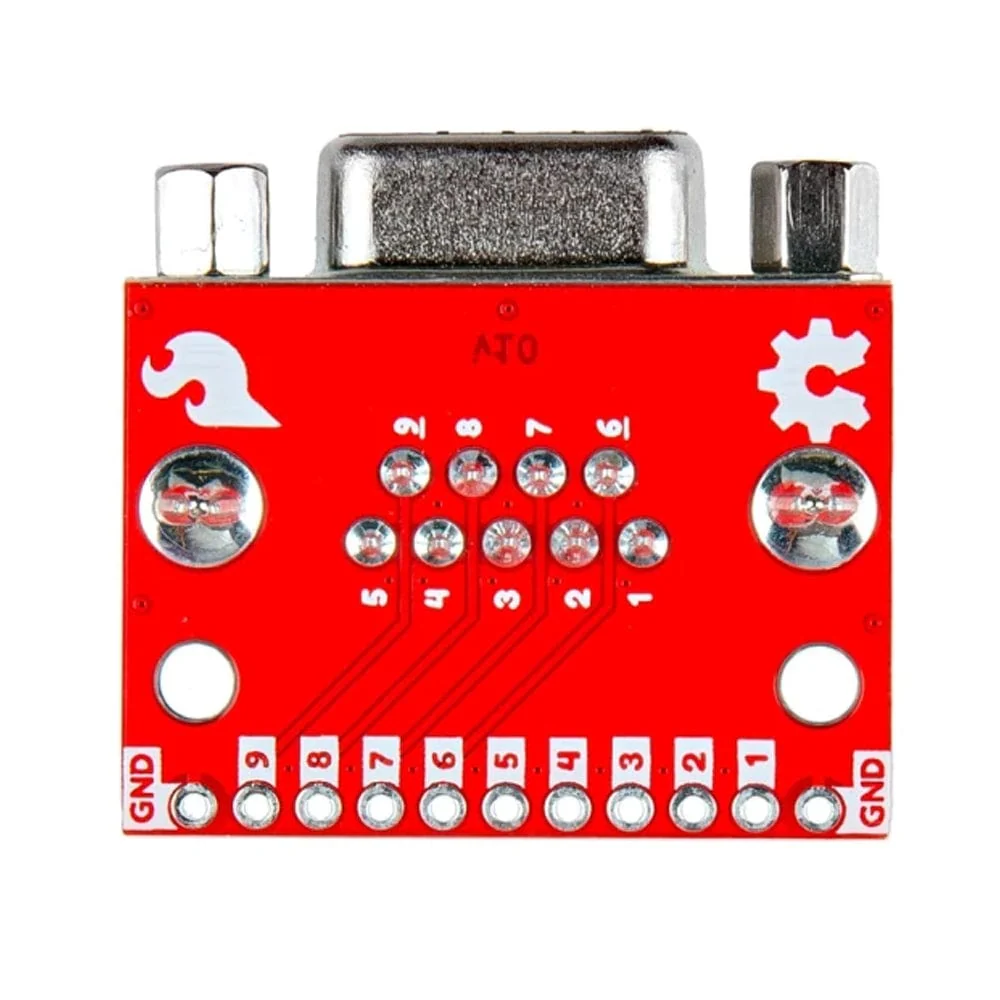

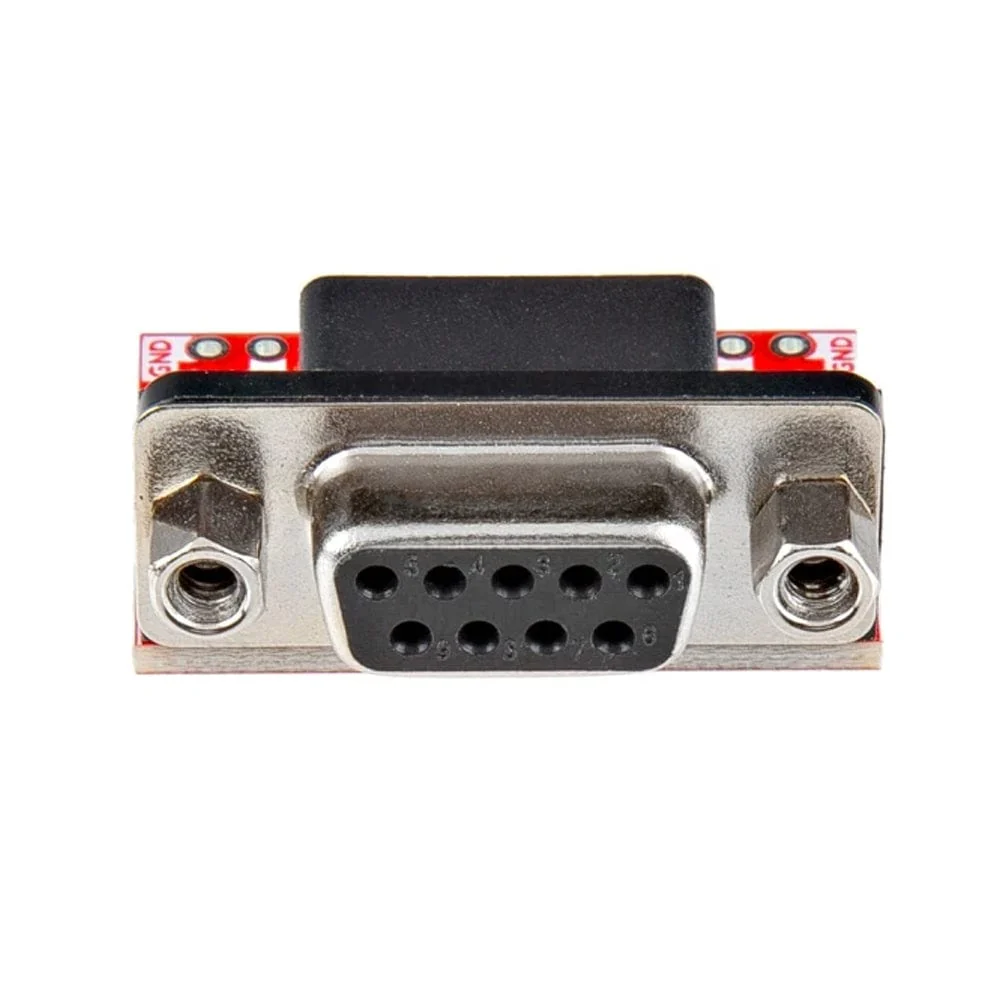

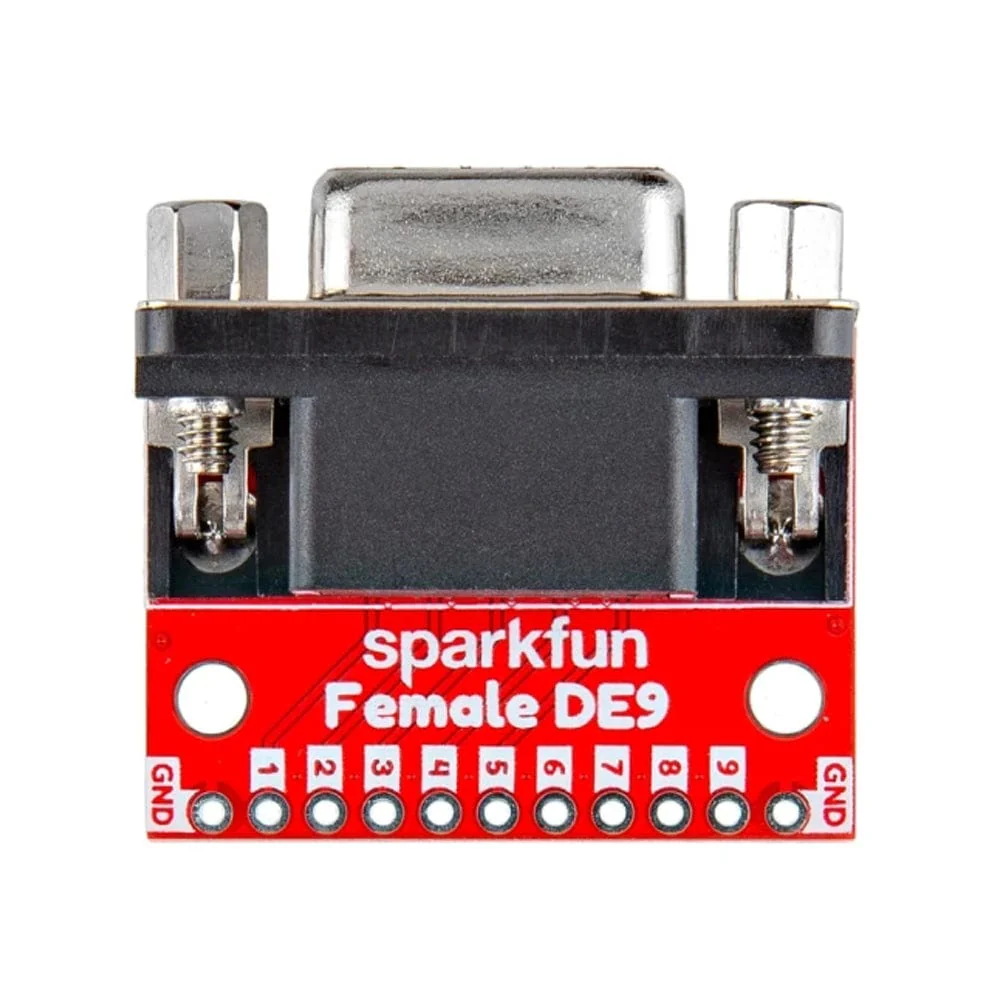

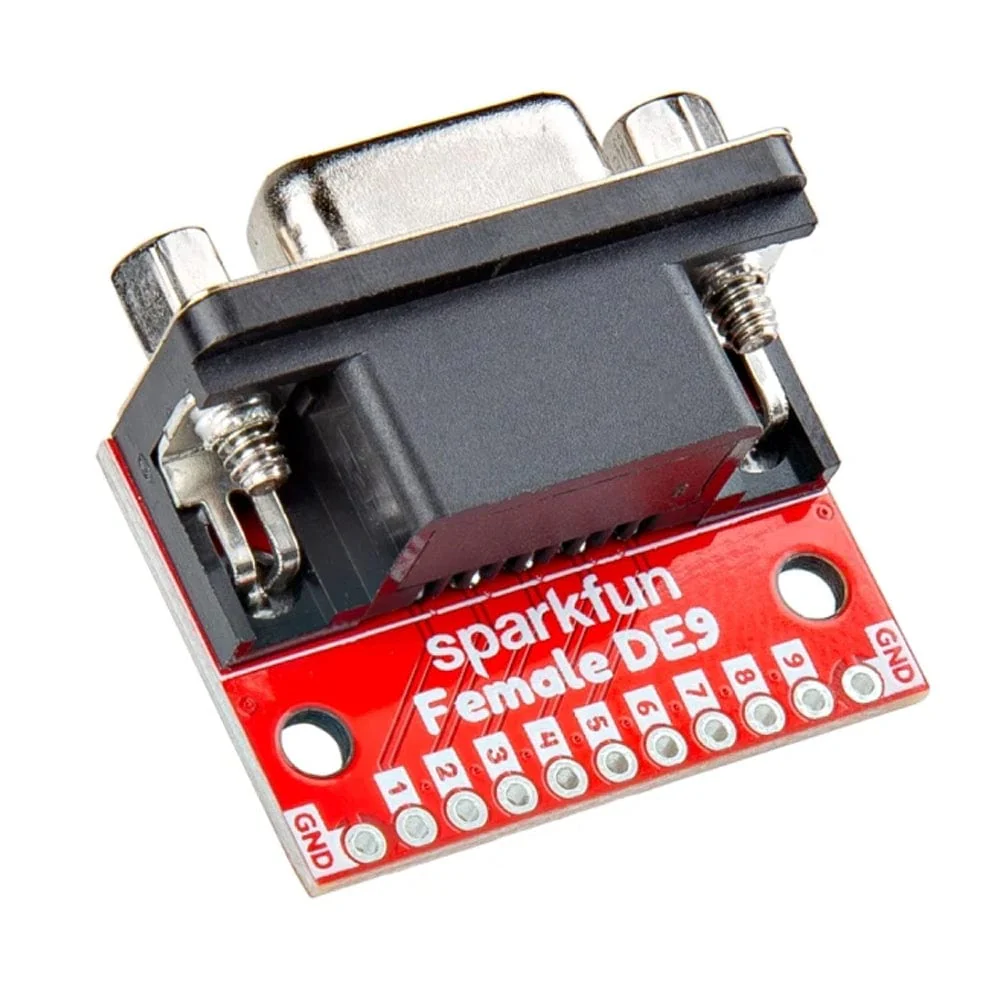

The SparkFun Female DE9 Breakout is a simple breakout board featuring a female DE9 (commonly referred to as DB9) connector. The board comes with the female DE9 connector and breaks all nine pins, along with two extra ground connections to a 0.1in.-spaced plated through-hole (PTH) header.

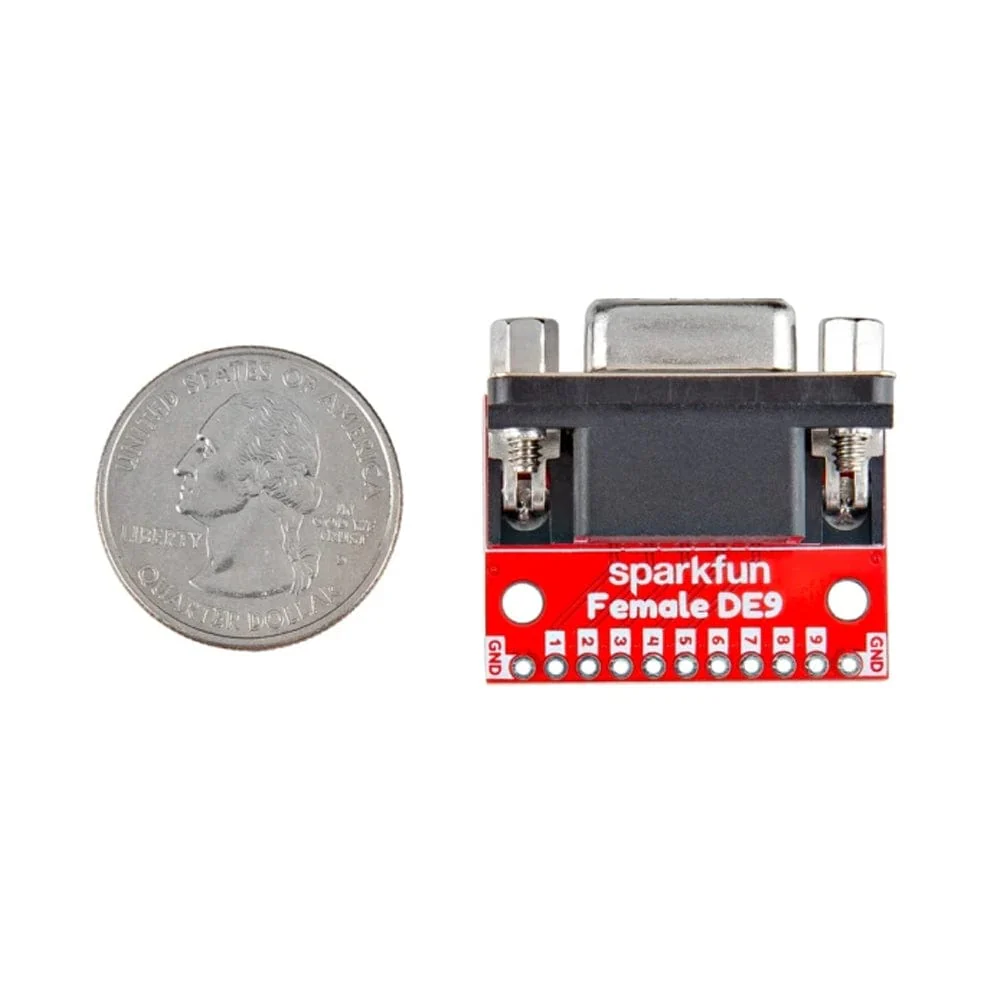

This breakout measures 31.75mm x 22.86mm and has two mounting holes that fit a 4-40 screw.
Features
- Female DE9/DB9 Connector
- 0.1in. Plated Through-Hole PTH Pins
- 2x Mounting Holes
Specifications
- Board measures 31.75mm x 22.86mm
Resources
- Schematic
- KiCad Files
- Board Dimensions
Package Contents
- 1x SparkFun DE9 Breakout - Female
Original: $5.17
-70%$5.17
$1.55
Description
The SparkFun Female DE9 Breakout includes a female DE9 connector with all nine pins and two ground connections routed to a 0.1" PTH header, measuring 31.75mm x 22.86mm with two 4-40 mounting holes.
The SparkFun Female DE9 Breakout is a simple breakout board featuring a female DE9 (commonly referred to as DB9) connector. The board comes with the female DE9 connector and breaks all nine pins, along with two extra ground connections to a 0.1in.-spaced plated through-hole (PTH) header.
This breakout measures 31.75mm x 22.86mm and has two mounting holes that fit a 4-40 screw.
Features
- Female DE9/DB9 Connector
- 0.1in. Plated Through-Hole PTH Pins
- 2x Mounting Holes
Specifications
- Board measures 31.75mm x 22.86mm
Resources
- Schematic
- KiCad Files
- Board Dimensions
Package Contents
- 1x SparkFun DE9 Breakout - Female
