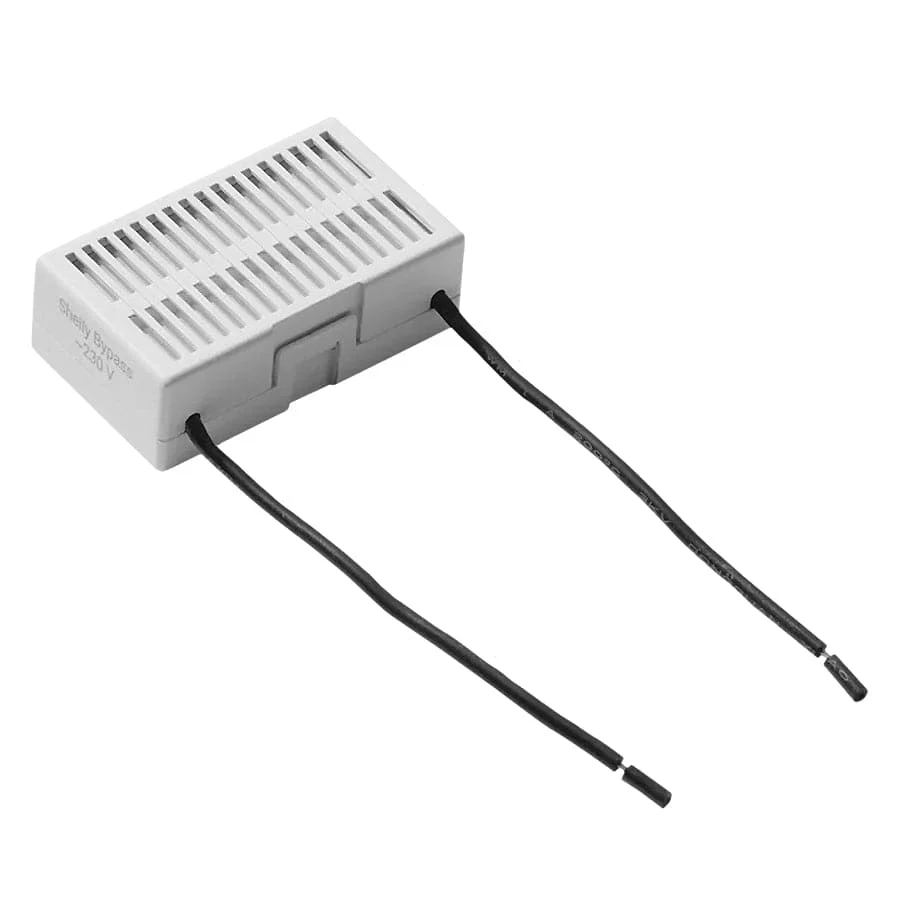

Shelly Bypass
The Shelly Bypass is required for Shelly devices that do not need neutral wire to operate if the load they switch is less than 20W at 240VAC, such as the Shelly Dimmer Gen3 and earlier models such as Shelly 1L, Shelly 2L and Shelly Dimmer 2.
The bypass should be connected parallel to the load as seen in the product user guide.
⚠️Caution - Read Before Buying⚠️
- Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
- Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
- Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
- Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
- Do not connect the device to appliances exceeding the given max load.
- Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
- Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Specifications
| Size (HxWxD) | 39x23x13 mm (without wires) |
| Material | Plastic |
| Colour | White |
| Ambient temperature | -20° C to 70° C |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000m |
| Working voltage | 230 VAC |
| Power consumption | <4 W |
Resources
- Printed user guide (as found in the package)
- Shelly Bypass User and Safety guide
- Shelly Facebook Support Group
- Shelly Community Forum
- Shelly Knowledgebase
Package Contents
- 1x Shelly Bypass
- 1x Printed user guide
