Self-Test Card for MEGA-IO [Discontinued]

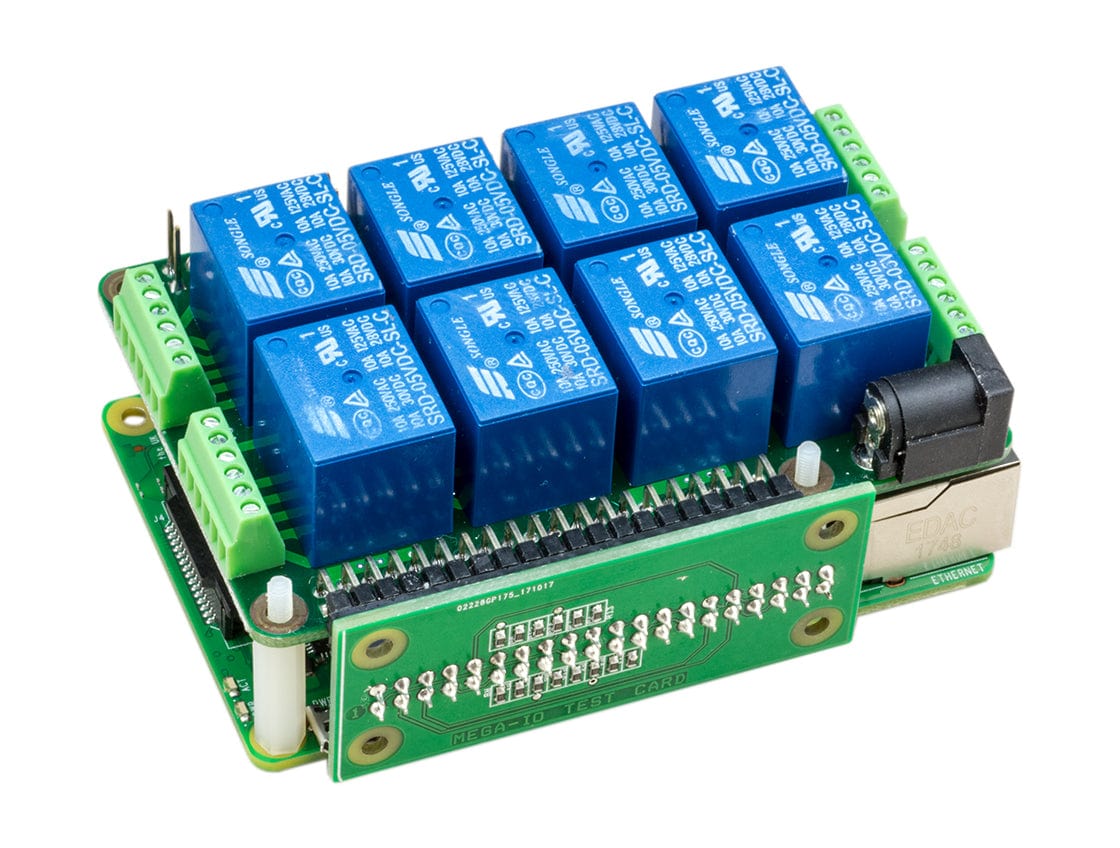

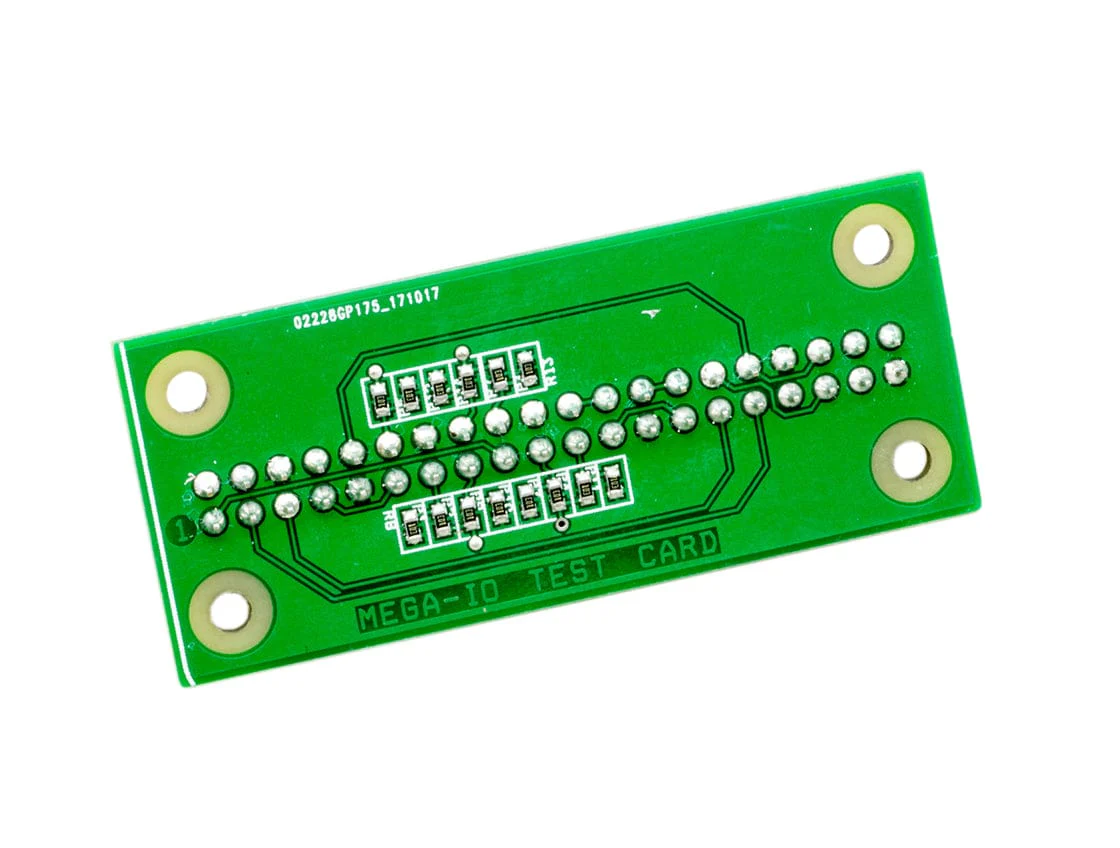

Sequent Microsystems Self-Test Card for the Mega-IO enables loop-back card for testing all I/O's of the MEGA-IO card.

The Self-Test card allows users to check the Mega-IO card from the command line and assists with debugging and isolating faults.

For any technical questions about this product please email [email protected]

Technical Specification

• 40 pin header pin-compatible with MEGA-IO only
• Loops Open Collector Outputs to Opto-isolated inputs
• Uses ADC Channel 7 Input to check DAC Output
• Resistor dividers for checking ADC Channels 1-6 and 8
• Loops GPIO 2 to 5, 1 to 3 and 4 to 6

Downloads

Code Library
