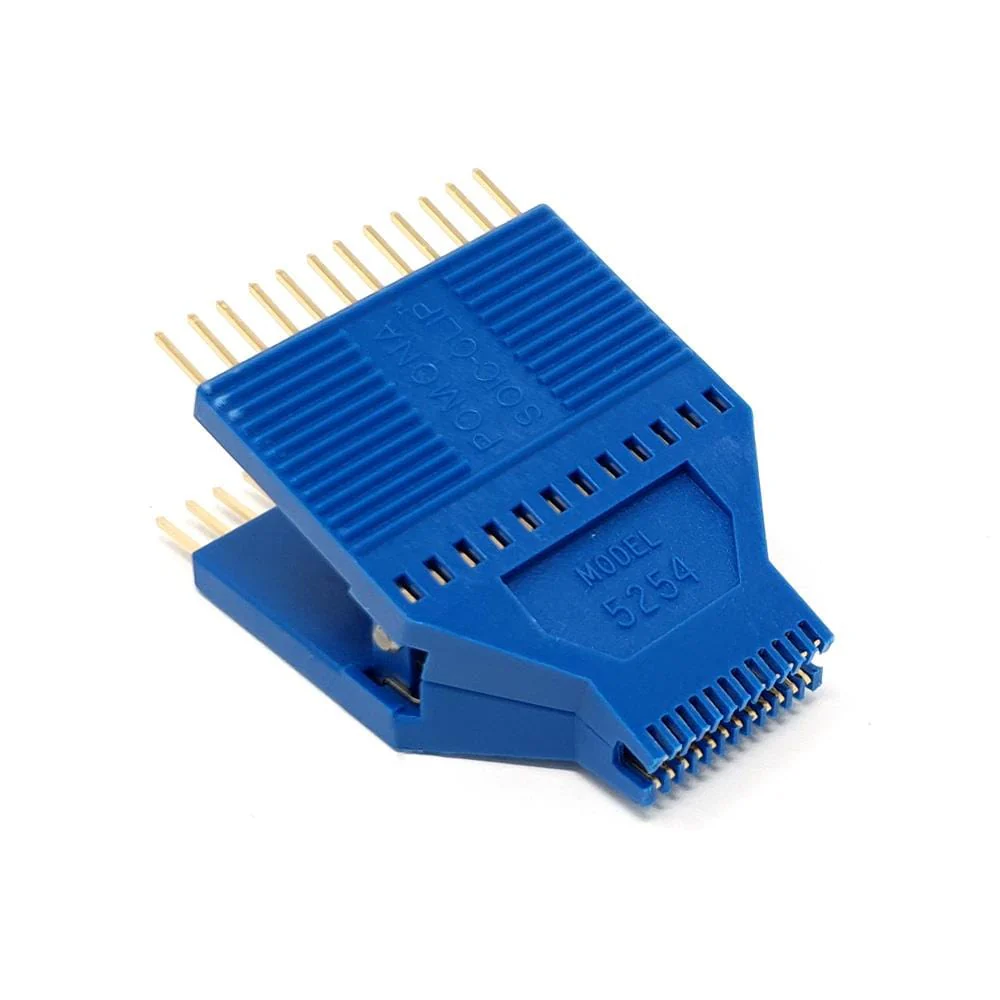

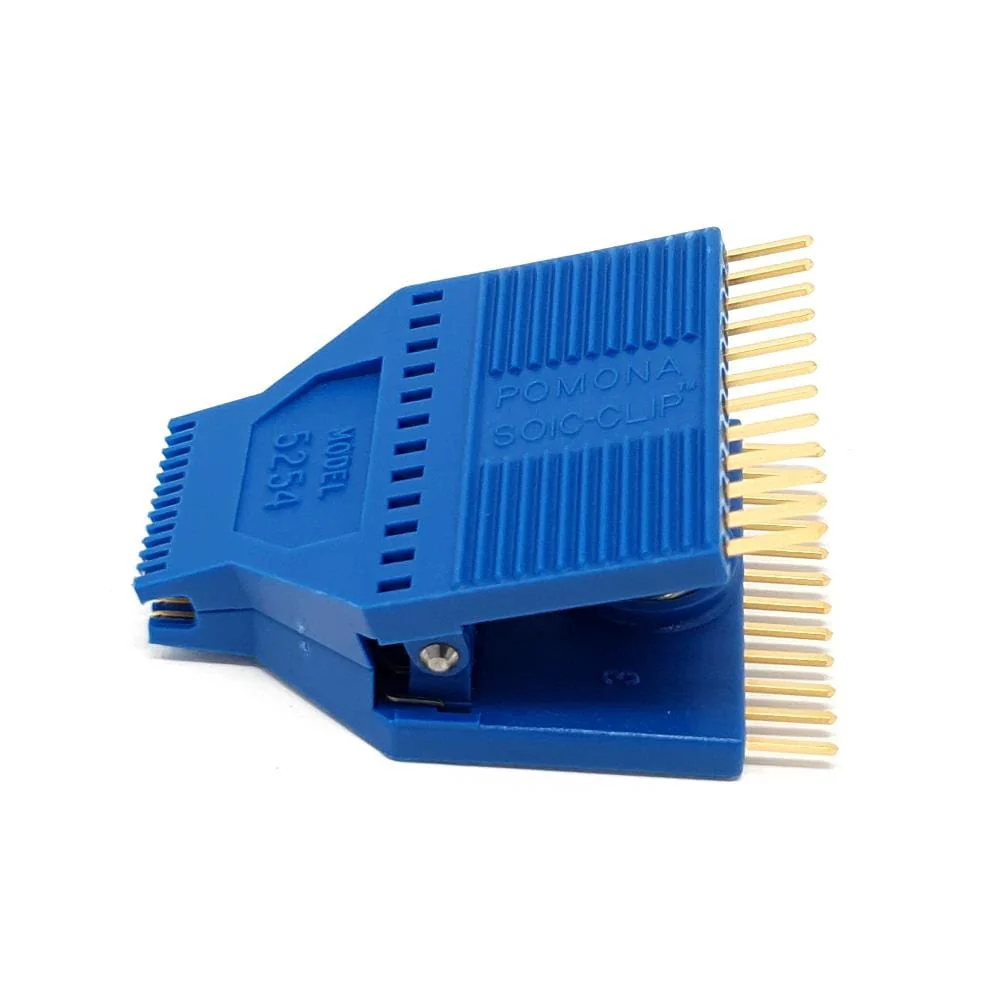

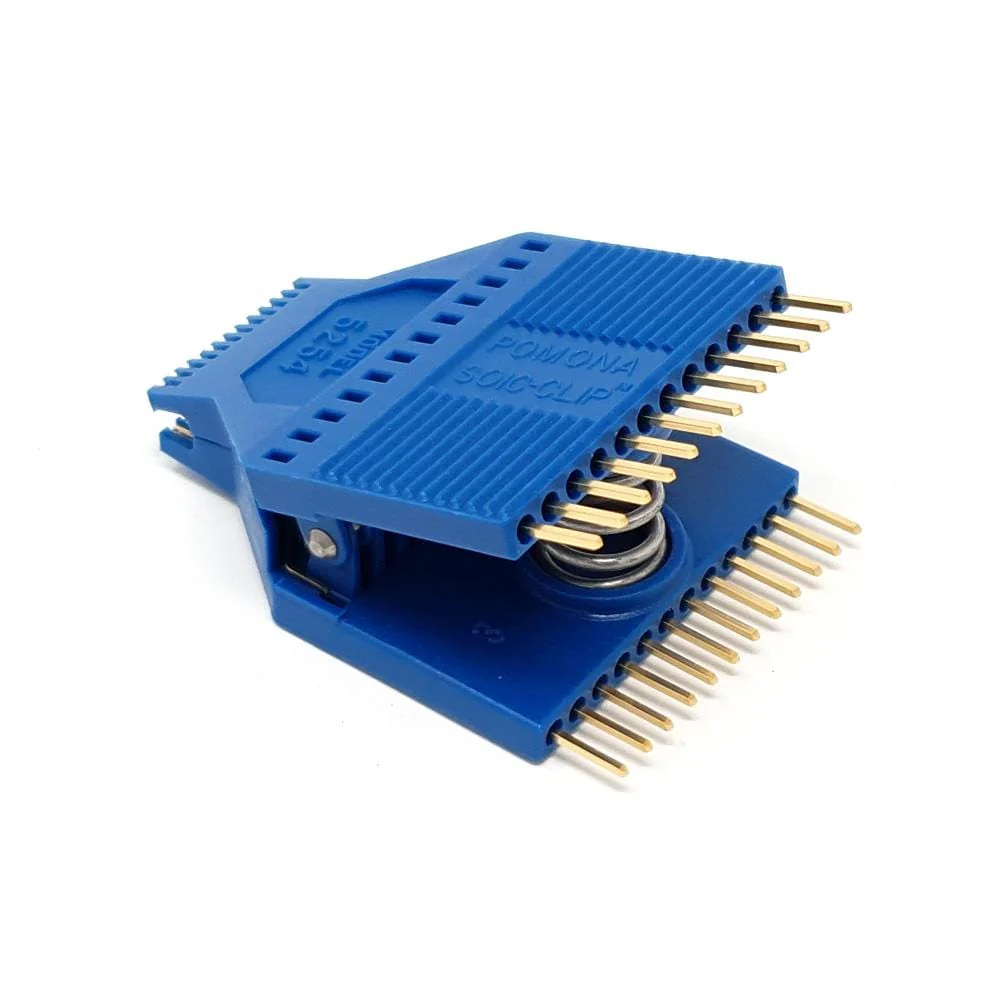

Pomona 5254 24-pin SOIC Clip
These new test clips are designed especially for in-circuit testing on Small Outline Integrated Circuits (SOIC & SOJ).
The SOIC Clip test clip assures a positive connection to all chip leads and provides hands-free testing.
This clip is a 24-pin SOIC clip - the Pomona 5254.
Check out our full range of Pomona clips.
Features
- Upper contacts are .025" sq. pins, spaced at .100"
- Pins are perfect for sq. pin receptacles, wire-wrap or jumper leads
- Gold plated lower contacts assure reliable, noise free connections
- Molded barriers between each contact allow connections to be made on live boards without accidental shorting to adjacent chip leads.
- Fits surface mounted SOIC and SOJ chips with gull wing or “J” leads and body width from .150" to .350" wide.
$31.25
Pomona 5254 24-pin SOIC Clip—
$31.25
Description
These new test clips are designed especially for in-circuit testing on Small Outline Integrated Circuits (SOIC & SOJ).
The SOIC Clip test clip assures a positive connection to all chip leads and provides hands-free testing.
This clip is a 24-pin SOIC clip - the Pomona 5254.
Check out our full range of Pomona clips.
Features
- Upper contacts are .025" sq. pins, spaced at .100"
- Pins are perfect for sq. pin receptacles, wire-wrap or jumper leads
- Gold plated lower contacts assure reliable, noise free connections
- Molded barriers between each contact allow connections to be made on live boards without accidental shorting to adjacent chip leads.
- Fits surface mounted SOIC and SOJ chips with gull wing or “J” leads and body width from .150" to .350" wide.
