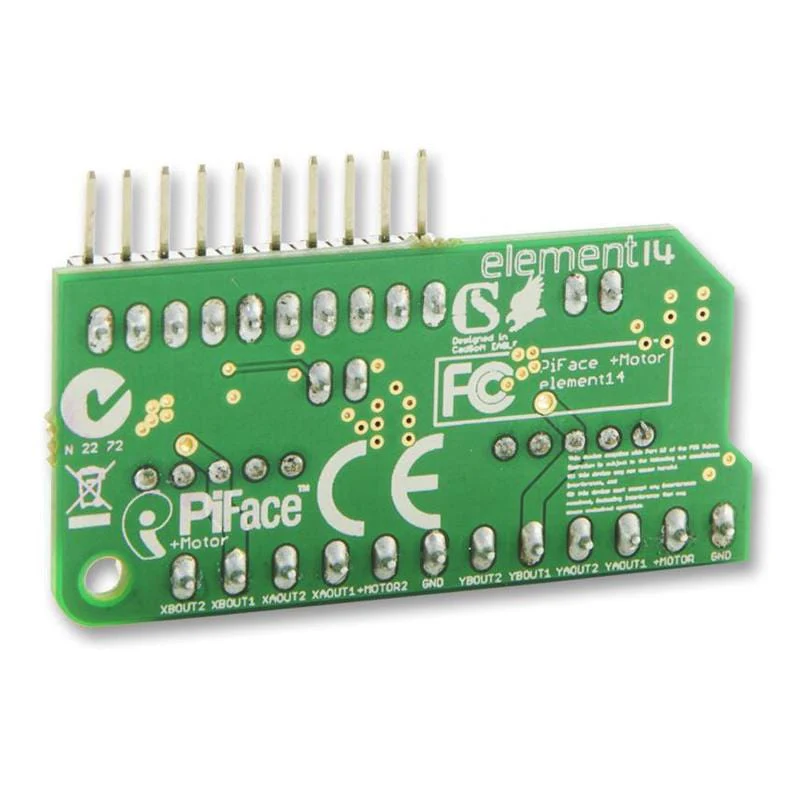

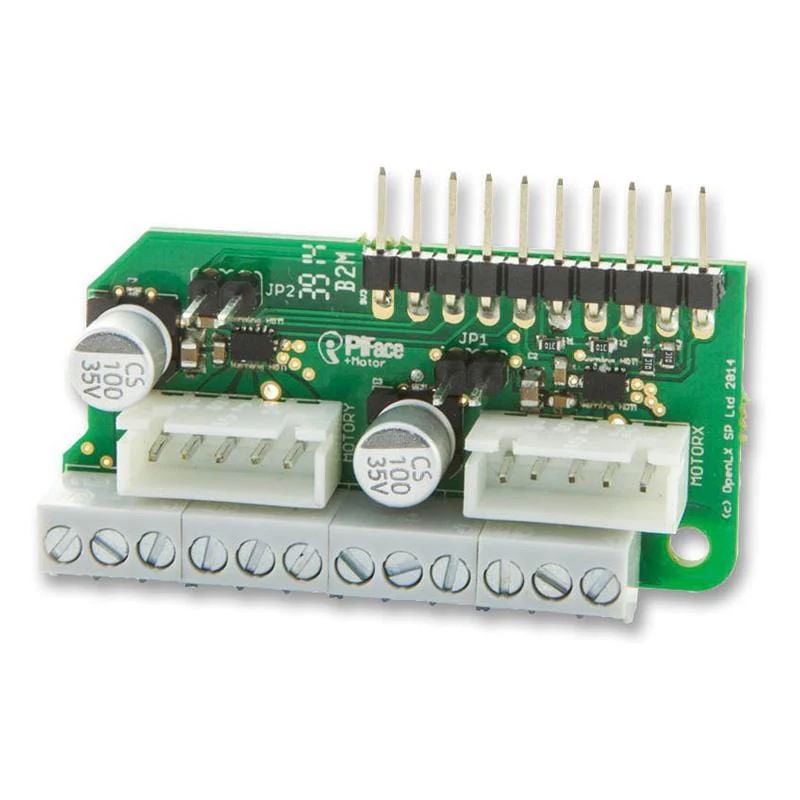

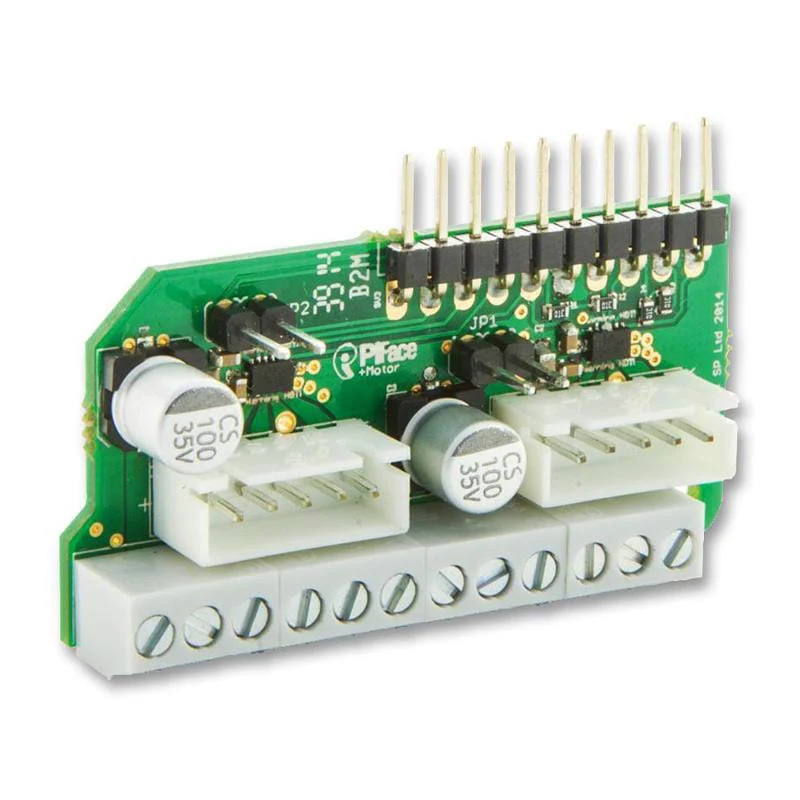

PiFace Motor Extra [Discontinued]
The PiFace Motor Extra is an expander board to the PiFace Relay+ board, adding two H-bridge motor controllers to the PiFace Relay+ to control DC and stepper motors in your programs.
Note: The PiFace Motor Extra requires a PiFace Relay+ board to work your Raspberry Pi.
Features
- 2 Dual H-bridge motor drivers, allowing you to drive 4 DC motors
- Raspberry Pi® HAT footprint when used with PiFace™ Relay
- Easy connection with screw terminals
- Can be used directly in breadboards, prototyping and custom designs
- Motor power supply voltage 0V to 11V
- Device power supply voltage 2V to 7V
- 4 changeover relays, 20V 1A switching max
- Operating Temp 40° to 70°
- Standard 0.1” pin spacing (breadboard & veroboard compatible) PiFace
Instruction Manual
