Pico Booster Breakout
Many add-on boards for the Raspberry Pi Pico only use a few GPIO pins but stop you from accessing the rest - this breakout board allows you to easily use the otherwise unused GPIO pins!

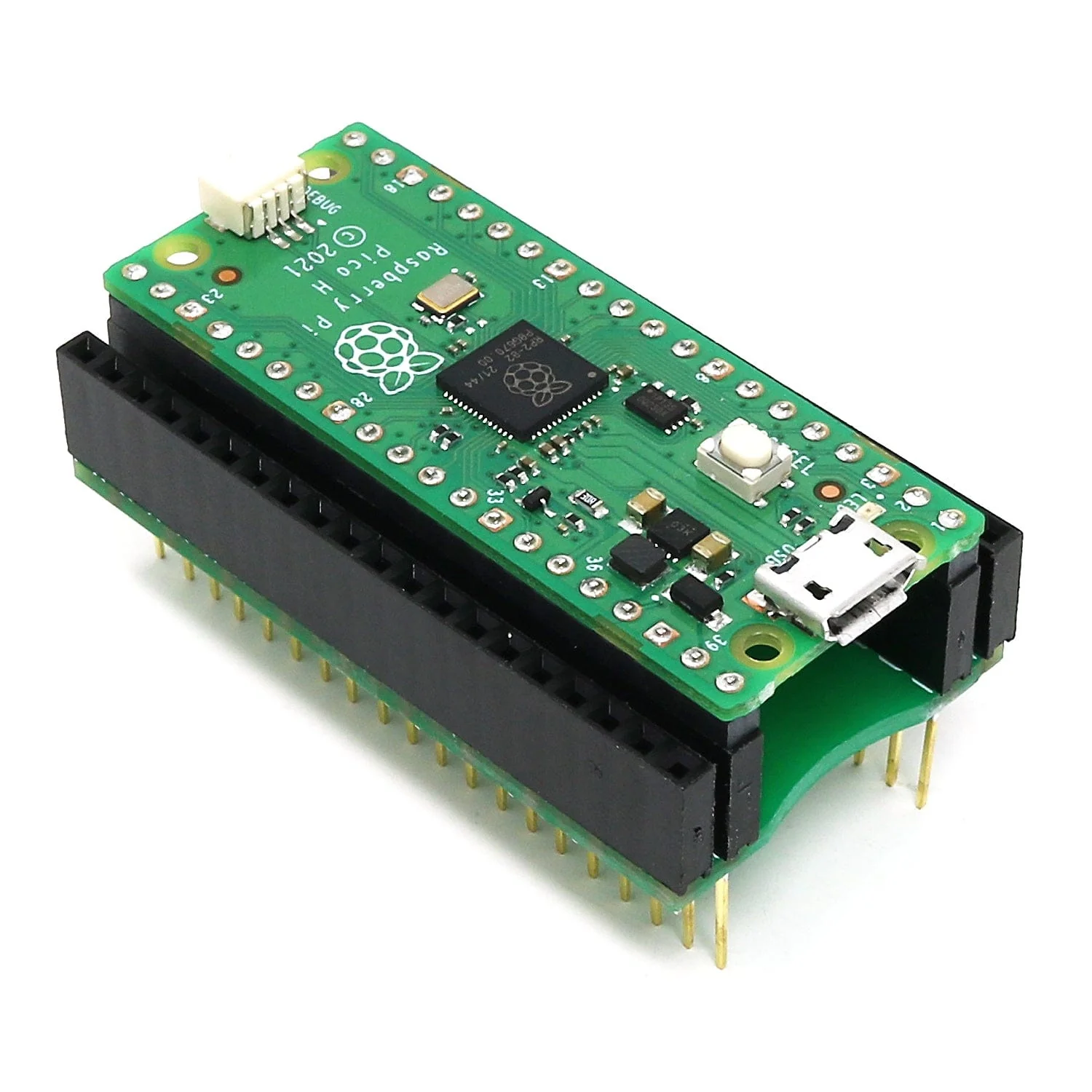

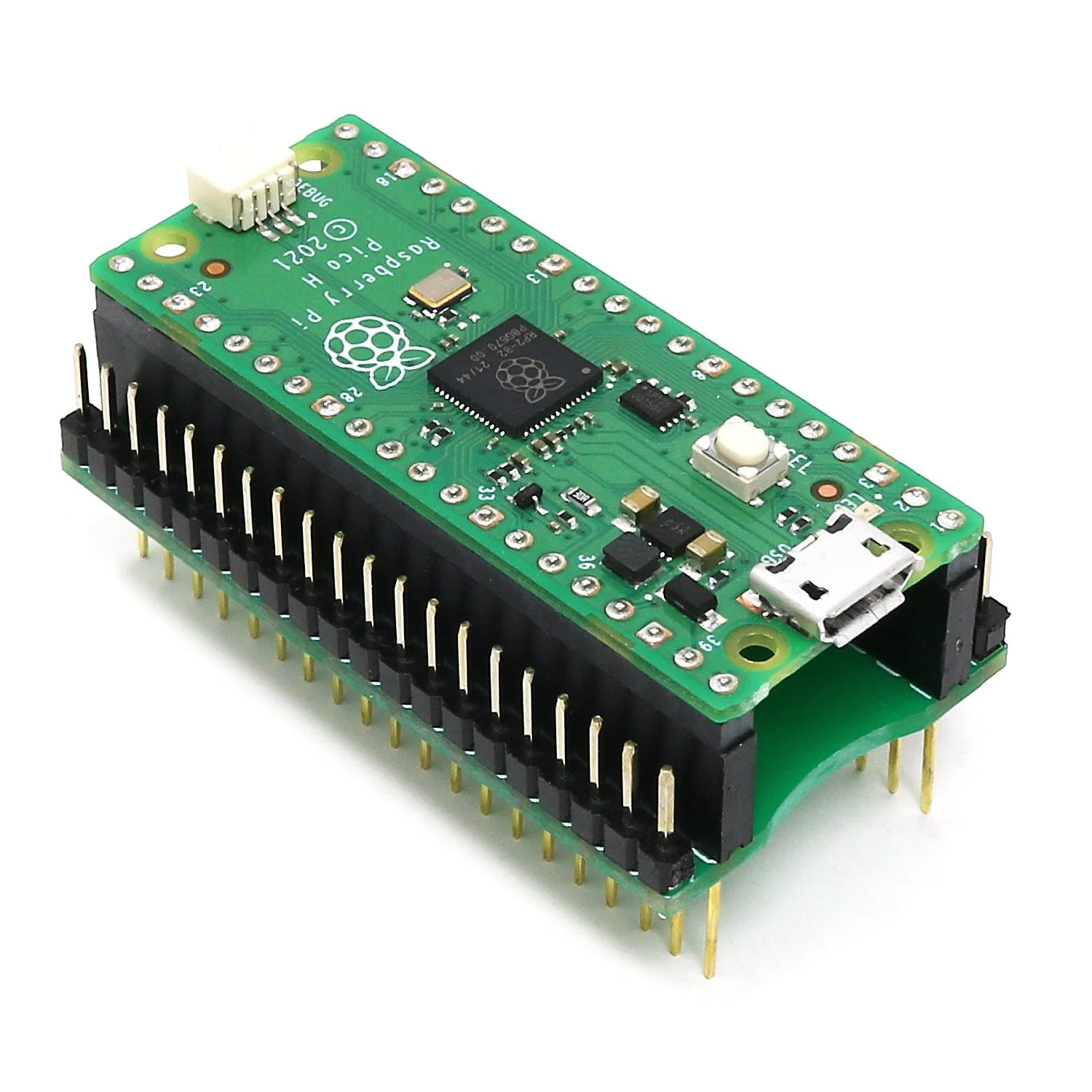

By using stacking headers, the Pico Booster Breakout allows you to use a Pico in a regular Pico add-on board whilst also providing easy access the to GPIO using standard jumper wires.

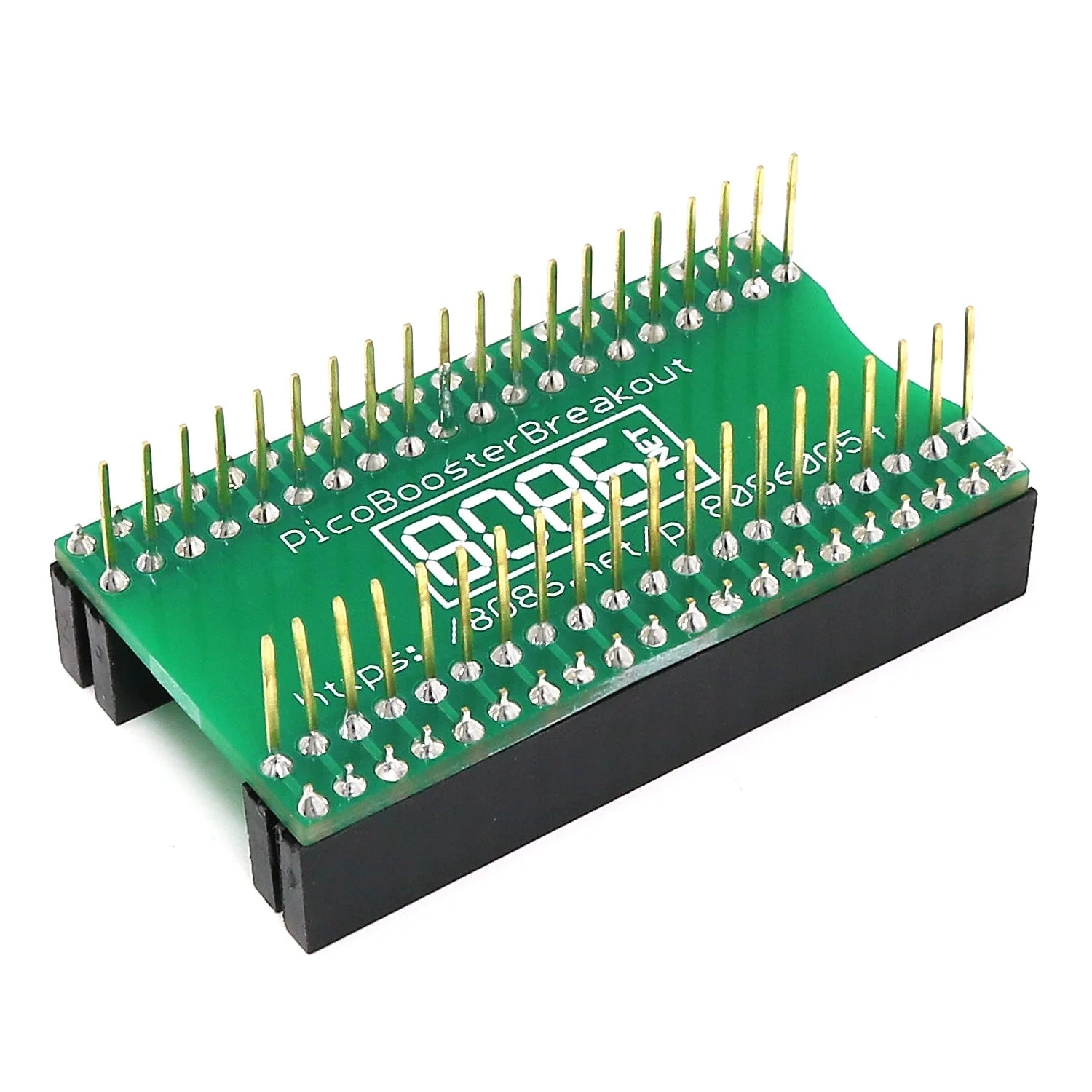

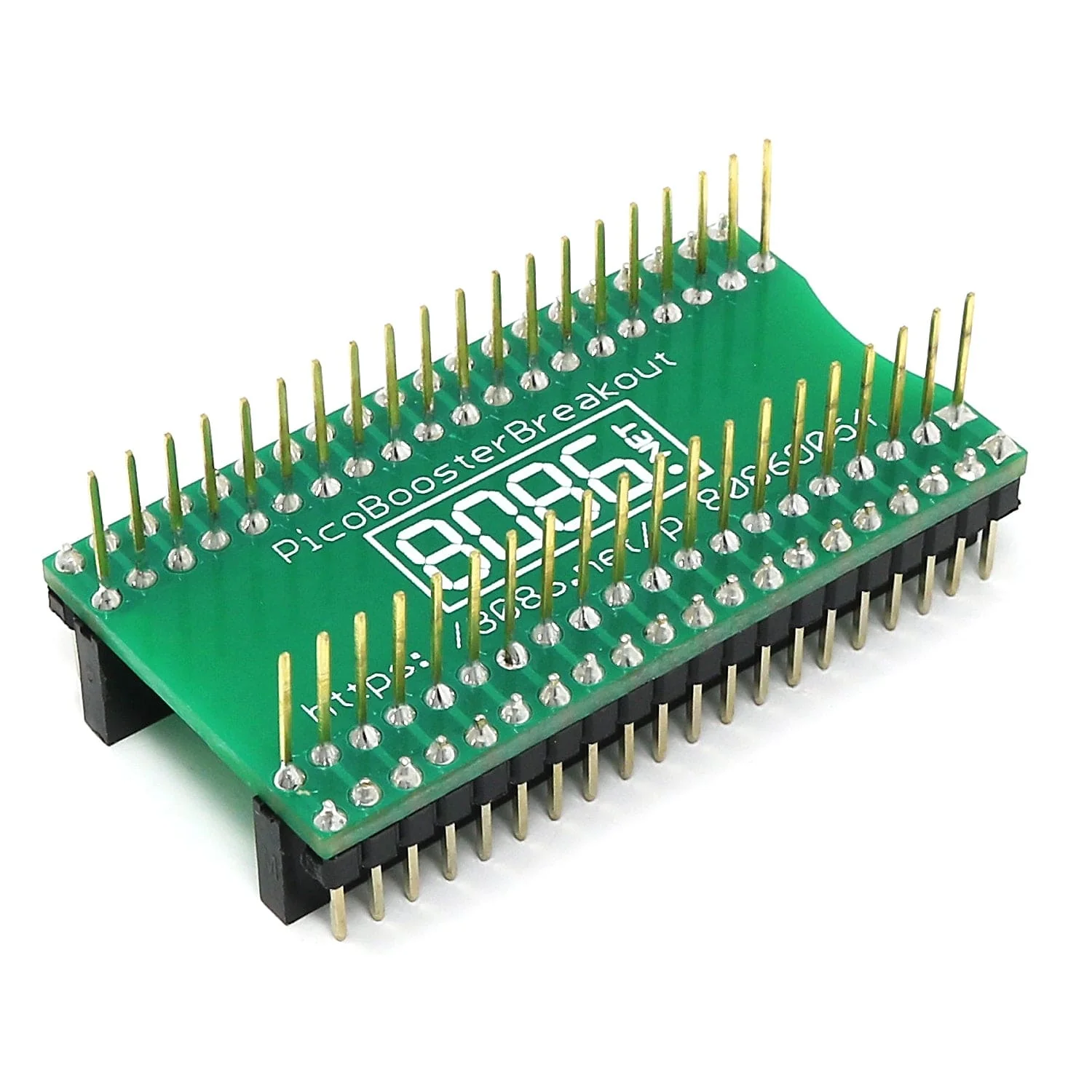

The PCB is fractionally smaller than 52mm x 21mm. The pins are a straight one-to-one so the board can be used any way round or used to break out other 0.1" 2x20 pin boards with a 0.7" spacing between rows.
Whilst there are numerous breakout boards for the Pico they're normally standalone rather than being designed to be used with existing add-on boards.

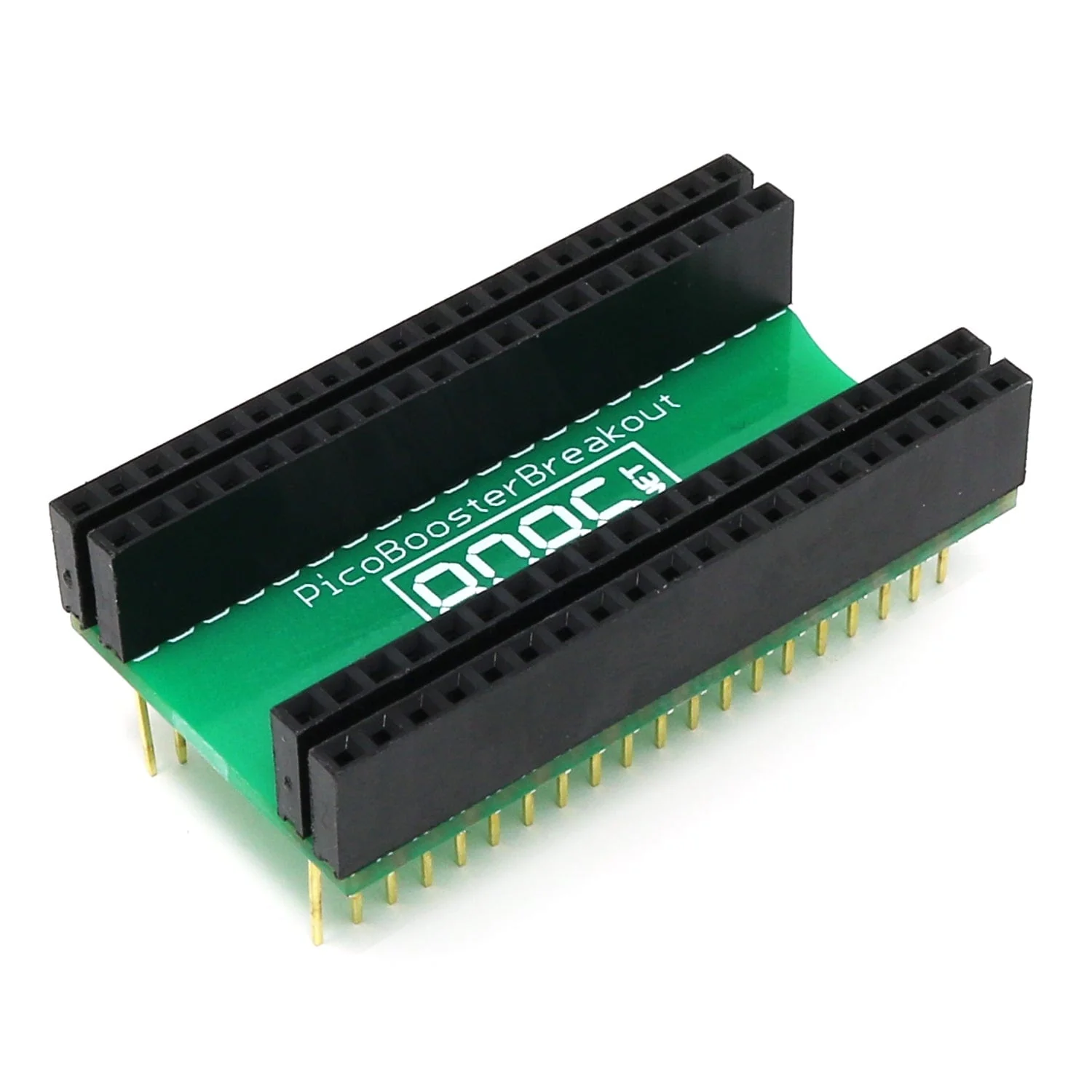

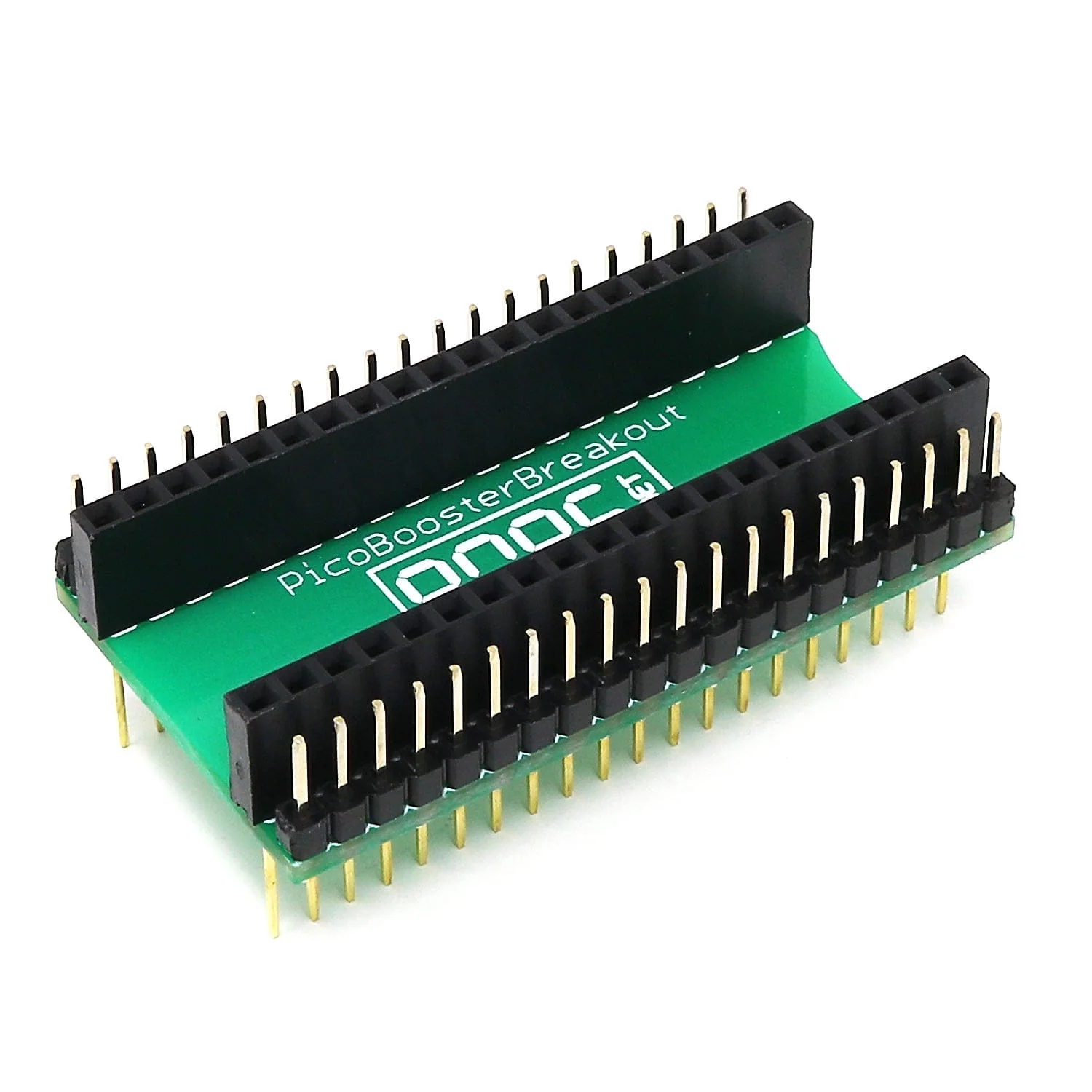

We stock the assembled versions, either with male headers or female sockets (select an option before adding to your cart). No soldering required!
Package Contents
- 1x Assembled Pico Booster Breakout (male or female headers - select before adding to cart)
Raspberry Pi Pico not included
Description
Many add-on boards for the Raspberry Pi Pico only use a few GPIO pins but stop you from accessing the rest - this breakout board allows you to easily use the otherwise unused GPIO pins!
By using stacking headers, the Pico Booster Breakout allows you to use a Pico in a regular Pico add-on board whilst also providing easy access the to GPIO using standard jumper wires.
The PCB is fractionally smaller than 52mm x 21mm. The pins are a straight one-to-one so the board can be used any way round or used to break out other 0.1" 2x20 pin boards with a 0.7" spacing between rows.
Whilst there are numerous breakout boards for the Pico they're normally standalone rather than being designed to be used with existing add-on boards.
We stock the assembled versions, either with male headers or female sockets (select an option before adding to your cart). No soldering required!
Package Contents
- 1x Assembled Pico Booster Breakout (male or female headers - select before adding to cart)
Raspberry Pi Pico not included
