Mini PCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5

Mini PCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5

This HAT gives your Pi 5 a MiniPCIe that supports 4G modules like the SIM7600G-H-PCIE (Optional), a handy gigabit ethernet port powered by the RTL8153B chip and two fast USB 3.2 Gen1 ports with low latency for connecting additional devices such as keyboards, gamepads, flash drives and more!

The Type-C port provides 4G networking, debugging, firmware updates on a PC, or external power input for added flexibility. It works with systems such as Raspberry Pi OS, Ubuntu, OpenWRT and more!

It also supports GPS, BeiDou, Glonass, GALILEO, QZSS and LBS base station positioning (a 4G module such as SIM7600G-H-PCIE is required to use this function)

There are two options for this HAT: HAT Only and with SIM7600G-H-PCIE. Please choose which option you would like before adding it to the cart!

Features

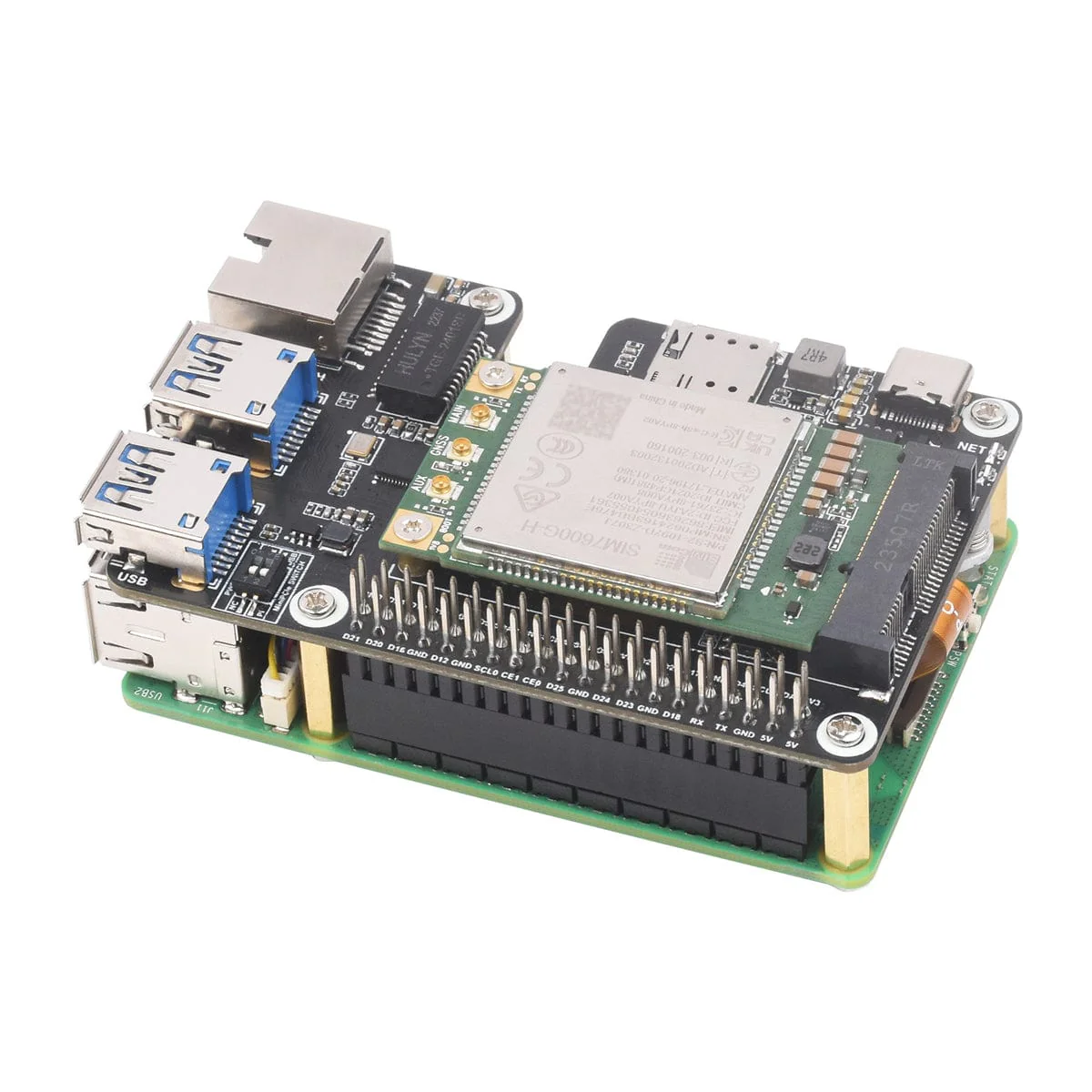

  • Designed for Raspberry Pi 5, with HAT+ standard, onboard I2C EEPROM, and support 40-pin GPIO header for stacking and expansion.
  • PCI-E x1 Gen2 mode.
  • 2-ch USB 3.2 Gen1 high-speed interface, for connecting to more peripheral devices, support PCIe to expand USB3.2 MiniPCIe interface, high-speed communication, with lower latency.
  • MiniPCIe interface, support MiniPCIe 4G modules such as SIM7600G-H-PCIE and EG25-G mPCIe.
  • Expand driver-free Gigabit Ethernet port.
  • Type-C interface for 4G networking, debugging, firmware update on PC, or for external power input.
  • Power monitoring chip for real-time monitoring of voltage, current and power parameters.
  • SIM card slot for inserting Nano-SIM card.
  • Reset key, power and network indicator for debugging and checking module working status.

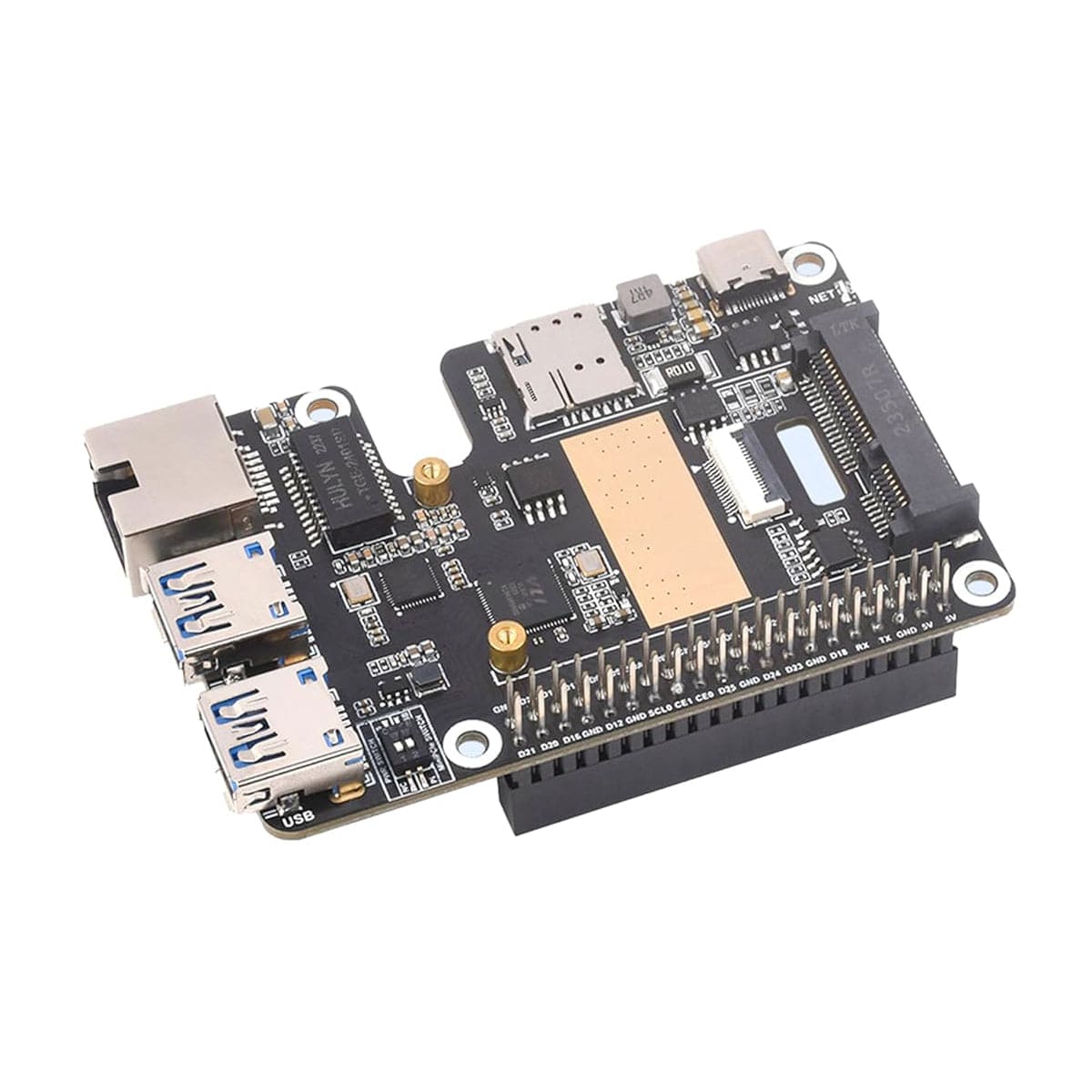

What's on Board

  1. RTL8153B
    USB to Gigabit ETH
  2. VL805
    PCIe to USB 3.2 Gen1 HUB chip
  3. INA219
    Power monitoring chip
  4. EEPROM
    for saving HAT ID and product information
  5. Raspberry Pi GPIO header
    for connecting Raspberry Pi 5
  6. MiniPCIe slot
    for connecting the 4G module with the MIniPCIe interface
  7. 16-pin PCIe interface
    for connecting to the PCIe interface of Raspberry Pi 5
  8. Type-C Port
    for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
  9. Nano SIM card slot
    for installing a Nano-SIM card
  10. Gigabit Ethernet port
    up to 1000Mbps data rate, compatible with 100Mbps
  11. USB 3.2 Gen1 expanded ports
    USB1~USB2
  12. DIP switches
    for switching to use the GPIO D6 pin to control the power ON/OFF of the module and switching the module USB signal output direction
  13. NET indicator
    Module Network status indicator
  14. PWR indicator
    Power indicator

Resources

  • Product Wiki
  • SIM7600X-PCIE Datasheet
  • INA219 Datasheet

Pinout

Package Contents

PCIe to MiniPCIe HAT Only

  • 1x PCIe TO MiniPCIe GbE USB3.2 HAT+
  • 1x 16-pin Cable-40mm cable
  • 1x Network cable ~1.5m
  • 1x Screws pack

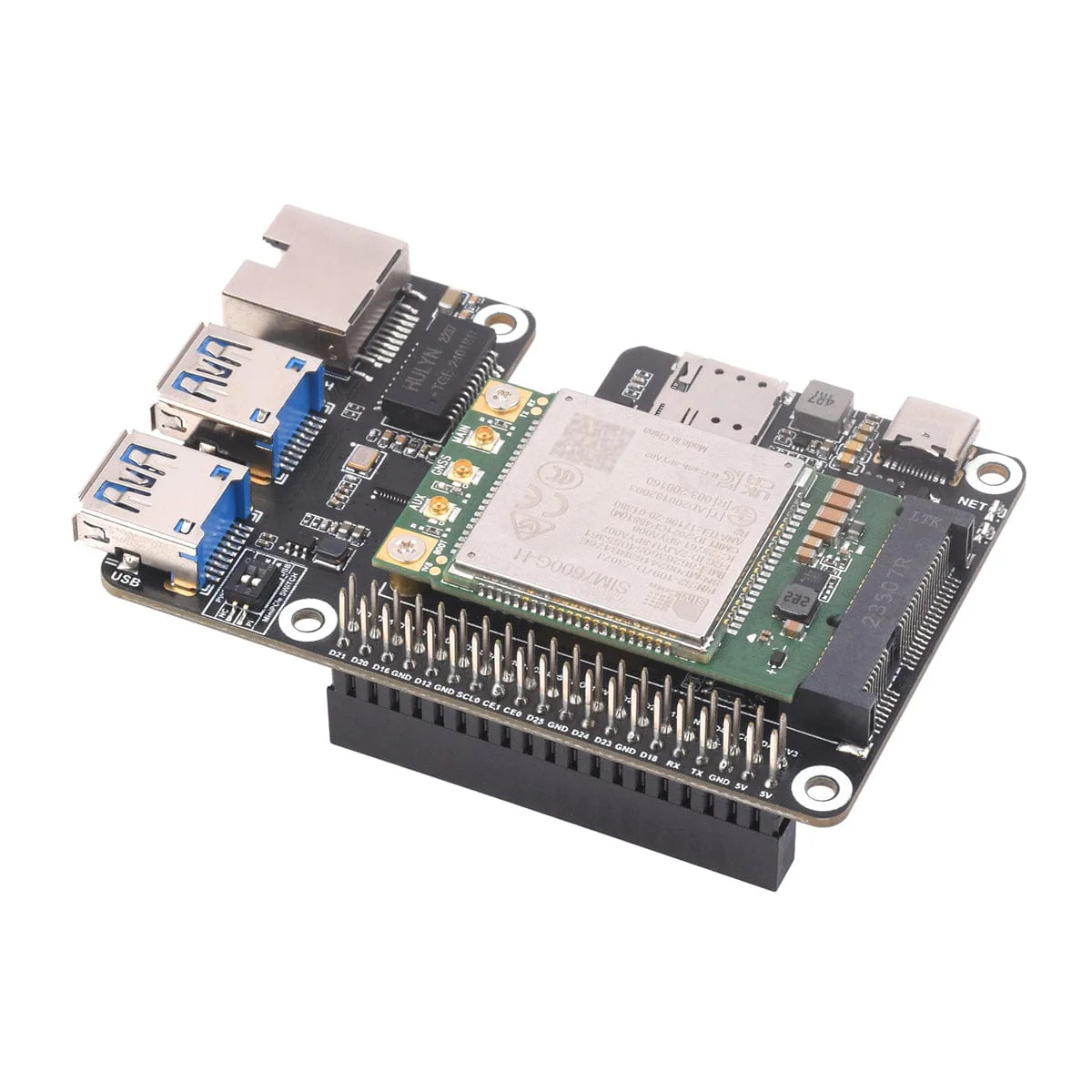

With SIM7600G-H-PCIE

  • 1x PCIe TO MiniPCIe GbE USB3.2 HAT+

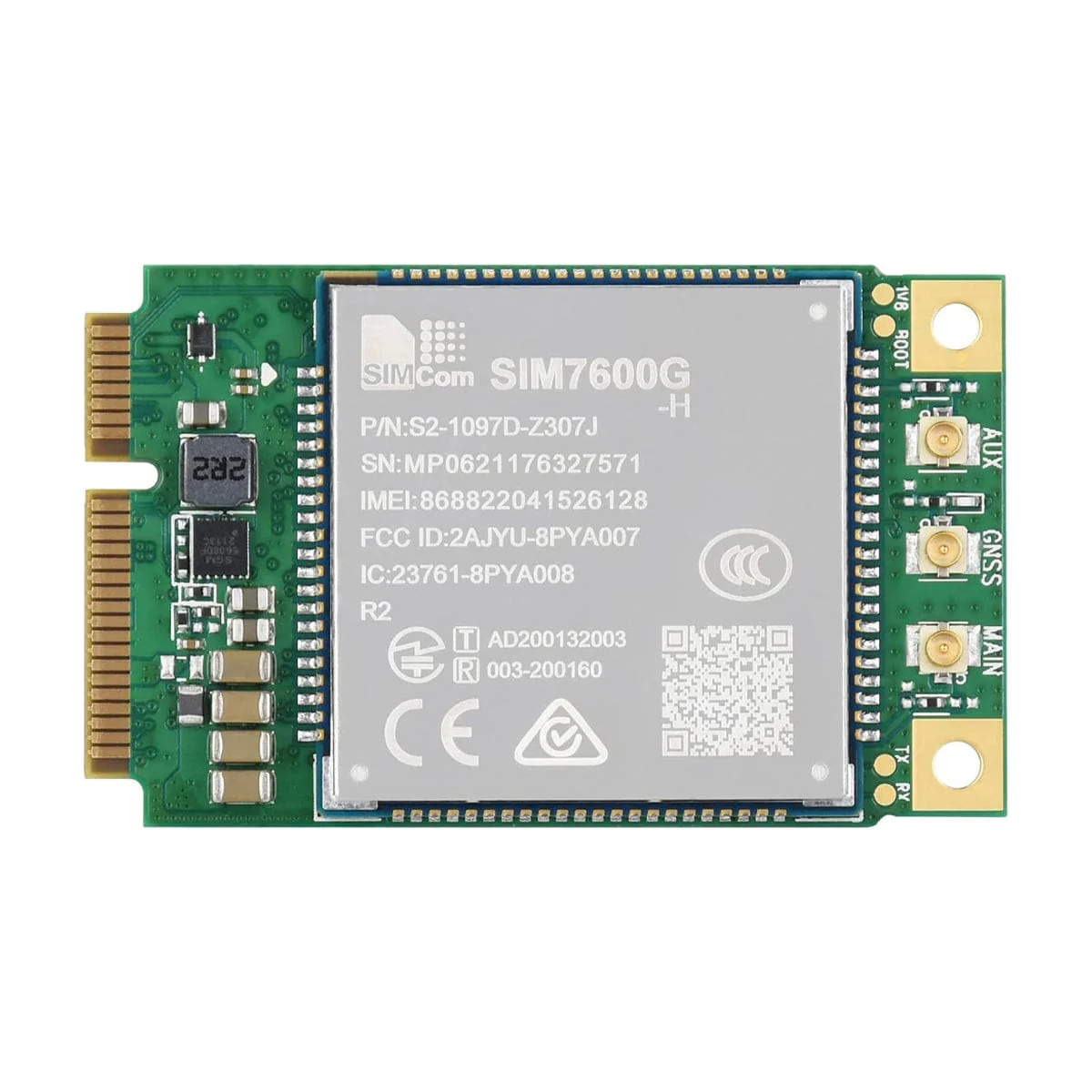

  • 1x SIM7600G-H-PCIE
  • 1x 16-pin Cable-40mm cable
  • 1x Network cable ~1.5m
  • 1x Screws pack
  • 1x Antenna 2 pack
  • 1x Passive GPS antenna
  • 3x SMA to IPEX-1 cable
