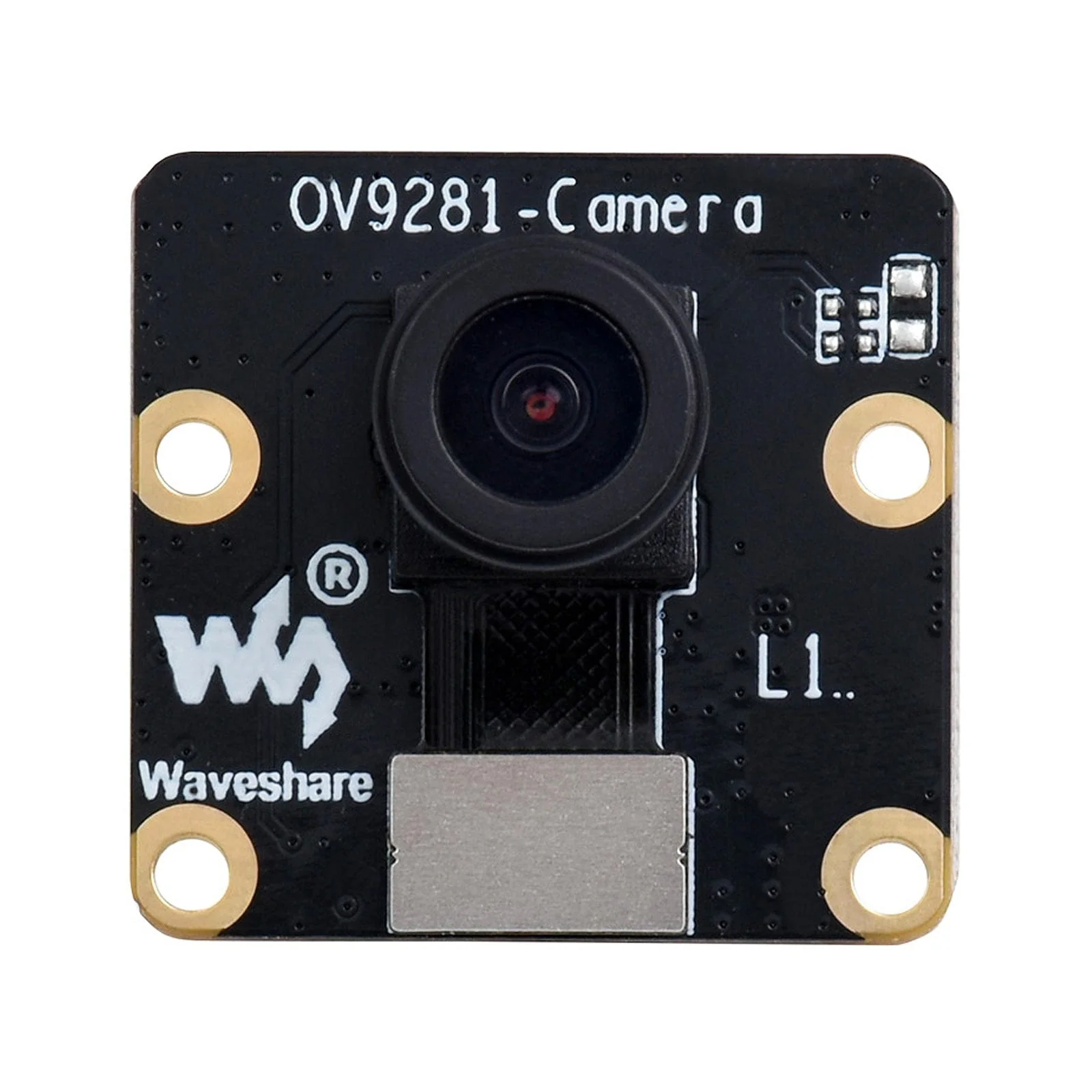

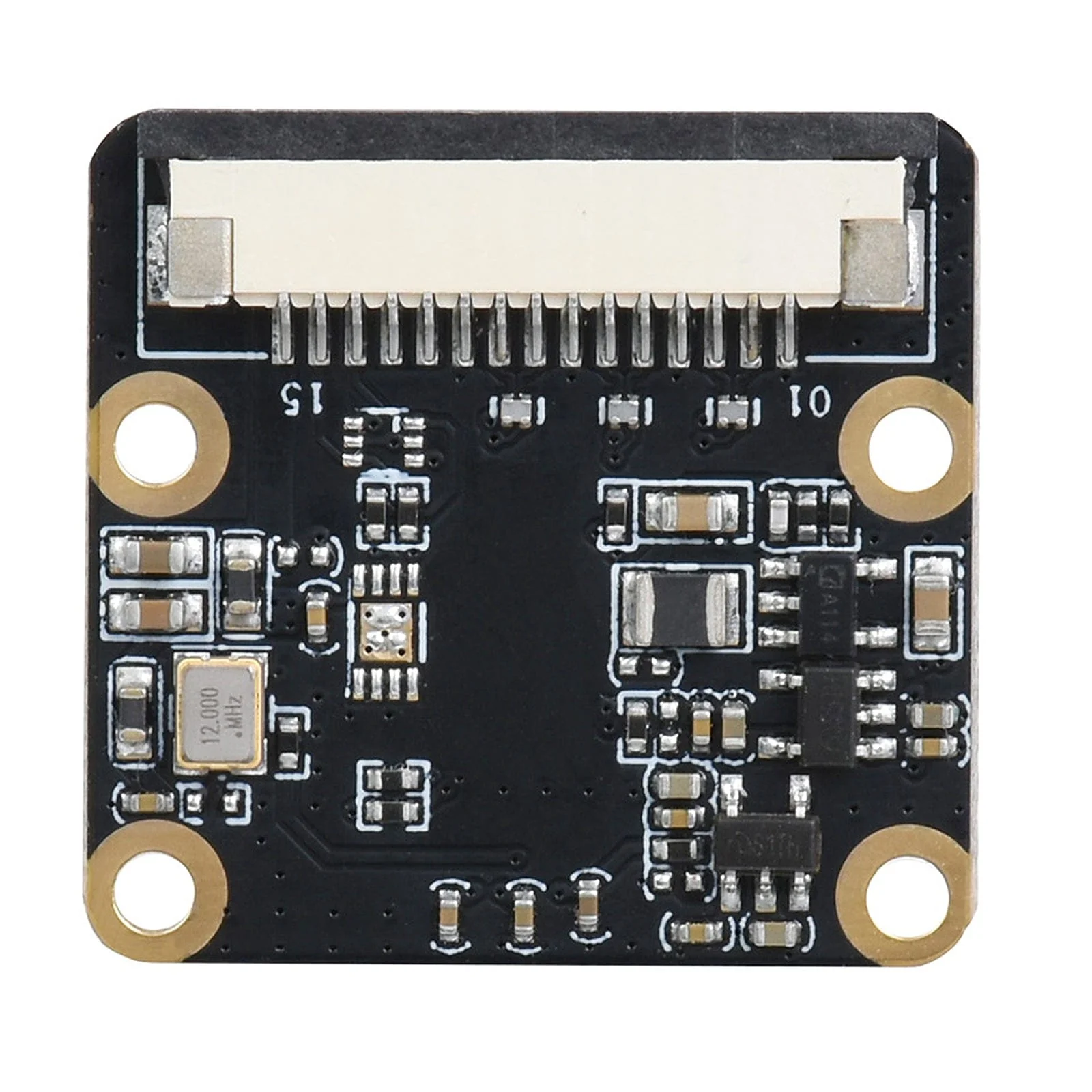

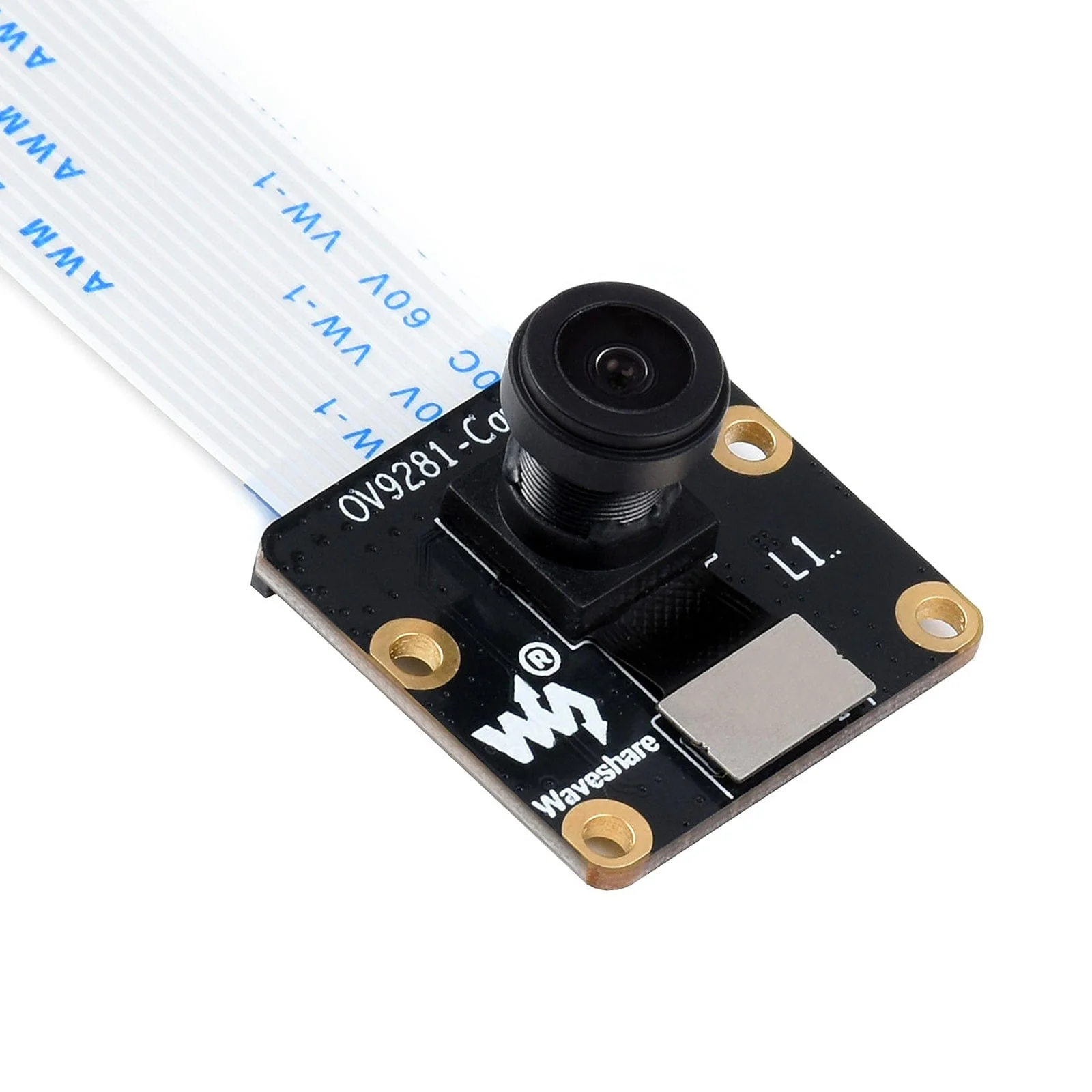

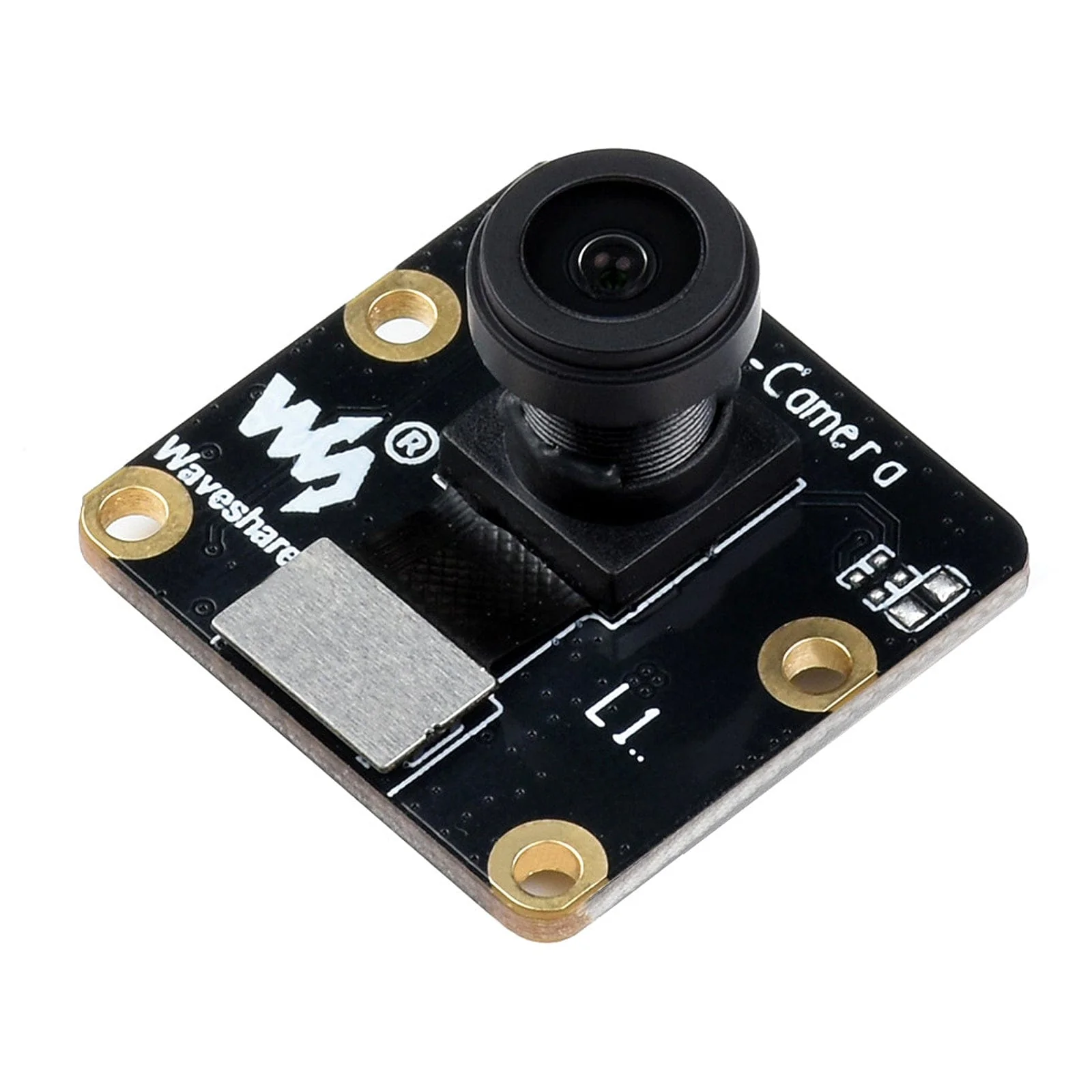

OV9281 Mono Global Shutter Camera for Raspberry Pi
This 1MP mono camera uses an OV9281 sensor with a 120° FOV (Field of View) giving you a wider viewing angle to capture even more in one shot!
The camera module features a global shutter which enables freeze-frame capture of fast-moving or changing events with no distortion in the final image, due to it exposing the sensor pixels at the same time.
To use this camera with a Raspberry Pi 5, you will need to buy this adapter cable!
To use this camera with a Raspberry Pi Zero, you will need to buy this adapter cable!
Specifications
| Sensor | OV9281 |
| Camera Type | mono |
| Shutter | Global Shutter |
| Distortion | < 7.5% |
| Focal Length | 3.15mm |
| CMOS Size | 1/4 inch |
| Pixels | 1MP (1280 × 800) |
| Aperture | F2.5 |
| Field of View | 110°(D) |
| Focusing | Fixed Focus |
| Dimensions | 23.8 x 25mm |
Resources
- Product Wiki
Package Contents
- 1x OV9281-120 Camera
- 1x 15-pin FFC (opposite sides contact)
