On-Off Power/Push Button Toggle Switch
This is a handy ON/OFF toggle switch ideal as a power switch or as a way to switch between modes on your project.
It's breadboard-friendly (almost - you may need to bend the legs slightly as they aren't a perfect 2.54mm pitch) and can handle up to ~500mA at 50V. It's also ideal for use on your own PCB projects.

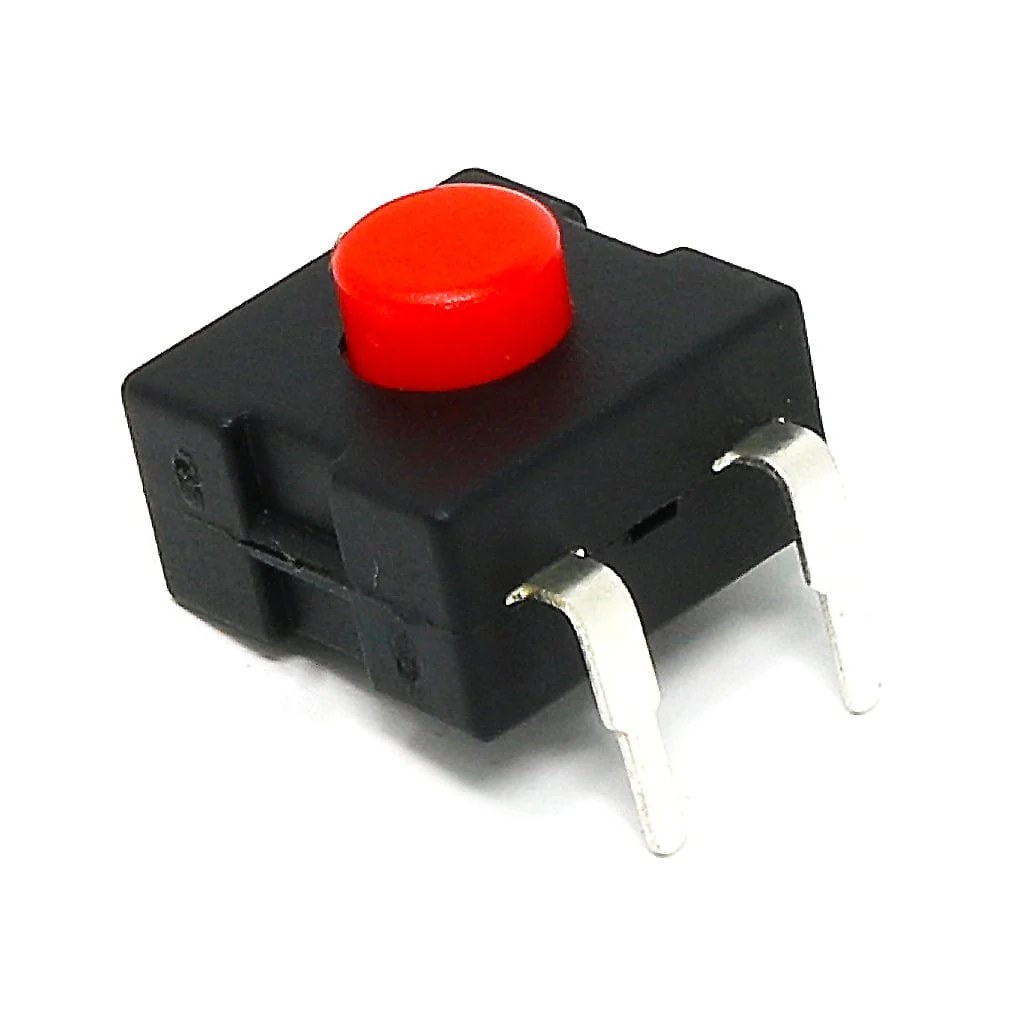

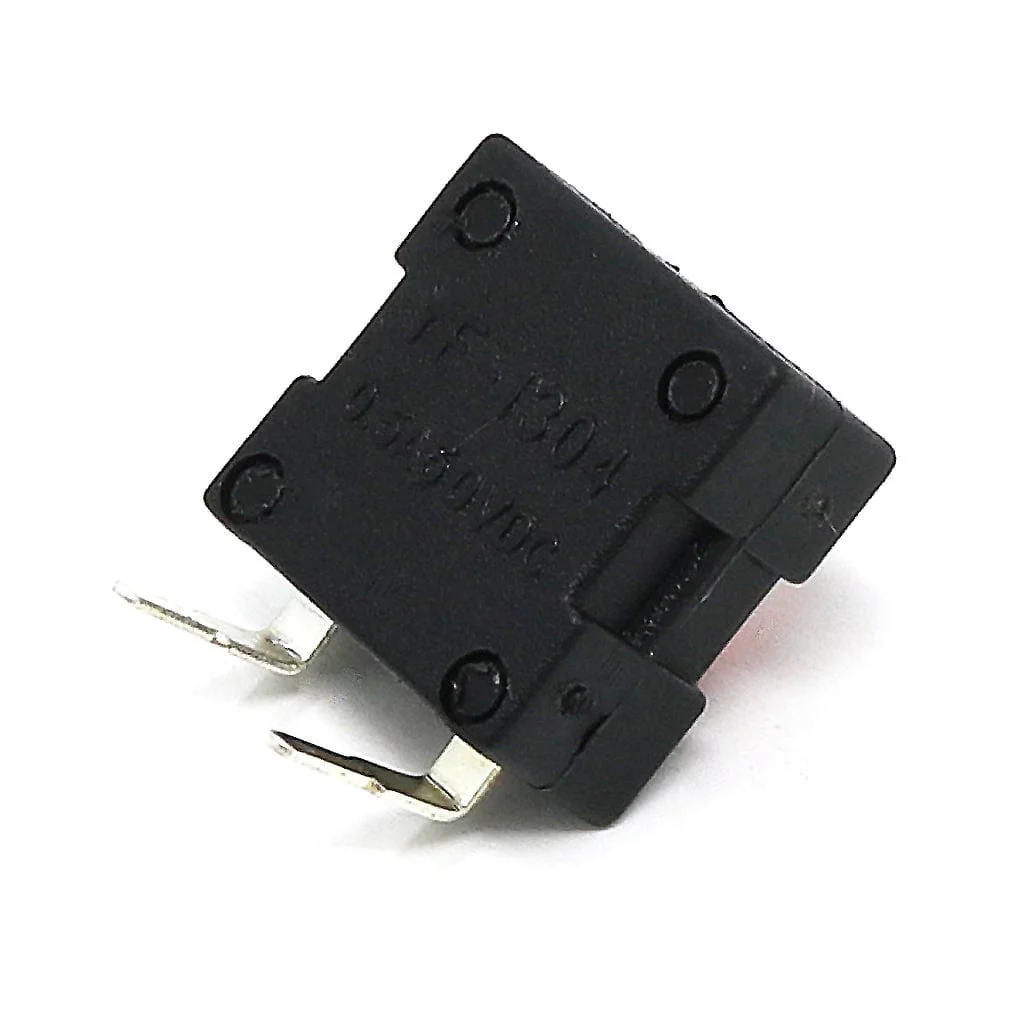

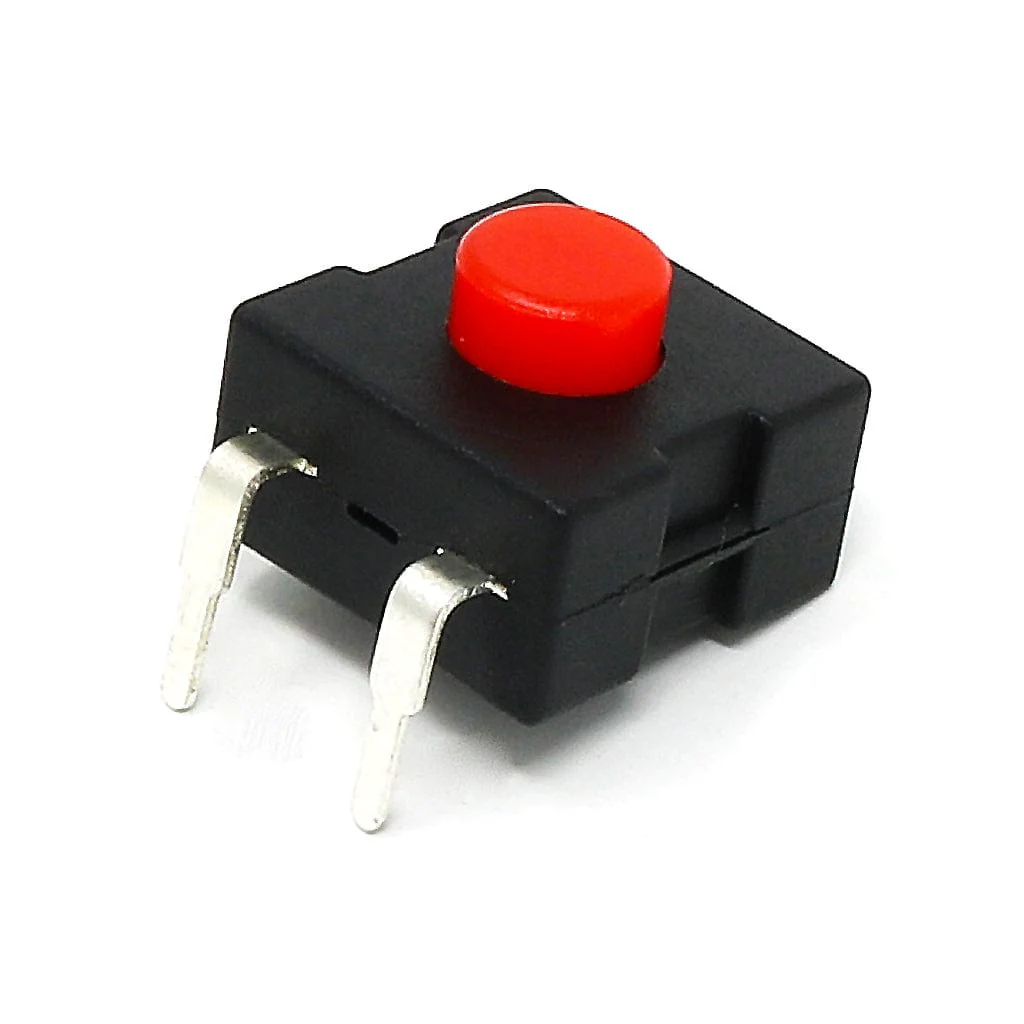

The switch has a black body and a bright red button. "Click click click" - so satisfying!
Specifications
- Ambient Temperature: -25ºC to 70ºC
- Rated Load: 50V @ 0.5A
- Contact Resistance: ≤50mΩ
- Operating force: 5N ~ 12N
- 12mm x 12mm x 7mm
- Length of Pins: 4mm
- Distance Between Pins: 7mm
- Weight: 1.2g
