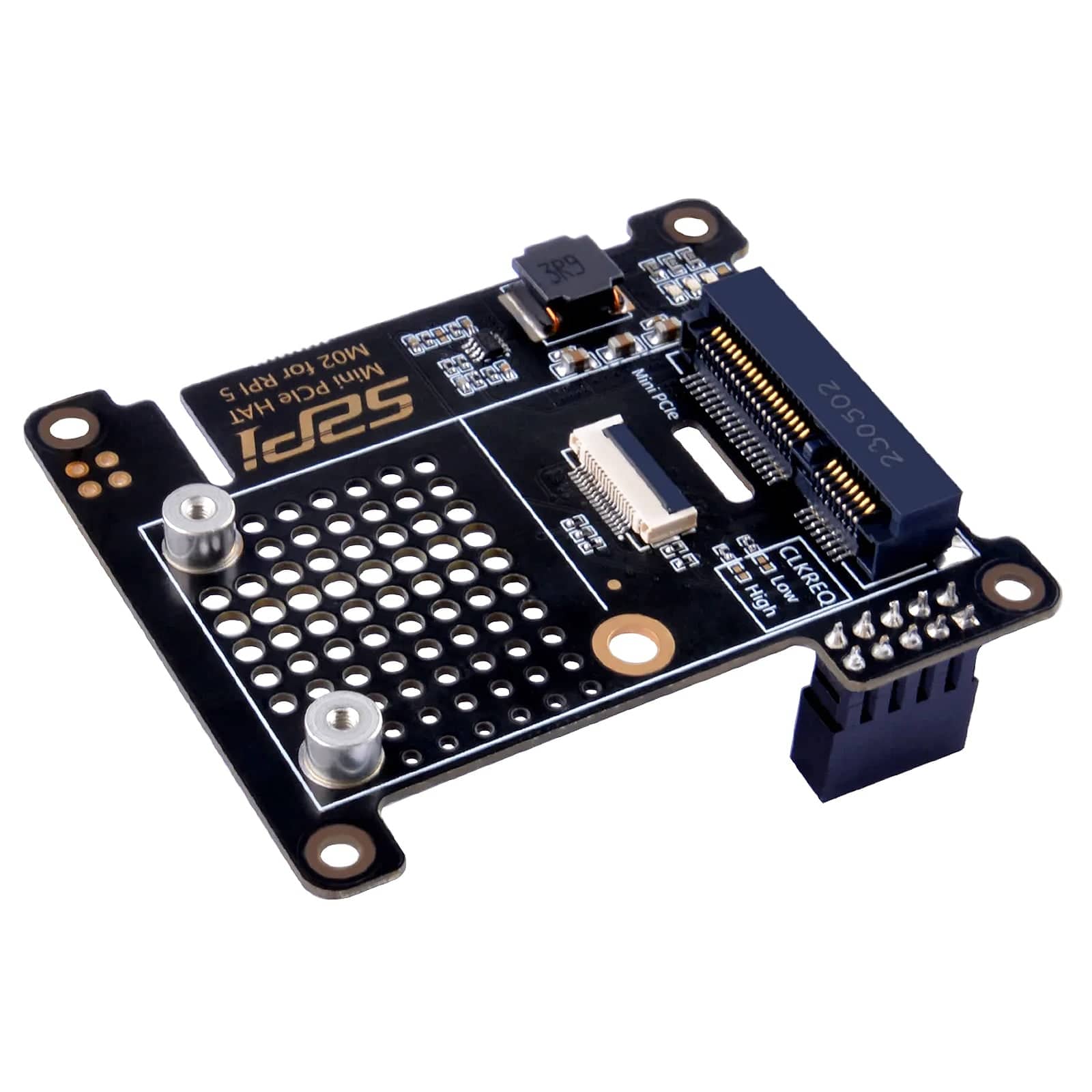

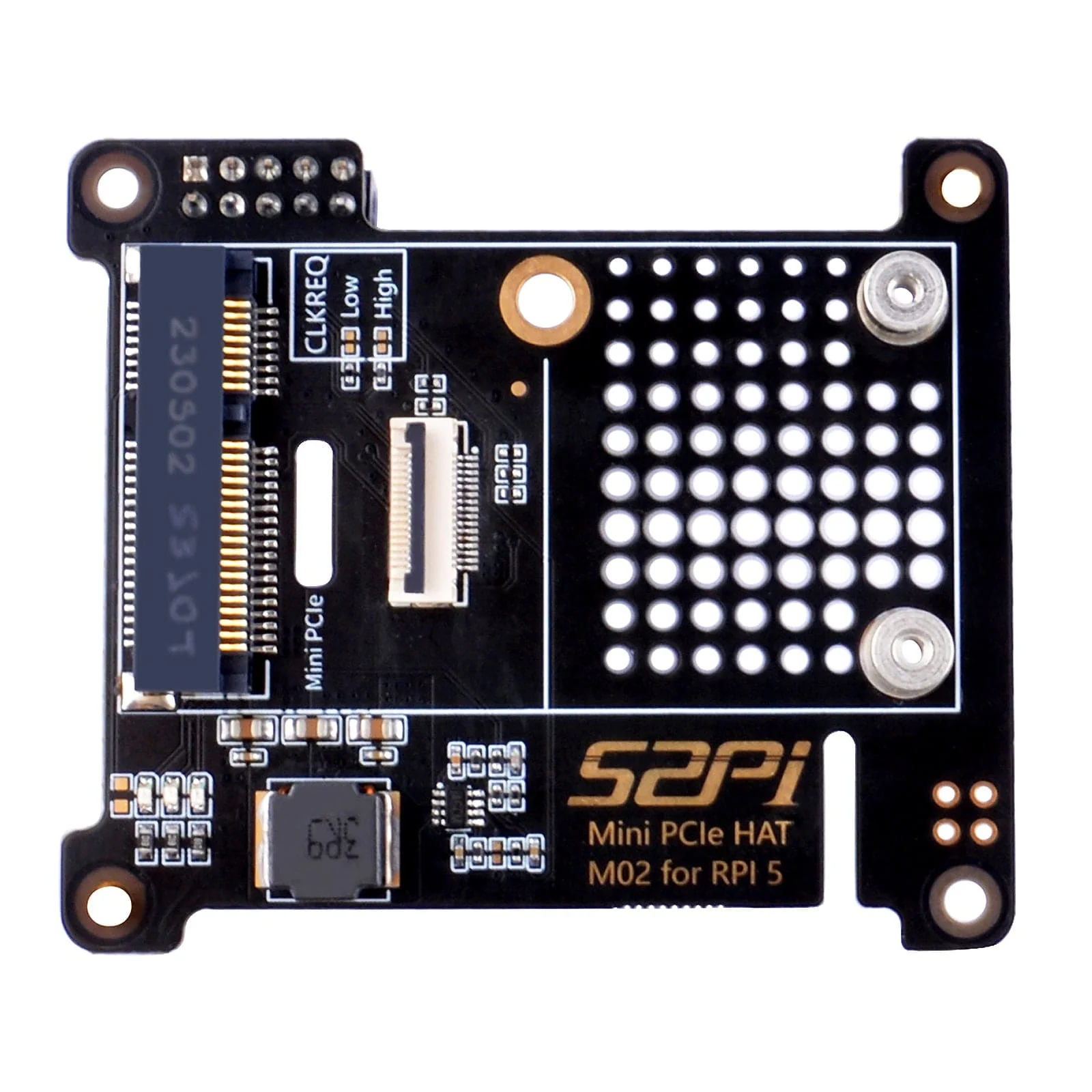

Mini PCIe HAT for Raspberry Pi 5 (M02)

The 52Pi Mini PCIe HAT (M02) is an expansion board for Raspberry Pi 5 which utilises the Pi 5's PCIe interface to provide seamless integration with Mini PCIe devices, such as network cards.

Its compact design, plug-and-play functionality, and high-speed data transfer make it a valuable addition to various Raspberry Pi projects.

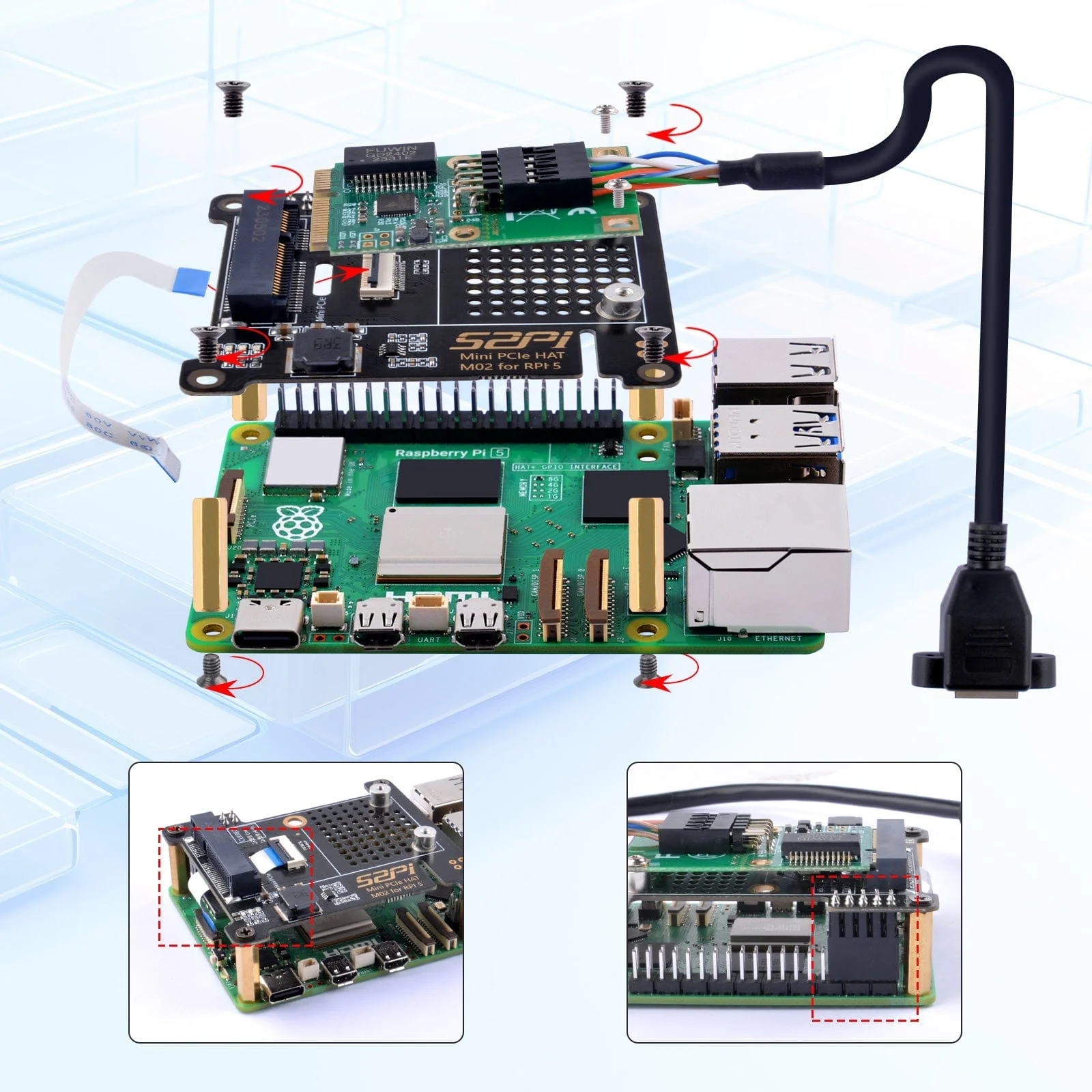

Some simple setup is required. Please see the Wiki for assembly and setup instructions.

Raspberry Pi 5 and PCIe device not included

Features

• Raspberry Pi 5 Compatibility: Designed for use with the Raspberry Pi 5
• Mini PCIe Expansion: The HAT extends the Raspberry Pi 5's capabilities by offering a Mini PCIe slot, allowing users to connect a variety of Mini PCIe devices, such as network cards.
• High-Speed Data Transfer: Leveraging the PCIe interface, the HAT supports high-speed data transfer rates
• Plug-and-Play Design: The HAT features a user-friendly, plug-and-play design for easy installation and setup

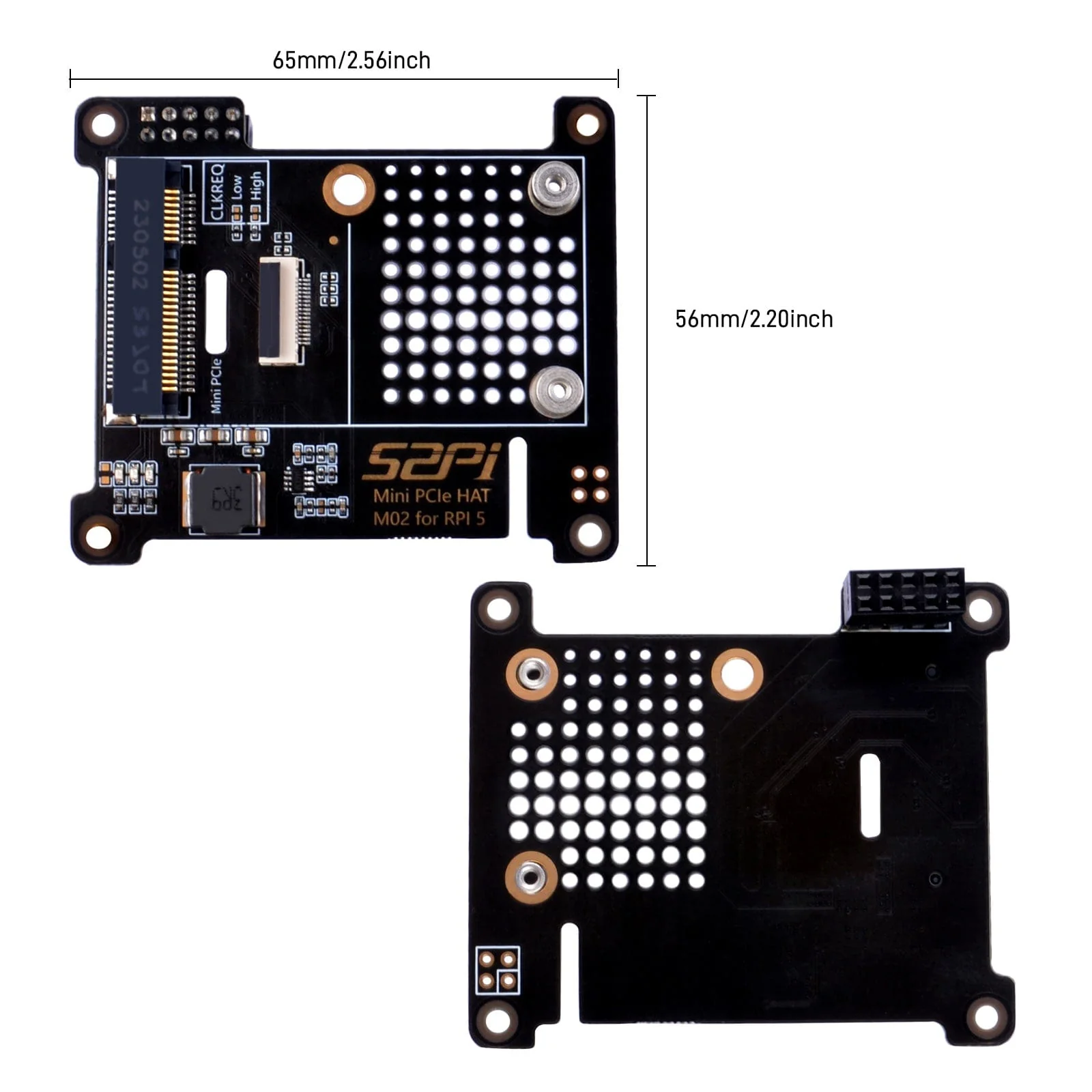

• Compact Form Factor: The HAT maintains a small footprint, allowing for versatile and space-efficient Raspberry Pi 5 projects
• Enhanced Connectivity: Expanding the connectivity options of the Raspberry Pi 5, the HAT opens up possibilities for a range of Mini PCIe devices
• Versatile Applications: With support for Mini PCIe devices such as network cards, the HAT is suitable for a wide range of applications, including networking projects, IoT applications, and custom embedded systems

Resources

• Product Wiki
• How to enable the PCIex1 function on Raspberry Pi 5

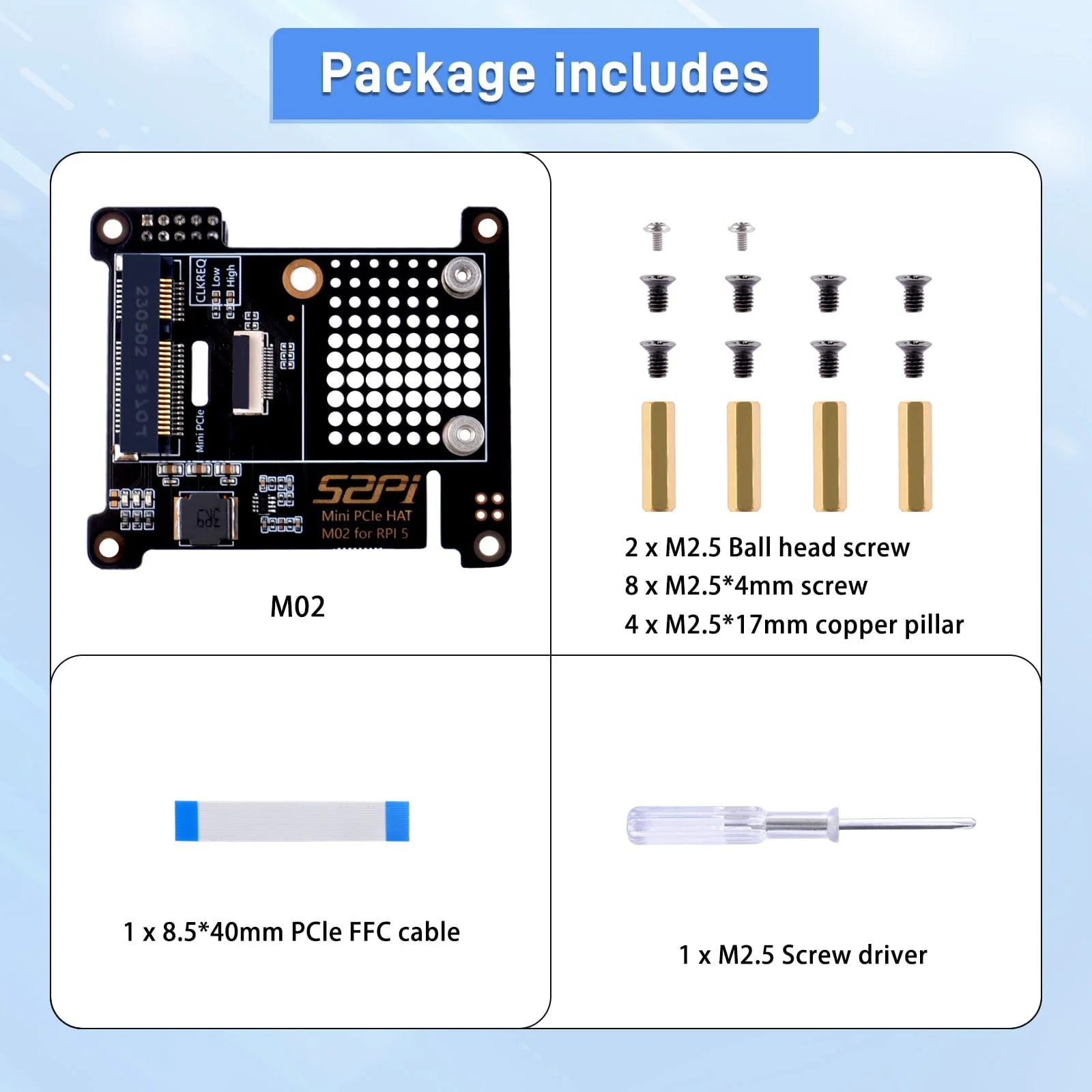

Package Contents

• 1 x 52Pi Mini PCIe HAT M02 for RPi 5
• 1 x 8.5 x 40mm FFC cable (40mm length)
• 2 x M2.5 Ball head screw
• 8 x M2.5x4mm screw
• 4 x M2.5x17mm copper pillar
• 1 x Screwdriver

Raspberry Pi 5 and PCIe device not included
