Mini Base Board (A) for Raspberry Pi CM5

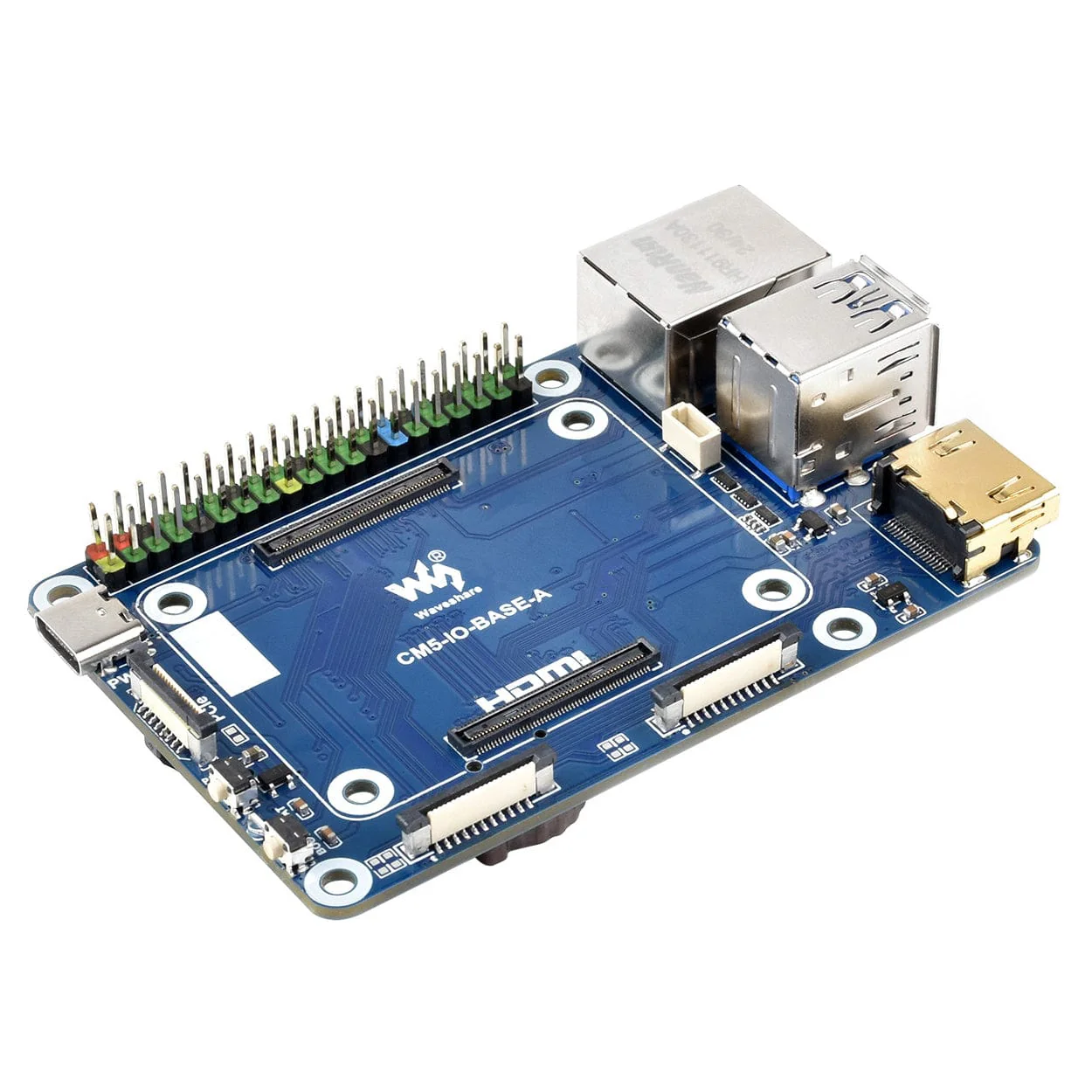

The Waveshare Mini Base Board (A) is an expansion board for the Raspberry Pi Compute Module 5 (CM5) that offers a range of features packed onto a compact carrier, allowing extensive prototyping or general breakout usage of your CM5.
Key features include 2x USB 3.2 Gen1 ports, a full-size HDMI port, a second HDMI port via FFC, Gigabit Ethernet, RTC battery holder and PCI-e interface. MIPI DSI and CSI connectors enable display and camera integration, while the MicroSD card slot provides flexible storage/boot options.
Power is supplied via USB-C (we recommend the Raspberry Pi 27W PSU), with a fan header for cooling and mounting holes for installation.
Compute Module 5 not included.

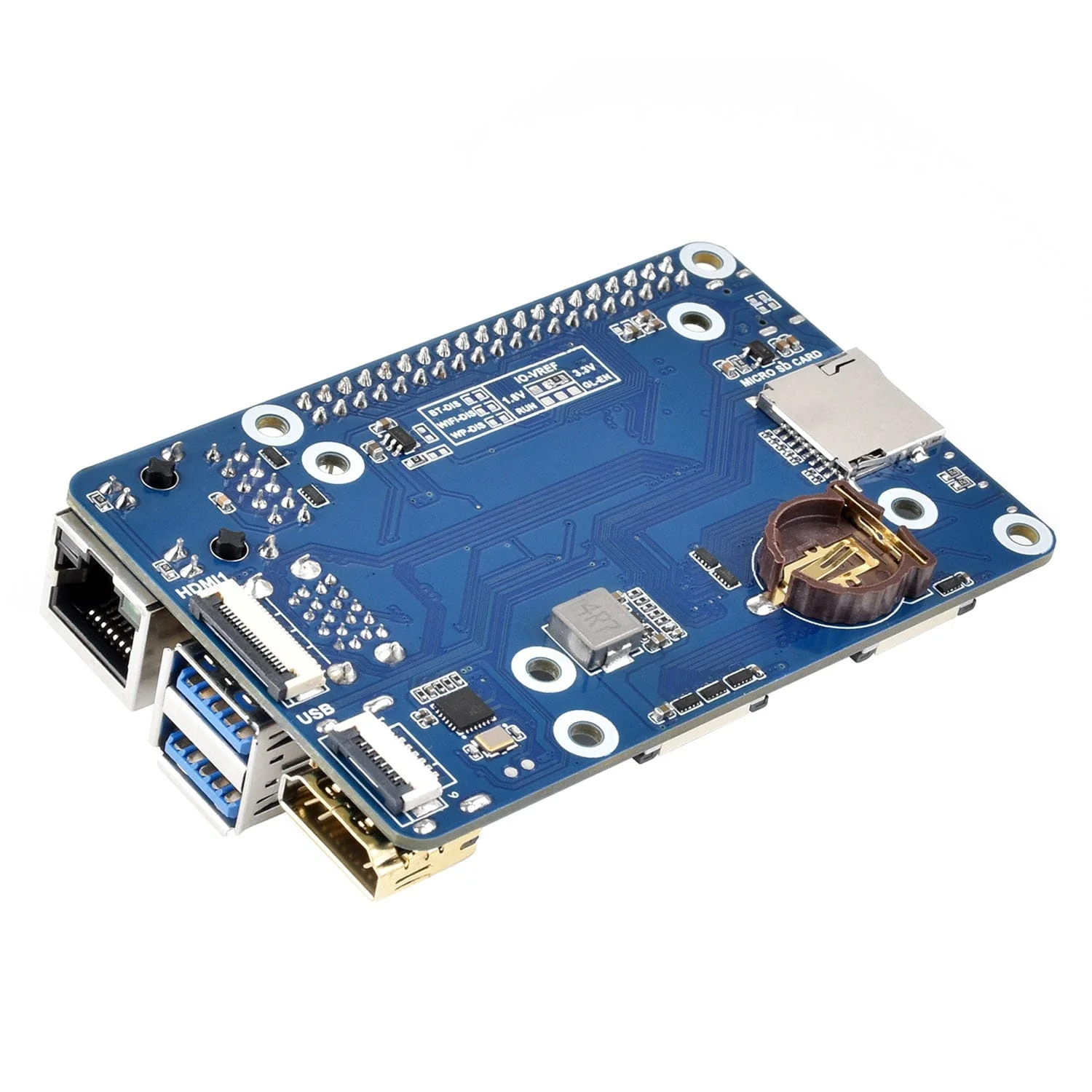

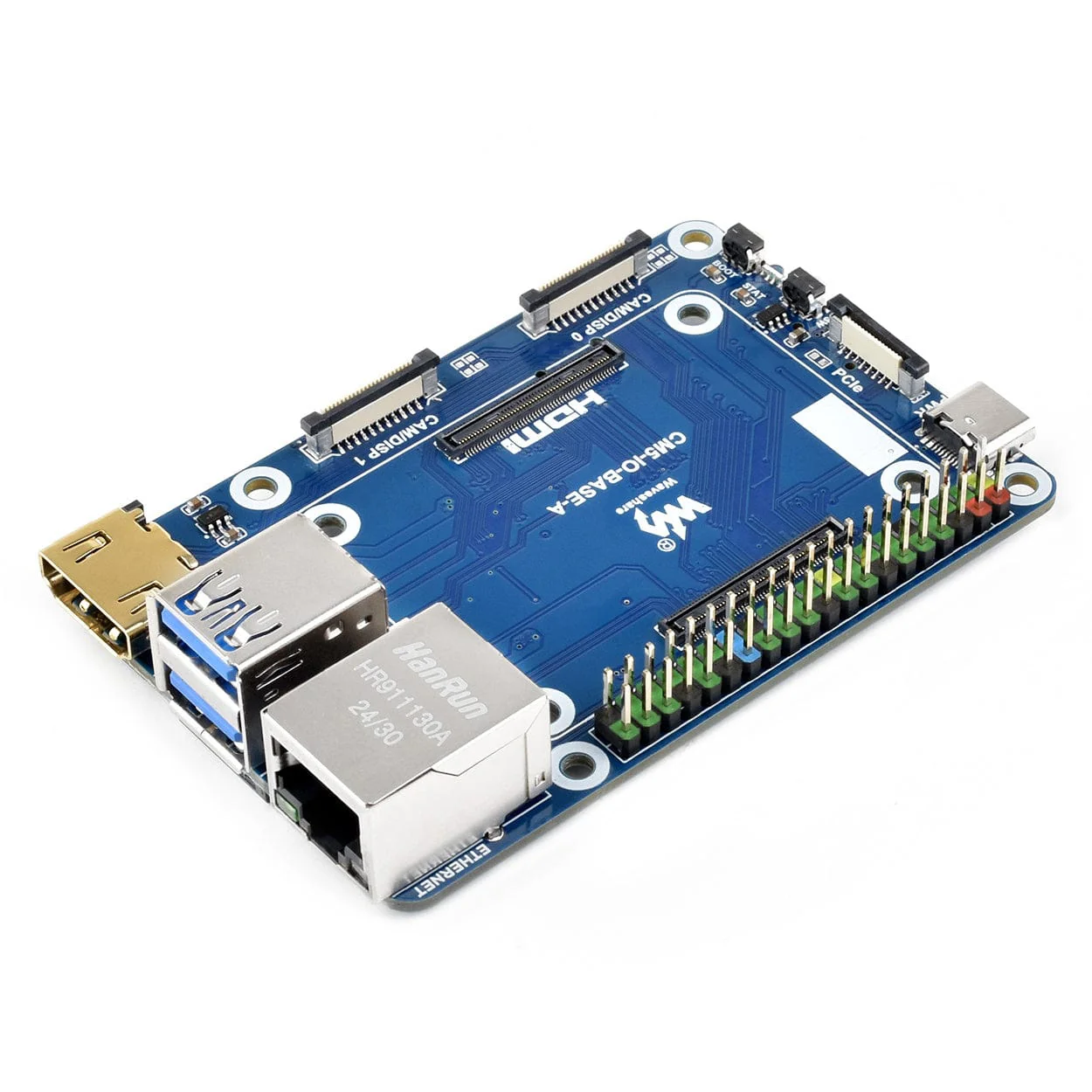

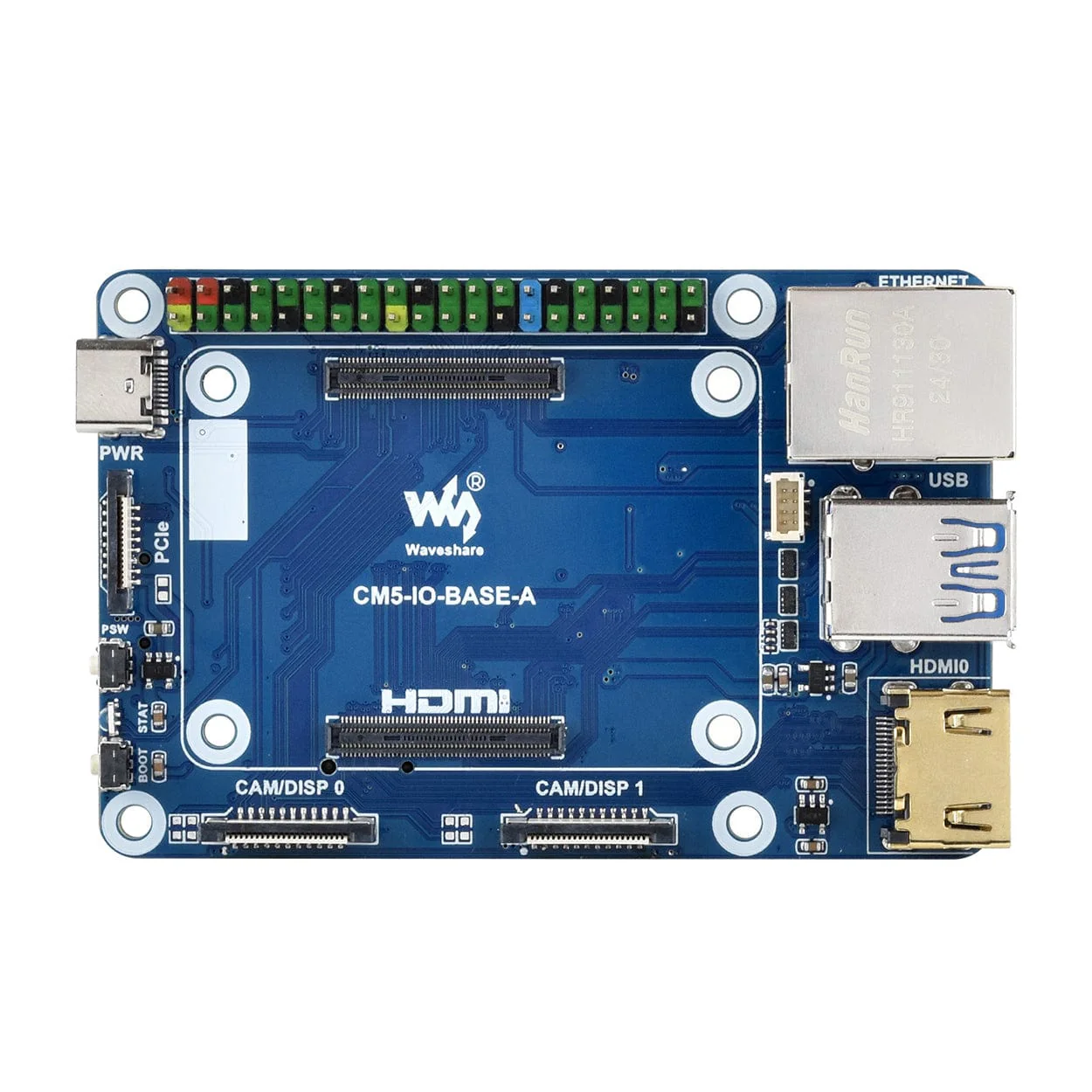

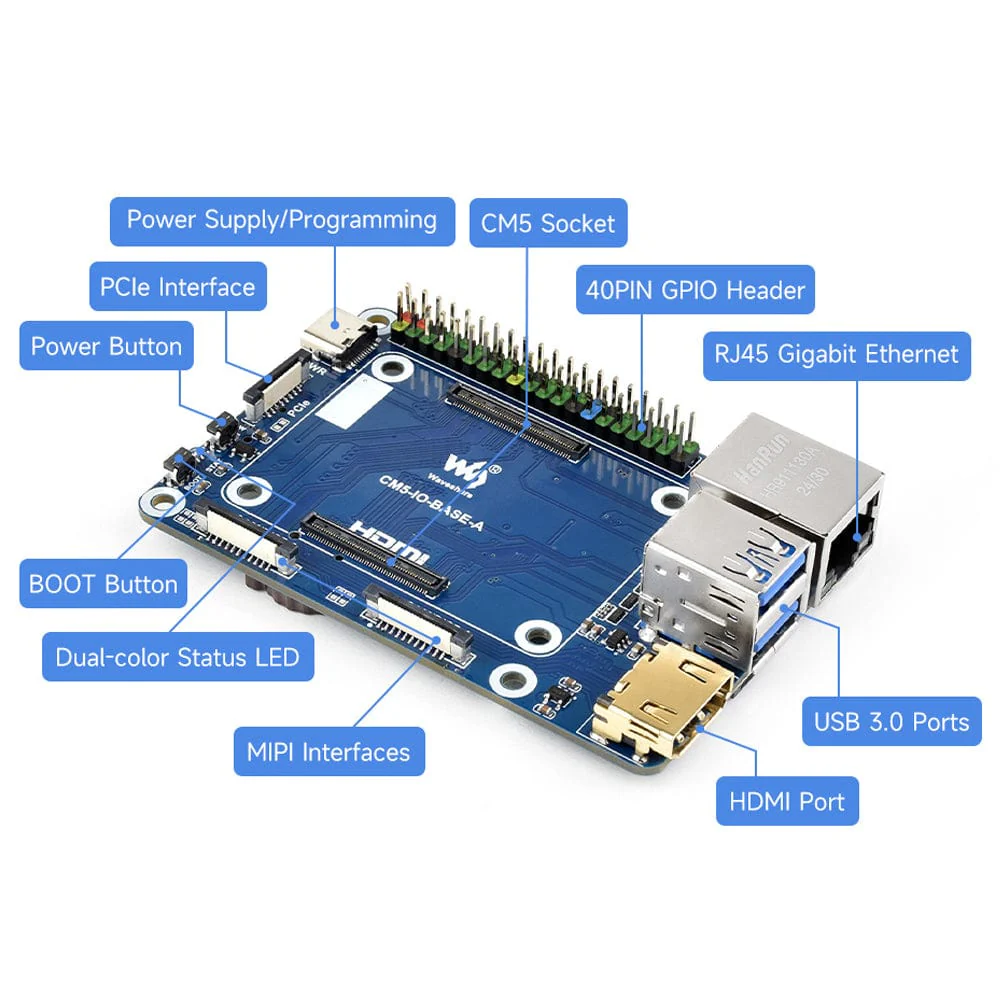

What's Onboard?
- CM5 socket: Suitable for all variants of Compute Module 5
- 40-pin GPIO header: For connecting various HAT / HAT+ modules
- Power input/Programming: requires a 5V / 5A USB-C power supply (or used for eMMC burning)
- PCIe interface: For connecting various PCIe expansion boards
- PSW Power button: Long press to force power off, short press to soft power off or on
- STAT LED: Dual-colour status LED
- BOOT button: Press before powering on and release after powering on to enter the burning mode
- Dual MIPI interfaces: For connecting DSI displays and CSI cameras
- HDMI0 connector: HDMI0 port, supports 4K output
- USB 3.2 Gen1 ports: 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
- RJ45 Gigabit Ethernet port: Supports 10M / 100M / 1000M network access
- 4-Pin JST-SH PWM Fan header: For connecting a cooling fan, 5V power supply
- TF card slot: For connecting a MicroSD card with pre-burnt image (Lite variant ONLY)

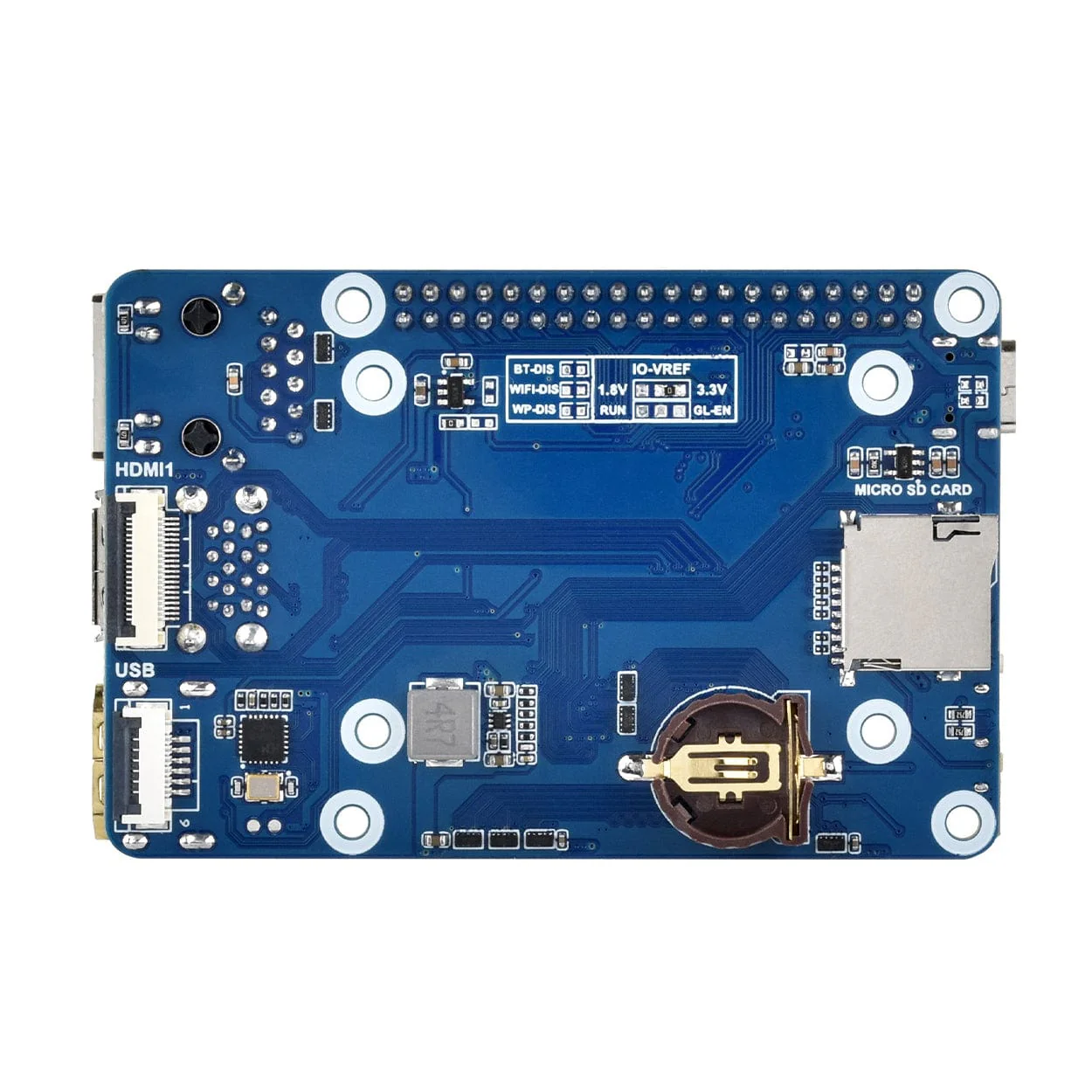

- IO-VREF selection: CM5 IO logic level: 3.3V (default) or 1.8V
- Other function pins: WIFI / BT hardware disable or write protection

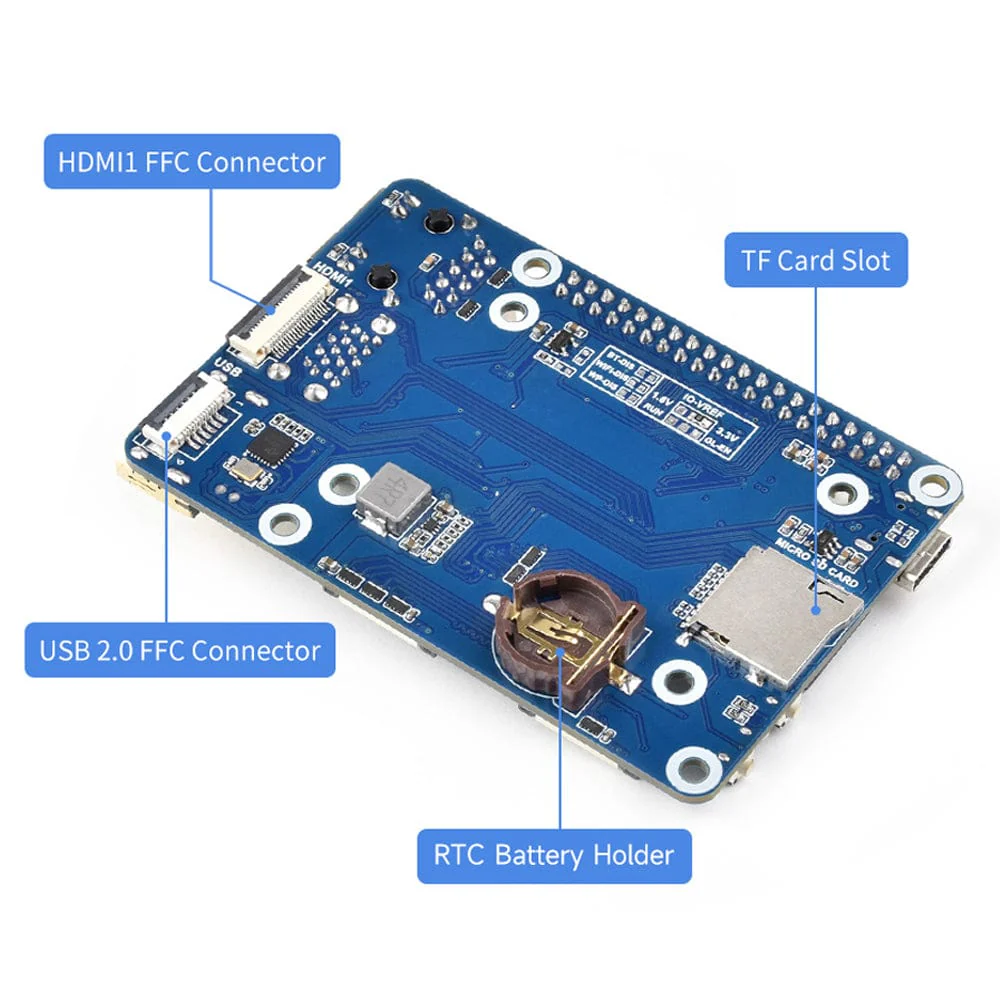

- HDMI1 FFC connector: HDMI1 port, supports 4K output, can be connected through an adapter
- USB 2.0 FFC connector: Can be connected through an adapter
- RTC battery holder: Supports rechargeable ML1220 button cell
Resources
- Product Wiki

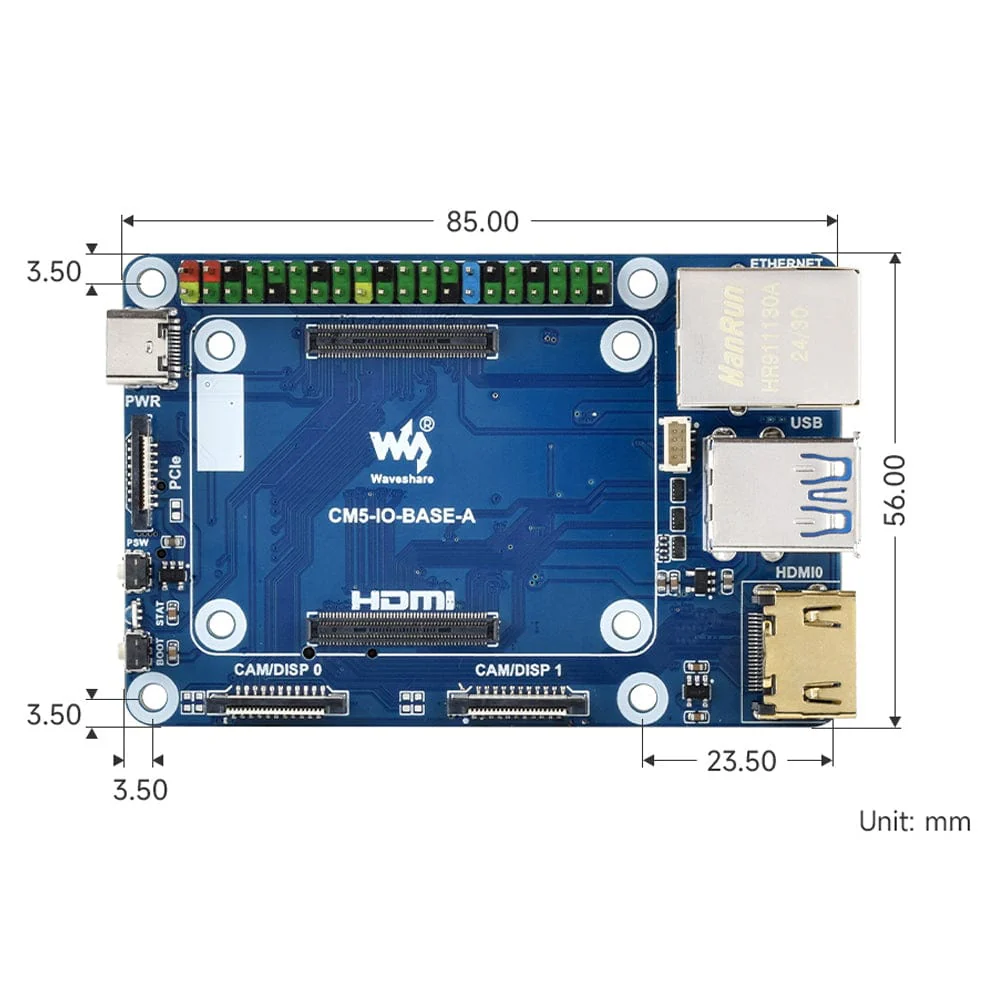

- Dimensions
- Schematic
- 3D Model
Package Contents
- 1x Mini Base Board (A) for CM5
- 4x Standoffs
- 4x Screws
Compute Module 5 not included
