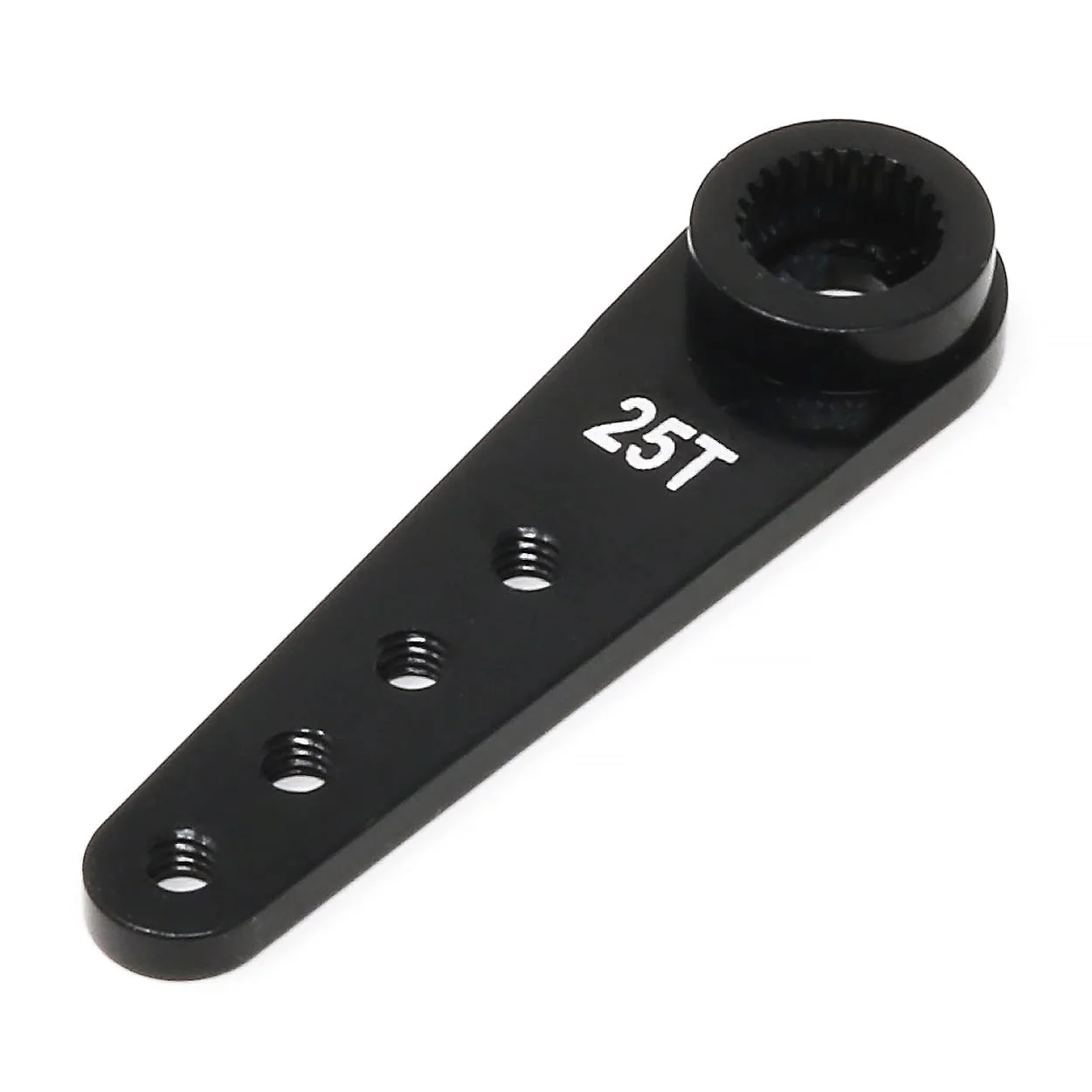

Machined Aluminum Servo Arm

This machined aluminium servo arm is a durable upgrade for standard plastic servo horns. It is made from anodised aluminium for improved strength and a longer working life, making it a decent choice for more important servo projects.

The arm is 37mm long and 2.5mm thick, with four tapped 2mm mounting holes positioned 15mm, 20mm, 25mm and 30mm from the centre point. The hub is designed to fit 25-tooth servo shafts and is compatible with standard-size servo motors.

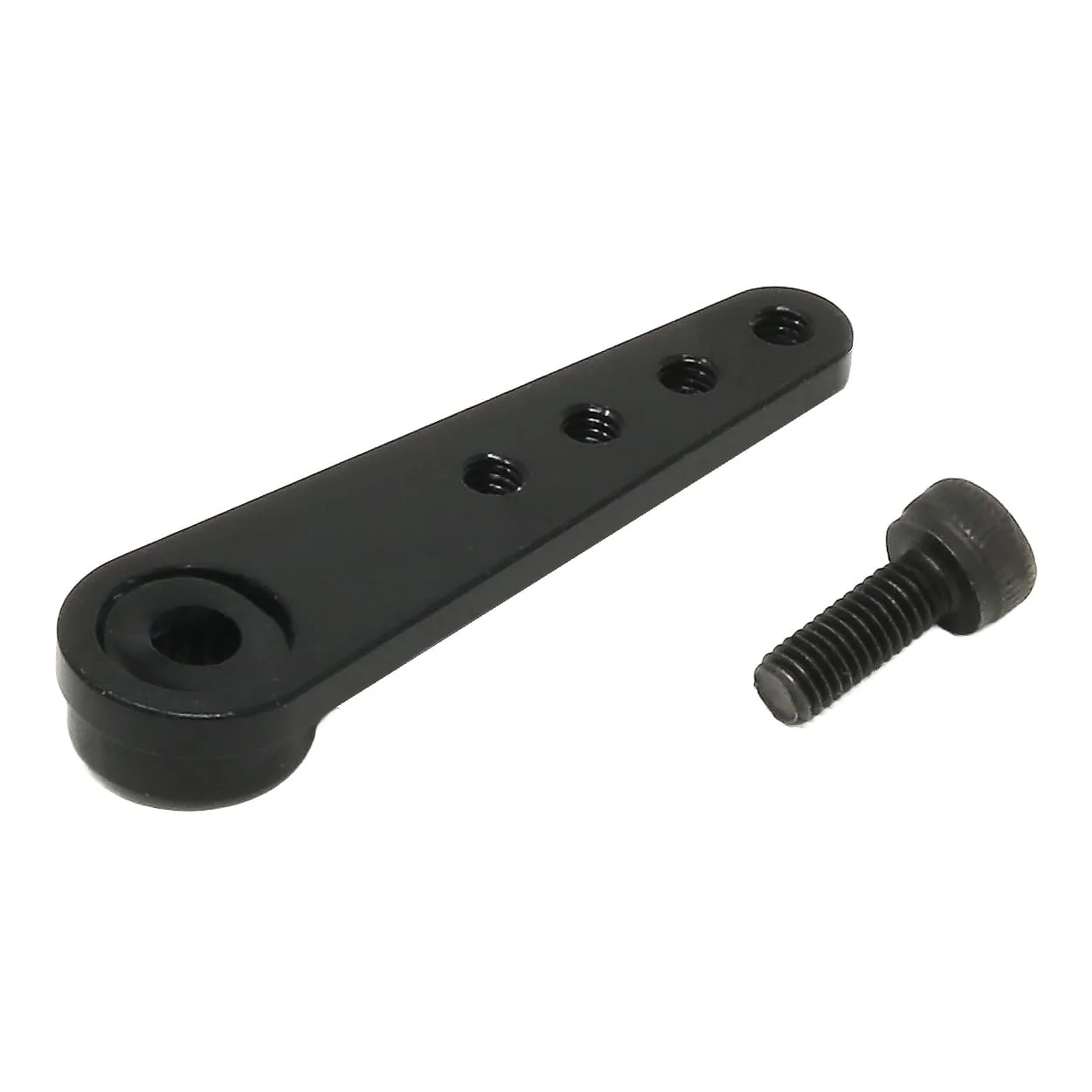

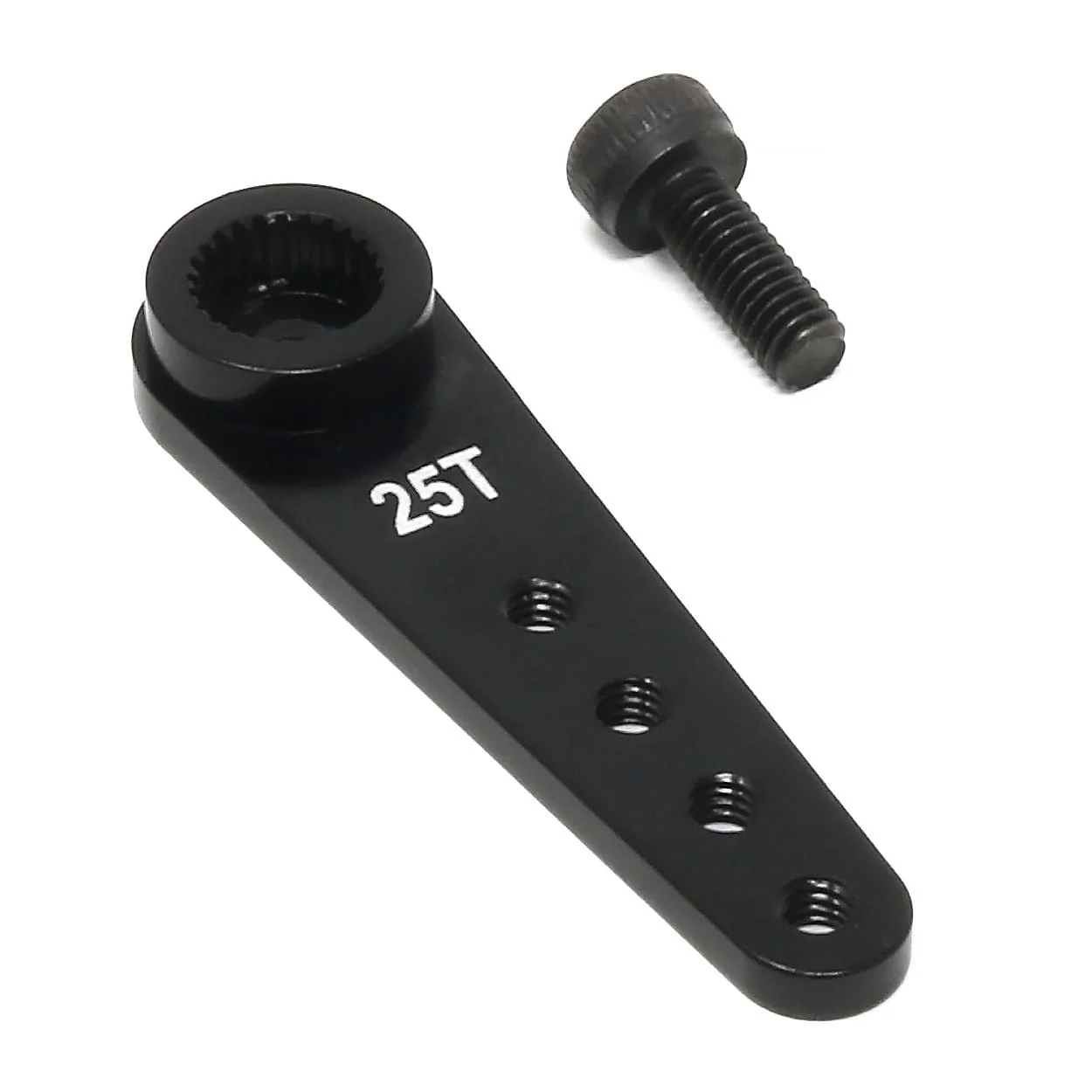

The arm comes with a small hex screw.

Please note, it is not compatible with micro and sub-micro servos.

Features

• 37mm machined aluminium servo arm
• Anodised finish
• 2.5mm thick arm
• Four tapped 2mm holes
• Hole spacing: 15mm, 20mm, 25mm and 30mm from centre
• Fits 25-tooth servo shafts

Specifications

• Dimensions: 37.0mm x 6.0mm x 5.0mm
• Weight: 1.8g

Package Contents

• 1x Machined Aluminium Servo Arm
• 1x Hex Screw
