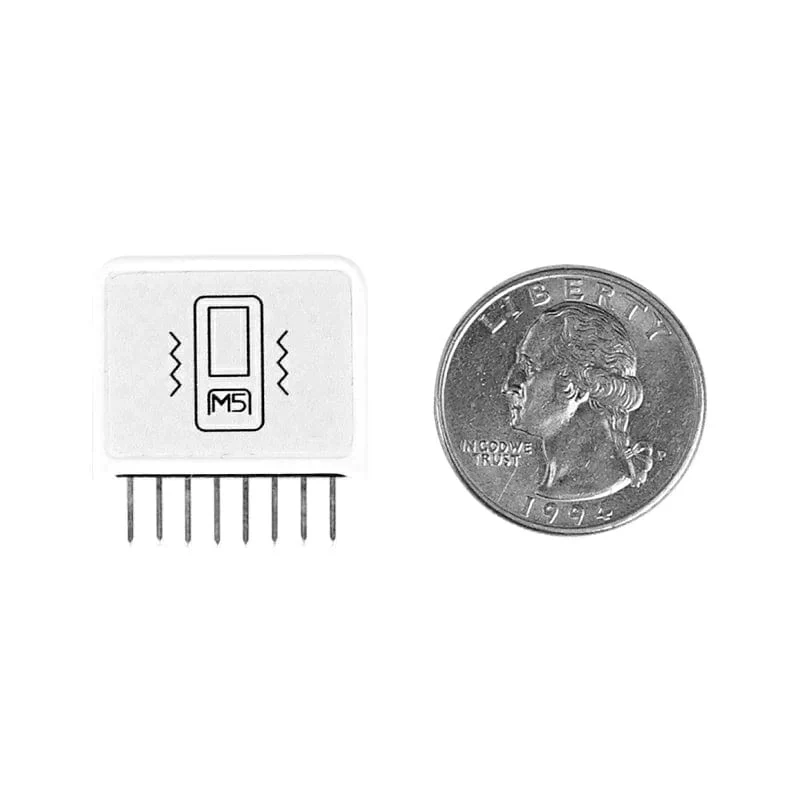

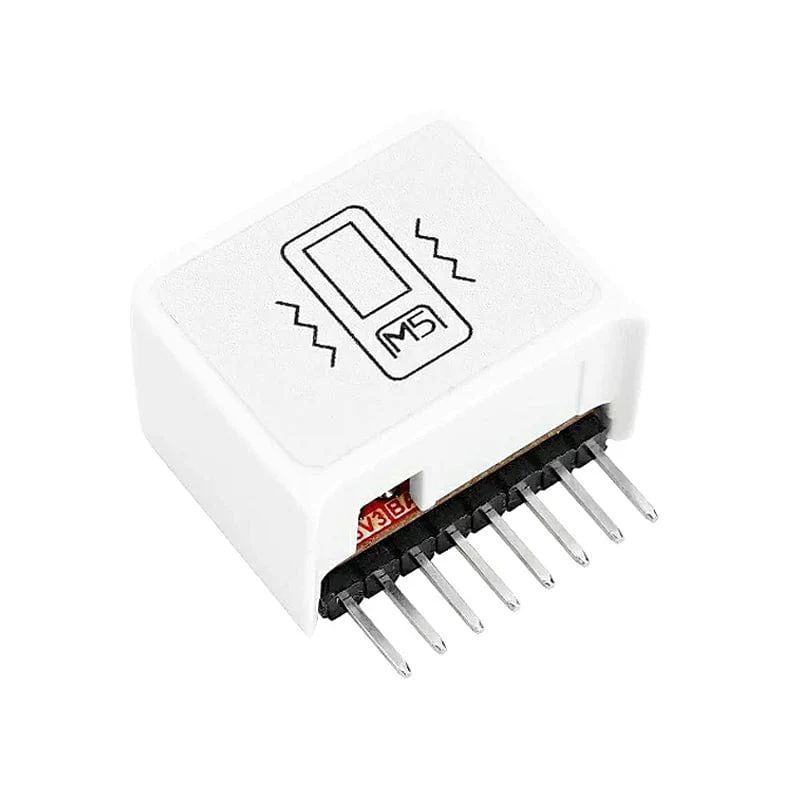

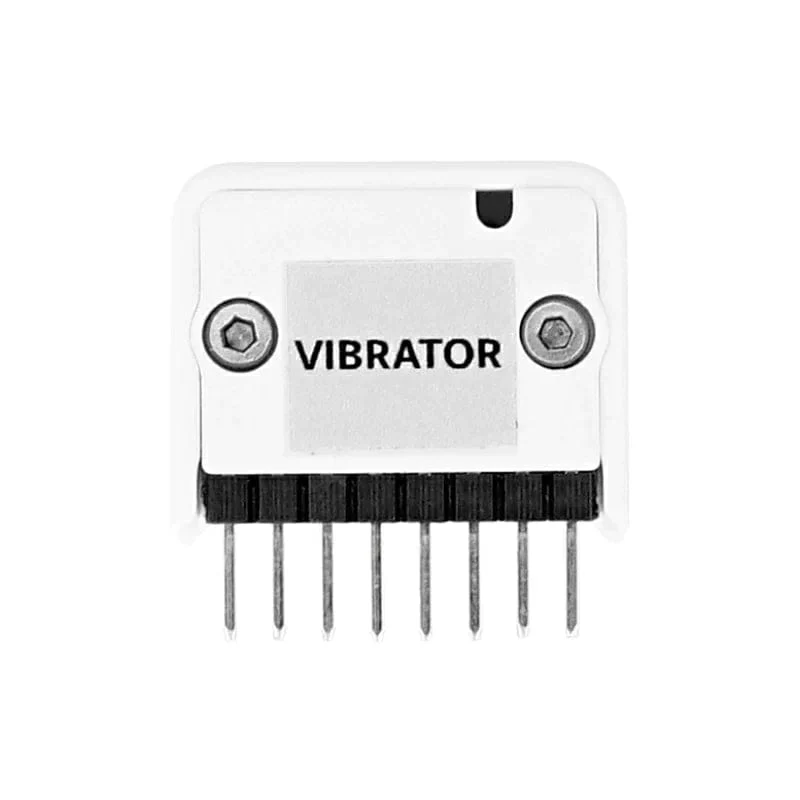

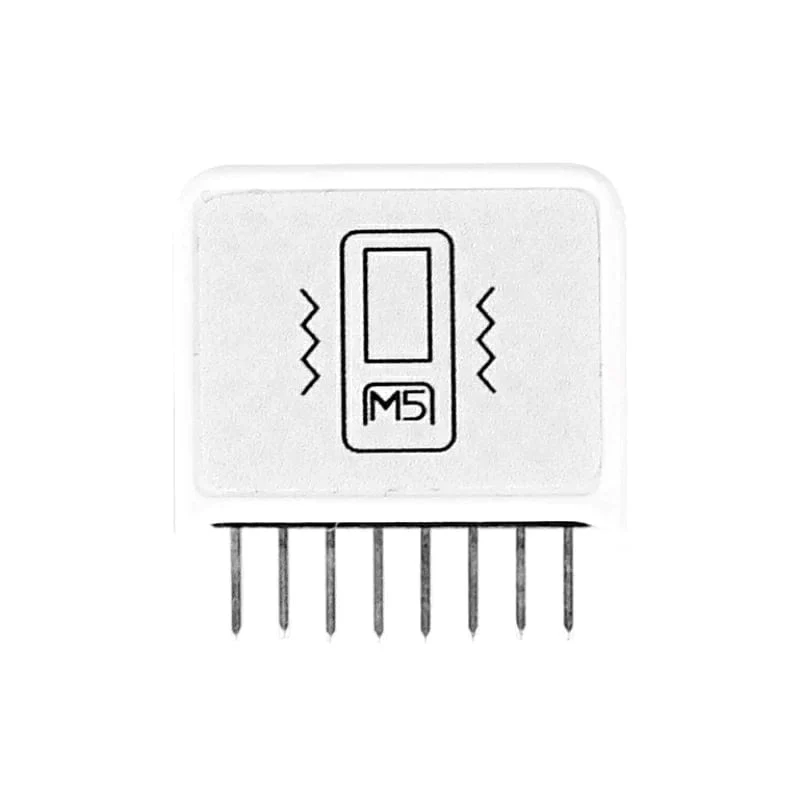

M5StickC Vibration HAT

 The M5StickC Vibration HAT is a motor designed for the M5StickC/C-Plus series. It is made of a cylindrical iron core patch Z3OC1T8219731 motor. The motor speed is 12000 RPM. It can produce various vibration effects, such as increasing or decreasing vibration level, producing a click effect, producing different buzzer effects, and even vibrating with a music/audio input. It can be applied to all kinds of electronic products, such as information prompts and touch feedback.

Features

• Clockwise rotating motor
• Rotational speed: 12000RPM
• Compatible with StickC/C-PLUS
• Supported platforms UIFlow, Arduino

Specifications

Resources	Parameters

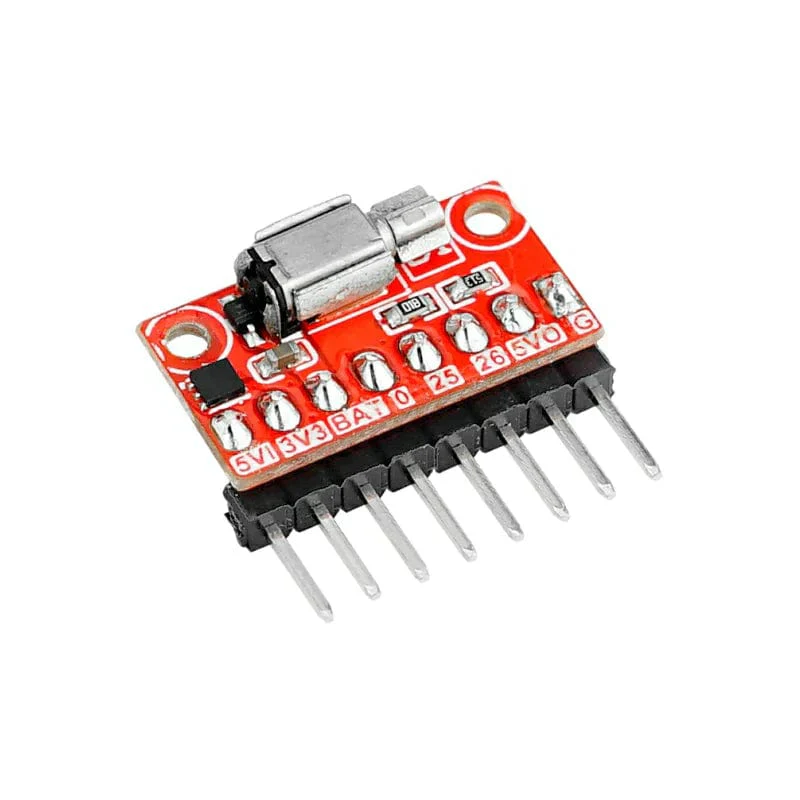

Vibrator	Z3OC1T8219731 motor
Motor construction	4mm×3mm cylindrical core SMT motor
Motor Number of magnet poles	2-poles（inner magnet type）
Quota voltage	3.0V
Rated current	85mA
Rated speed	12000RPM
Using voltage	2.3V-4.5V
Operating conditions	0~95%RH , 0-40℃
Vibration Frequency	10 to 55Hz
Product Size	24mm × 21mm × 14mm
Package Size	136mm × 92mm × 14mm
Product Weight	4.7g
Package Weight	7.1g

Resources

• Product Wiki
• Vibrator Data Sheet

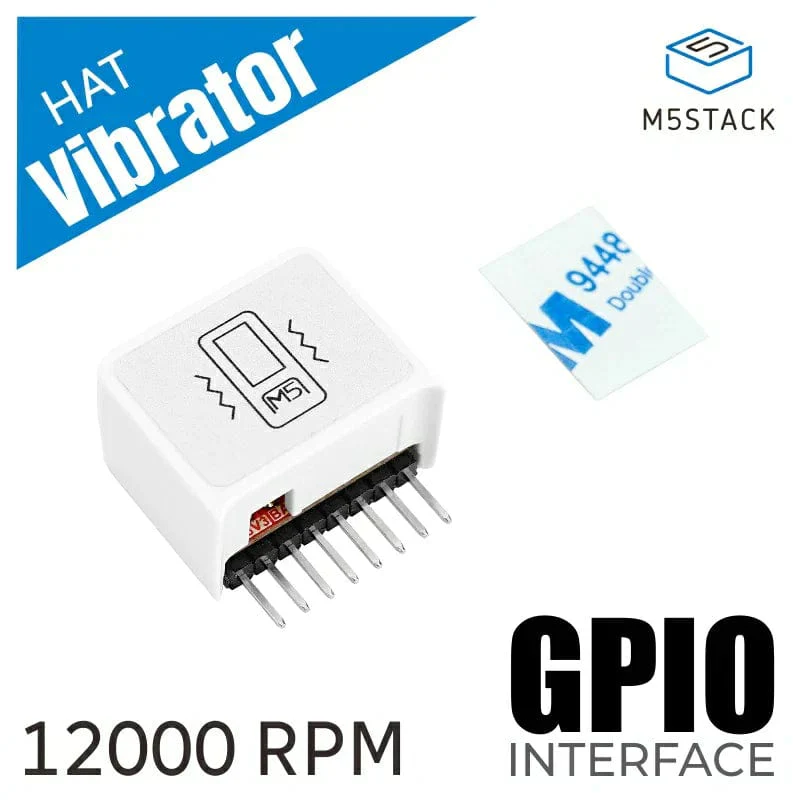

Package Contents

• 1x HAT-Vibrator
• 1x Double-sided sticker
