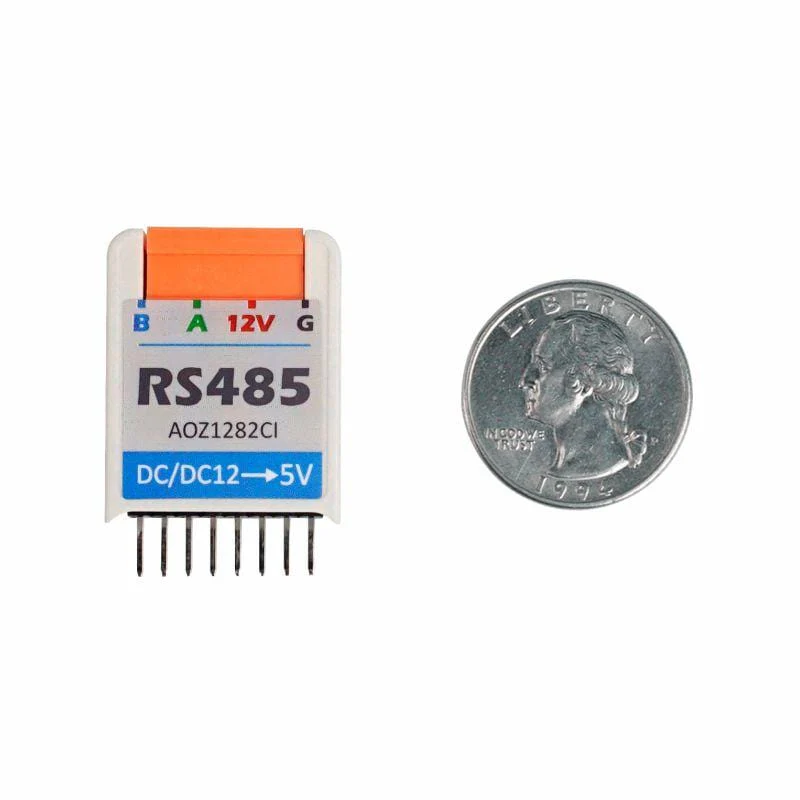

M5Stack M5StickC RS485 HAT AOZ1282CI

The RS485-HAT is a TTL to RS485 converter for M5StickC. Among M5stack products we have 5 items that include TTL to RS485, they are RS485 unit, RS485 HAT, PLC, LAN, BASE26 they have different input voltage, vary from 5V - 12V.

It consists of a 485 automatic transceiver circuit and a DC-DC buck circuit which can drop an input from 12V to 5V.

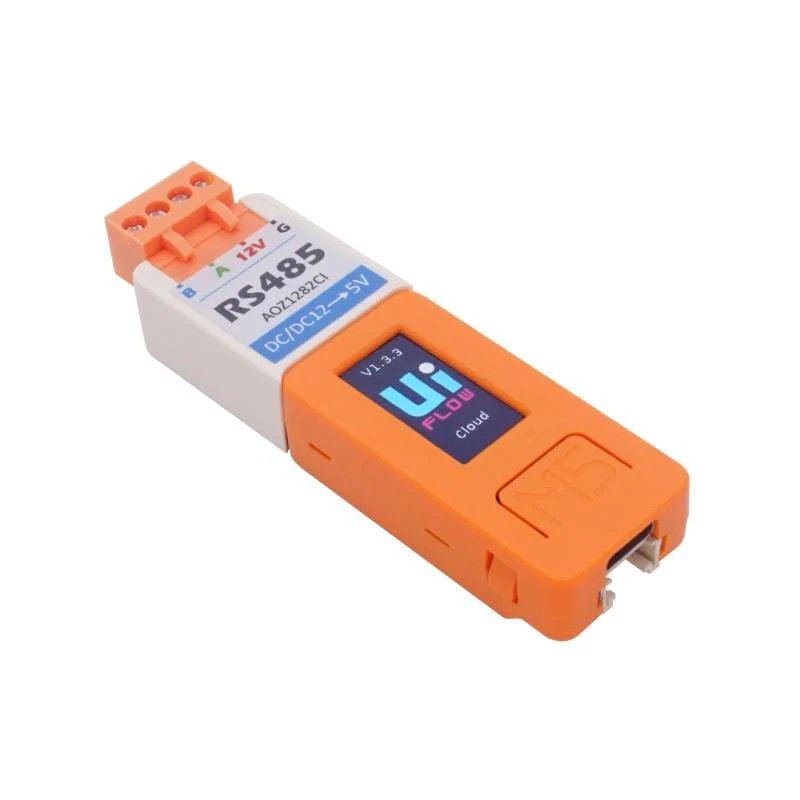

It is used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this hat on top of stickc, to implement the communication with the RS485 device by TTL protocol.

Features

• Built-in SP485EEN
• The built-in automatic transceiver circuit
• Built-in DC-DC buck circuit
• AOZ1282CI
• input DC 12 V
• BandRate up to 115200
• Program Platform: Arduino, UIFlow(Blockly, Python)

Package Contents

• 1x RS485 HAT

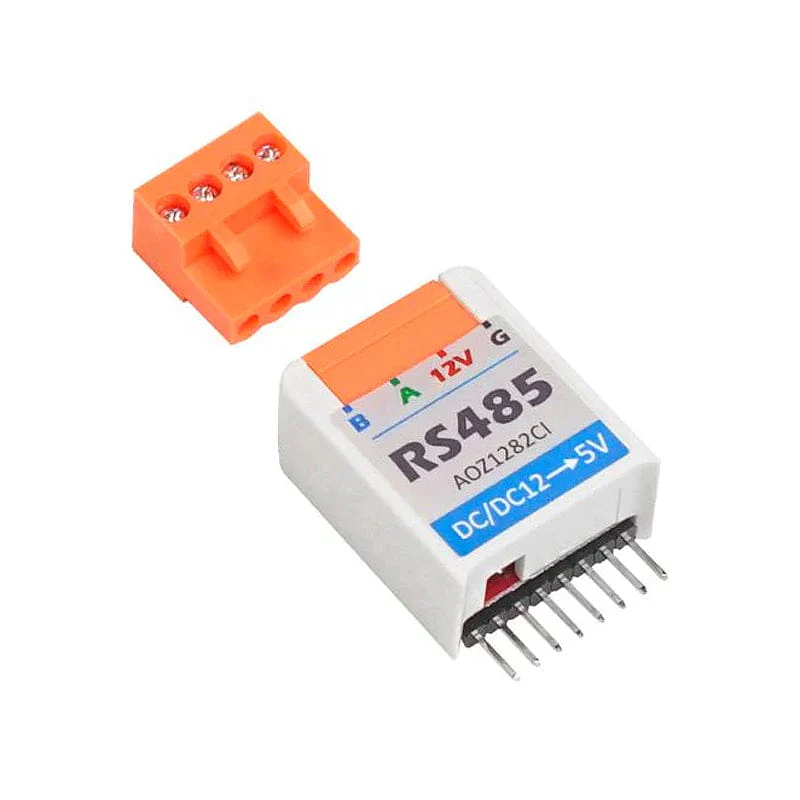

• 1x 4 Pin 3.96 Pitch Terminal

Specifications

Resources	Parameter
Net weight	7g
Gross weight	17g
Product Size	35 x 24 x 8mm
Package Size	40 x 42 x 30mm
