M5Stack M5StickC NeoFlash Hat [Discontinued]

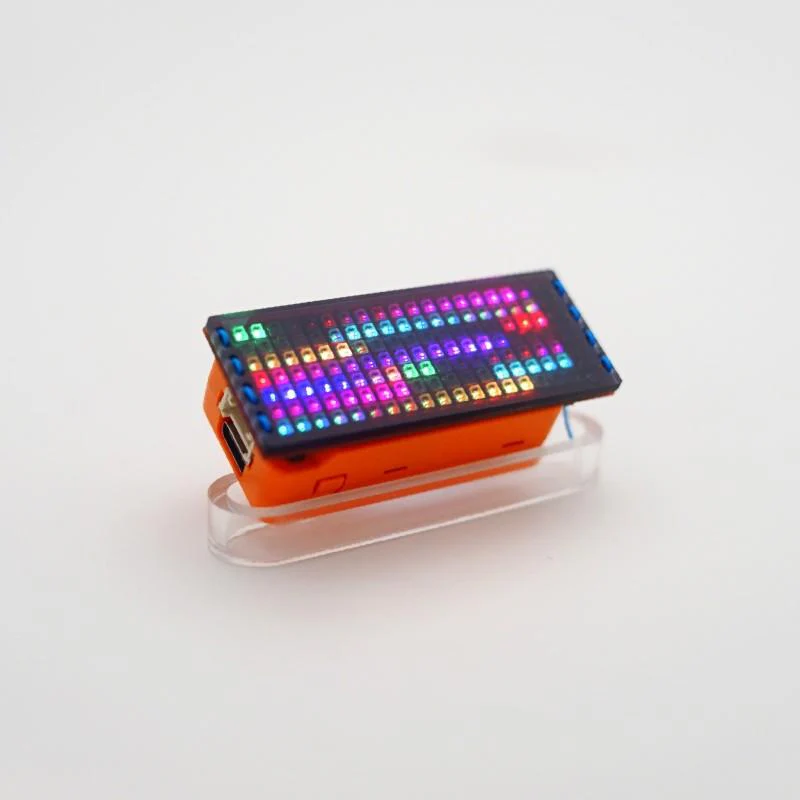

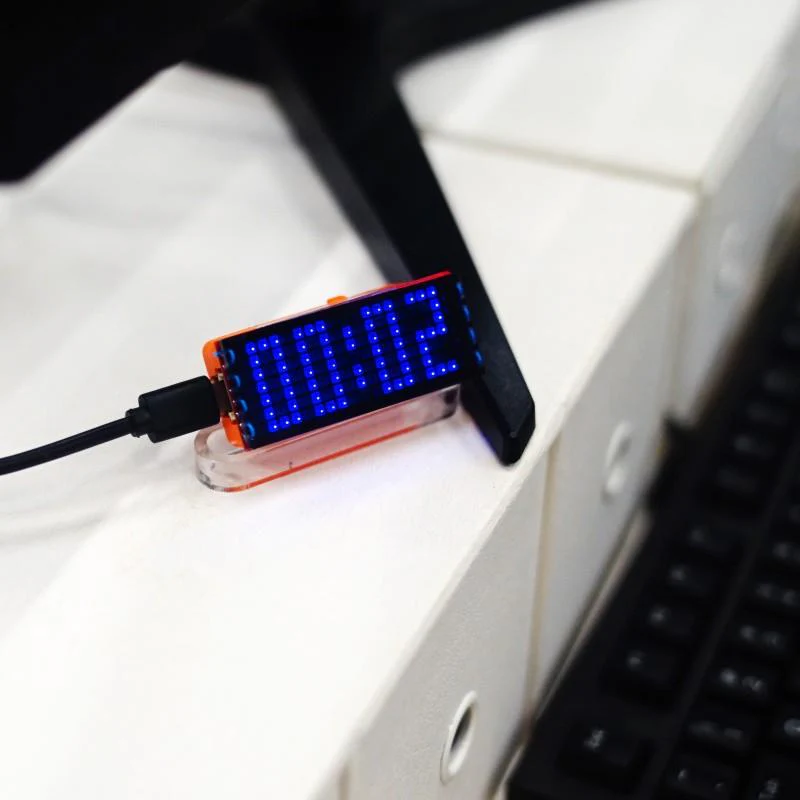

The NeoFlash HAT is specifically designed for the M5StickC and is an RGB LED matrix. The space on the PCB board is 58 x 23.5mm, and the total includes 126 RGB LEDs. Every single RGB LED is programmable, which allows you to set the colours and brightness.

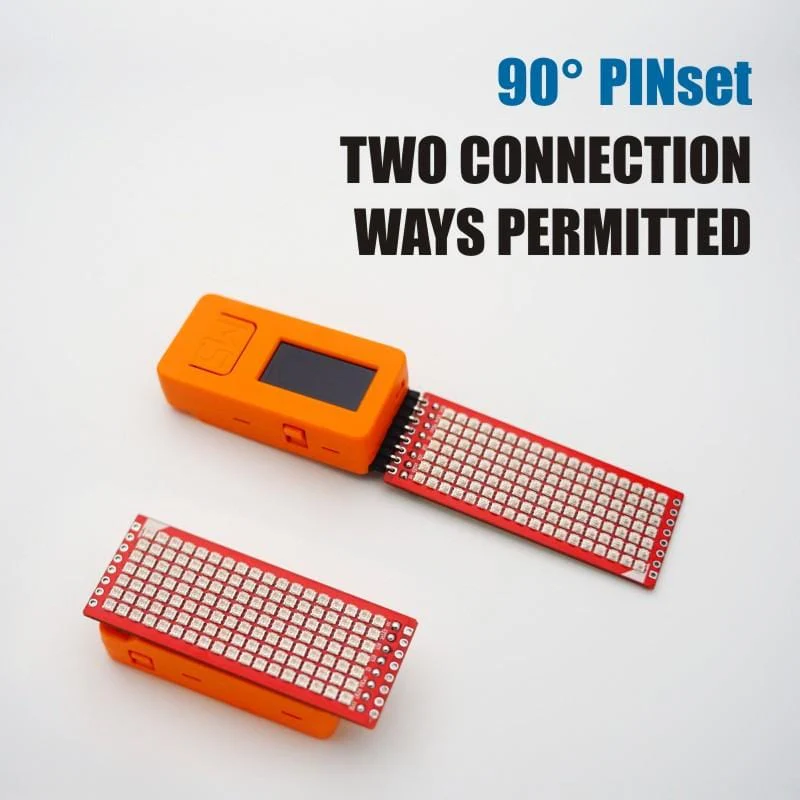

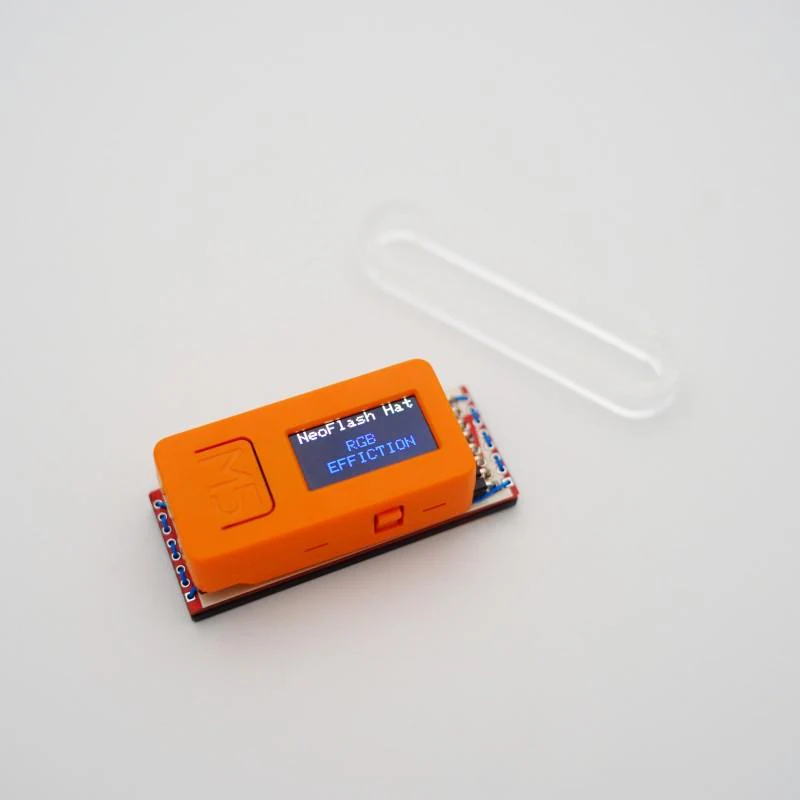

We even prepared a dark brown acrylic board to cover the NeoFlash board. We also provided two types of pin sets with a 90-degree bend so that you can attach the NeoFlash board onto the M5StickC in different ways. If you're thinking about adding a display on your project, the NeoFlash is a good choice.

Features

• Primordial three basic colors for each pixel
• Total brightness levels: 0-255
• Achievable of 16777216 completed all-color display.
• 24-bit RGB data: 8-bit for each color
• RGB LED Quantity: 126 pcs
• Hole Distance: 0.1 in-(2.54 mm)
• Hole Dimension: 0.039 "1mm (CNC Factory)
• Assembly Approach: back to back (default) / horizontal contact

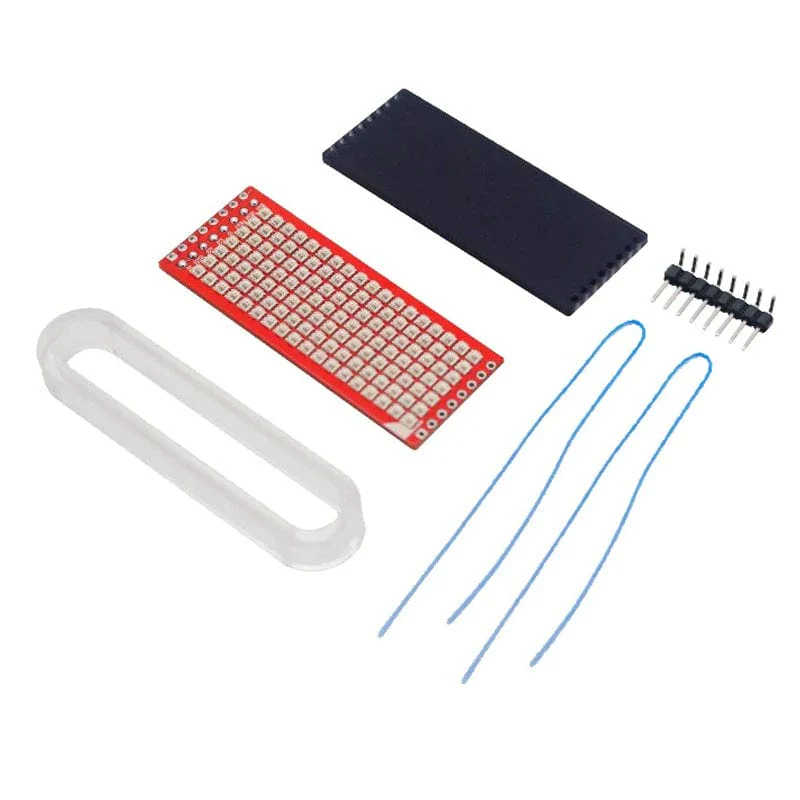

Package Contents

• 1x Neoflash HAT
• 2x 8 pin 2.54mm bend pin set（90°）
• 1x 2mm dark brown acrylic board
• 2x 15cm string (#71, 0.4mm)

Specifications

Resources	Parameter
Net weight	11g
Gross weight	20g
Product Size	58 x 24 x 3mm
Package Size	67 x 53 x 12mm
