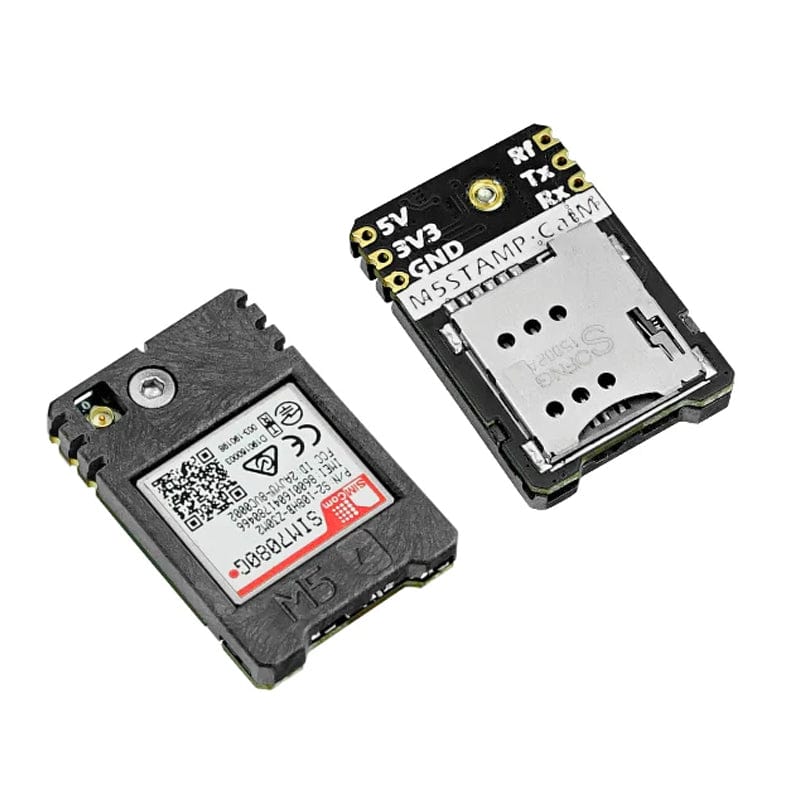

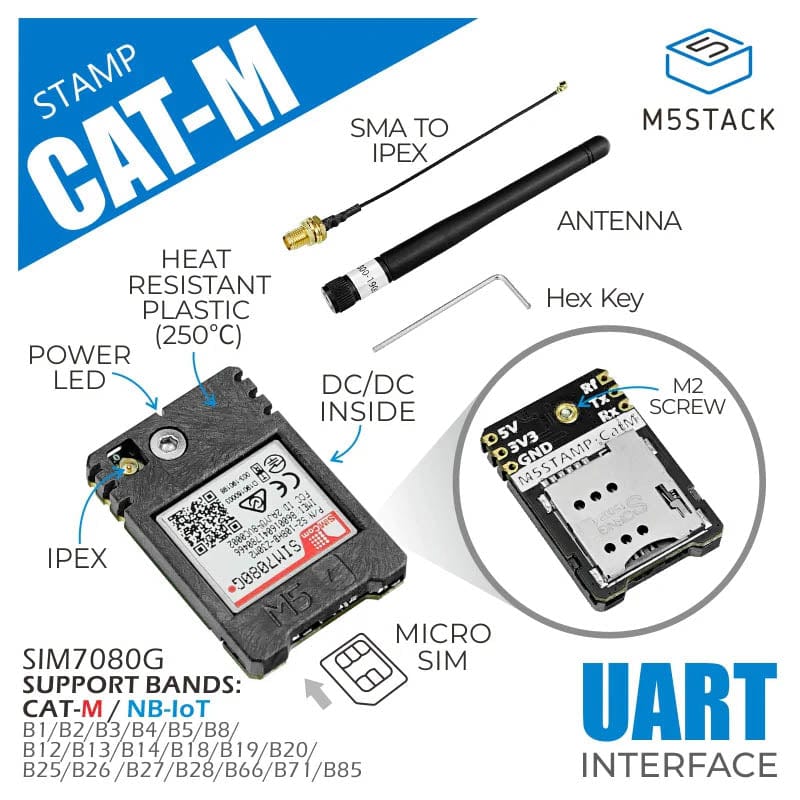

M5Stamp CAT-M Module (SIM7080G)
The M5Stamp CAT-M Module from M5Stack is a compact global version of the CatM & NB-IoT dual-mode wireless communication module based on the SIM7080G solution.
The module adopts serial communication, Control Via AT Commands, and supports multiple communication protocols. It is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions.
This module is well suited for remote control, remote monitoring, remote medical and other IoT applications.
Features

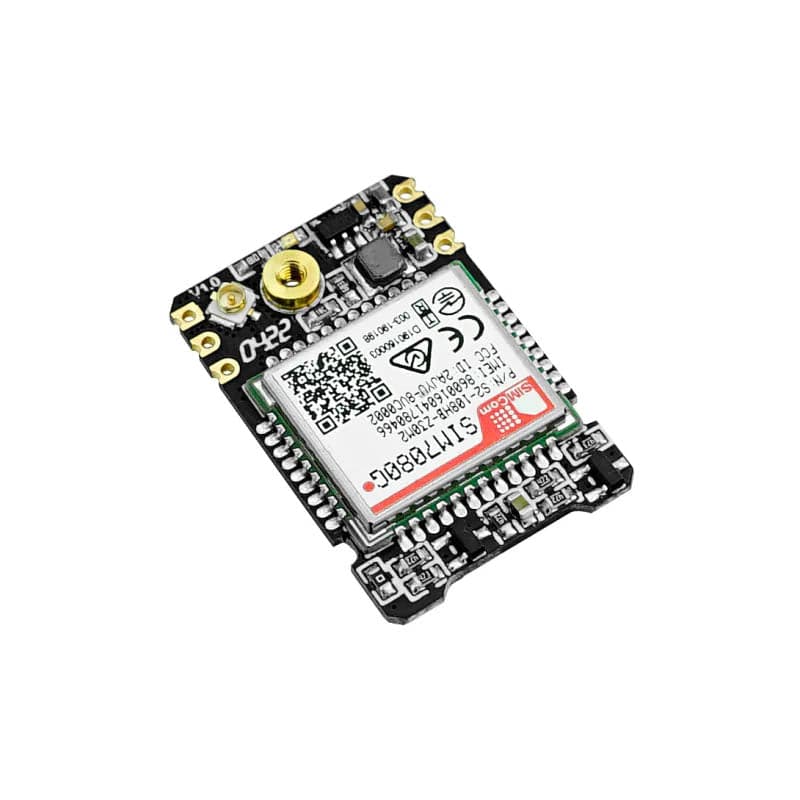

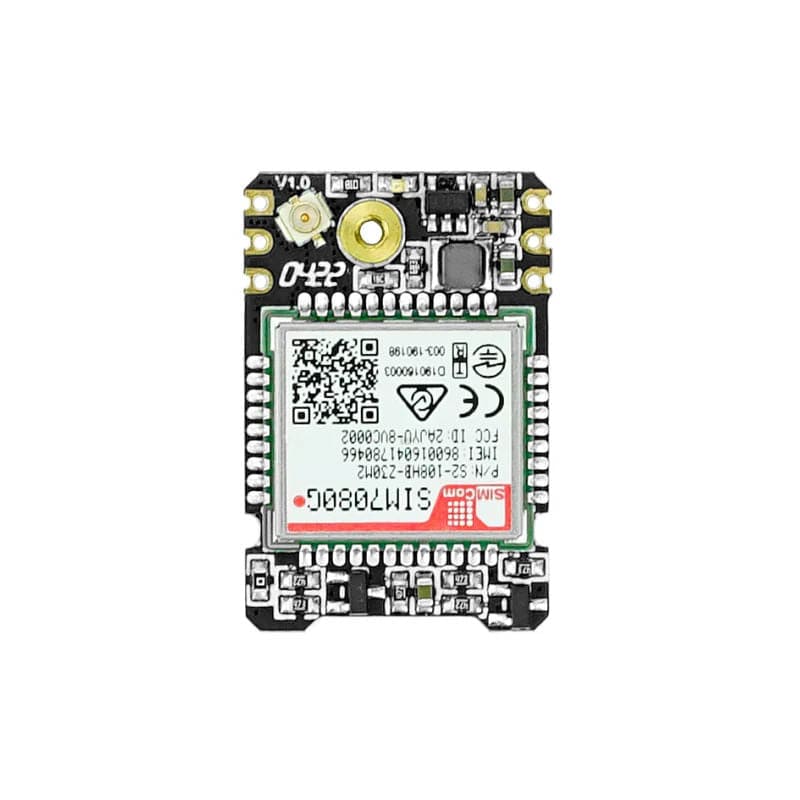

- SIM7080G / UART interface, AT Commands
- Support bothCat-M and NB-IoT
- Globally support the most Cat-M & NB-IoT bands networks
- Uplink and downlink speed:
- Cat-M: Uplink: 1119Kbps Downlink: 589Kbps
- NB-IoT: Uplink: 150Kbps Downlink: 136Kbps
- Supported protocols:
- TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT communication protocols

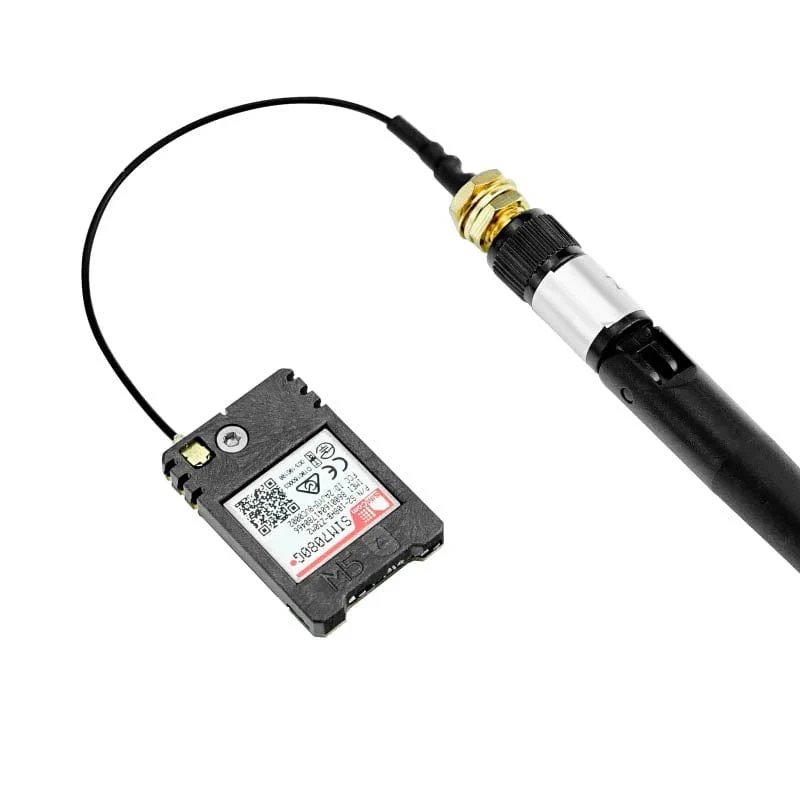

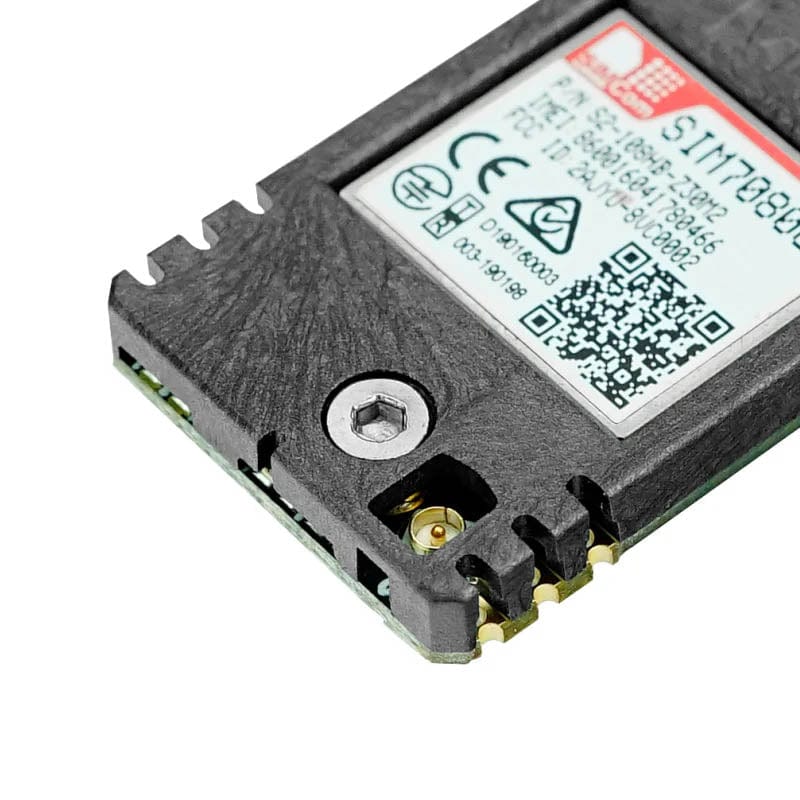

- On-board IPEX external antenna interface can be transferred to SMA antenna via a conversion cable

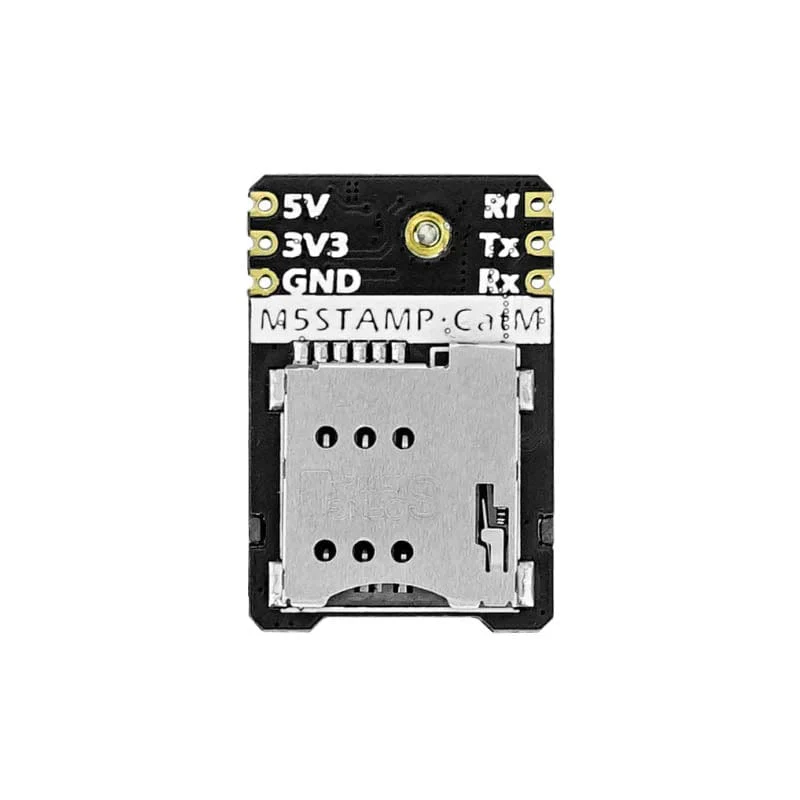

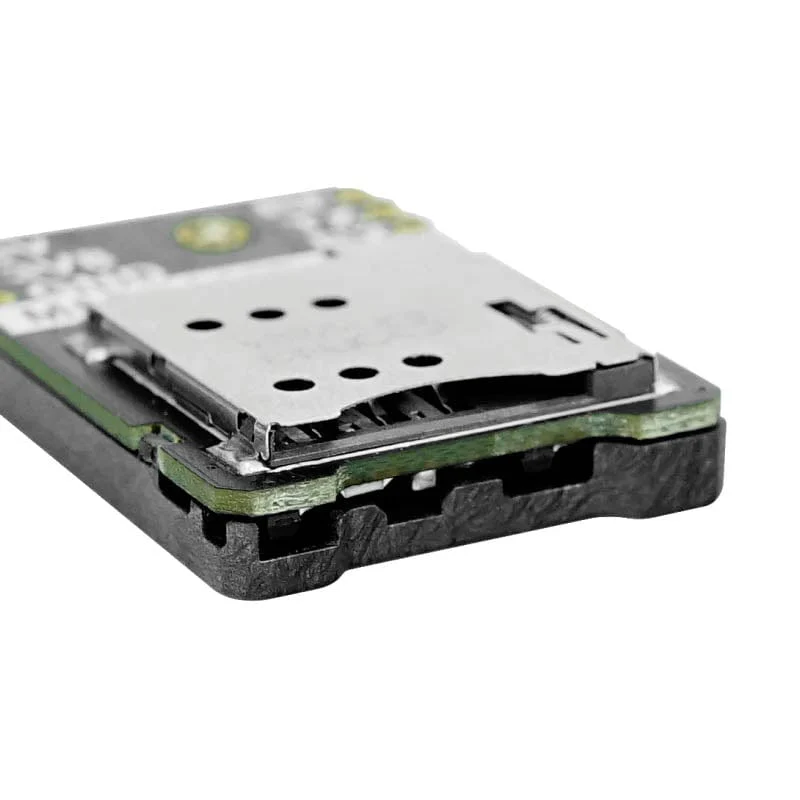

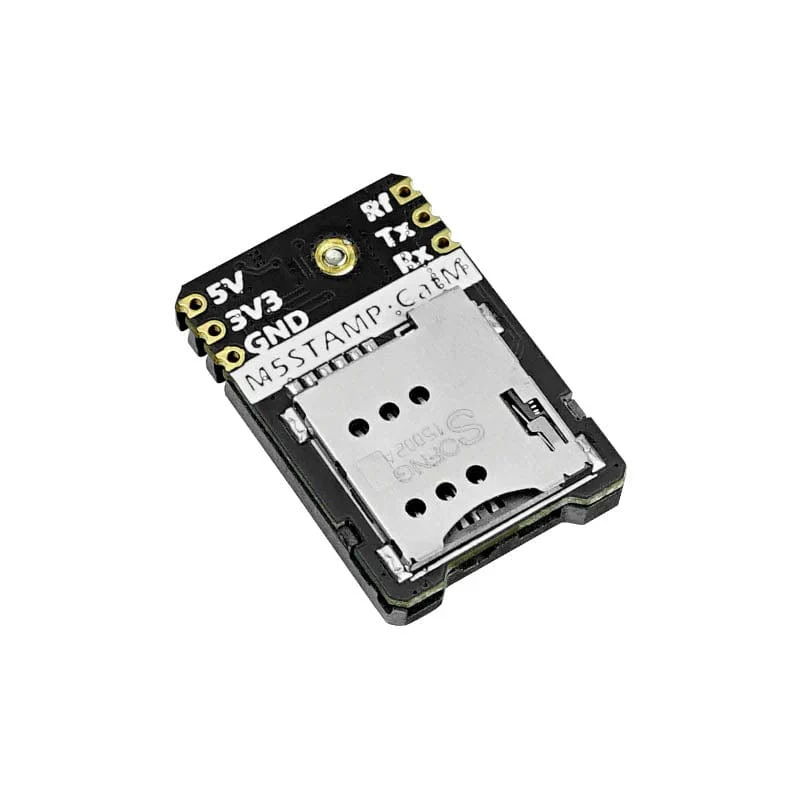

- Sim Card specification: MicroSIM
- Multiple soldering options
- Three types of soldering options are available (SMT, DIP, Jumper wire),

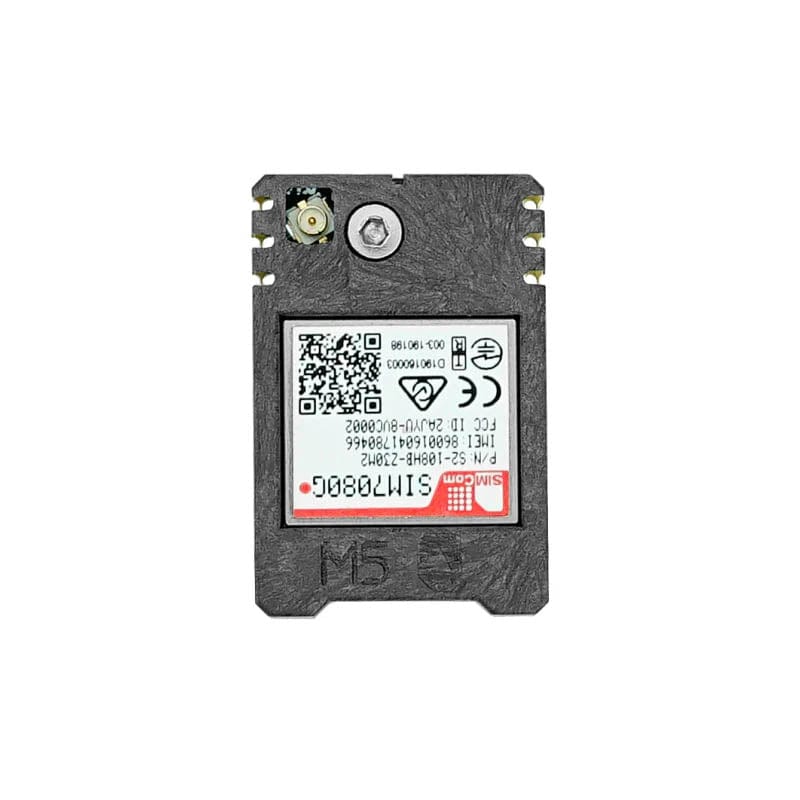

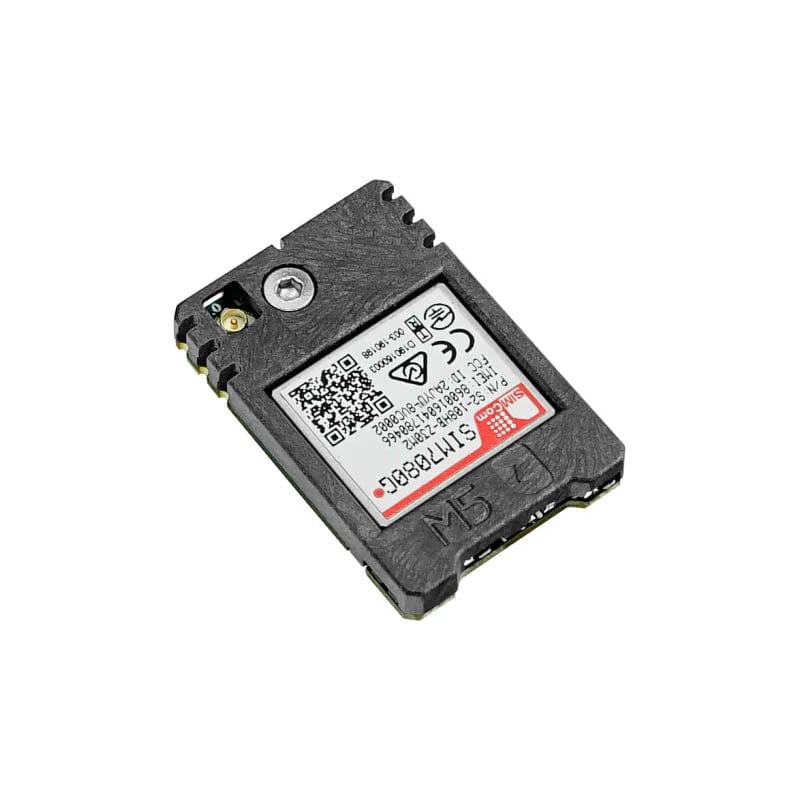

- With high-temperature resistant plastic enclosure, Peak temperature = 230℃
- Module certification:
- Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
- Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
- Development Platform:
- Arduino
- Antenna Certification Information
- Telec
Package Contents
- 1x STAMP Cat-M
- 1x Antenna 2dBi@ 800-1900MHz SMA glue stick 4G antenna (with Frequency Sticker)
- 1x Antenna SMA to IPEX conversion cable AH-15CM-IPEX 10CM
- 1x HEX Key 1.5mm
Specifications
| Module type | SIM7080G |
| Support CAT-M band | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85 |
| Support CAT-NB band | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85 |
| Cat-M up/downstream speed | Uplink: 1119Kbps Downlink:589Kbps |
| NB-IoT up/downstream speed | Uplink: 150Kbps Downlink:136Kbps |
| RF Power Class | Class 5 (Typ. 21dbm) |
| SIM Card Slot Specifications | MicroSIM |
| Standby Operating Current | DC5V/46mA |
| Network Current | DC5V/71mA |
| Communication Interface | UART: baud 115200 8N1 |
| Net Weight | 4.5g |
| Gross Weight | 17.8g |
| Product Size | 30.1*20.1*\5.5mm |
| Package Size | 91.1*135.5mm |
Resources
- Product Documentation
- Schematic
- Datasheet
- AT Command
- Arduino Demonstration
Original: $50.38
-70%$50.38
$15.11
