M5Stack ATOM Thermal Printer Kit

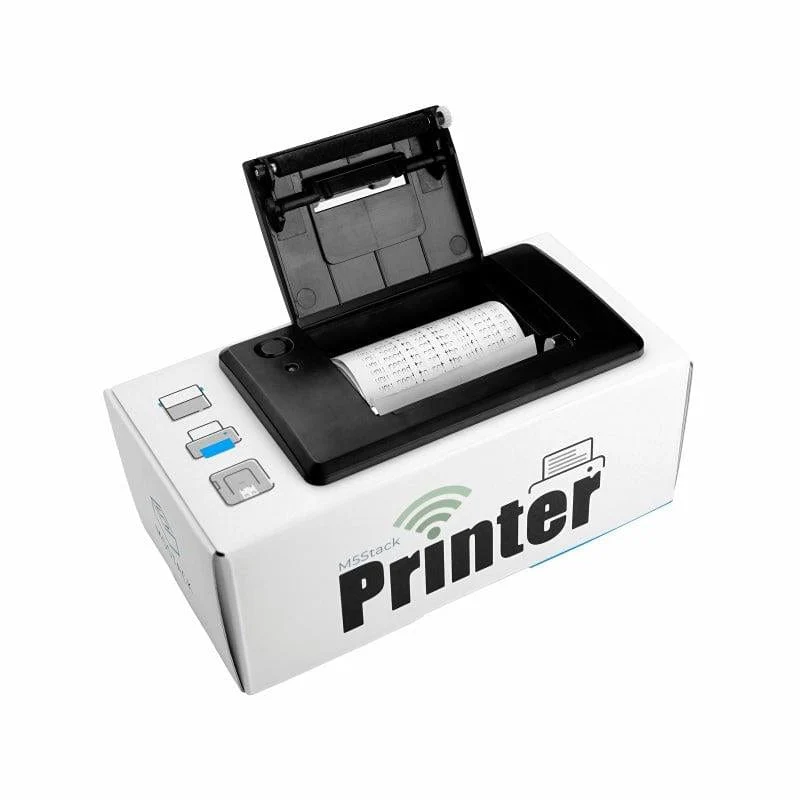

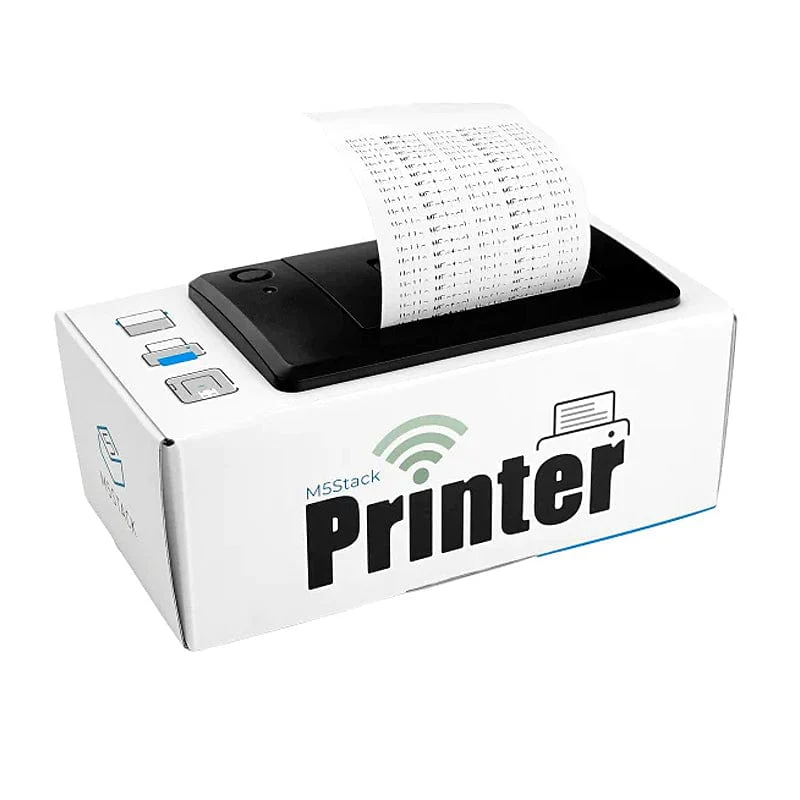

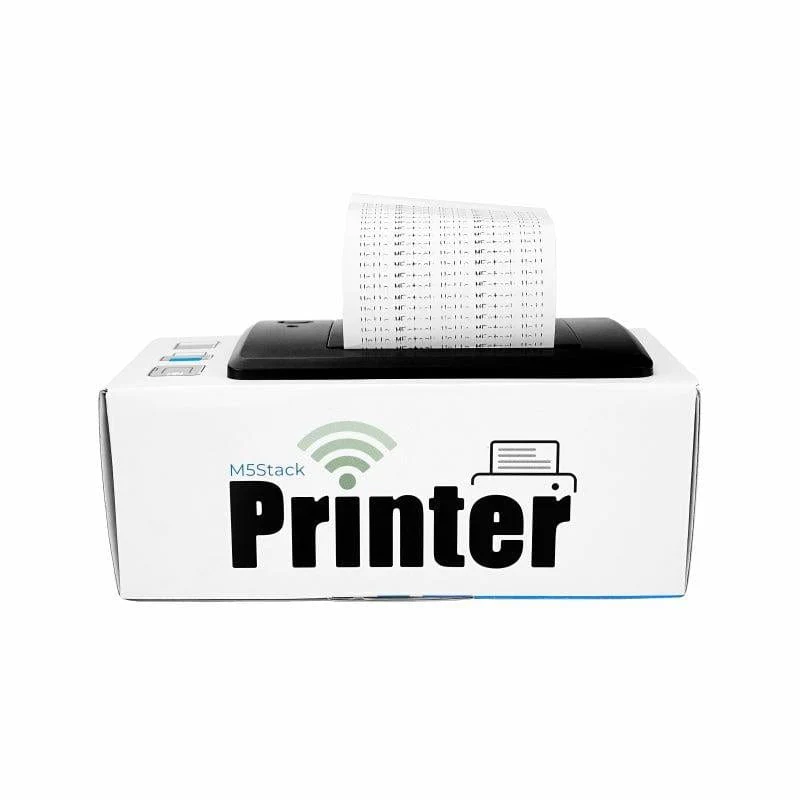

The M5Stack ATOM Printer offers great value in a desktop DIY thermal printer. The kit includes an ESP32-Pico based IoT ATOM Lite controller and a 58mm thermal printer to meet your multiple printing requirements.

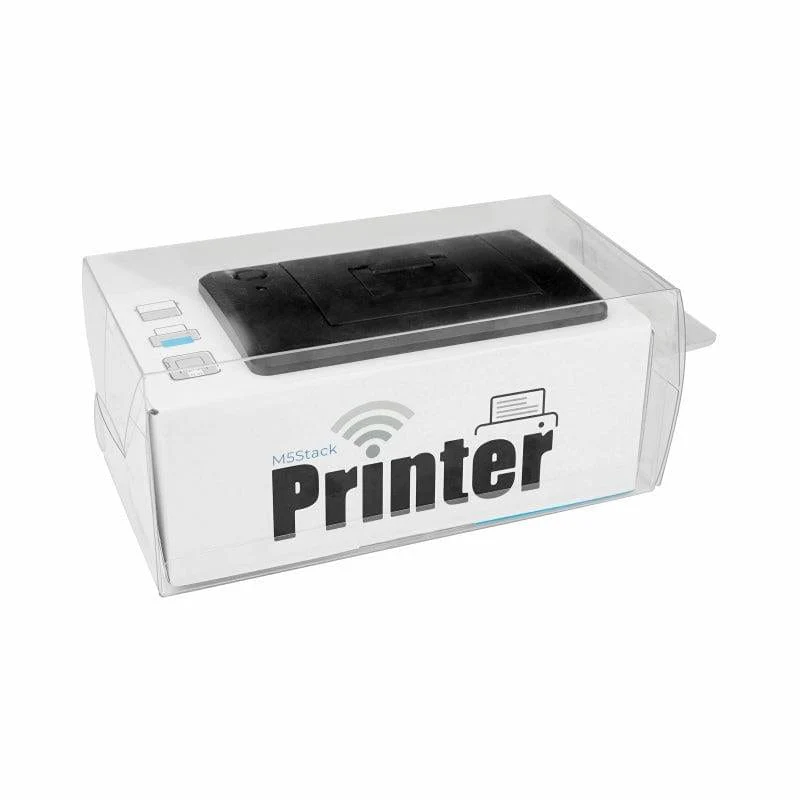

The unit supports text, graphics, barcode and QR code printing with built-in firmware that boasts two modes of AP Connect Print + MQTT Notifications Print. The ATOM Printer has geekery kraft packaging design,  You can enrich your project ideas with the ATOM Lite IoT controller.

Note: This kit does not include a power adapter. A DC 12V / 2.5A power adapter (5.5mm jack) is recommended. We have a quality Meanwell option here, or supply your own.

Features

• ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller

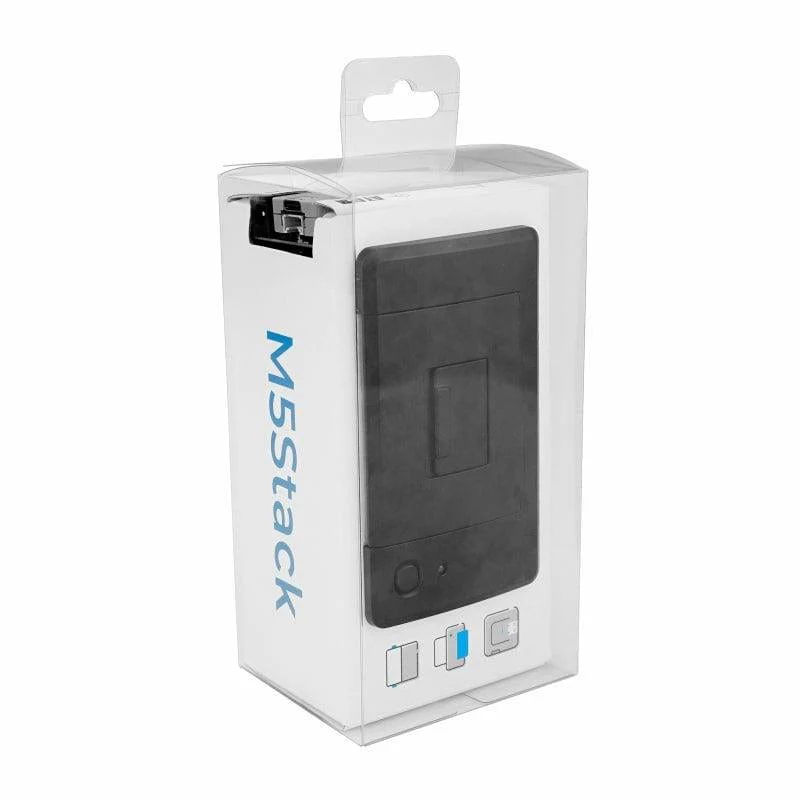

• Sleek, Geekery kraft packaging design
• Supports for text/graphics/BarCode/QRCode
• Communication interface: UART
• Fast printing, high resolution
• How to use:
  • AP hotspot connection, web-controlled printing
  • Printing content sent via MQTT (Topic is device Mac address)

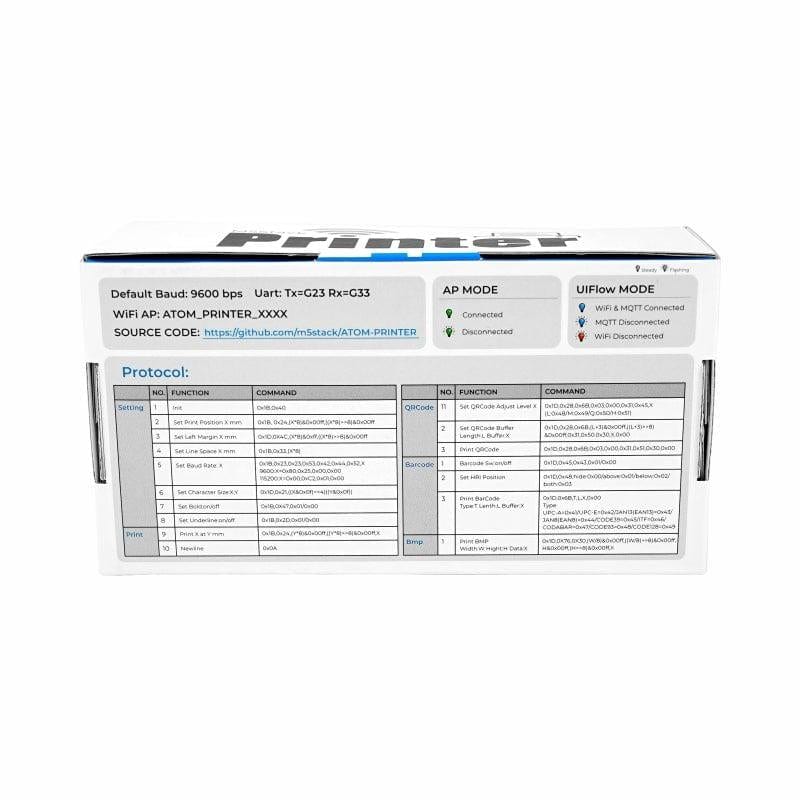

  • Serial command control (UART 9600bps 8N1)
  • Development platform: Arduino, UIFlow

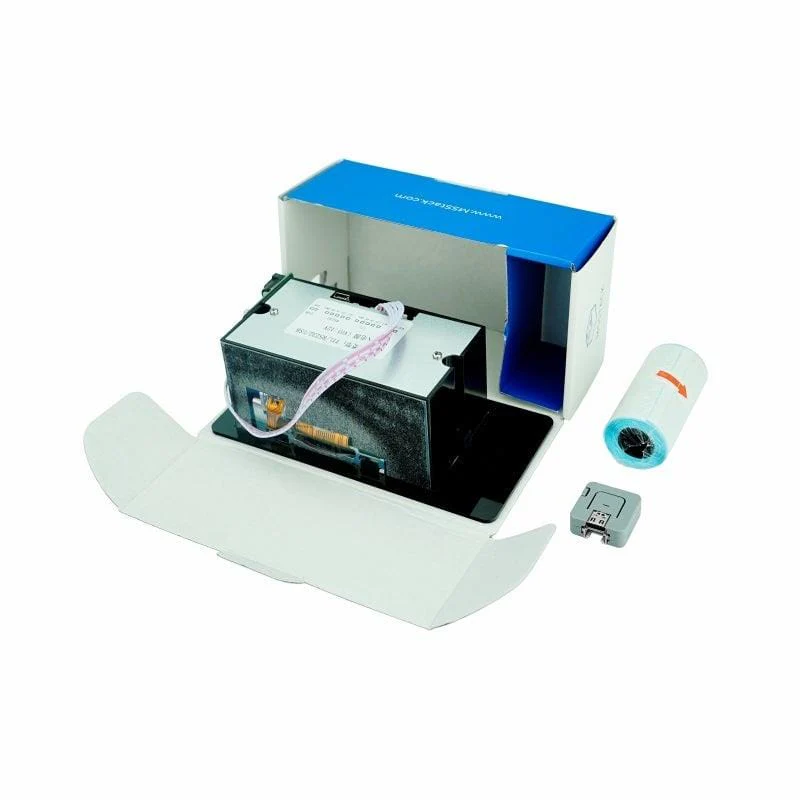

Package Contents

• 1x ATOM LITE
• 1x ATOM Printer
• 1x thermal paper roll
• 1x sticky thermal paper roll

No power supply included

Specifications

Specifications	Parameters
Printing method	Thermal printing
Supported text and graphics	Text, graphics, characters, BarCode(Codebar, code93, code39, code128, ENA13, ITF25, UPC-A, UPC-E), QRCode
Supply voltage	DC 12V
Working current	2.5A
Print colour	Monochrome

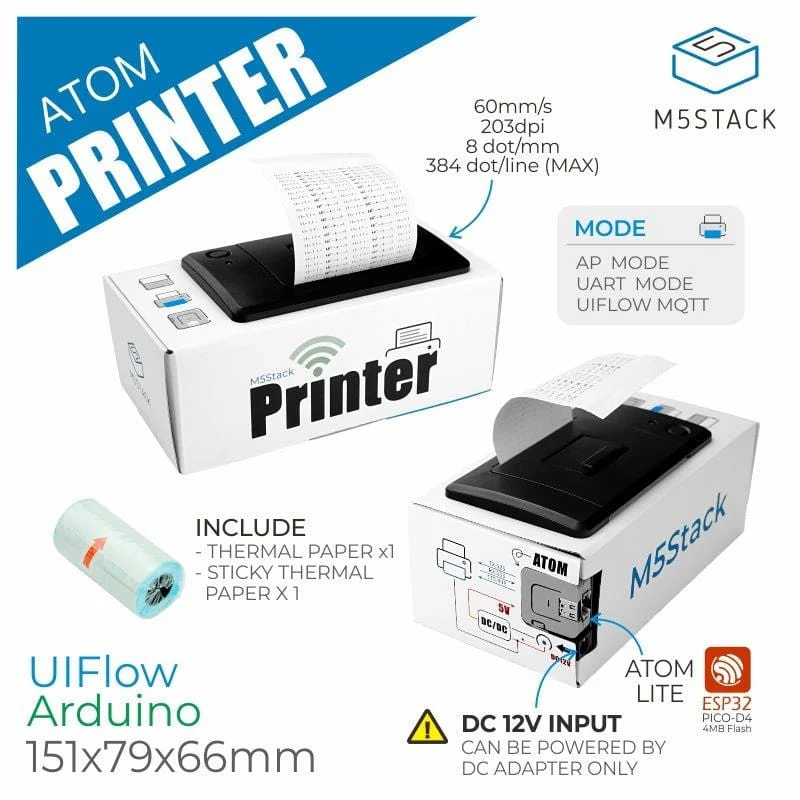

Print speed/resolution	60mm/s 203dpi 8 dots/mm up to 384 dots per line
Printing width	58mm
Service life	Printing distance 50km
Paper Cut	By Hands
Max. Diameter of Paper Roll	58mm±0.05mm (width) 0.05~0.1mm (thickness), maximum diameter ≤40mm
Printing speed	60mm/s

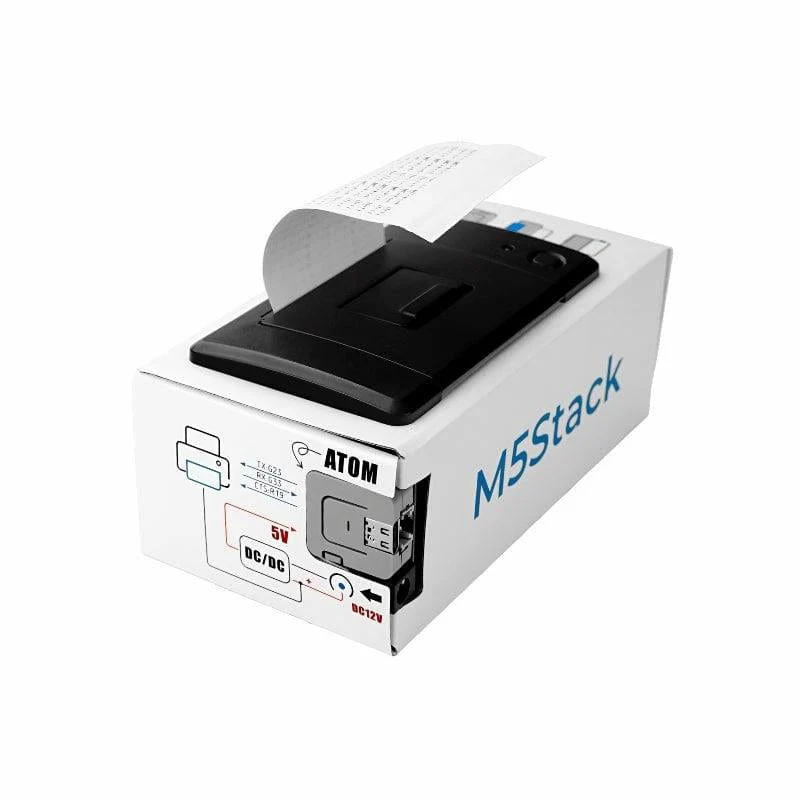

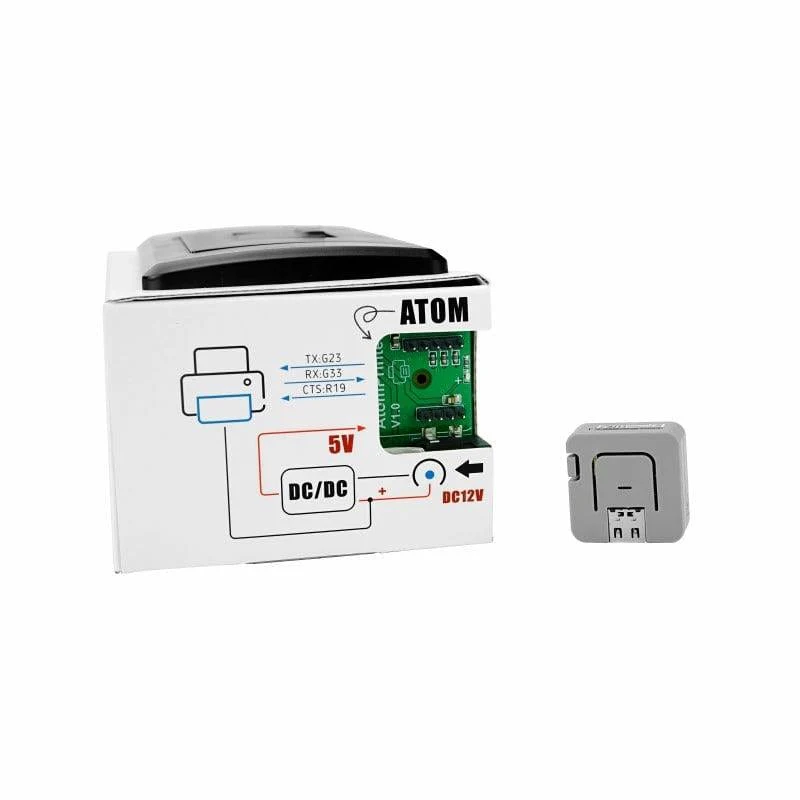

Connectivity Technology	USB/RS232/TTL (ATOM is connected to TTL interface by default UART 9600bps 8N1)
Net weight	285g
Gross weight	321g
Product size	151 * 79 * 66mm
Package size	158 * 82 * 70mm

Resources

• Main Documentation Page
