IR - Infrared Receiver (TSOP38238)
IR (Infrared) sensor tuned to 38KHz, perfect for receiving commands from a TV remote control. Runs at 3V to 5V so it's great for use on the Raspberry Pi!

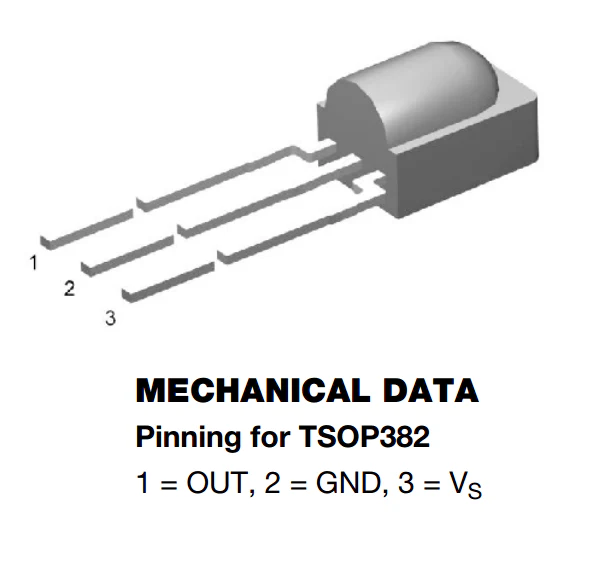

To use, connect pin 3 (all the way to the right) to 5V power, pin 2 (middle) to ground and listen on pin 1. It doesn't do any decoding of the signal, just passes the 'raw data' along.
TSOP38238 Technical Features:
- Carrier Frequency: 38kHz
- Transmission Range: 45m
- Directivity: 45°
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Supply Current: 350µA
- Opto Case Style: Through Hole
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Manufacturer: VISHAY TSOP38238
Original: $1.36
-70%$1.36
$0.41
Description
IR (Infrared) sensor tuned to 38KHz, perfect for receiving commands from a TV remote control. Runs at 3V to 5V so it's great for use on the Raspberry Pi!
To use, connect pin 3 (all the way to the right) to 5V power, pin 2 (middle) to ground and listen on pin 1. It doesn't do any decoding of the signal, just passes the 'raw data' along.
TSOP38238 Technical Features:
- Carrier Frequency: 38kHz
- Transmission Range: 45m
- Directivity: 45°
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Supply Current: 350µA
- Opto Case Style: Through Hole
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Manufacturer: VISHAY TSOP38238
