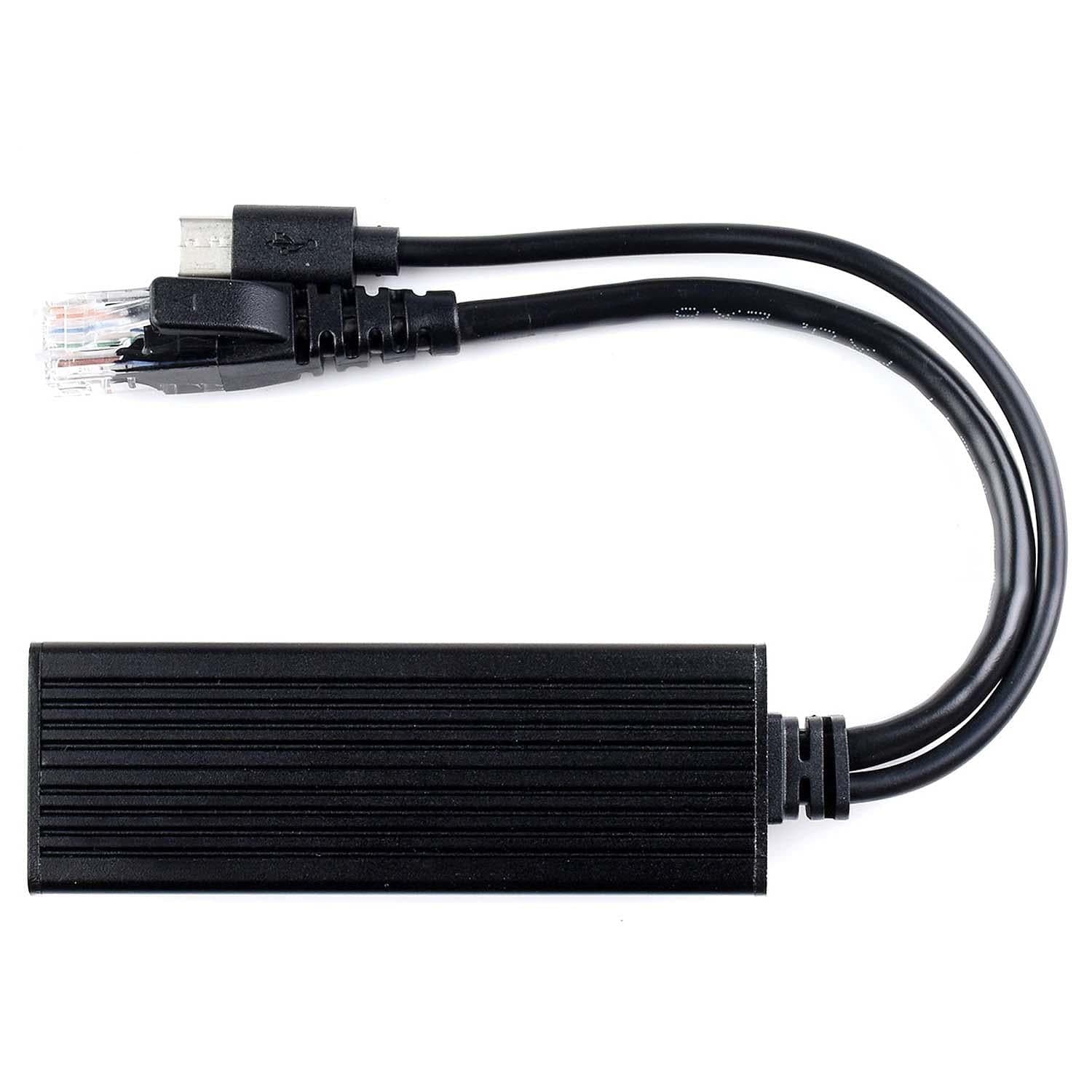

Industrial USB-C Gigabit PoE Splitter (5V 2.5A)

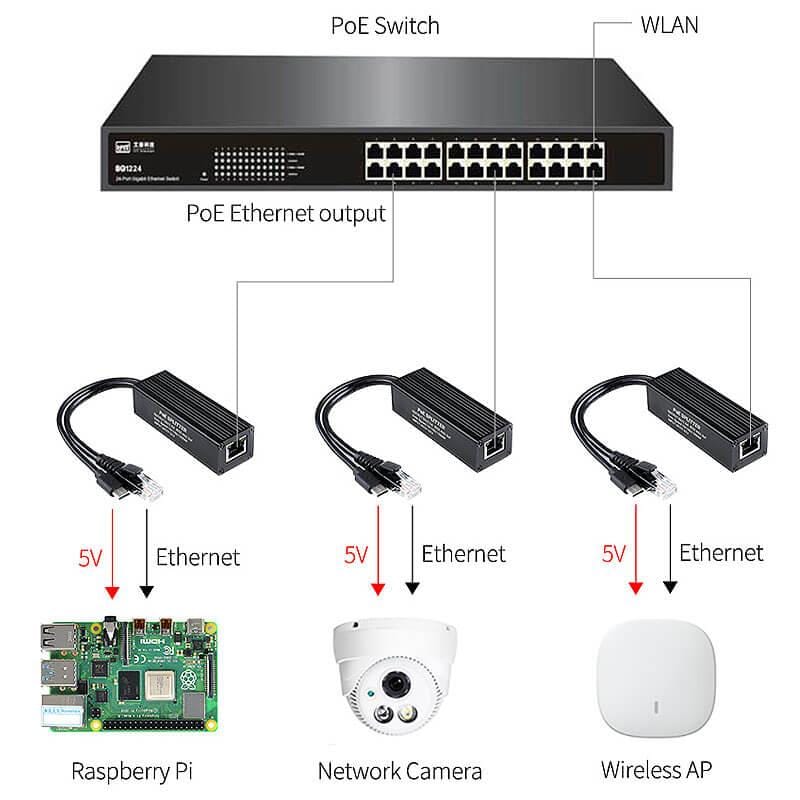

This industrial Gigabit PoE Splitter allows you to power your Raspberry Pi 4 or another 5V USB-C device with your PoE router, PoE switch or injector, whilst also providing a fast Gigabit Ethernet connection.

The Splitter comes in a rugged metal case ideal for industrial and high-traffic deployments. The USB-C output is rated at 5V 2.5A which will easily power most Raspberry Pi 4 projects and other 5V USB-C devices. It uses an isolated switching mode power supply (SMPS) to protect the powered device.

The PoE splitter also provides a full Gigabit Ethernet connection to your Raspberry Pi 4, allowing fast data transfer and internet connections without the need for a separate RJ45 cable. It's 802.3af/at compliant and uses CAT5 cable.

Features

• Incorporates Si3 chip, high-efficiency, safe and stable-performance
• Gigabit speeds - 10/100/1000Mbps auto-negotiation Ethernet port
• 802.3af/at-compliant PoE (Power over Ethernet) standard

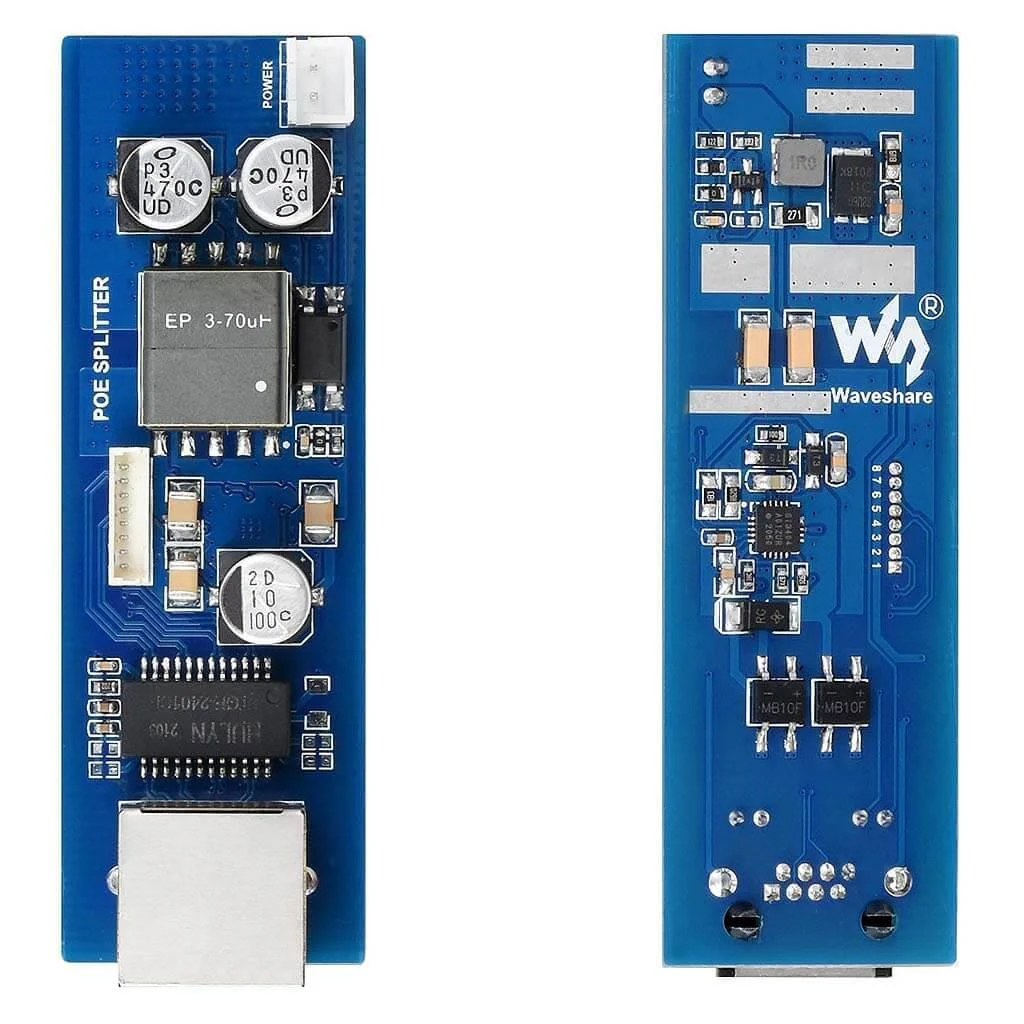

• Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
• 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
• Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation

Specifications

• Power supply: supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
• PoE Input voltage: 37V ~ 57V
• Type-C output: V 2.5A (Max)
• Cable: Cat-5 UTP
• Standard: IEEE 802.3 af/at PoE Ethernet
• Data rate: 10/100/1000Mbps
• LED Indicator: PoE power input indicator

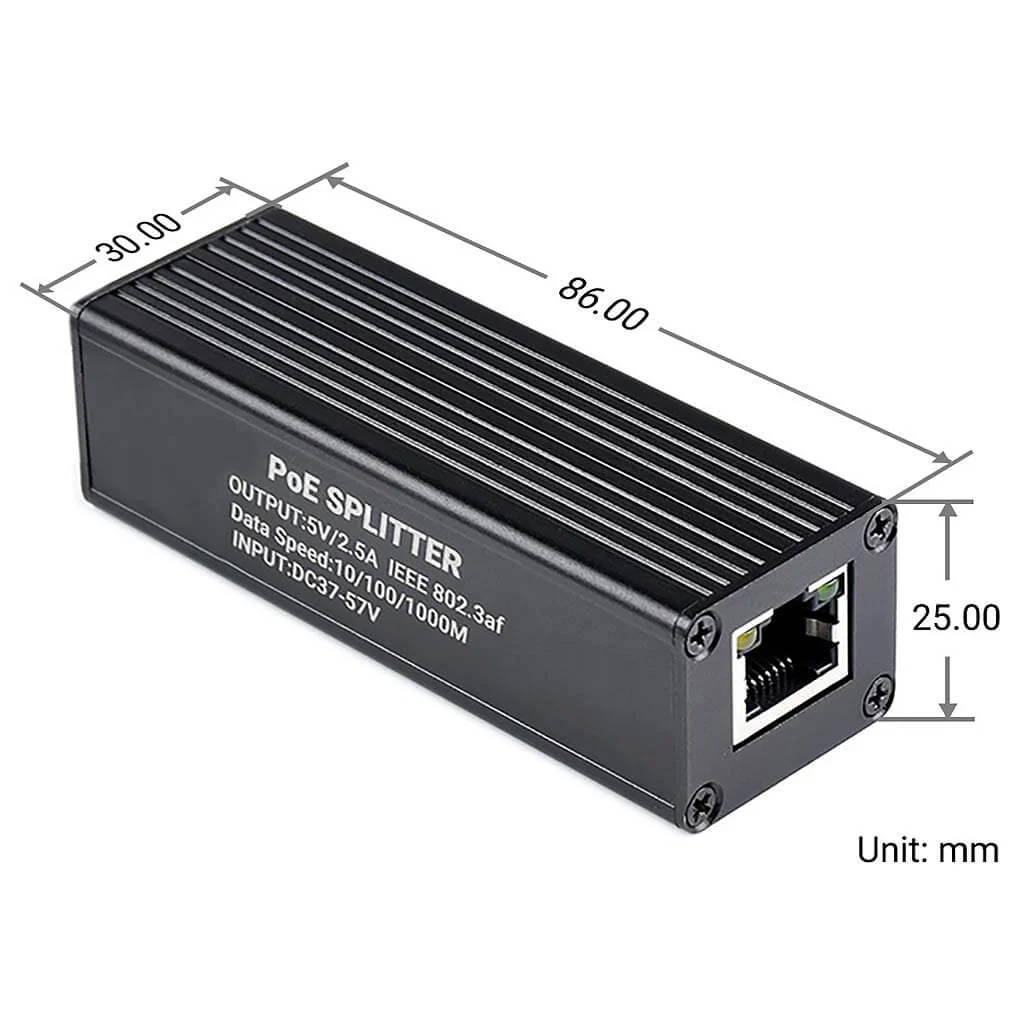

• Dimensions: 86 × 30 × 25mm (l × w × h)
• Operating temperature: -40℃ ~ 85℃

Package Contents

• 1x PoE Splitter Type-C

Resources

• Product Wiki
