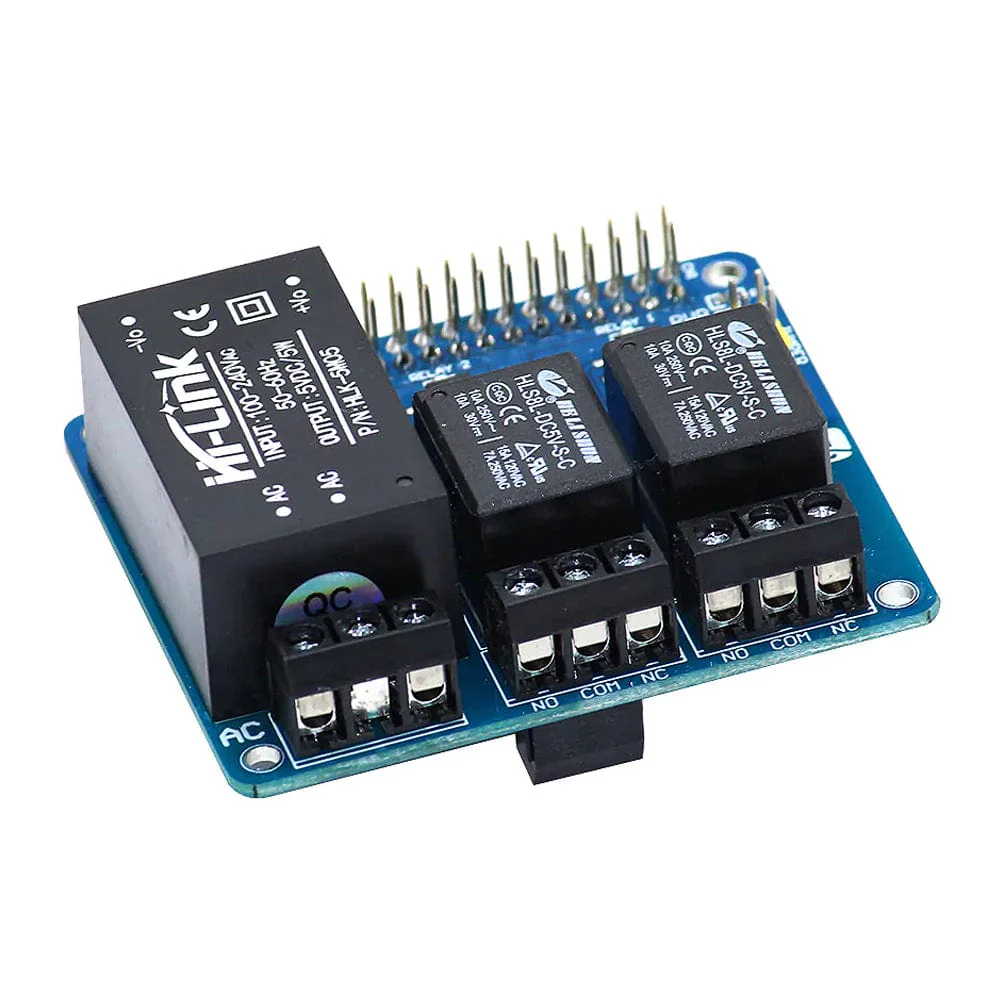

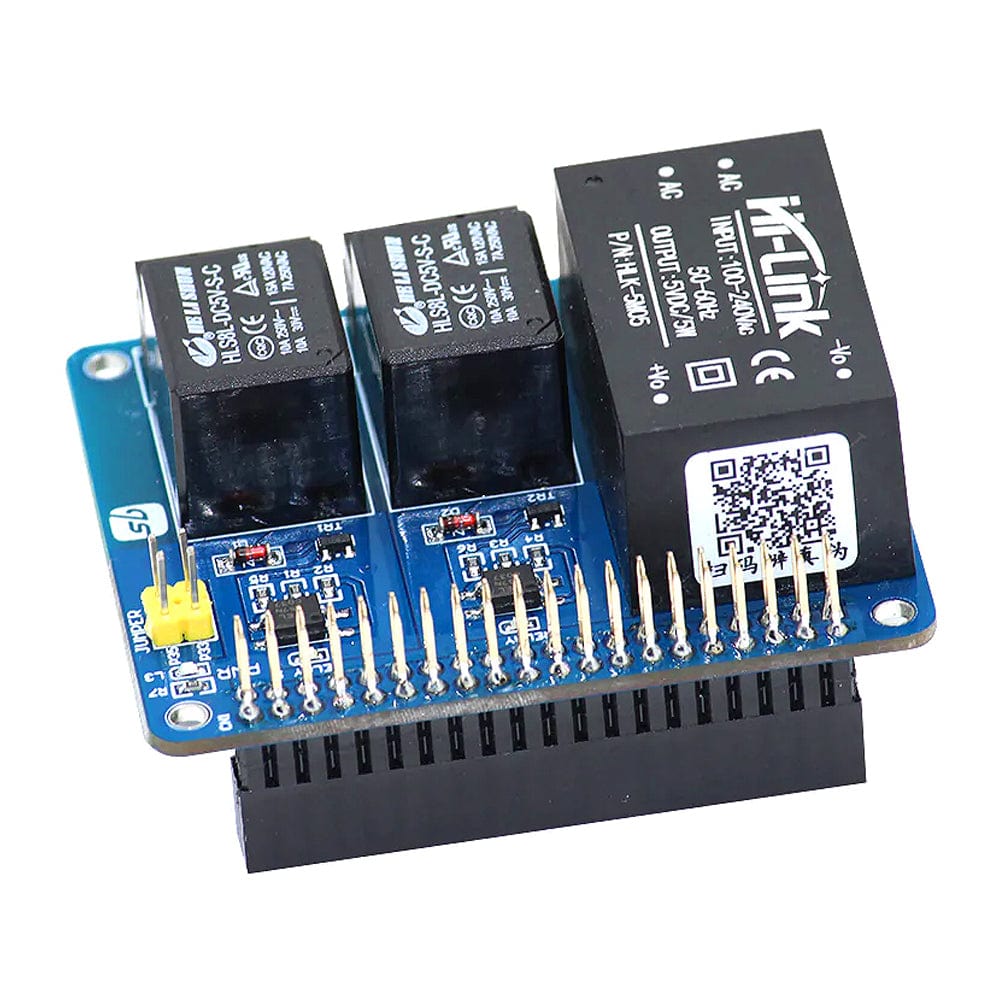

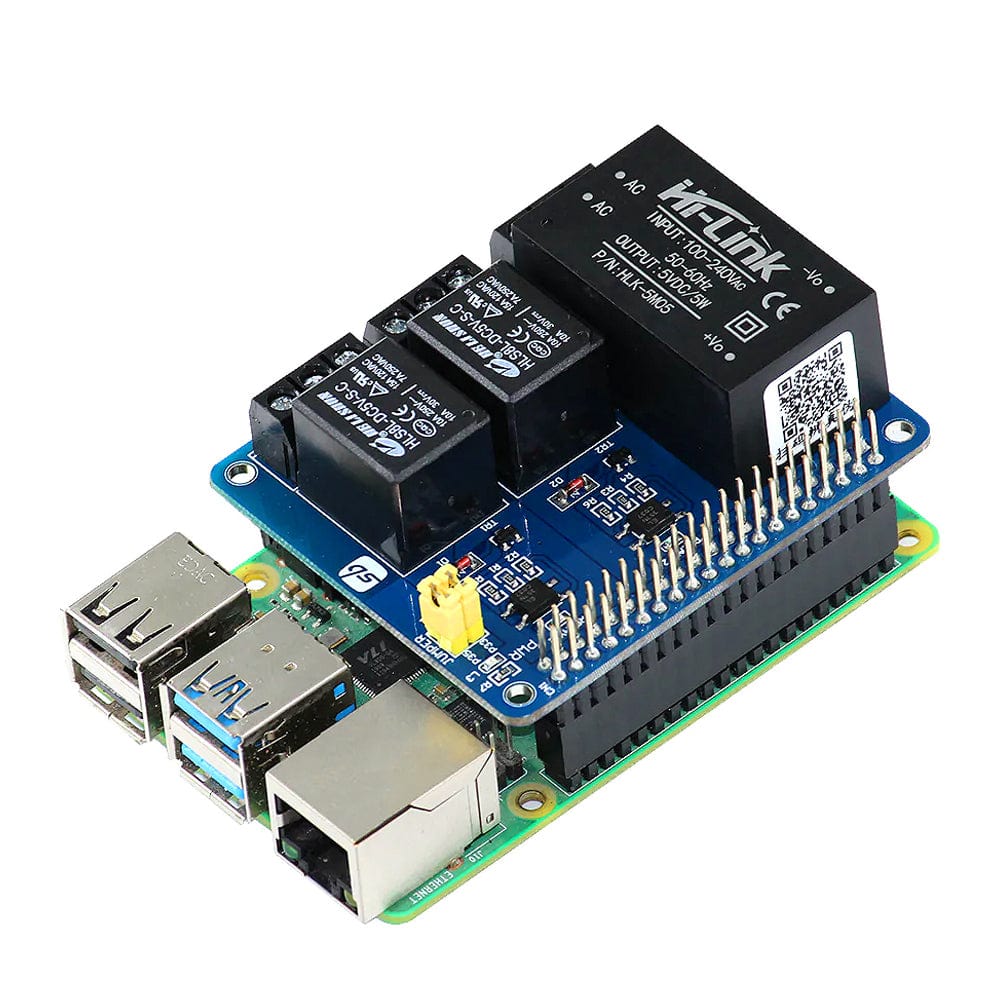

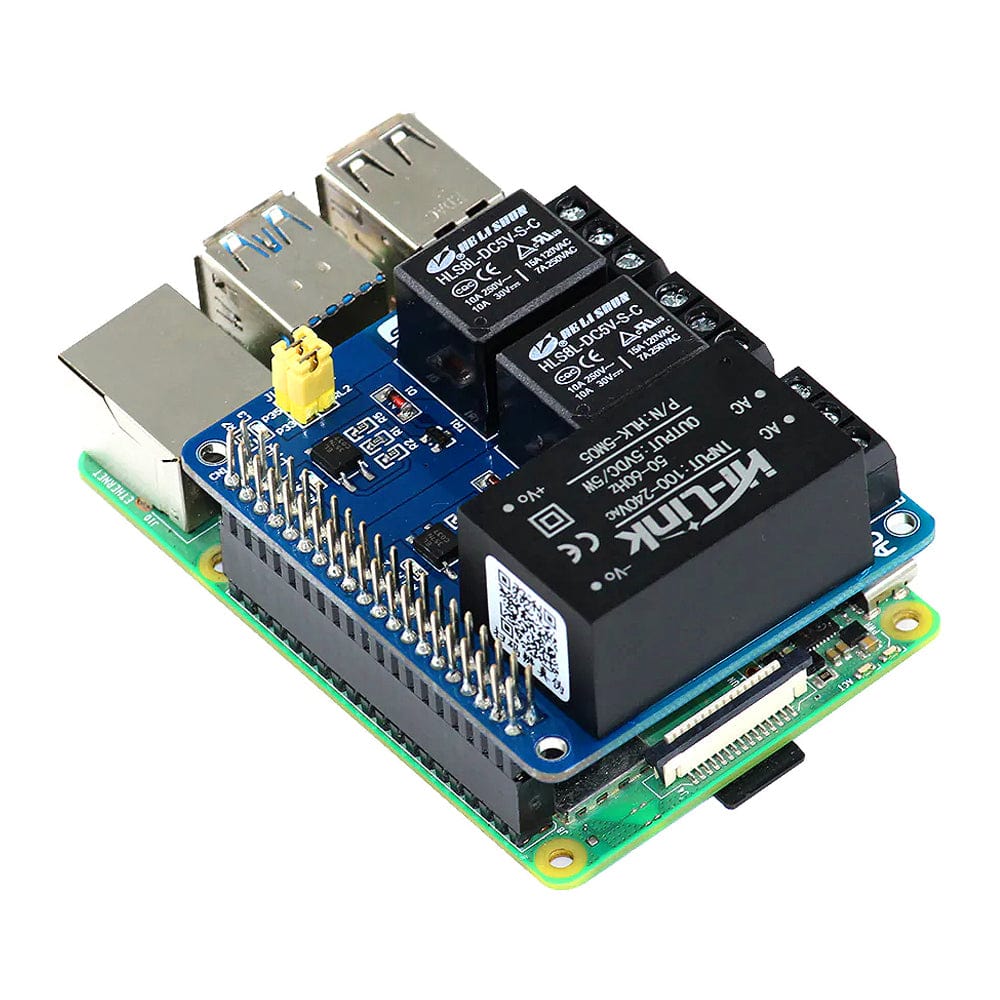

Home Automation HAT [Discontinued]

The Home Automation HAT is a home and automation controller HAT, that can control up to 2x 250V AC/7A / 30V DC/10A devices with photo-coupling isolation (Optocoupler EL357NC) allowing users to safely control high-voltage or high-current devices.

The Home Automation HAT turns appliances into smart devices, which users can operate via the PiRelay app.

NOTE: The Raspberry PI is NOT included

Features

• Compatible with Raspberry Pi 4, 3B+,3,2, Zero
• Relay Status Indicator
• Comes with development resources, including examples in Python
• COM, NO(Normally Open) & NC(Normally Closed) are available for each relay
• Connectivity using stack method
• Onboard power LED indicator
• Make your home IoT enabled
• Relay control pins selection jumper

Specifications

• Operating Voltage - 220V AC (Via Terminal Block)
• External Load - 250 VAC/7A, 30 VDC/10A
• Relay Channels - 2
• Trigger Signal - 3.3/5V
• Optocoupler - (CTR: 50~600% at IF= 5mA, VCE = 5V)
• External Power Supply - via Terminal Block
• 40-pin tall header (not ideal for stacking due to the relay height)
• Load connector - screw terminal block for each relay (output)

Resources

• GitHub
• Product Wiki

Pinout

Relays	BOARD	BCM	Wiring Pi
Relay 1	35	GPIO 19	24
Relay 2	33	GPIO 13	23

Package Contents

• 1x Home Automation HAT

Raspberry Pi not included
