HAT-Compatible GPIO Expander for Raspberry Pi Pico

This HAT-compatible GPIO expander breaks out your Raspberry Pi Pico pins into two separate useful formats for prototyping projects and connecting traditional 40-pin Raspberry Pi HATs.

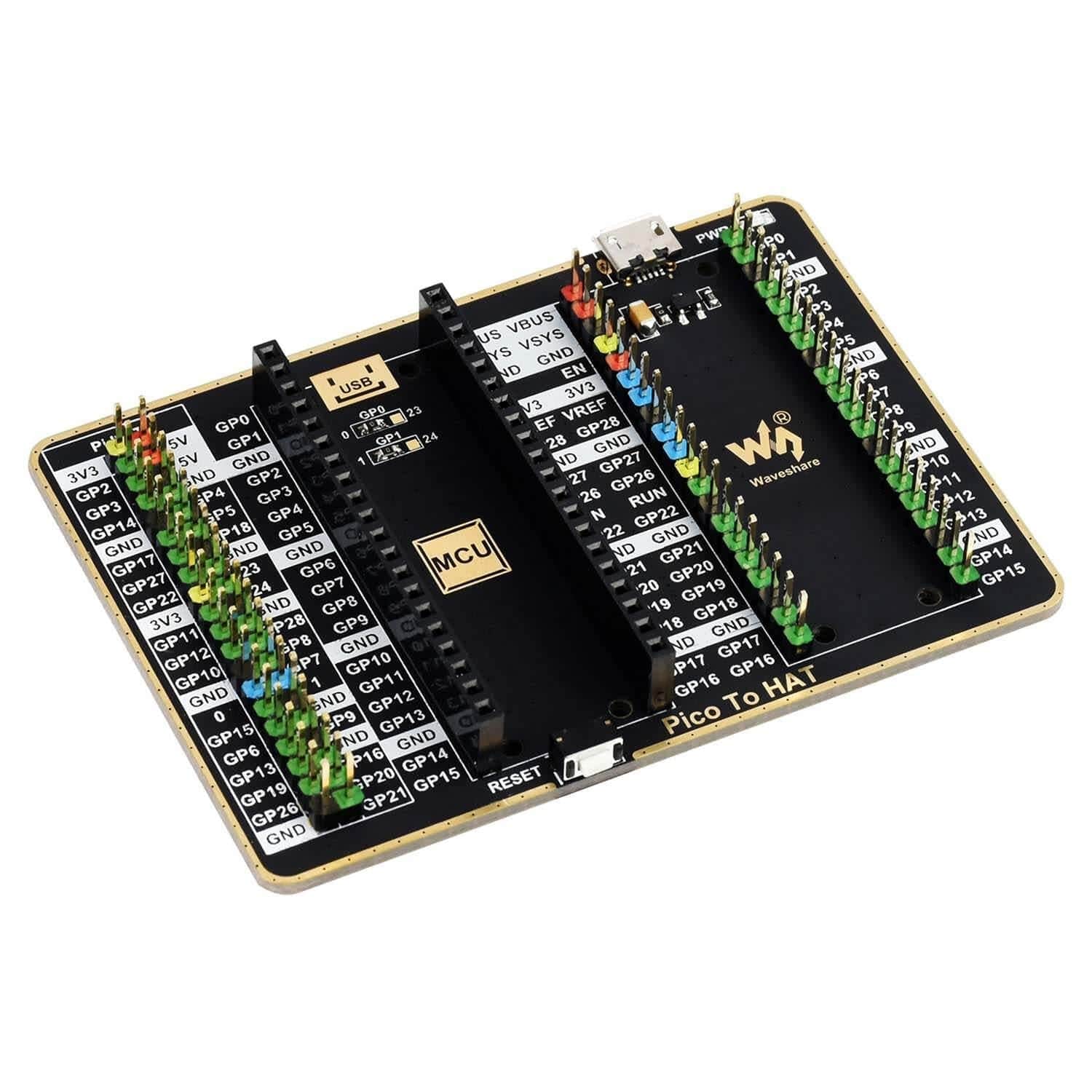

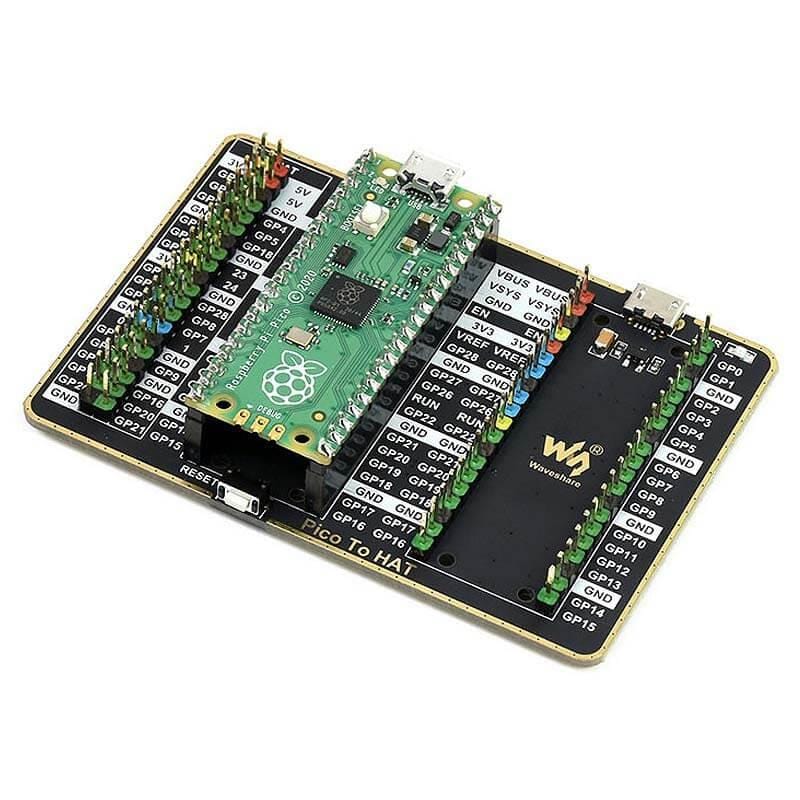

Your Pico slots into the central female headers and the board breaks out the pins to either side. On one side is a 20x2 colour-coded header matching the Raspberry Pi HAT format, allowing you to use your existing HAT collection with the Pico. On the other side is a colour-coded Pico layout pin section which matches the pin layout of the underside of a Pico.

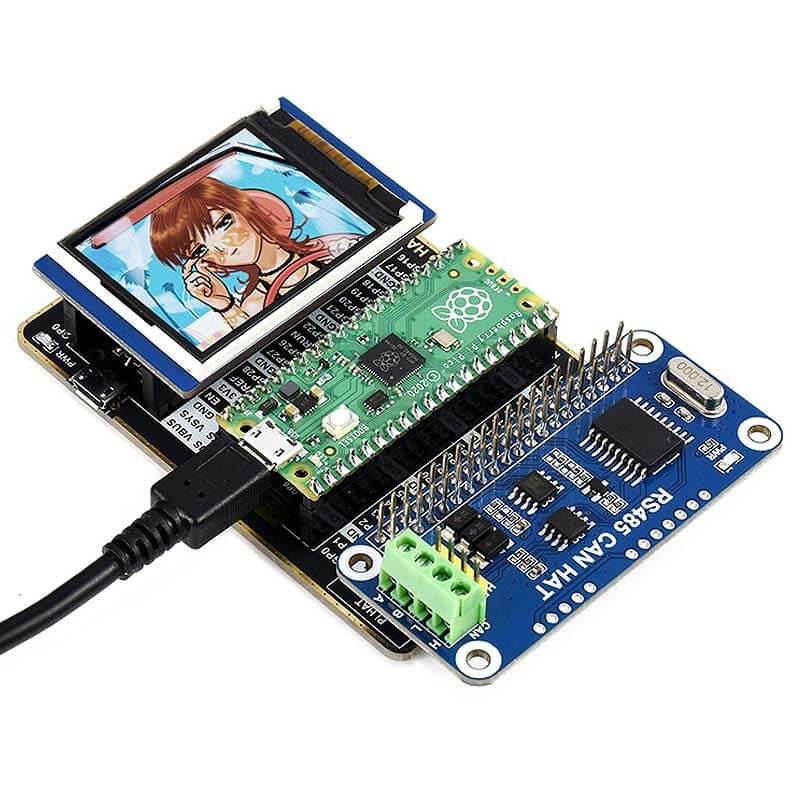

It allows you to fit Pico HATs and add-on boards 'face up' which is ideal for boards with displays, buttons and connectors - or just use it for prototyping with jumper wires!

Other handy features include the front-facing reset button, rear power port, power LED and clear pin label print.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Raspberry Pi Pico female header for directly attaching a Raspberry Pi Pico (with male header soldered)
• 1x Raspberry Pi standard 40-pin breakout header
• 1x Pico 2×20-pin header
• Connect both Raspberry Pi HATs and Pico expansion boards
• Conveniently placed USB power input connector ensures sufficient power supply for multiple expansion modules
• Front-facing breakout RESET button

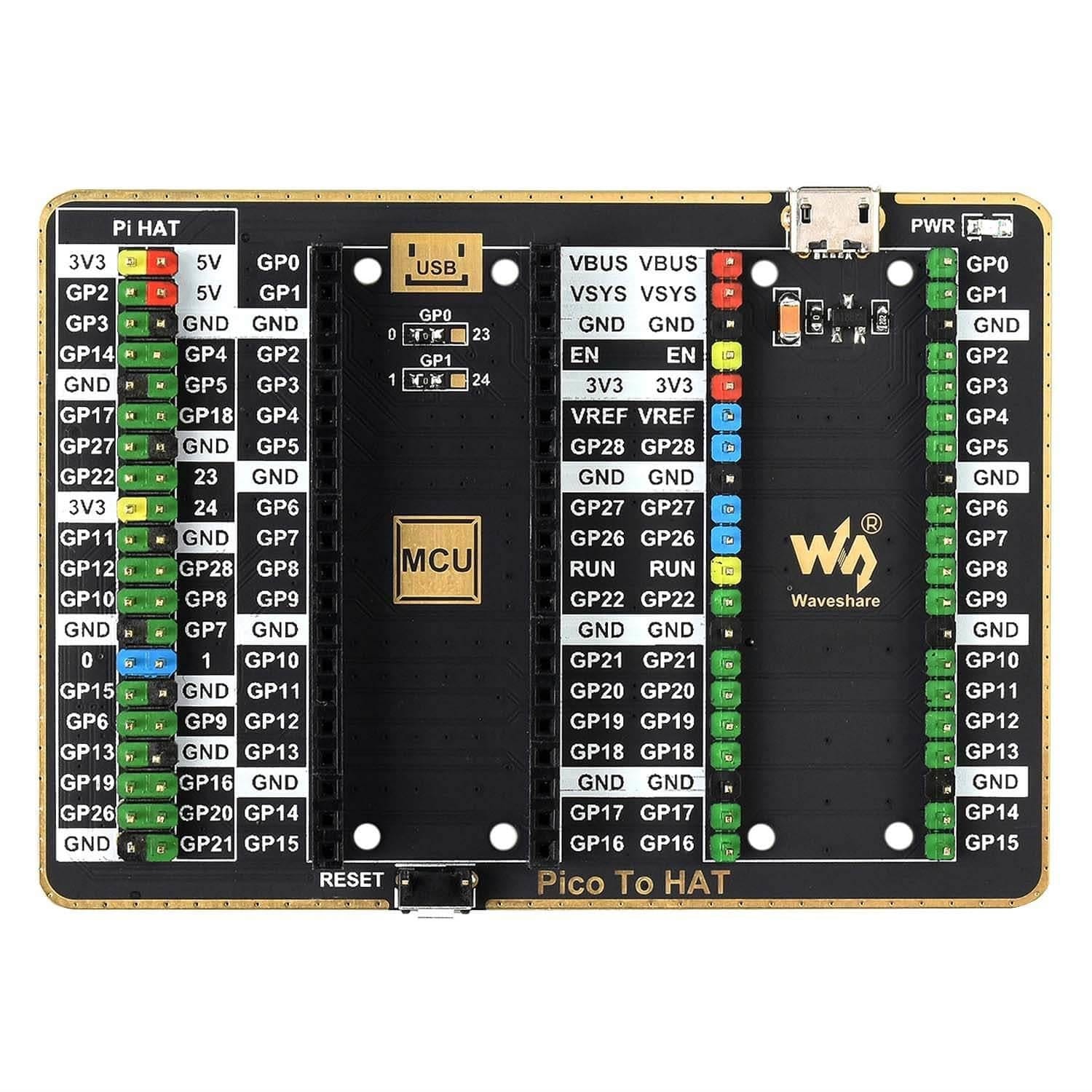

• Clear pinout labels
• Immersion gold  plating
• Fully assembled - no soldering required

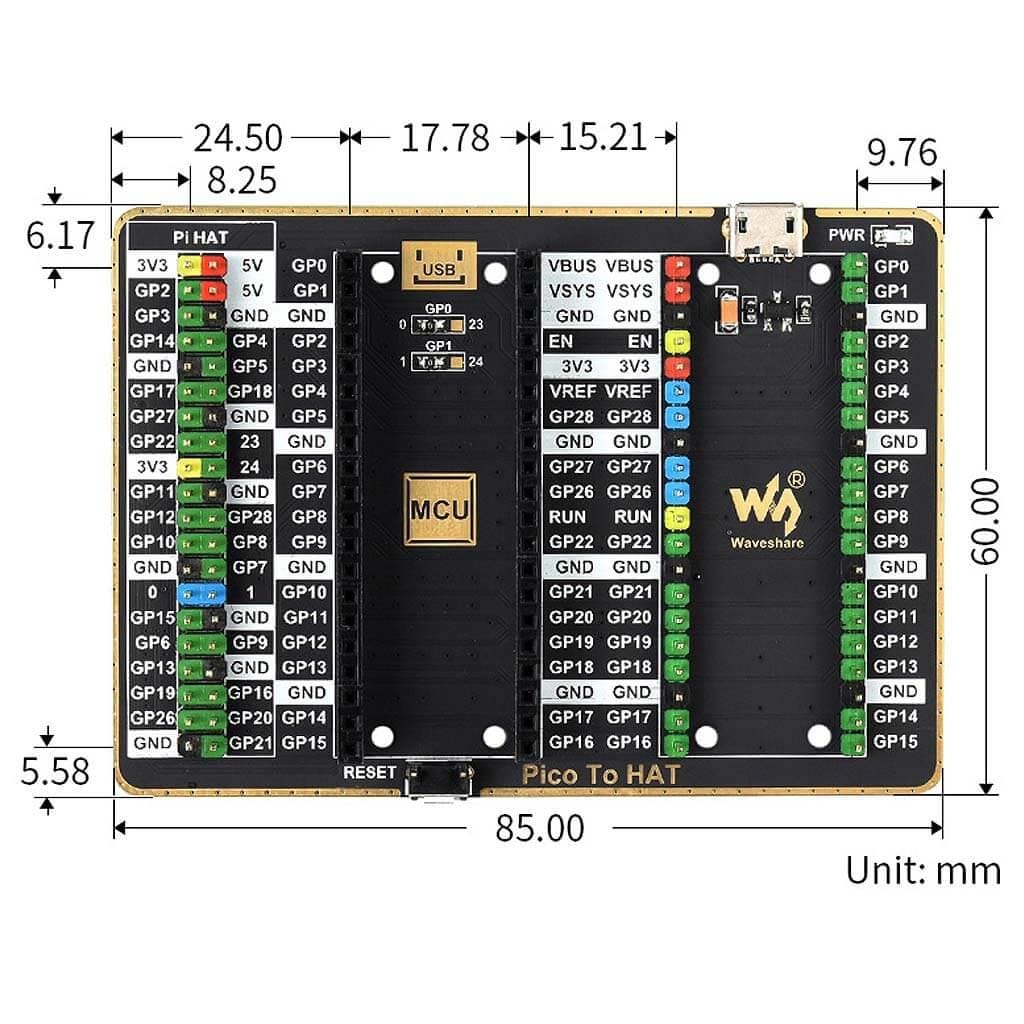

• Dimensions: 85mm x 60mm

Package Contents

• 1x HAT-Compatible GPIO Expander For Raspberry Pi Pico

Raspberry Pi Pico and HATs not included
