Grove - Touch Sensor

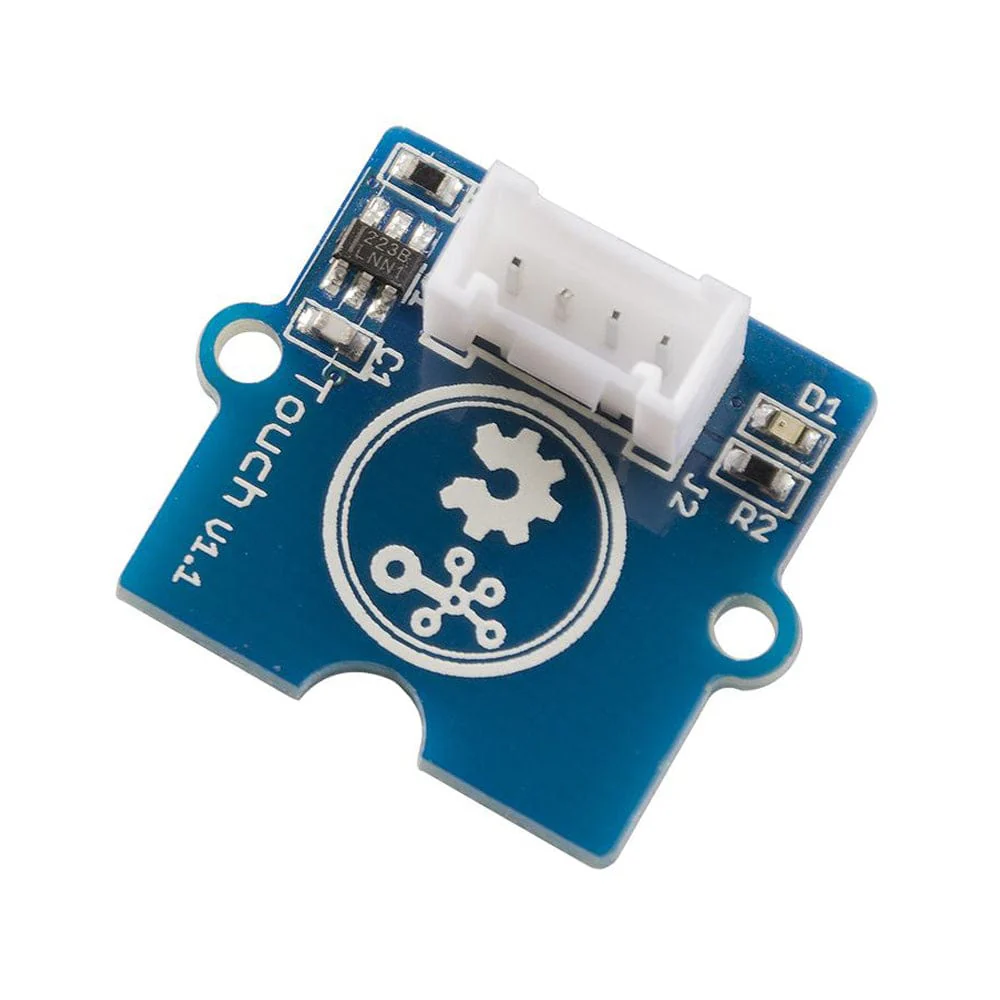

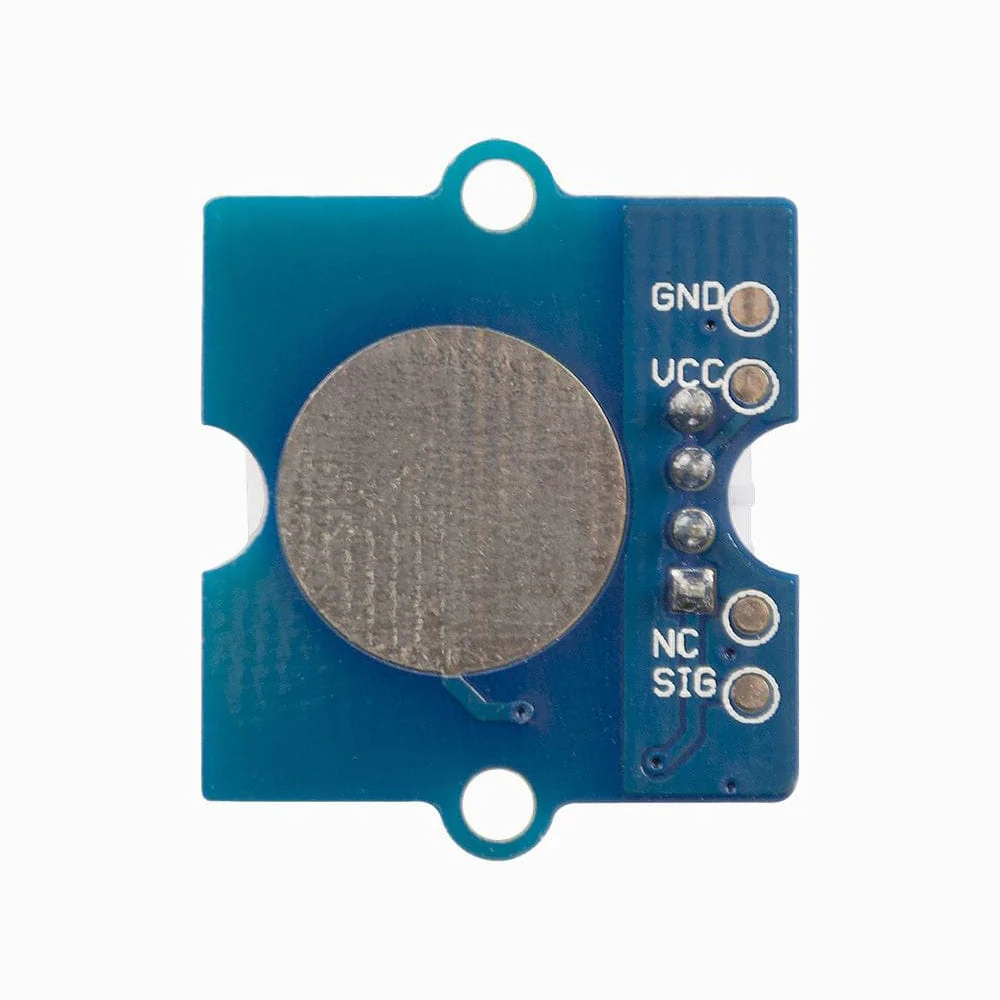

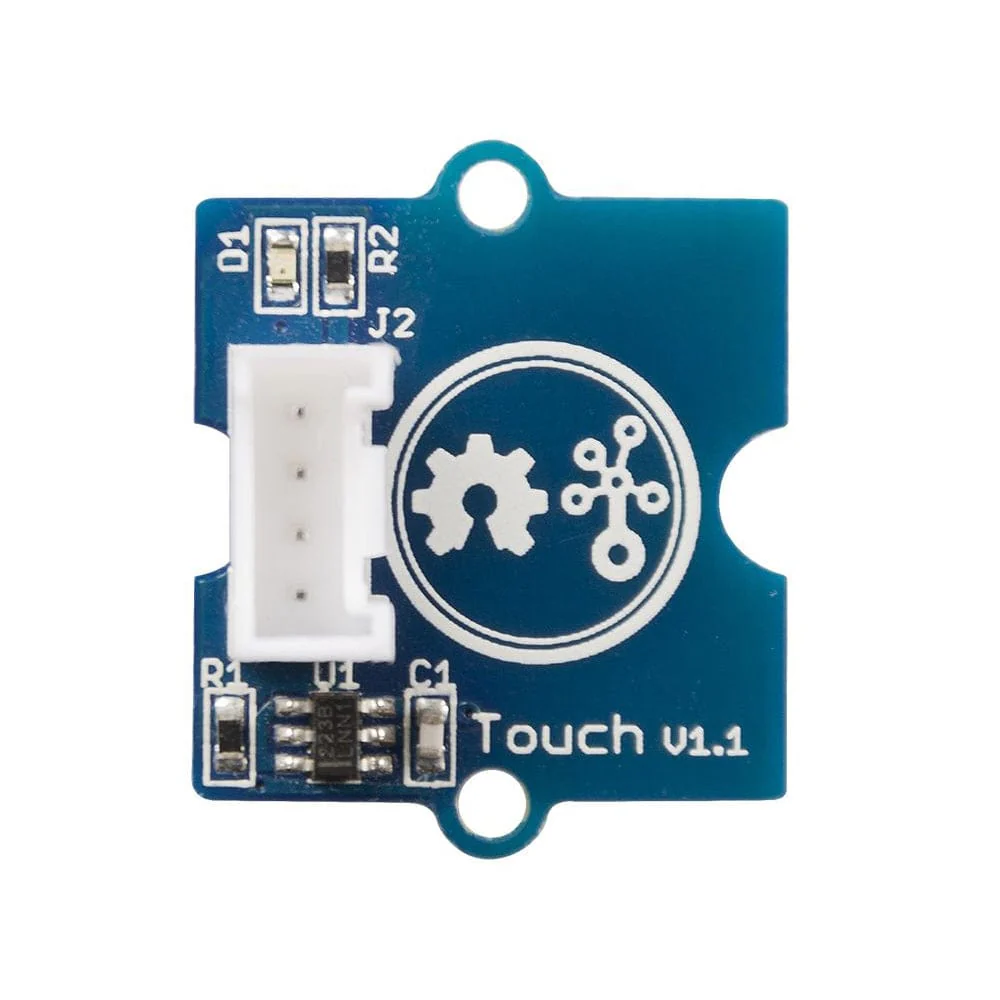

The Grove Touch Sensor enables you to replace the press with touch! The sensor measures the capacitance of a metallic pad and detects the change in capacitance when a finger is nearby. The module is based on the TTP223-B touch detector IC.

This is the same technology used in the iPhone touch screen. You can place the metallic pad under a non-metallic surface such as a plastic or glass sheet and it will still work as a button, which is useful for projects that have to be waterproof.

With the help of the touch sensor, you can also make a secret button by placing it inconspicuously behind a smooth surface. For instance, you could place them under a nonmetallic card table and by casually pressing the right location on a tabletop surface you could mysteriously control your DIY project!

Features

• Grove compatible interface
• 2.0-5.5V DC supply
• Response time max ~60mS at fast mode, 220mS at low power mode @VDD=3V
• Low power consumption

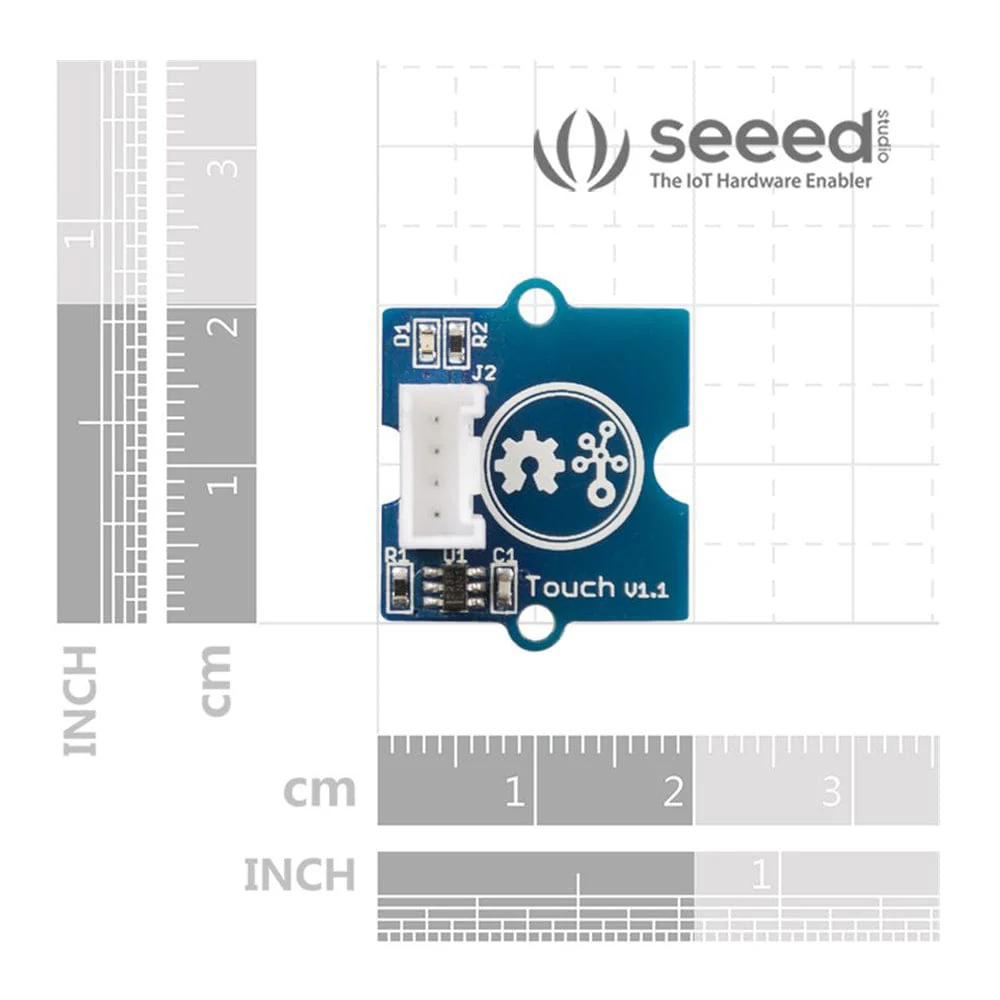

• 2.0cm x 2.0cm twig module
• Power indicator led
• Weight: 8g
• Dimensions: 60mm x 60mm x 11mm
• Product number: Seeed 101020037

Resources

• Product Wiki

Package Contents

• 1x Grove touch sensor
• 1x Grove cable
