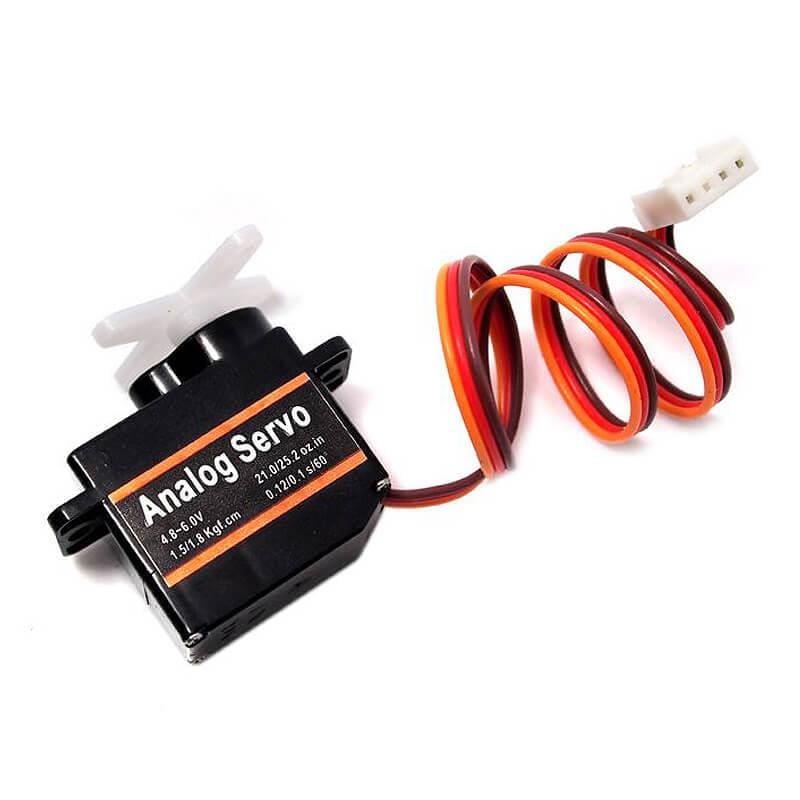

Grove - Servo
The Grove Servo is a bonus product for Grove lovers as Seeed regulated the three-wire servo into a Grove standard connecter! You can plug and play it as a typical Grove module now, without jumper wire clutter.
A Servo motor is a rotary actuator that allows for precise control of angular position which makes them suitable for use in closed-loop systems where precise position control is needed and is commonly used in electronics. Servo motors are part of a closed-loop system and they are a self-contained electrical device that rotates parts of a machine with high efficiency with great precision.
Features
- Analog servo
- Grove Compatible Interface
- Horns included
- Product number: Seeed 316010005
Specification
| Working Voltage | 4.8/5/6 (Min, Typ, Max) |
| Torque | 1.5/1.8 Kg.cm |
| Speed | 0.12/0.16 s/60° |
| Size | 32x11.5x24mm |
| Weight | 8.5g |

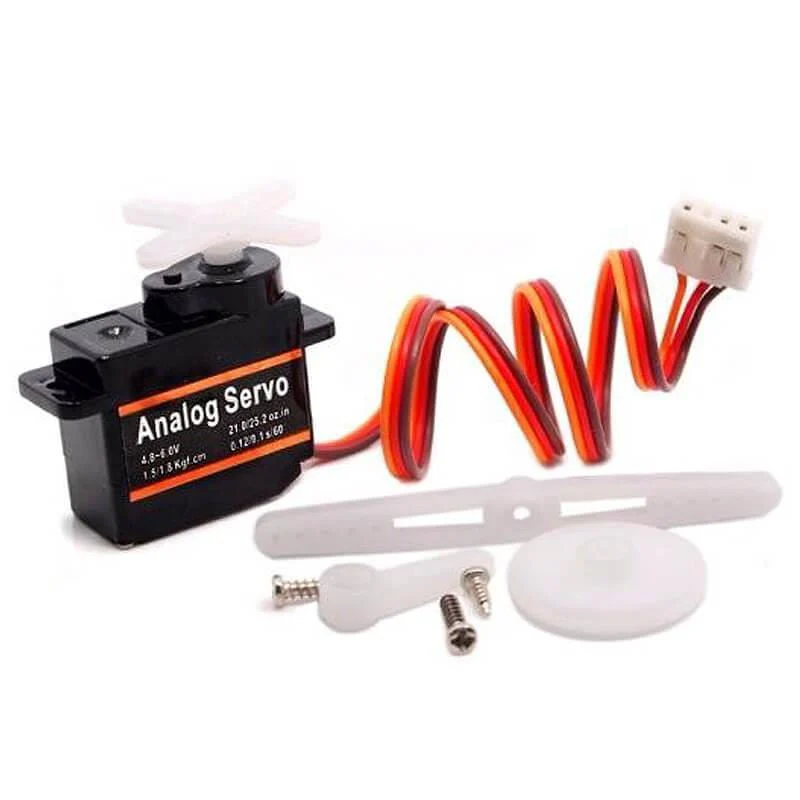

Package Contents
- 1x Grove Servo

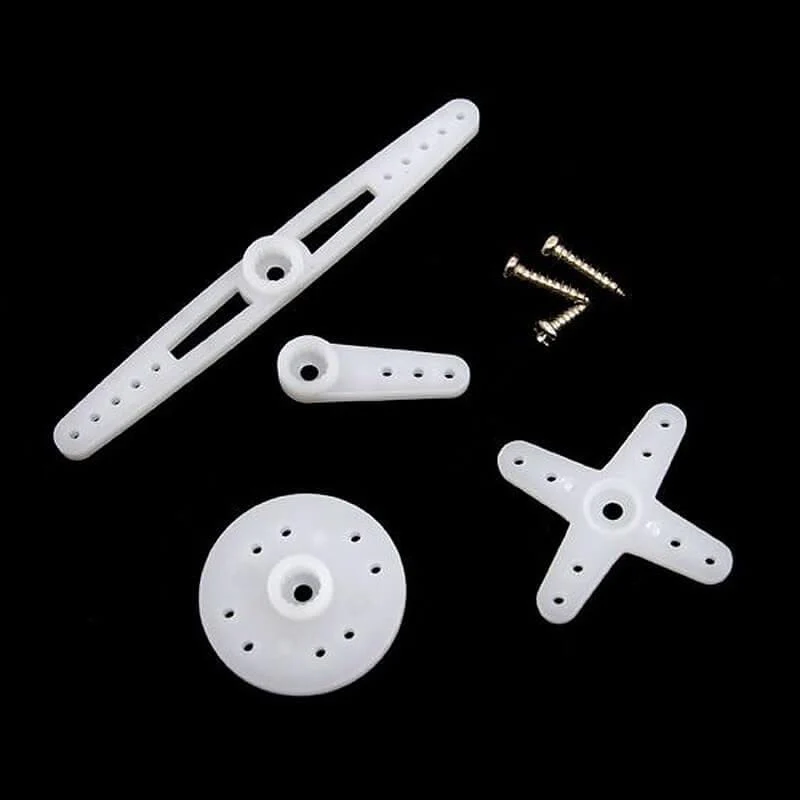

- 3x Servo horns
- 3x Screws
Resources
- Product Wiki
Description
The Grove Servo is a bonus product for Grove lovers as Seeed regulated the three-wire servo into a Grove standard connecter! You can plug and play it as a typical Grove module now, without jumper wire clutter.
A Servo motor is a rotary actuator that allows for precise control of angular position which makes them suitable for use in closed-loop systems where precise position control is needed and is commonly used in electronics. Servo motors are part of a closed-loop system and they are a self-contained electrical device that rotates parts of a machine with high efficiency with great precision.
Features
- Analog servo
- Grove Compatible Interface
- Horns included
- Product number: Seeed 316010005
Specification
| Working Voltage | 4.8/5/6 (Min, Typ, Max) |
| Torque | 1.5/1.8 Kg.cm |
| Speed | 0.12/0.16 s/60° |
| Size | 32x11.5x24mm |
| Weight | 8.5g |
Package Contents
- 1x Grove Servo
- 3x Servo horns
- 3x Screws
Resources
- Product Wiki
