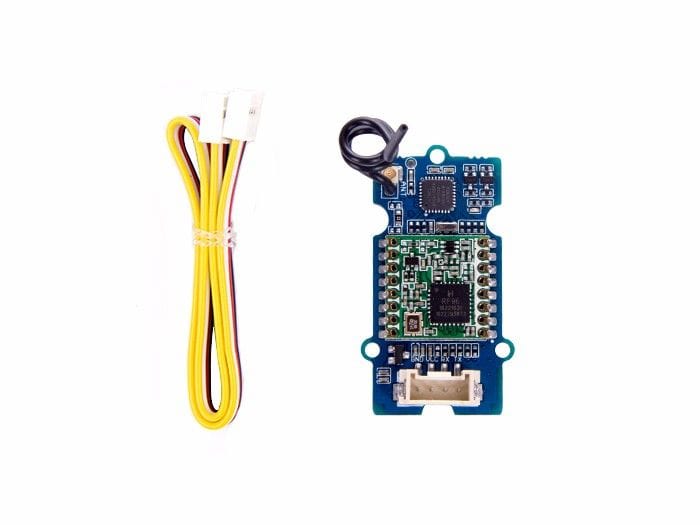

Grove - LoRa Radio 868MHz
Grove is a very powerful platform developed by Seeed Studio to simplify your IoT projects. Seeed has integrated the grove connector to most boards they produce to make them become a system. This time, we combined Grove with LoRa to provide an ultra-long-range wireless module for you.
The main functional module in Grove - LoRa Radio 868MHz is RFM95, which is a transceiver that features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove - LoRa Radio 868MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

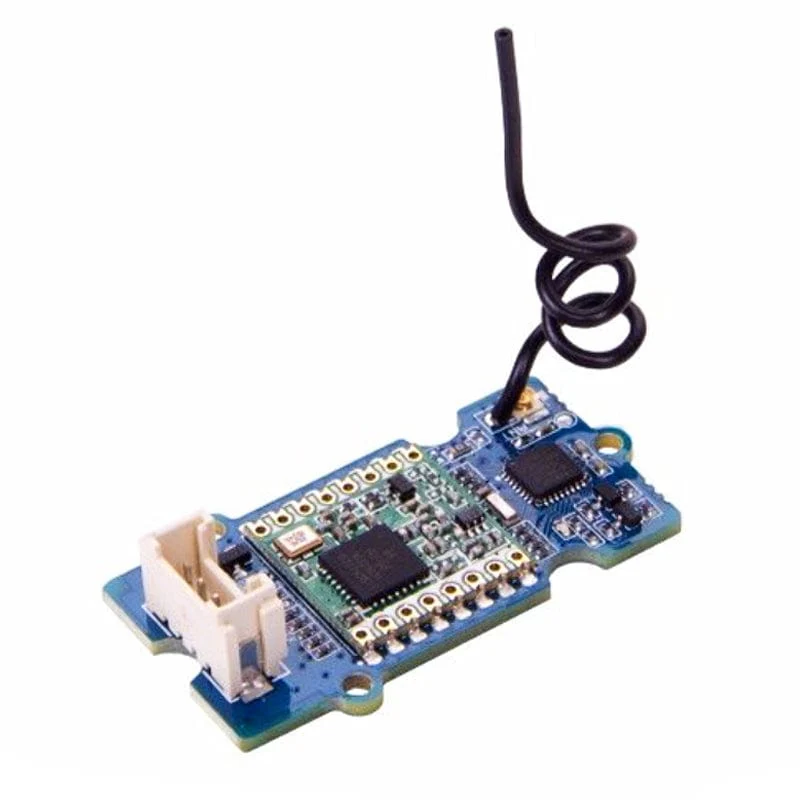

There we already integrated a simple wire antenna to receive the signal, if the signal is too weak to receive, don’t worry, the MHF connector next to the antenna is for adding a second antenna that has MHF interface to gain more signal.
This is the 868MHz version, which can be used for 868MHz communication.
Features
- Using RFM95 module based on SX1276 LoRa®
- Inputting voltage: 5V/3.3V
- ~28mA(Avg) @+20dBm continuous transmit
- ~8.4mA(Avg)@standby mode
- ~20mA(Avg) @receive mode, BW-500kHz
- Working Temperature: -20 – 70
- Communication Interface: UART
- Simple wire antenna or MHF Connector for external high gain antenna
- Working Frequency: 868MHz
- +20dBm - 100 mW Power Output Capability
- Size: 20mm x 40mm
- Product number: Seeed 113060006
Resources
- Product Wiki
- Library & Examples
- LMIC Library
- RFM95/96/97 Datasheet
- Atmega168 Datasheet
- Schematic (PDF)
Note
- Please keep the antenna vertical to the board and as straight as possible to make the best performance.
- Please avoid making any big metal object near the antenna and a metal cape is also not recommended if you need to add a cape for your device.
