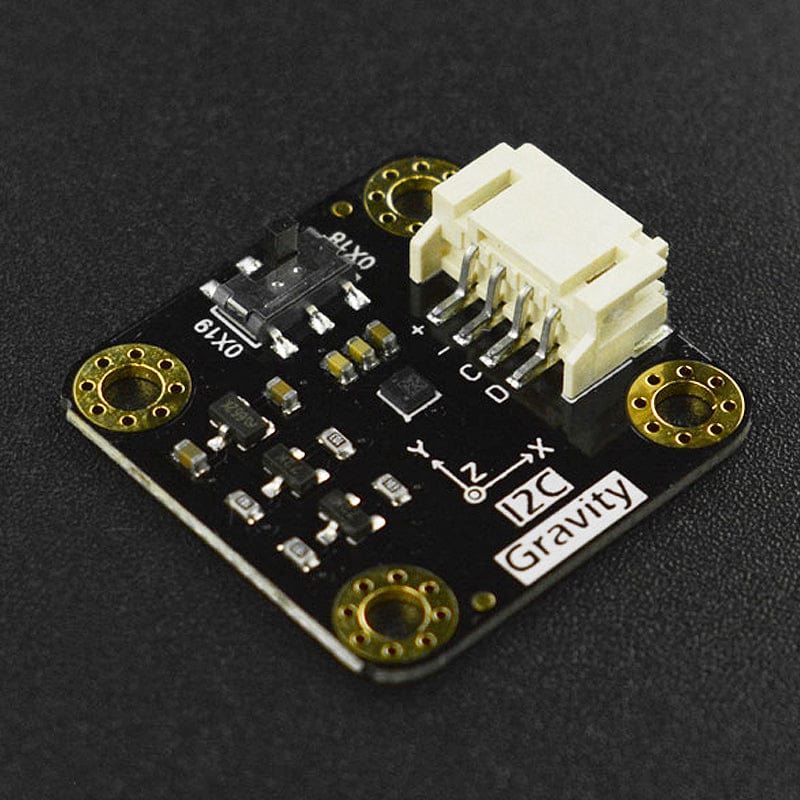

Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor (±2g/±4g/±8g/±16g)

The LIS2DW12 is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.

The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.

• User-selectable scale: ±2g/±4g/±8g/±16g
• 16-bit data output
• Easy-to-use Gravity interface, no need to solder

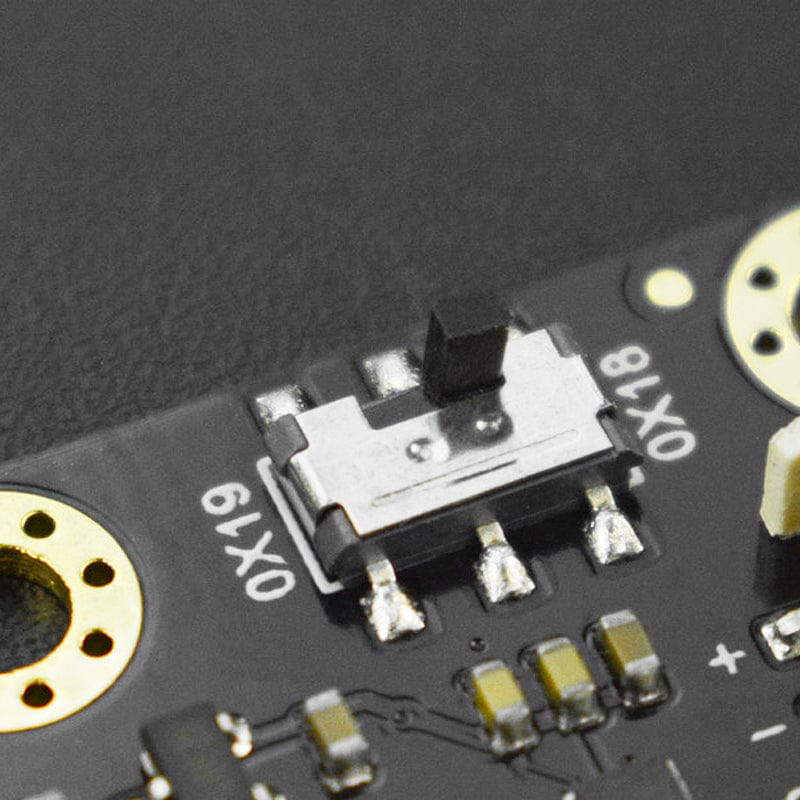

• Change I2C address by the toggle switch

Connection Diagram - Firebeetle Microcontroller

• Operating Voltage: 3.3V~5V
• Operating Current: 8-10uA (low-power & low-noise mode)/0.12mA(high performance mode)
• Interface: Gravity-I2C
• I2C Address: 0x19 (default) / 0x18 (optional)
• User-selectable Scale: ±2g/±4g/±8g/±16g
• Operating Temperature: -40°C-+85°C
• Frequency: 1.6Hz~1600Hz
• Ultra-low Noise: 1.3mgRMS (low power mode)
• 16-bit Data Output
• 32-Level FIFO (First-in first-out buffer zone)
• Sleep to Wake-up Function
• 10000g High Shock Survivability
• ECOPACK, RoHS and "Green" Compliant

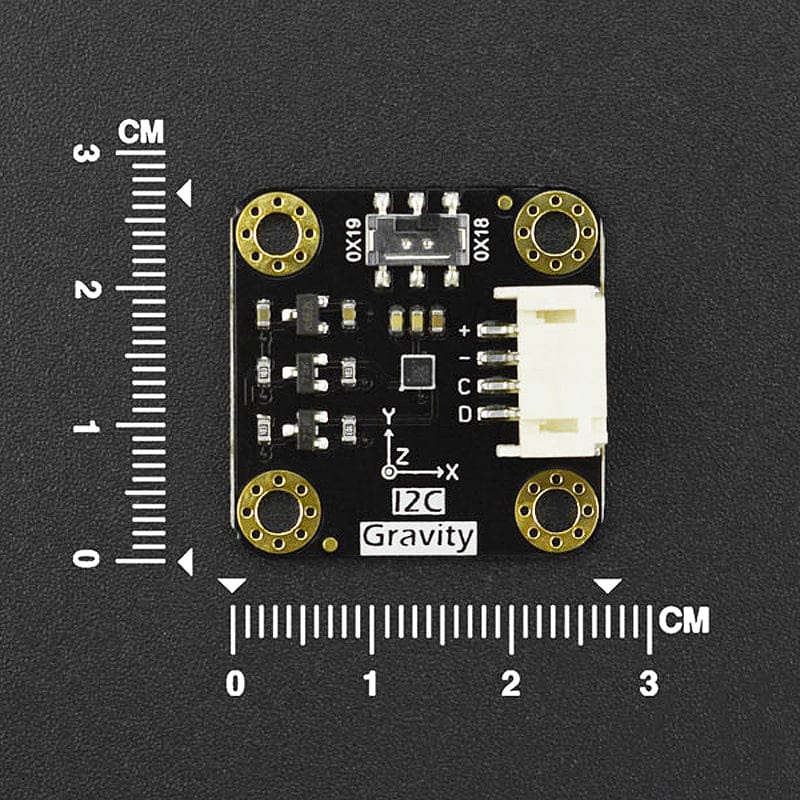

• Module Size: 27 x 27mm/1.06 x 1.06
• Mounting Hole Size: Inner 3.1mm/outer 6mm

• Product wiki

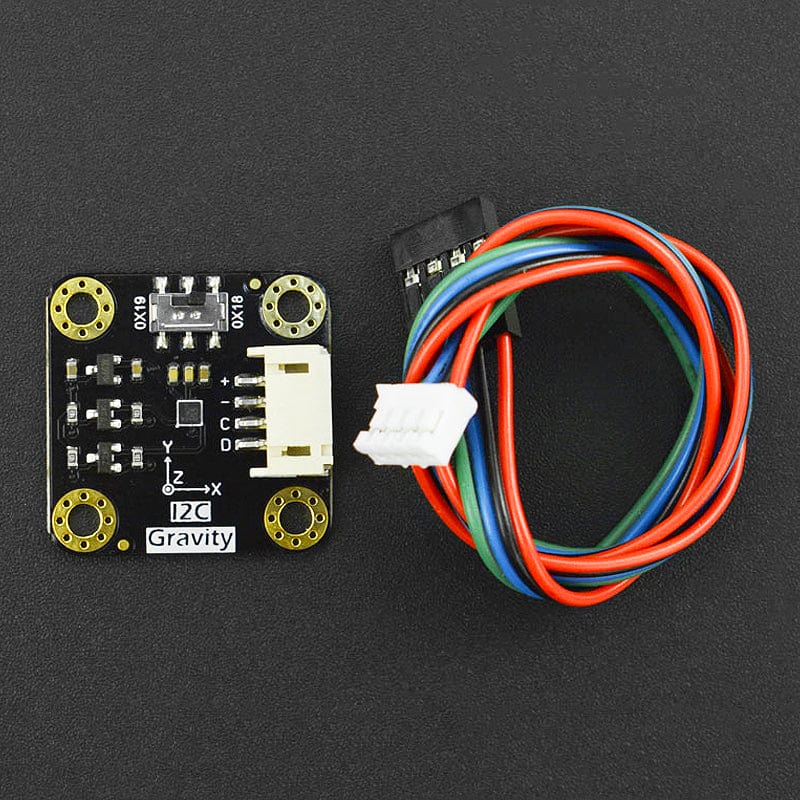

• 1x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor
• 1x Gravity-4P I2C/UART Sensor Connector
