Gravity: Digital Infrared Distance Sensor (10cm) [Discontinued]
This is an edge detection sensor from DFRobot. It will help your robot detect the edge of a precipice, preventing it from falling off a table or down the stairs to it's certain demise! This IR distance sensor is connected to an arduino digital pin.
Applications
- Edge detection sensor
- Intelligent Mobile Robotics Platforms
- Home Cleaning Robots
Specification
- Supply Voltage: 2.7~6.2v
- Current: < 10mA
- Detecting Distance: 2~10cm (Low), <2cm or >10cm (High)
- Interface:Digital Output
- Signal Voltage: Vcc-0.6v(High) 0.6v(Low)
- Size: 36.0×10.0×15.0 mm / 1.42×0.39×0.59 in
- Weight: < 5g
Documents
- Product Wiki
- More Documents
Shipping List

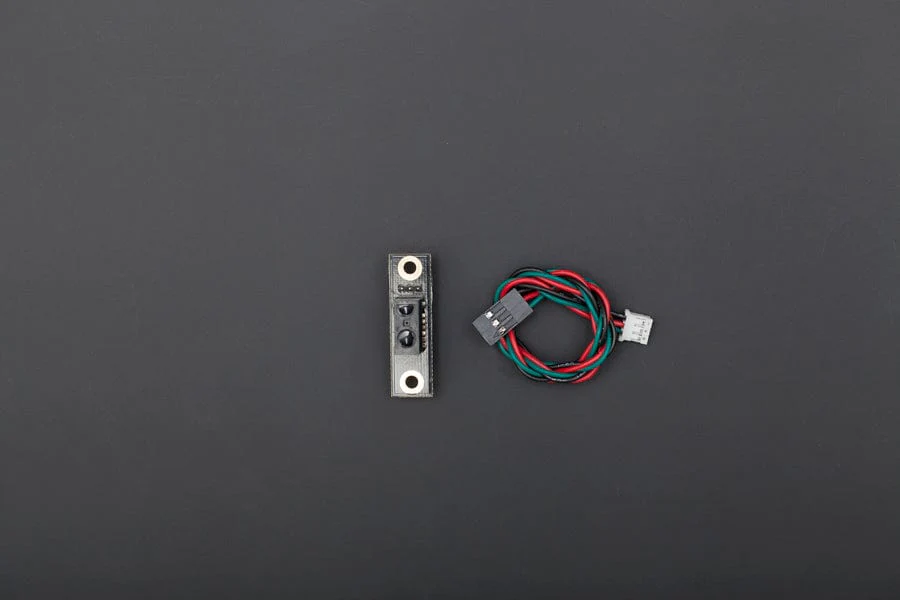

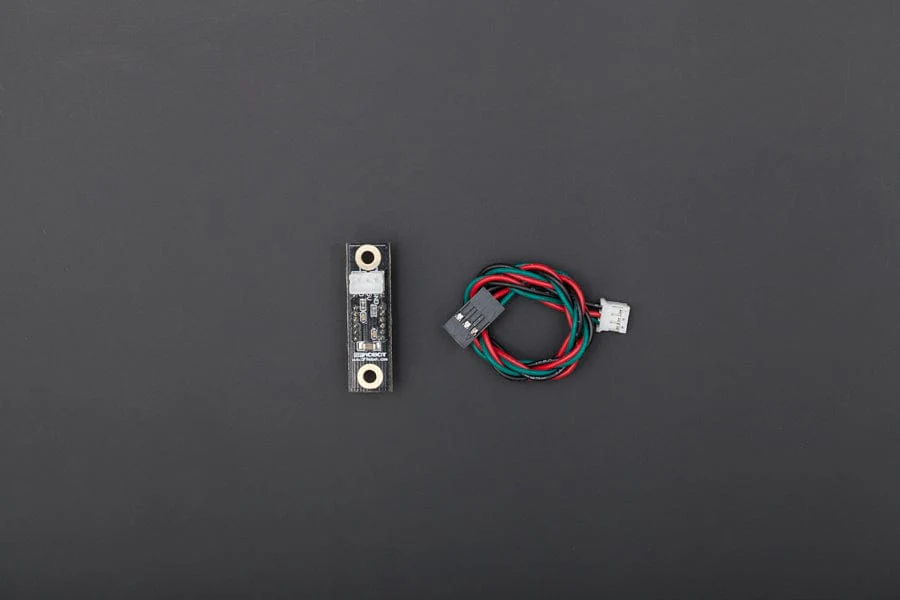

- 10cm infrared sensor w/Breakout Board x1
- Digital Sensor Cable for Arduino x1
$3.84
Original: $12.80
-70%Gravity: Digital Infrared Distance Sensor (10cm) [Discontinued]—
$12.80
$3.84
Description
This is an edge detection sensor from DFRobot. It will help your robot detect the edge of a precipice, preventing it from falling off a table or down the stairs to it's certain demise! This IR distance sensor is connected to an arduino digital pin.
Applications
- Edge detection sensor
- Intelligent Mobile Robotics Platforms
- Home Cleaning Robots
Specification
- Supply Voltage: 2.7~6.2v
- Current: < 10mA
- Detecting Distance: 2~10cm (Low), <2cm or >10cm (High)
- Interface:Digital Output
- Signal Voltage: Vcc-0.6v(High) 0.6v(Low)
- Size: 36.0×10.0×15.0 mm / 1.42×0.39×0.59 in
- Weight: < 5g
Documents
- Product Wiki
- More Documents
Shipping List
- 10cm infrared sensor w/Breakout Board x1
- Digital Sensor Cable for Arduino x1
