Gravity: DC Fan Module
Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. It comes with a propeller, a 15,000 rpm motor and cable. Add flavor to your own interesting projects with this module.
This module is commonly used for STEM class.
Connection Example - DFRduino UNO R3
Specifications
- Working Voltage：3~6V
- Working Temperature：-20~85°C
- Speed (no load)：15000 rpm
- Speed (6V): 8000 rpm
- Current (6V): 40mA
- Stall current (6V): 360mA
- Torque (6V): 0.111kg/cm

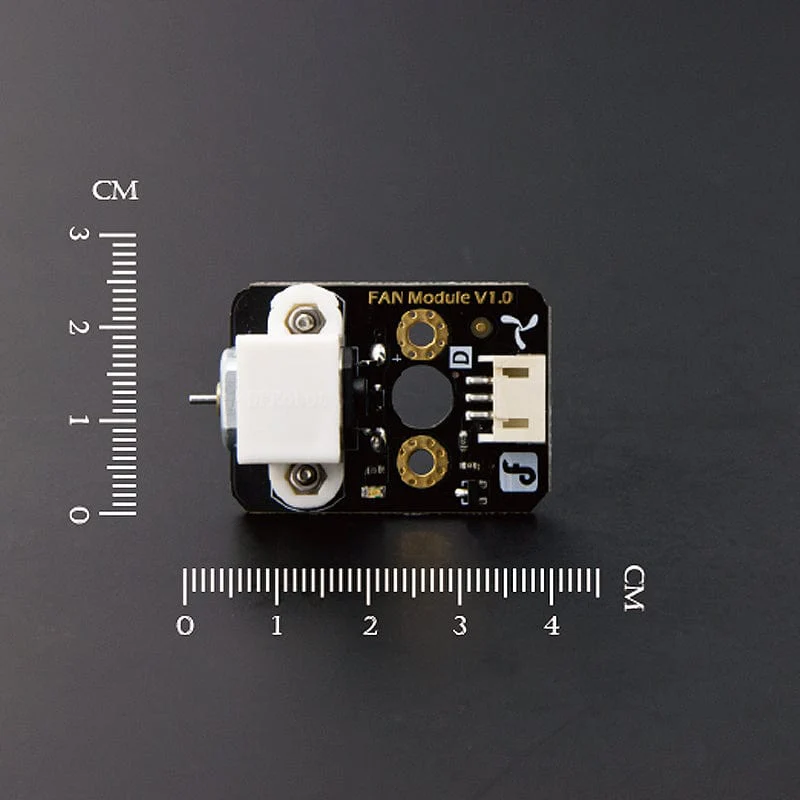

- Size: 36 x 27 x 13 mm
- Weight: 22g
Resources
- Wiki Doc
- Schematic

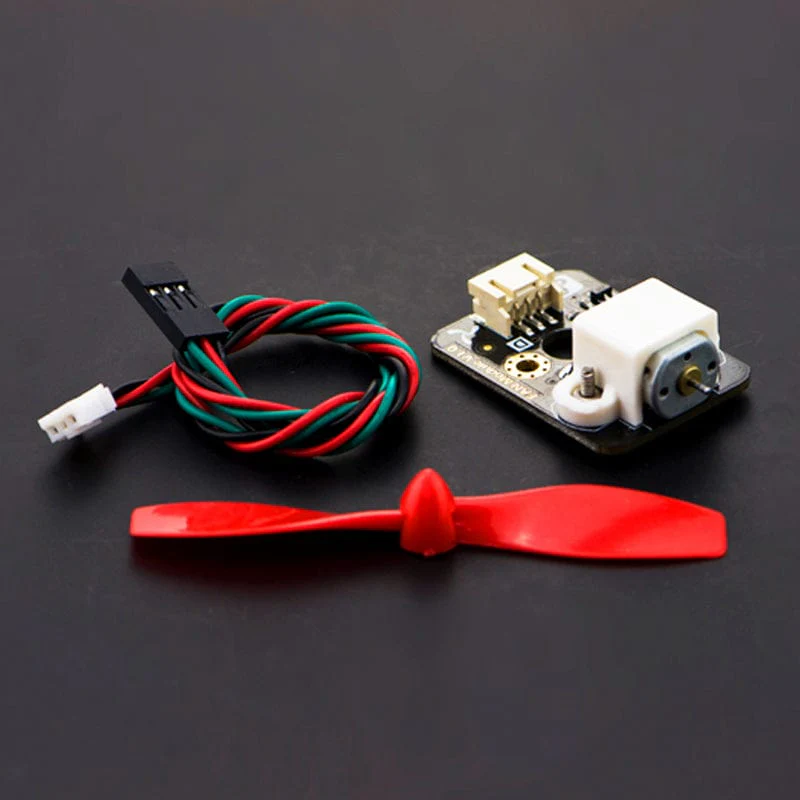

Package Contents
- 1x Fan module
- 1x Airscrew
- 1x Digital cable
$5.17
Gravity: DC Fan Module—
$5.17
Description
Make an air aerial propeller vessel, a cooling system, or spinning machine with this small fan module. It comes with a propeller, a 15,000 rpm motor and cable. Add flavor to your own interesting projects with this module.
This module is commonly used for STEM class.
Connection Example - DFRduino UNO R3
Specifications
- Working Voltage：3~6V
- Working Temperature：-20~85°C
- Speed (no load)：15000 rpm
- Speed (6V): 8000 rpm
- Current (6V): 40mA
- Stall current (6V): 360mA
- Torque (6V): 0.111kg/cm
- Size: 36 x 27 x 13 mm
- Weight: 22g
Resources
- Wiki Doc
- Schematic
Package Contents
- 1x Fan module
- 1x Airscrew
- 1x Digital cable
