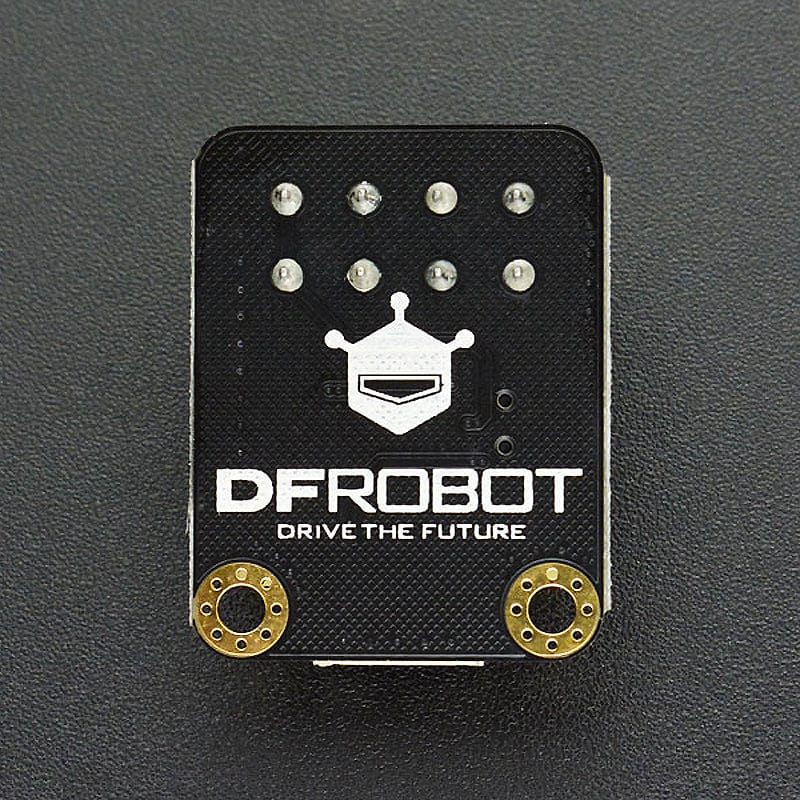

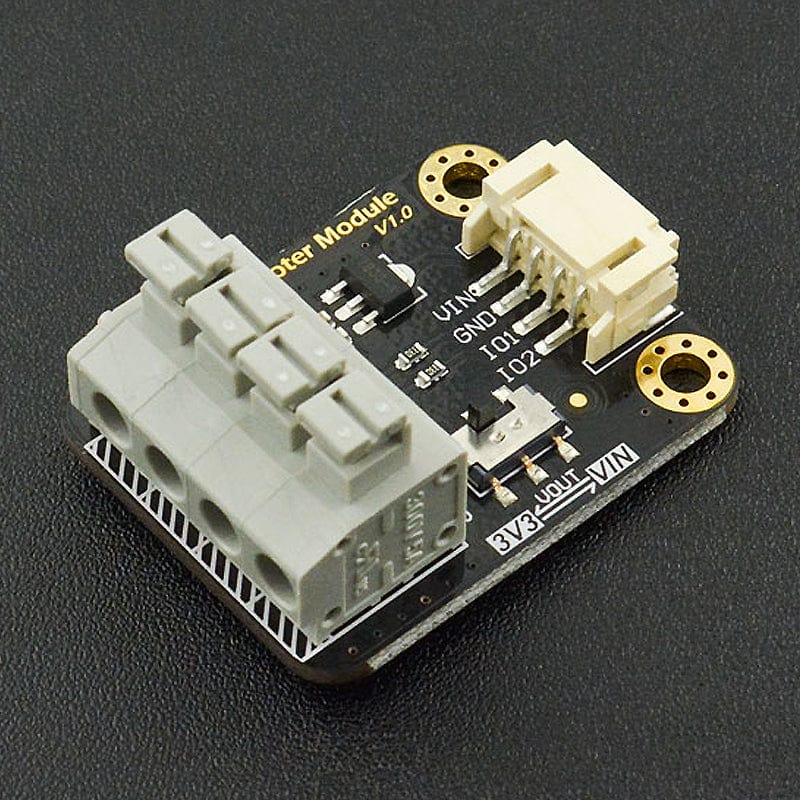

Gravity: 4-Pin Sensor Adapter

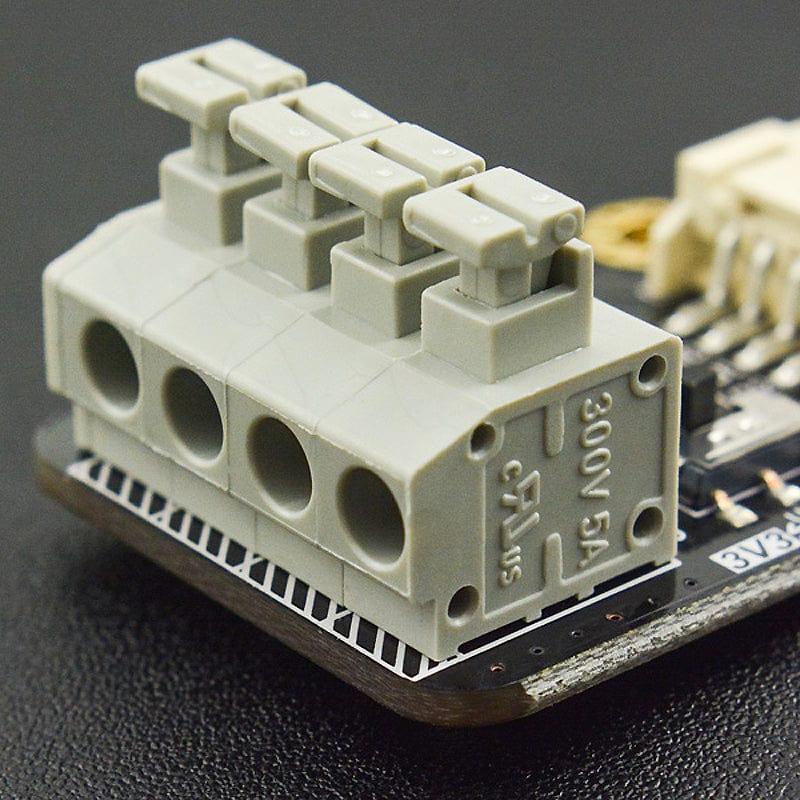

This is a DFRobot Gravity 4-pin sensor adapter. You can use this board to make your 4-pin I2C/UART sensors compatible with the Gravity interface. The press-type terminal is easy to use without any tools required and provides a firm grip on your sensor's wiring.

The adapter has a power switch to set either 3.3V or 5V. Comes complete with Gravity I2C/UART cable.

Features

• 3.3V/5V Power Switch
• Press type connection type

Specification

• Input Voltage: 3.3 / 5V
• Output Voltage: 3.3 / 5V
• Interface Type: Gravity 4-pin

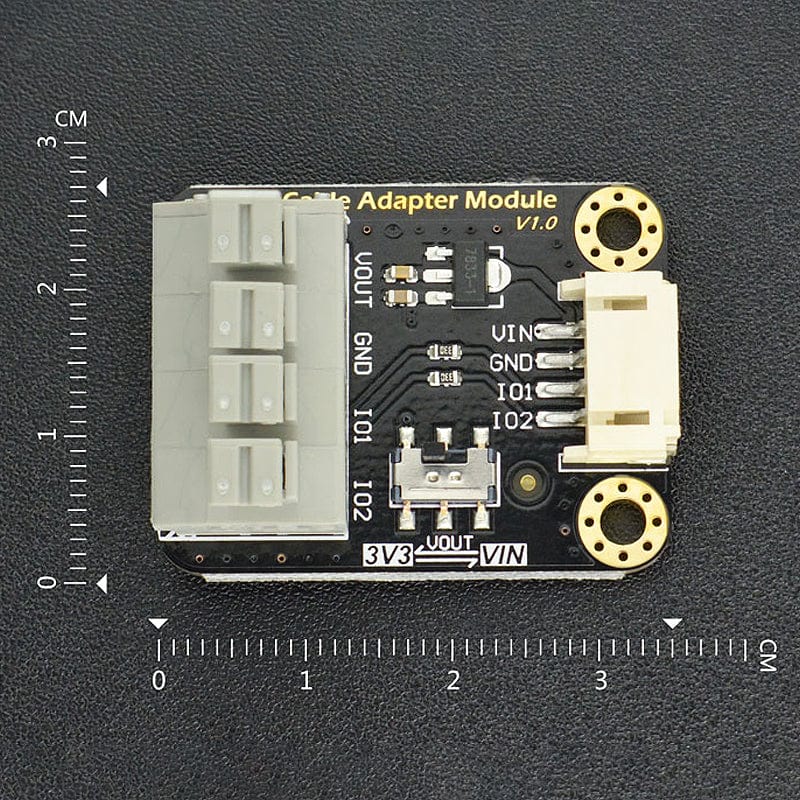

• Dimension: 35mm x 27mm
• Weight: 16g

Resources

• Schematic
• Layout

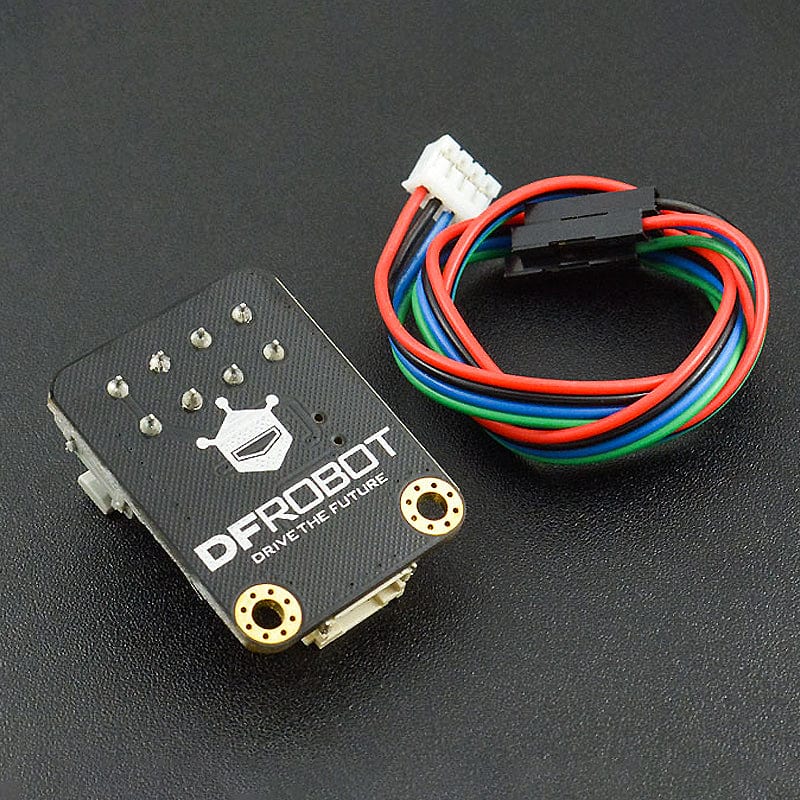

Package Contents

• 1x Gravity 4-pin Sensor Adapter
• 1x Gravity 4-pin I2C/UART Sensor Cable
