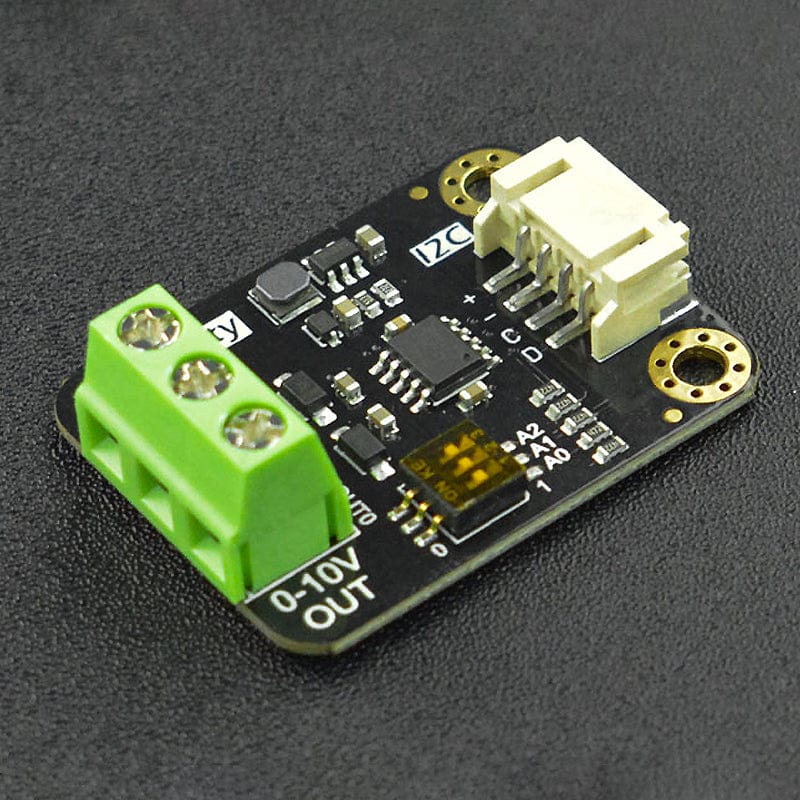

Gravity: 2-Channel I2C DAC Module

This 2-Channel I2C DAC module from DFRobot can output a voltage of 0-10V, which is a standard driver in industrial applications. It can be widely used with most 0-10V devices on the market such as light controllers, inverters, valves and pumps - all via Arduino programming with a compatible development board.

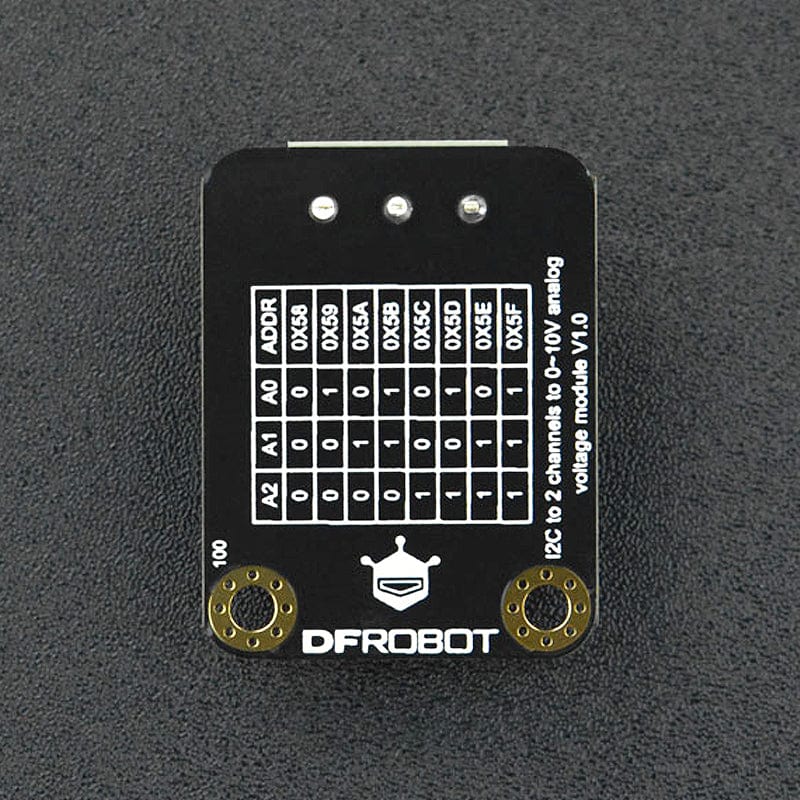

This module supports 8 different I2C addresses, which can be changed using the onboard DIP switch, allowing a cascade of 16 devices.

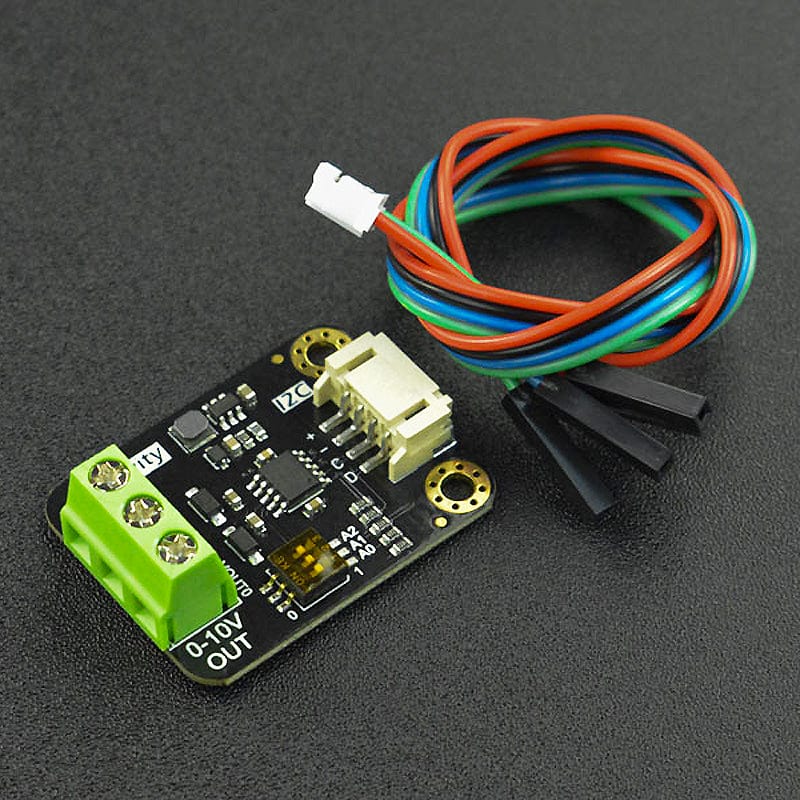

The module comes complete with a compatible Gravity I2C/UART cable.

Connection Example

Features

• Support 3.3V-5V power supply
• Output voltage error is less than 0.5%
• Output short-circuit protection

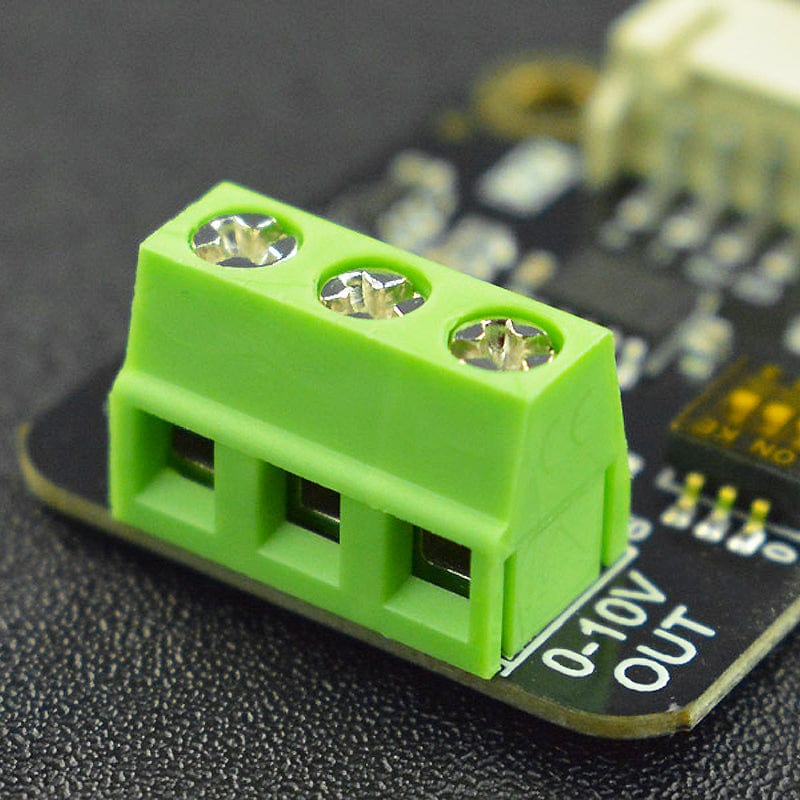

• Two-channel 0-5V/0-10V output for connecting to and controlling standard analog voltage devices
• Gravity interface, I2C communication, Arduino control, suitable for program automation control
• Adjustable 8-way I2C addresses, able to control 16 devices at the same time

Specifications

• Operating Voltage: 3.3V~5V
• I2C Interface: PH2.0-4P (Gravity Line Sequence)
• Chip Type: GP8403
• Input Signal: 12Bit (0x000 - 0xFFF)
• Input I2C Signal High Level: 2.7V - 5V
• VOUT0 Output Voltage: 0 - 10V
• VOUT1 Output Voltage: 0 - 10V
• Output Voltage Error: ＜ 0.5%
• Linearity Error of Output Voltage: 0.1%
• Power Consumption: ＜ 4mA
• Output Short-circuit Protection

Resources

• Product wiki
• Schematics

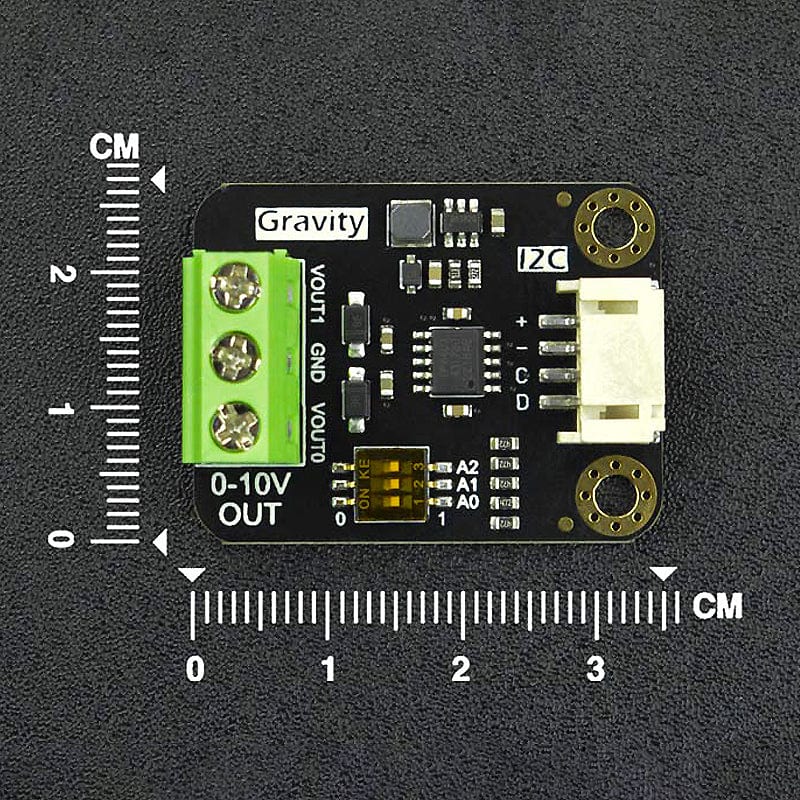

• Dimensions
• 3D File
• 2D_CAD File
• GP8403 Datasheet

Package Contents

• 1x Gravity: 2-Channel 0-10V I2C DAC Module
• 1x Gravity I2C/UART Sensor Cable
