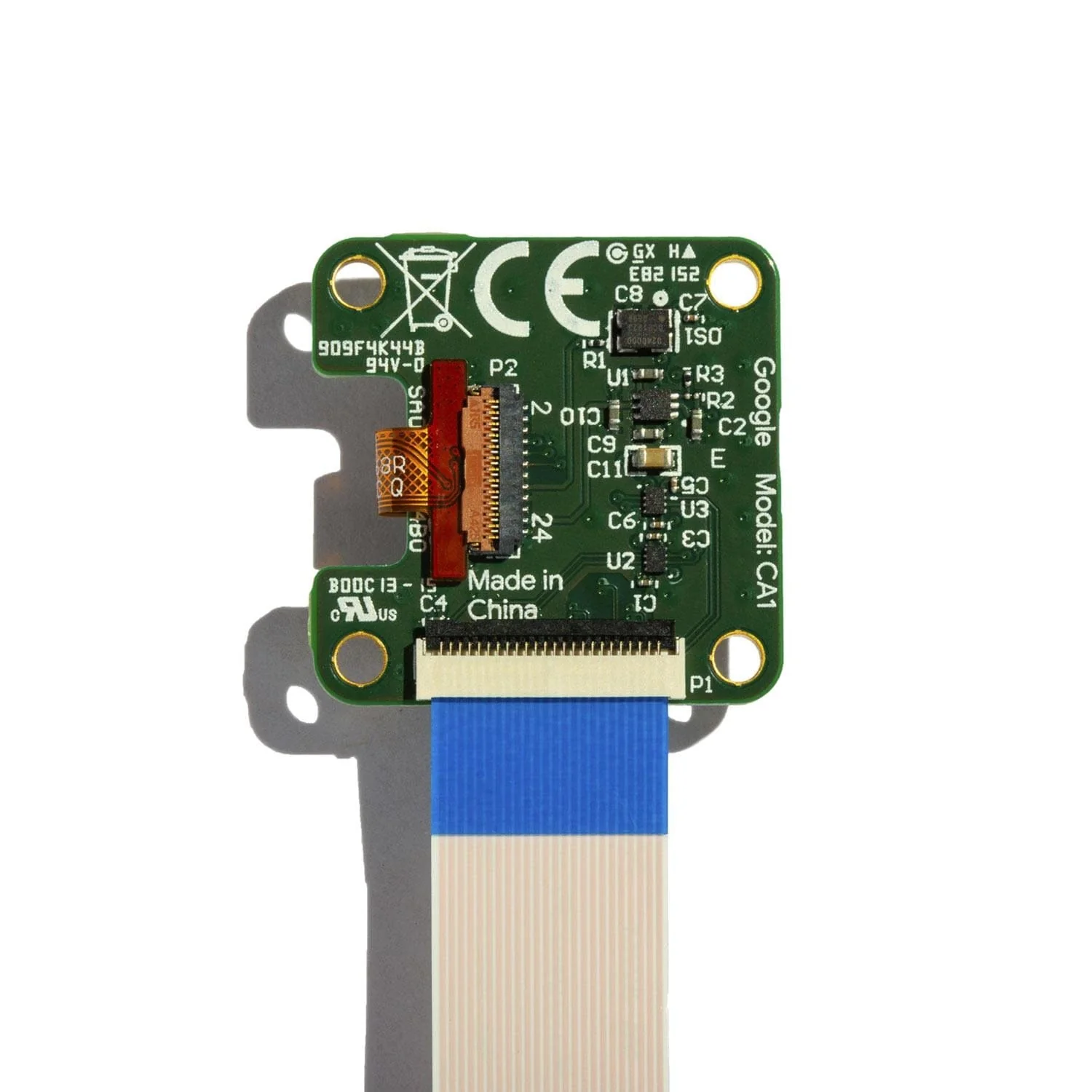

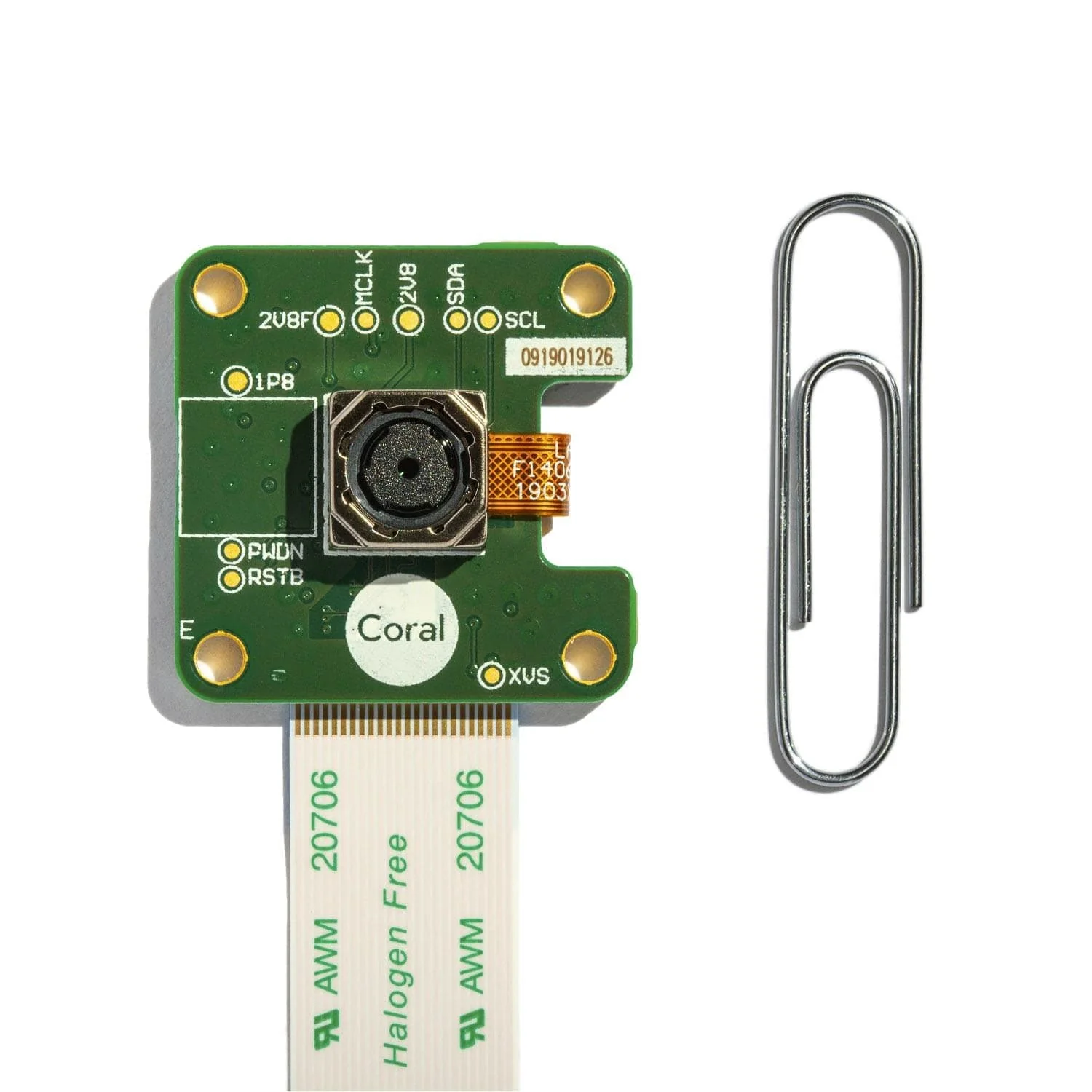

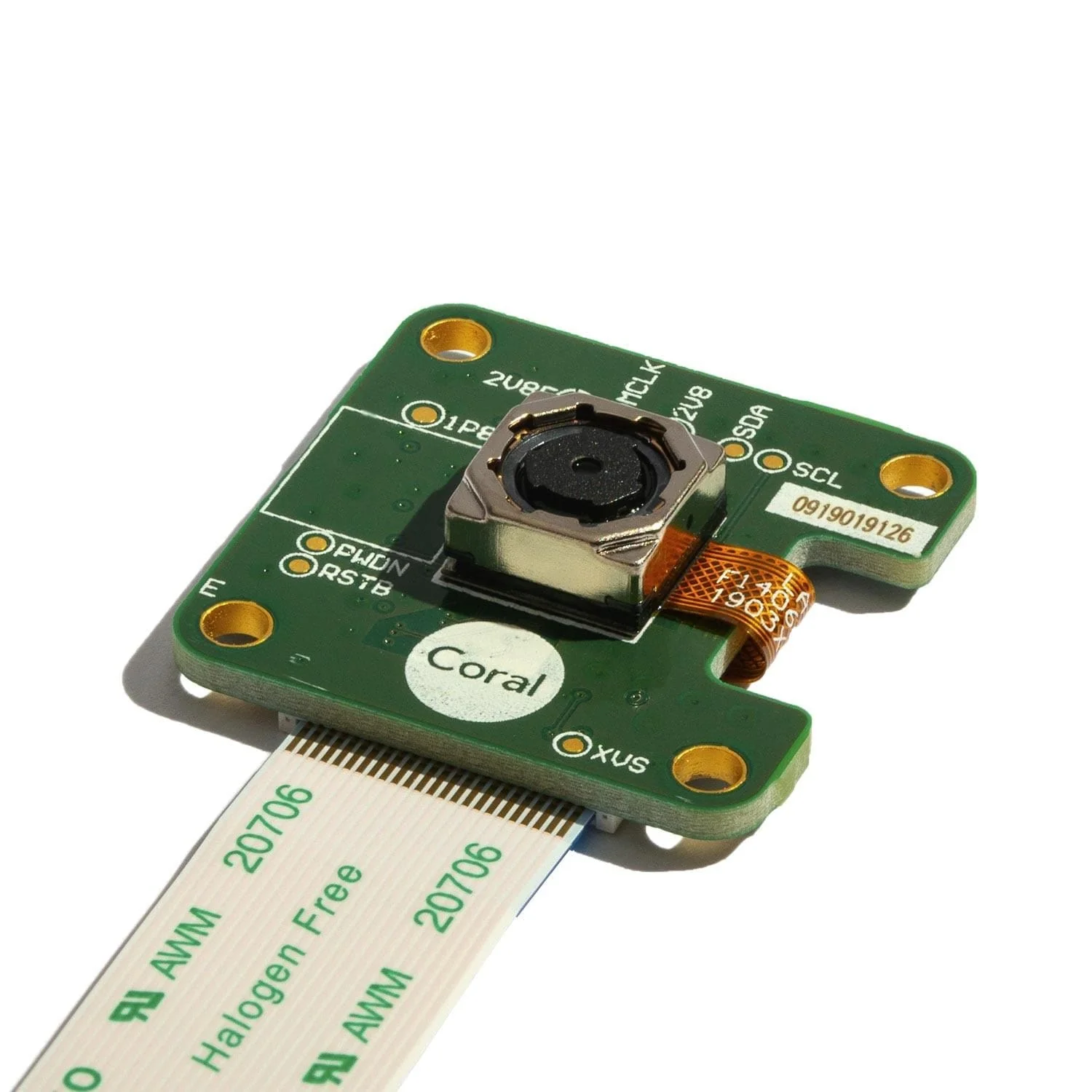

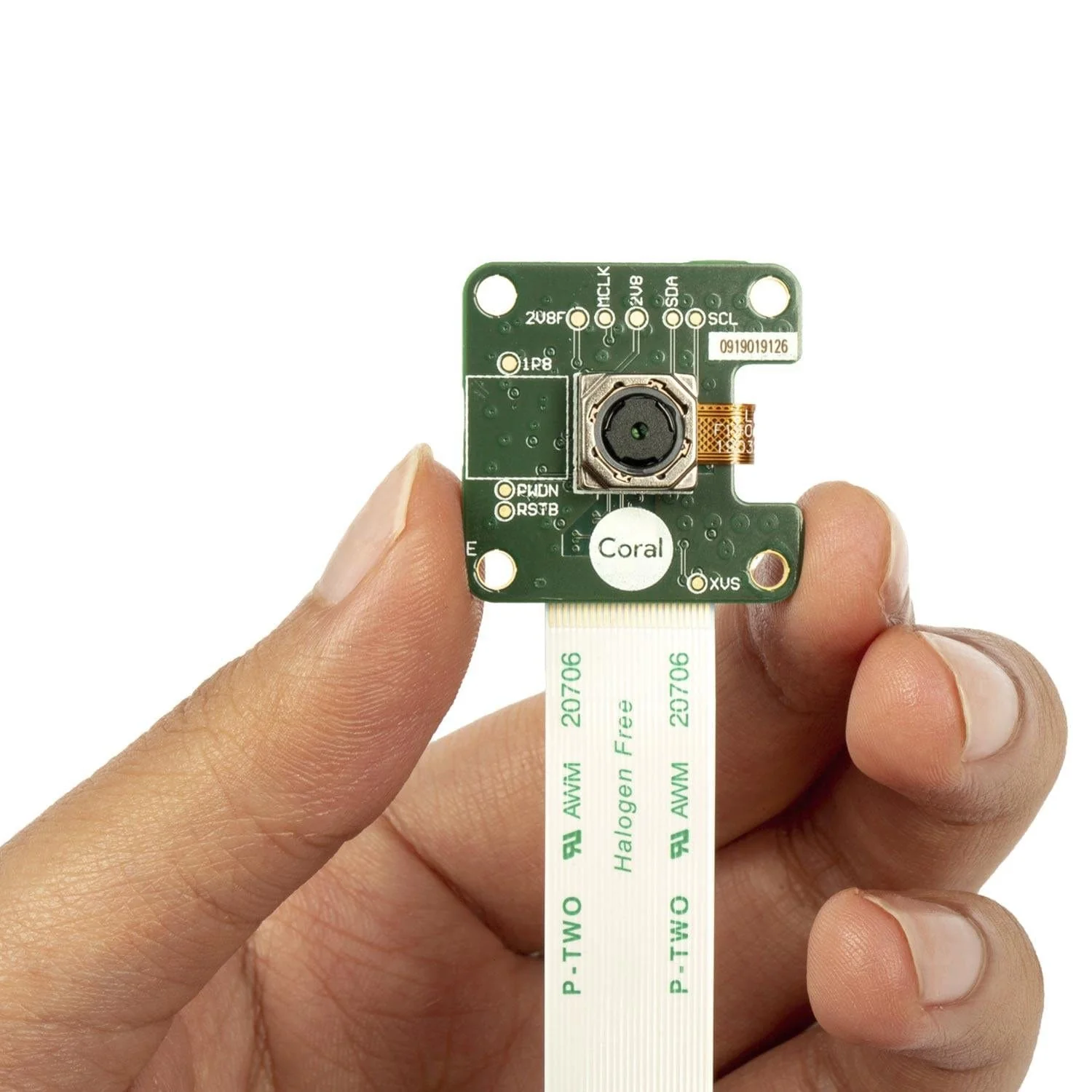

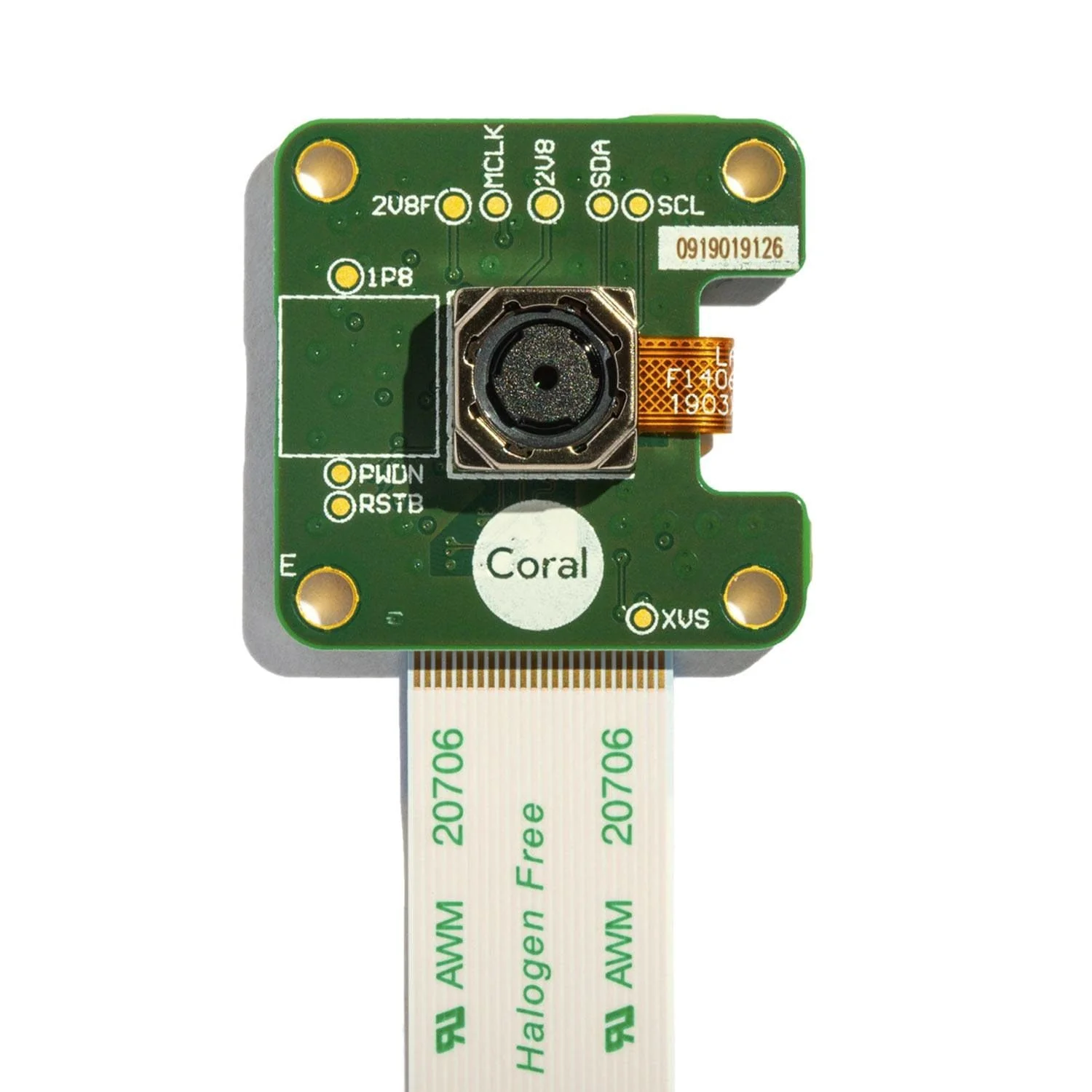

Google Coral Camera [Discontinued]

A 5-megapixel camera module that's compatible with Coral boards. Connects through the MIPI-CSI interface, and provides an easy way to bring visual input into your models.

The camera connects via the MIPI-CSI interface of the Google Coral Dev Board/Dev Board Mini and allows you to easily add visual input to your machine learning models.

This camera has an autofocus feature (AFC) with a built-in AFC VCM driver. Autofocus can also be optionally disabled via software configuration.

While the Coral Dev Boards allow the connection of only one camera module, the Coral SoM provides the possibility to connect up to two camera modules (depending on your carrier board hardware design).

Important!

This camera is not compatible with Raspberry Pi boards as it has a different connector!

Specifications

Sensor	Omnivision OV5645 SoC (built in ISP)
Focus	Auto focus, focal length 2.5mm, range 10cm-infinity
Field of View	84.0 degrees / 87.6 degrees
ISP Functions	Auto exposure control, auto white balance, auto band filter, auto 50/60Hz lumination, auto black level calibration
Connections	MIPI-CSI, dual lane MIPI interface
Dimensions	25mm x 25mm

Resources

Datasheet

• Camera datasheet

Application notes

• Connect a camera to the Dev Board
