GamePi13 1.3" LCD Game HAT for Raspberry Pi (240 x 240)

Who doesn't love some nostalgic gaming? We certainly do! It's so easy to connect this little device to a Raspberry Pi Zero and start playing your favourite classic games.

The GamePi13 is a small HAT that lets you build your own retro gaming device with your Pi Zero (so you don't have to dig out the old Gameboy). It has a 1.3" IPS display with a 240x240 resolution and 65K colours, and comes with plenty of buttons for a range of games.

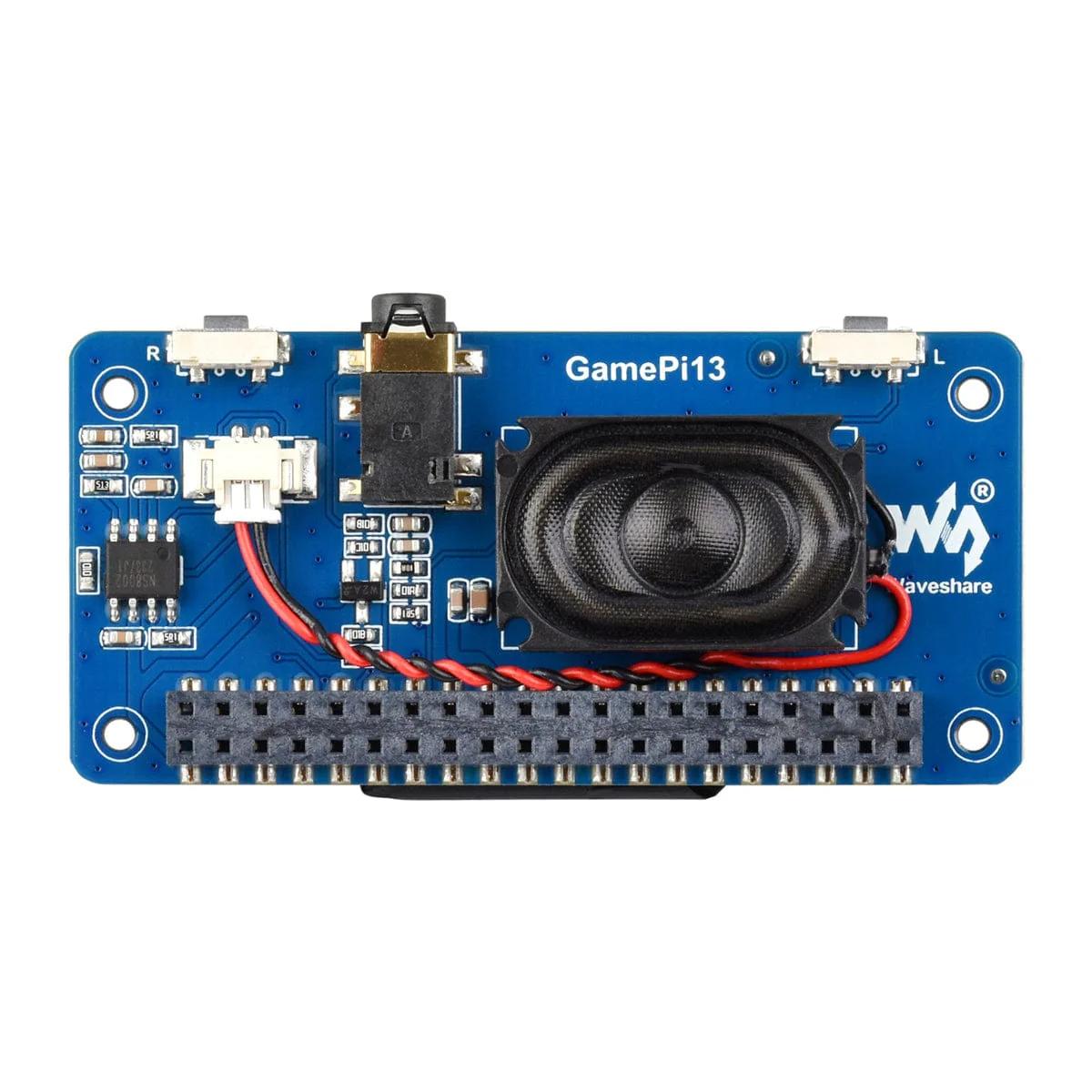

Audio is covered with a 3.5mm jack for headphones, a built-in speaker, and a buzzer to add to your gaming experience.

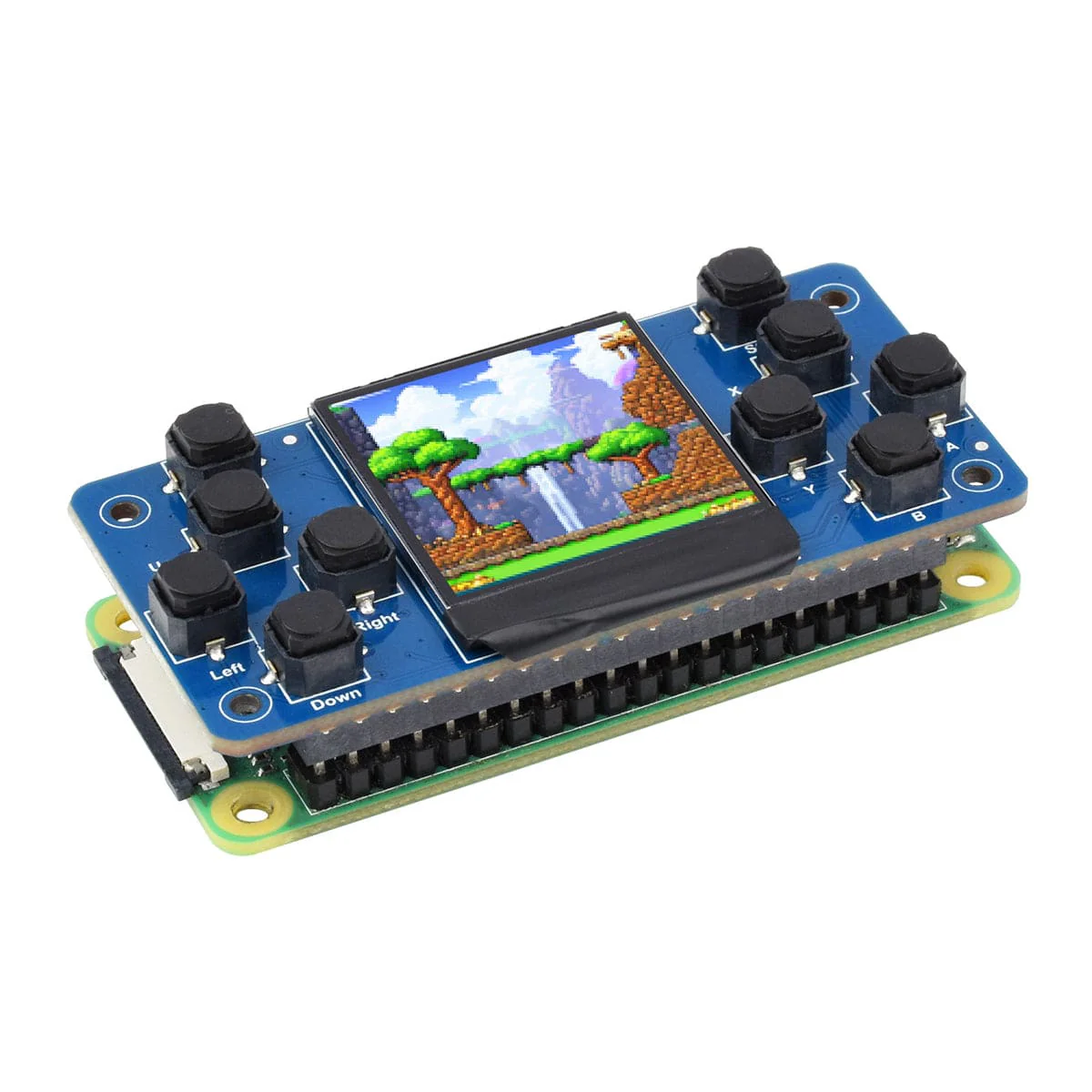

Powering the GamePi13 is easy - just connect it to a Pi Zero or RP2040 Zero and you're ready to go. Detailed resources and instructions are provided, making assembly and setup a piece of cake!

The Zero and games/ROMs are NOT included.

Features

• 1.3" IPS screen with ST7789 driver chip, using SPI interface communication
• 65K colour display screen, 240 x 240 resolution for clear display effect
• 12x Customisable Buttons
• Comes with online development resources (demos for Raspberry Pi / RP2040 Zero)
• Note: mounting holes are M2, not the standard M2.5 that you would expect from a HAT! We've fed this back to Waveshare to see if they will update the design to be more standardised.

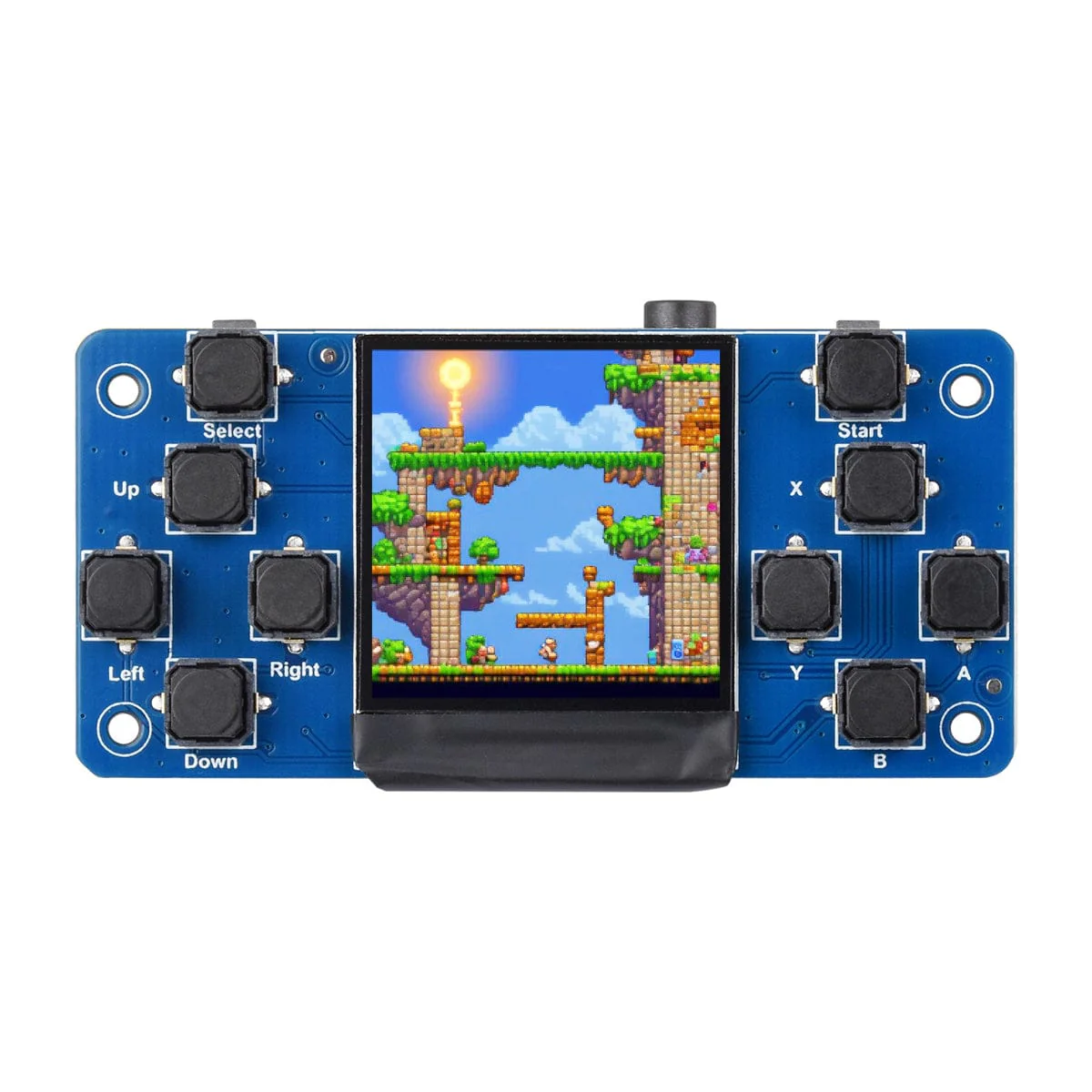

What's on Board/Button Map

Specifications

Working Voltage	3.3V
Communication Interface	SPI
Screen Type	IPS
Control Chip	ST7789
Resolution	240(H) RGB x 240(V)
Display Size	23.4 (H) x 23.4 (V) (mm)
Pixel Size	0.0975 (H) x 0.0975 (V) (mm)
Product Size	65 x 31(mm)

Resources

• Product Wiki
• GamePi13 RP2040 Demo
• Datasheet
• Schematic

Pinout

Package Contents

• 1x GamePi13
