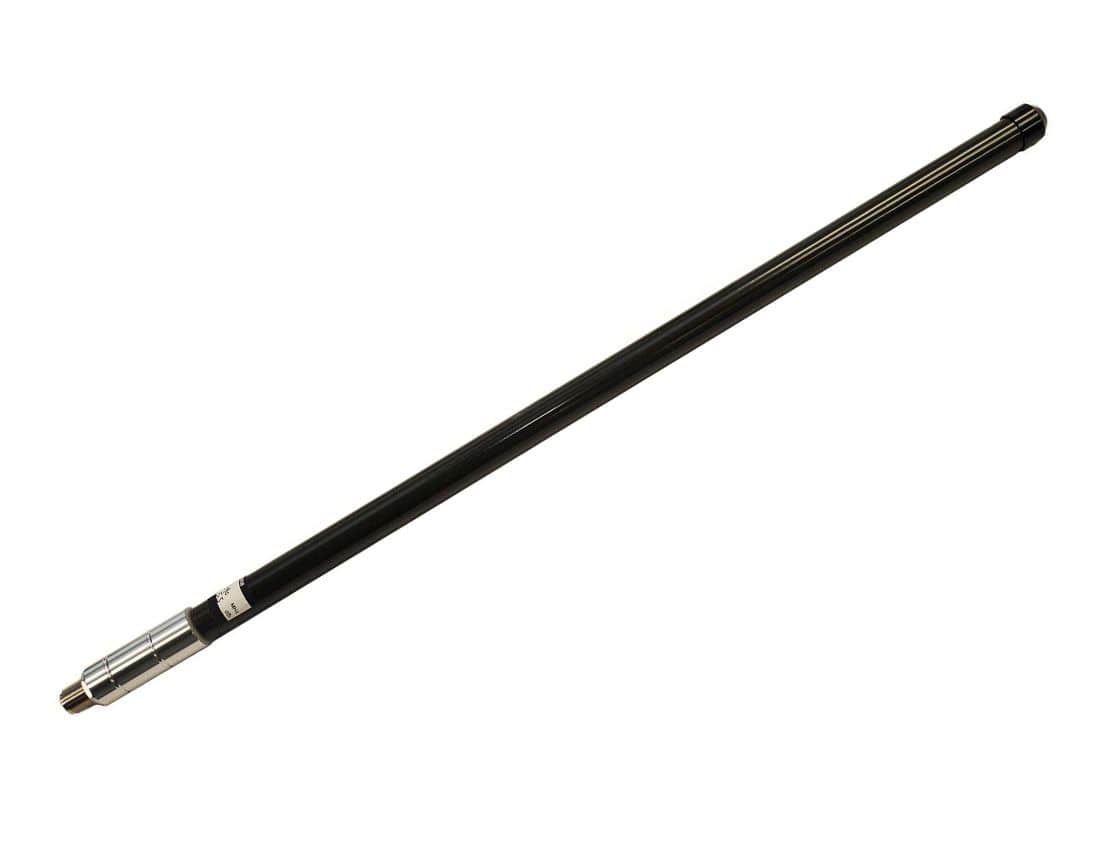

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued]

This is the official FlightAware high-performance, omni directional antenna for receiving 1090MHz Mode S and ADS-B data from aircraft.

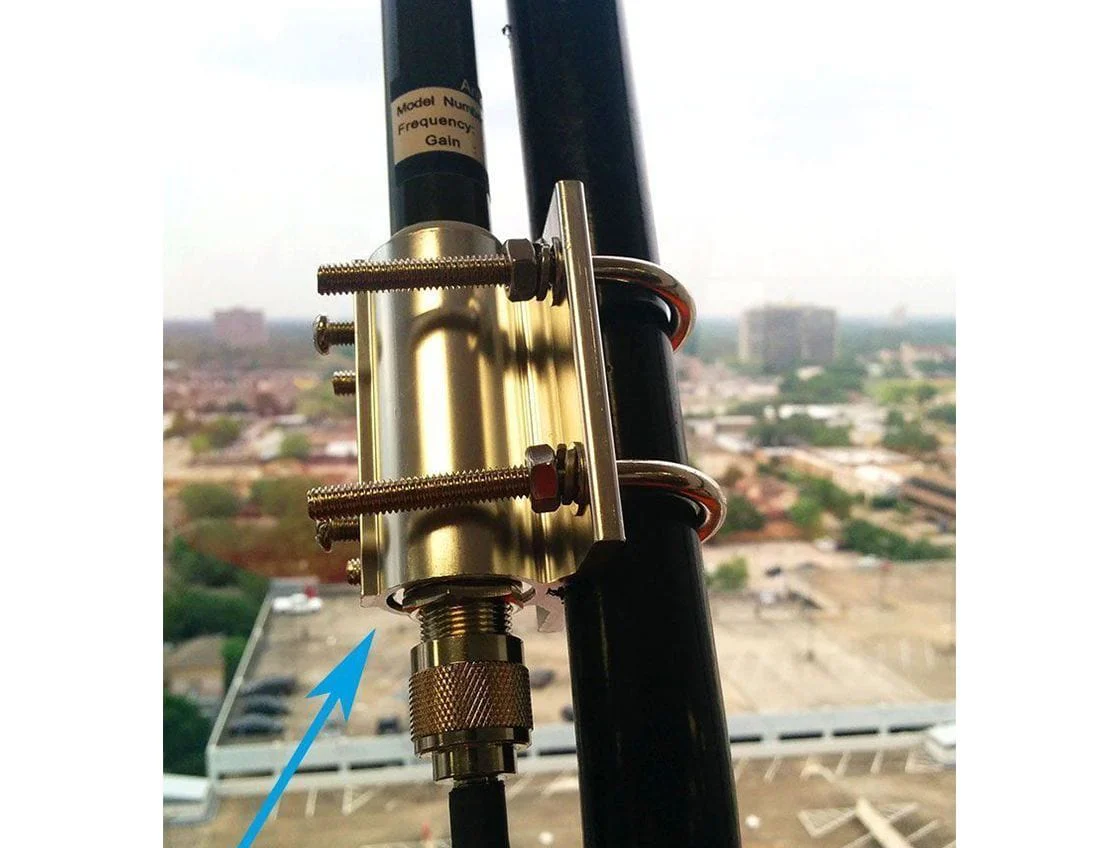

The antenna can be used outdoors, mounted on a mast that is 2.5cm to 4cm in diameter (not included), or installed indoors against a window. When properly installed without obstructions, the antenna can receive ADS-B data from aircraft up to 250mi / 400km away.

Mounting bracket and U-bolts included. Compatible with all ADS-B receivers including FlightFeeder, PiAware, Mode S Beast, Radarcape, Kinetic SBS1/SBS3, RTL Dongles, and more.

Features

• Quality: 1090MHz
• Gain: 5.5dBi Avg
• Radiation: Omni

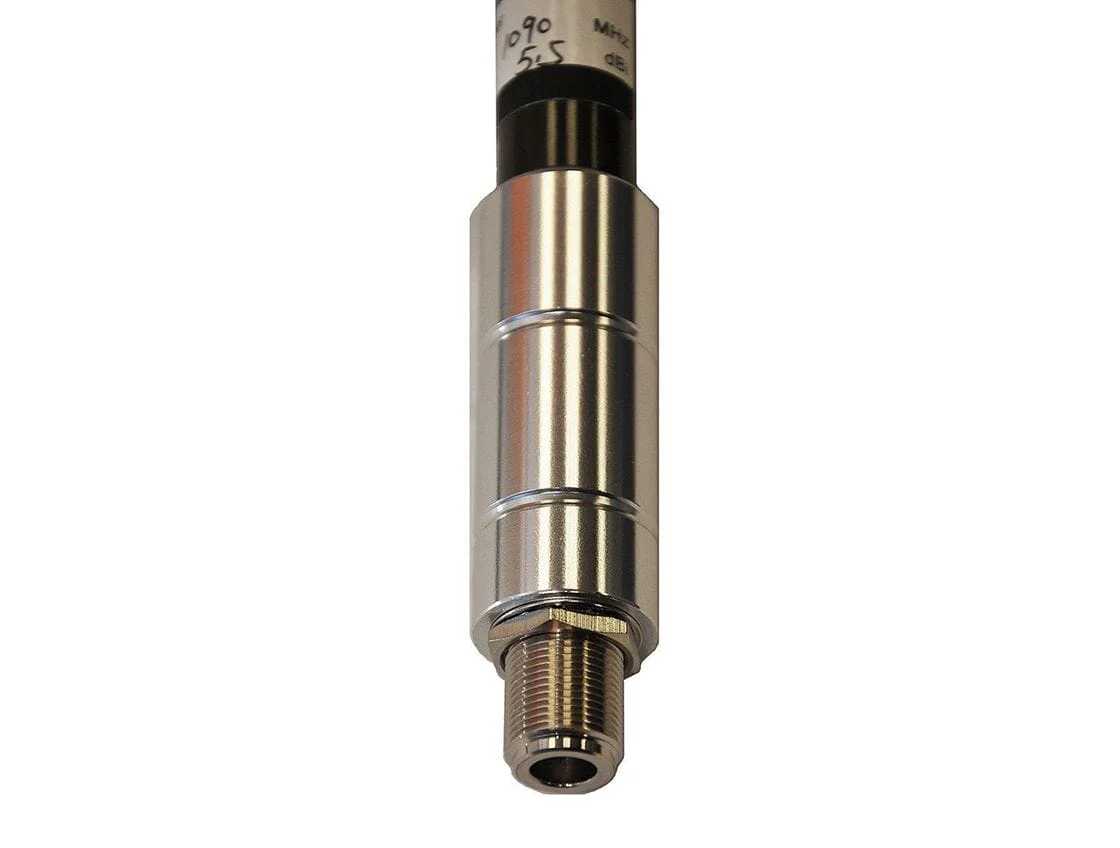

• Connector: N-FEMALE.
• Suitable for Mode S and ADS-B data from Aircraft USA
• Finish: Olive Green
• 26"/66cm Long

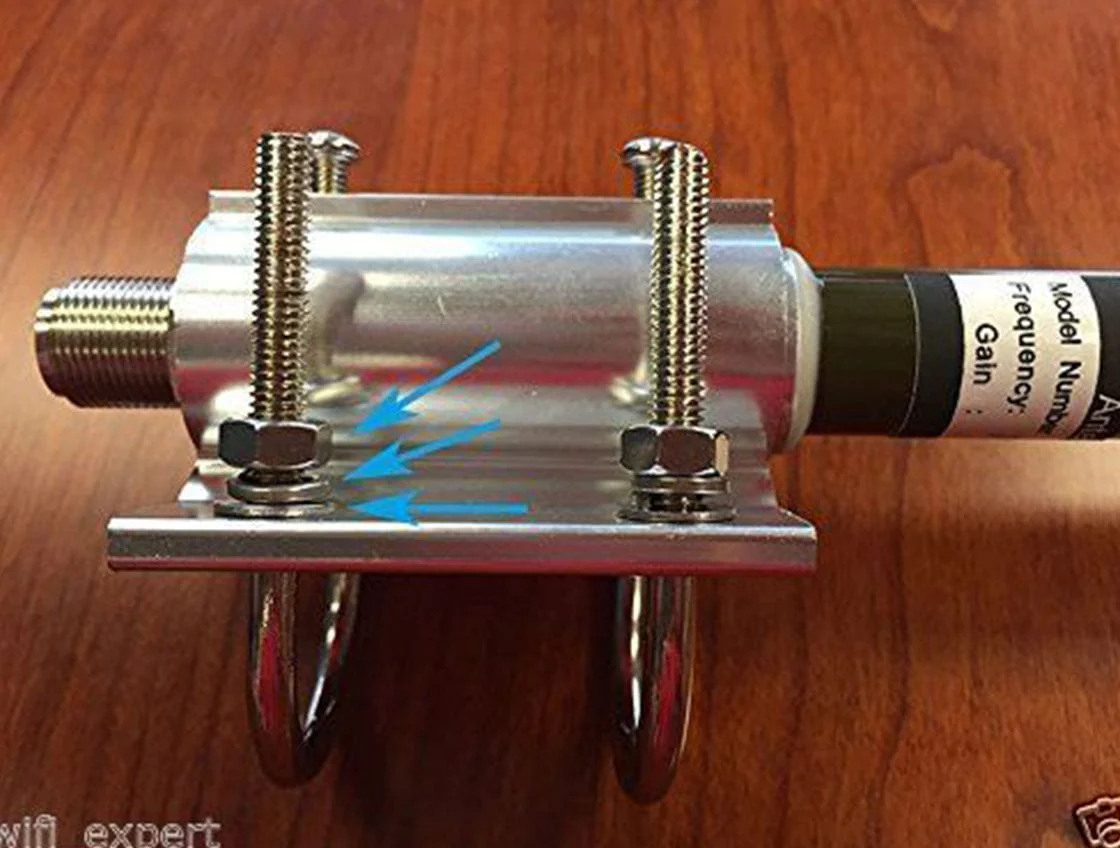

• Bracket Dimensions
  • 4 x 7mm Holes in Rectangular Pattern. Vertical Spacing: 39mm / Horizontal Spacing 48mm (Center to Center)
  • 2 x 45mm Diameter Clamps
