Fingerprint Sensor with 5 Fingerprint Projects

Fingerprint Sensor with 5 Fingerprint Projects

This is an Arduino compatible fingerprint module. With the high speed DSP processor, it could also work with other serial device, like MSP430, 51, AVR, PIC, STM32, ARM and FPGA device. This fingerprint module could work alone without any principal computer or any PC software. It could store 1000 fingerprint. Support fingerprint entry, intelligent image processing, fingerprint comparison and fingerprint search mode. It also has a high sensitivity to both wet and dry fingerprint recognition.

This module could be widely used in security field, such as license management .etc. It can also be used to replace the IC card, password, hardware switch in your application.

Turning On a Motorcycle Engine With Fingerprints



Fingerprint Sensor Project 1: How to make a Fingerprint ID Nerf Gun

My initial plans were to have the Arduino on the side with the power-pack and have the fingerprint ID scanner on the left side of the gun so that it can read the thumb print
Hardware components:

  • Arduino Nano
  • Fingerprint Scanner
  • 9g 180° Micro Servo

how to make a fingerprint starter for bike


Hardware components
  • evive
  • DFRobot Fingerprint Sensor
  • Espressif ESP8266 ESP-12E
  • Jumper wires (generic)
  • Arduino Mega 2560 & Genuino Mega 2560

Fingerprint Sensor Project 4: How to make a Fingerprint ID Nerf Gun

My initial plans were to have the Arduino on the side with the power-pack and have the fingerprint ID scanner on the left side of the gun so that it can read the thumb print


Hardware components
  • DFRobot Fingerprint Sensor
  • DFRobot Particle Photon
  • 5mm LED


Fingerprint Sensor Project 6: How to make Fingerprint Door Lock with Arduino


Specification

  • Power supply: DC 3.8V-7.0V
  • Operating current: 65mA (Typical)
  • Interface: UART (TTL logical level)
  • Baud rate: (9600*N)bps, N=1~12(default N=6, 57600bps)
  • Image acquisition time: <1S
  • Storage capacity: 1000
  • FAR: <0.001%
  • FRR: <1.0%
  • Average searching time: <1s (1:500, average)
  • Matching Mode: comparison mode (1:1) and search mode (1:N)
  • Character file: 256 bytes
  • Template file: 512 bytes
  • Security level: 5(1,2,3,4,5(highest))
  • Working environment: Temp: -20°C - +60; RH: 40%-85%
  • Storage environment: Temp: -40°C - +85°C; RH: <85%
  • Touch area dimension: 14.5*19.4 mm (0.57*0.76")
  • Outline dimension: 54*20*20.5 mm (2.13*0.79*0.81")

Documents

  • Product Wiki

Shipping List

  • Fingerprint sensor x1
$45.75
Fingerprint Sensor with 5 Fingerprint Projects—
$45.75

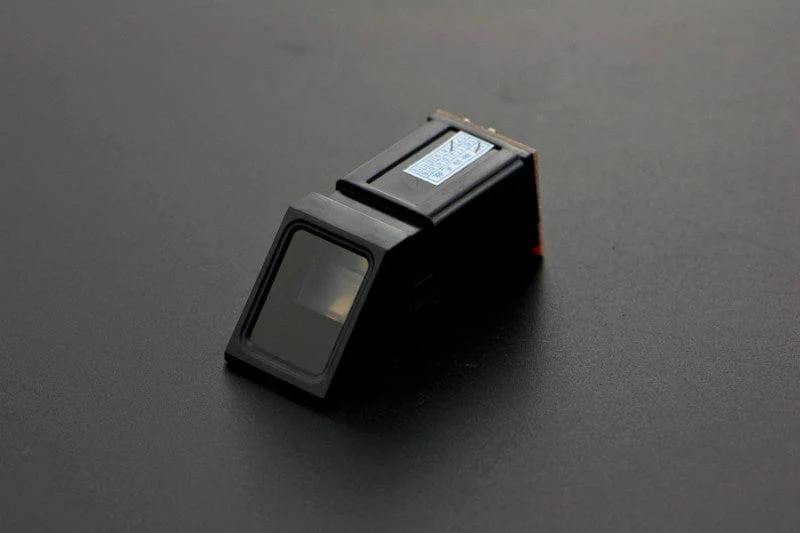

Product image 1

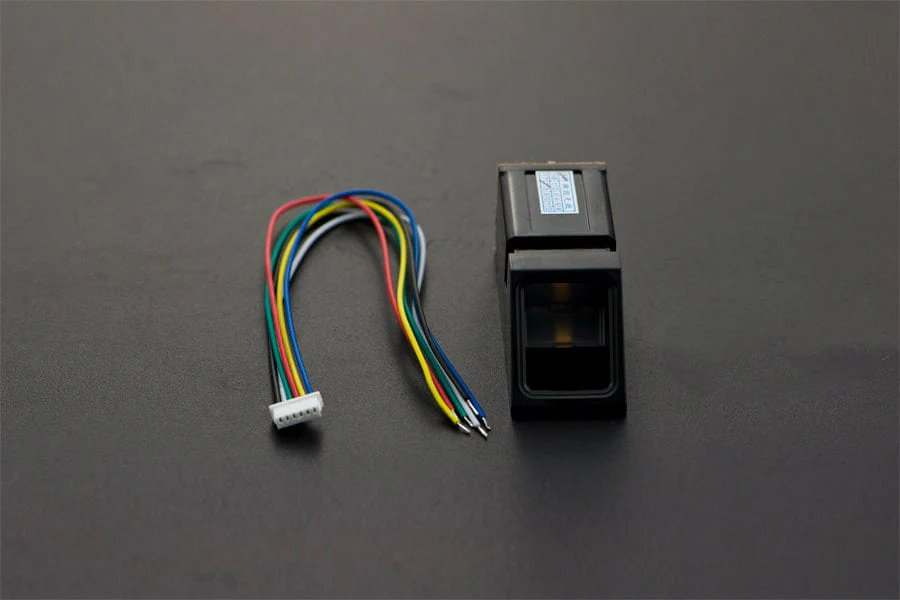

Product image 2

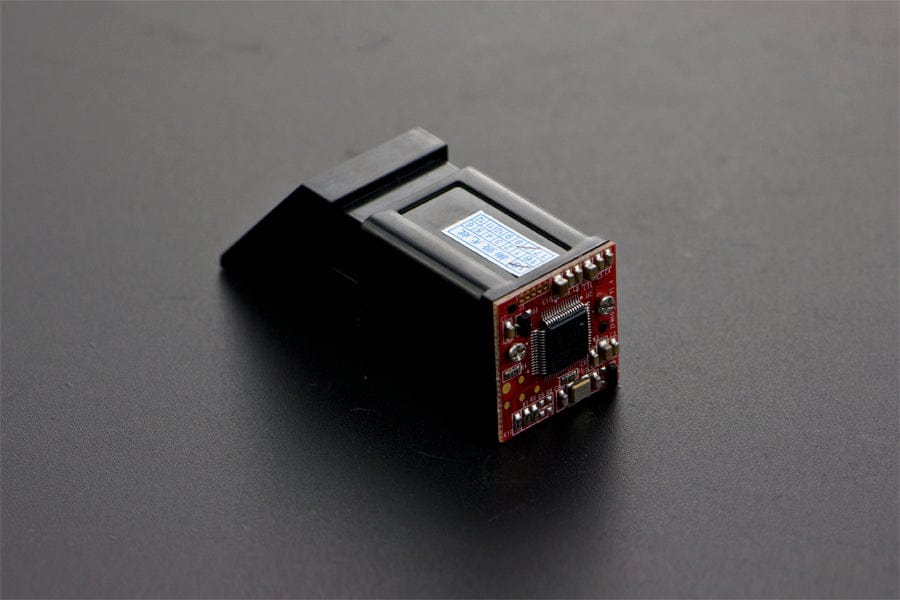

Product image 3

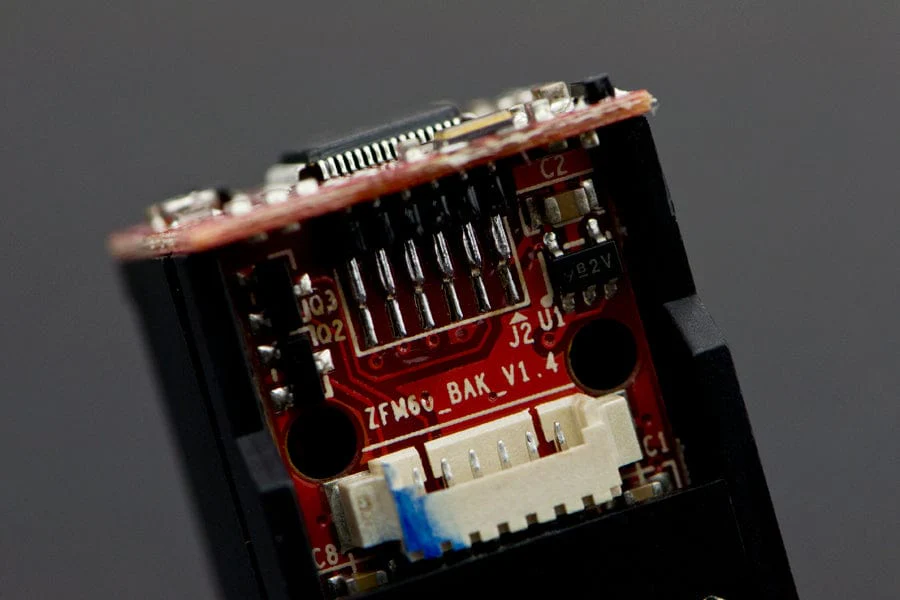

Product image 4
