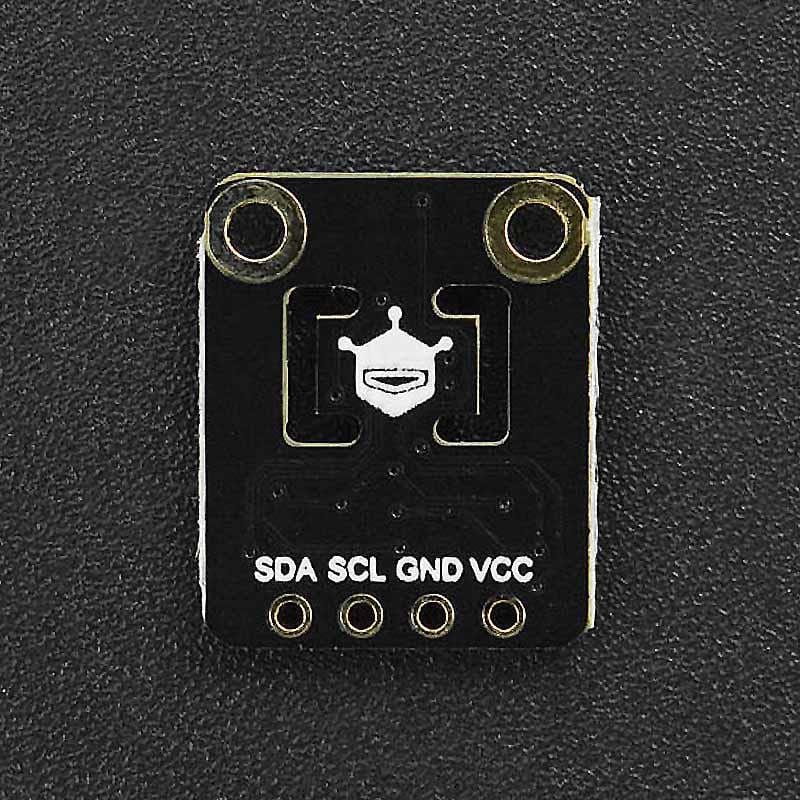

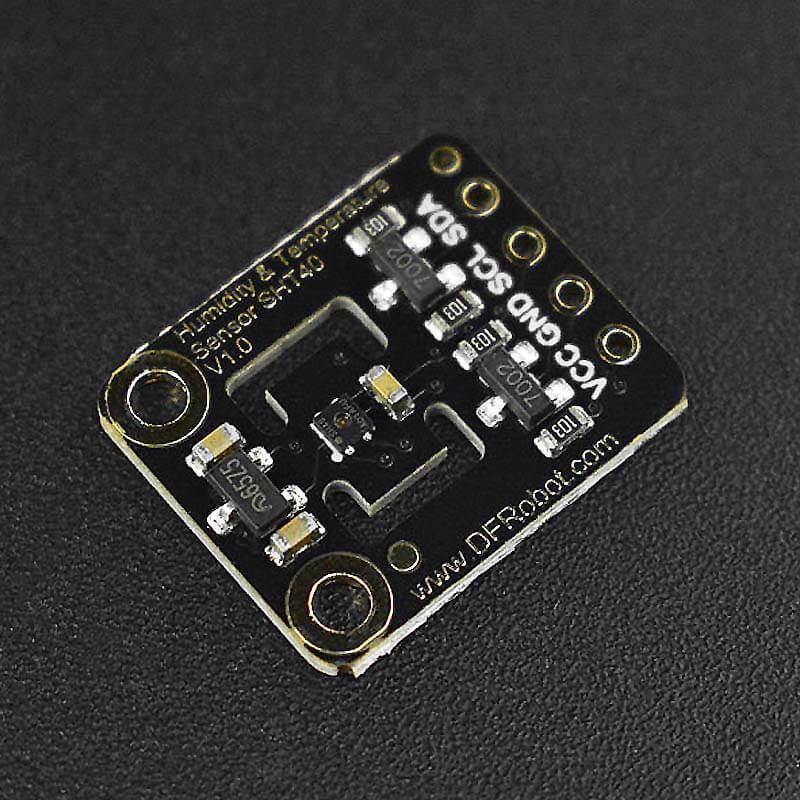

Fermion: SHT40 Humidity & Temperature Sensor Breakout

The SHT40 is the 4th generation digital temperature and humidity sensor from Sensirion. In line with Sensirion’s industry-proven humidity and temperature sensors, the SHT40 offers consistent high accuracy within the measuring range.

The SHT40 sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±1.8％RH and ±0.2℃. The internal variable power heater enables the device to work properly under extreme operating conditions like condensing environments.

The board can accept a voltage of 3.3V to 5V and a current consumption below 0.15mA in low power mode. This low current requirement makes the SHT40 suitable for mobile or wireless battery-driven applications. It's ideal for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

Features

• High Accuracy
• Low Power Consumption
• Small Size
• Fast Response

Connection Example (Arduino)

Specification

• Operating Voltage: 3.3V-5V
• Operating Current: 0.45mA
• Communication Interface: I2C
• Response Time: 8s (tau63%)
• Humidity Measurement Range: 0~100%RH
• Humidity Measurement Accuracy: ±1.8%
• Temperature Measurement Range: -40~+125℃ (-40 to +275℉)
• Temperature Measurement Accuracy: ±0.2℃

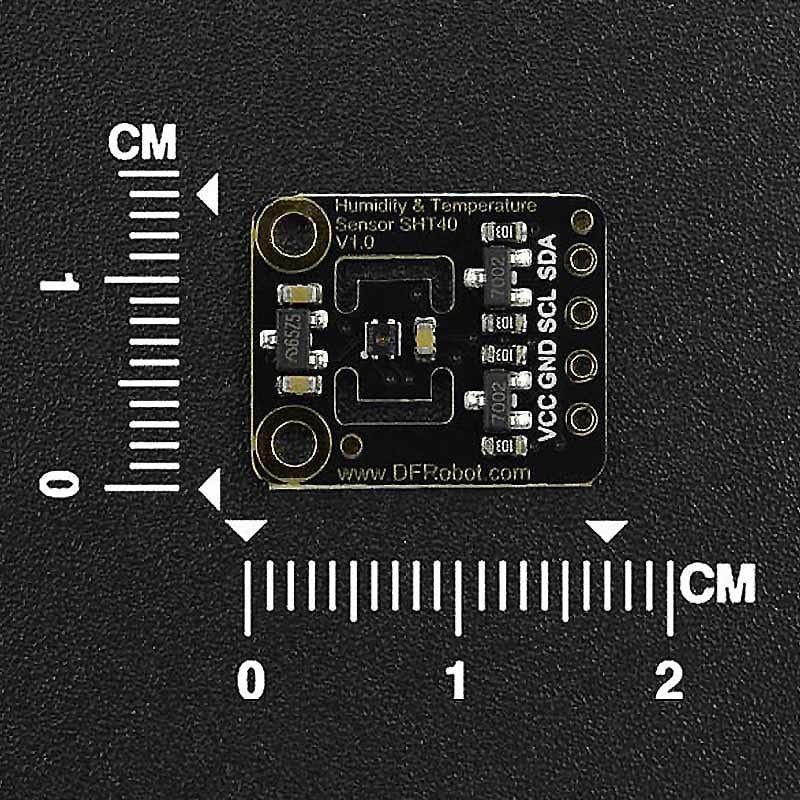

• Dimension: 14x17mm/0.55x0.67"
• Mounting Hole Size: M2 (2mm)
• Mounting Hole Pitch: 10mm

Package Contents

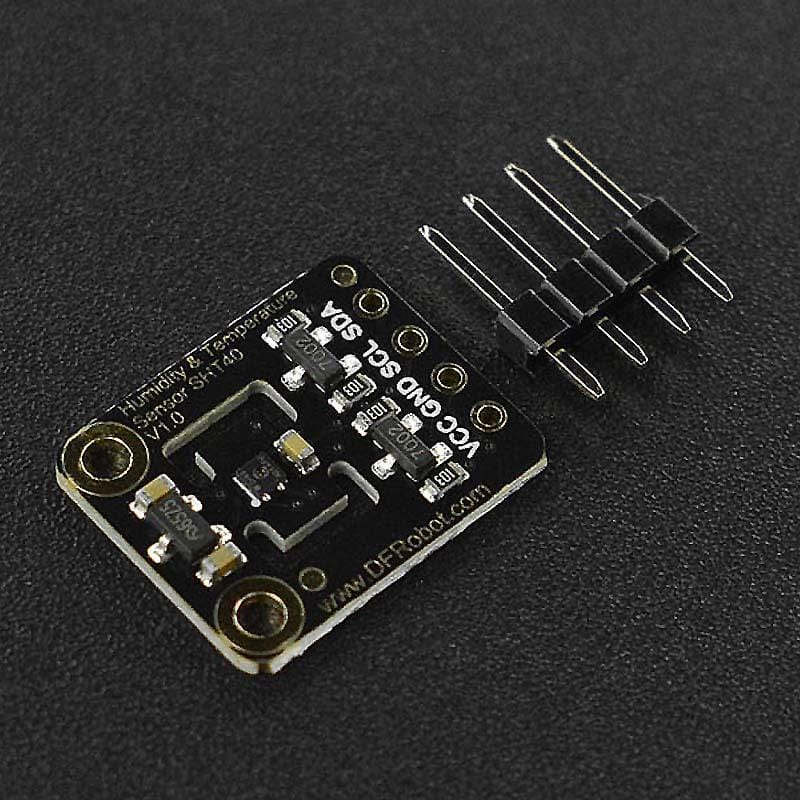

• 1x Fermion: SHT40 humidity & temperature sensor

Resources

• Product wiki
• Schematics
