Ethernet Kit for Teensy 4.1

This kit has all the parts needed to connect to the Ethernet port on Teensy 4.1.

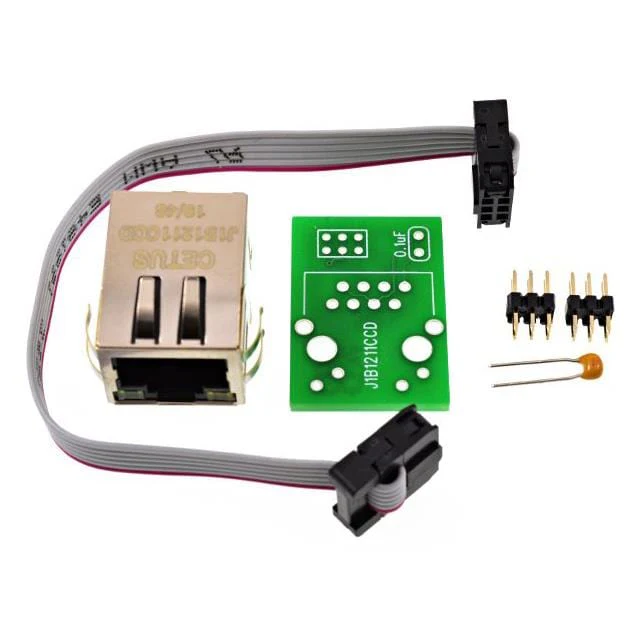

This kit includes an Ethernet MagJack, bare circuit board, ribbon cable assembly, 2 header pins and a capacitor. DIY soldering is required.

Resources

• NativeEthernet library
• Assembly Guide

Package includes

• 1x Ethernet Magjack Cetus J1B1211CCD, Digikey 1278-1052-ND
• 1x Ribbon Cable Assembly (see OSH Park page for DIY parts)
• 2x 6-pin Header, 3x2 Generic 2mm pitch pins or Digikey 1849-1000-ND
• 1x Capacitor, 0.1 uF Vishay K104K15X7RF5TL2, Digikey BC1084CT-ND
• 1x Bare Circuit Board

Technical Details

• Cetus J1B121 J1B12111CCD Datasheet
• PCD at OSH Park
