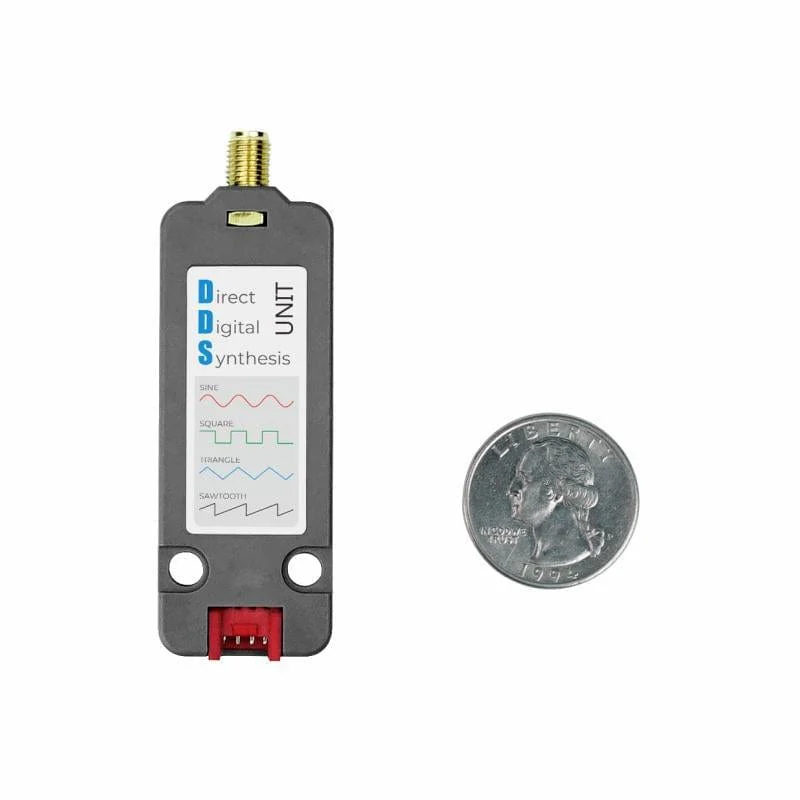

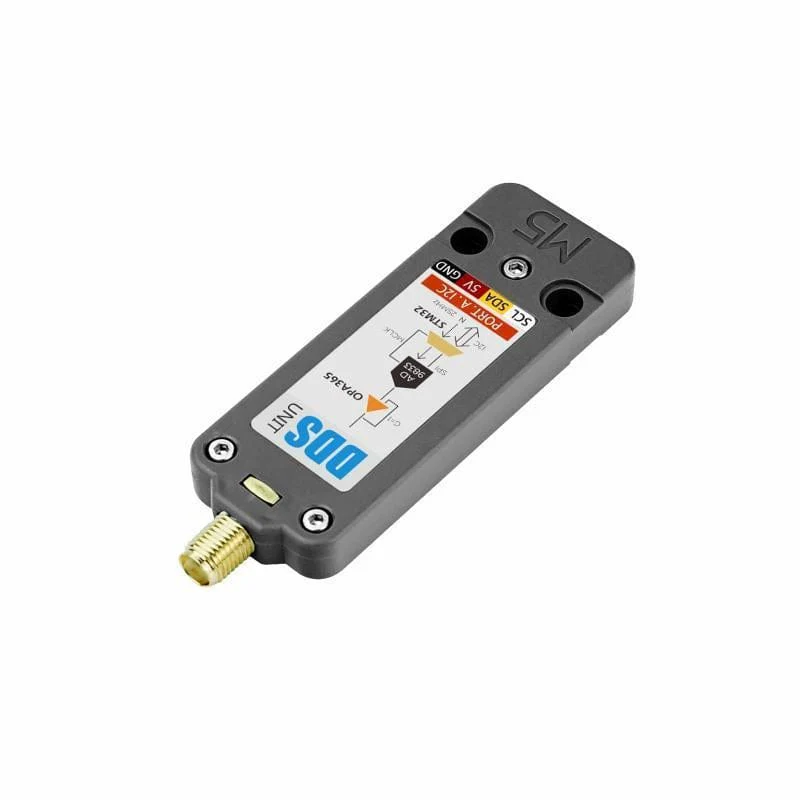

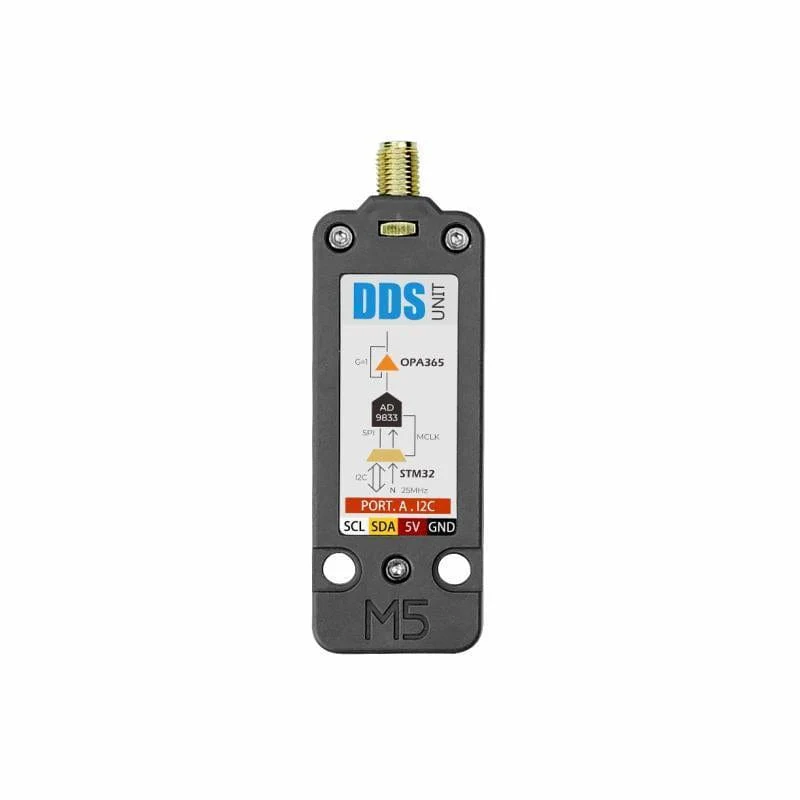

M5Stack DDS Unit (AD9833 Waveform Generator)

Make some waves with this handy Direct Digital Synthesis signal source unit, which includes an AD9833 programmable waveform generator and an STM32F0 microcontroller.

Communicating via I2C (addr:0x31), it can output multiple waveforms (sine wave, triangle wave, square wave output, sawtooth wave, signal output amplitude 0-0.6V) with adjustable frequency and phase.

It also supports deep sleep mode, which can reduce power consumption when idle. Perfect for generating waves for feeding into a synth or even for creating a whole new electronic musical instrument!

Features

• Digital programmable frequency and phase
• Signal output amplitude 0-0.6V
• Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
• Output frequency range: 0MHz to 1MHz (10MHz based on the reference clock)
• 28bit frequency resolution
• 11bit phase resolution

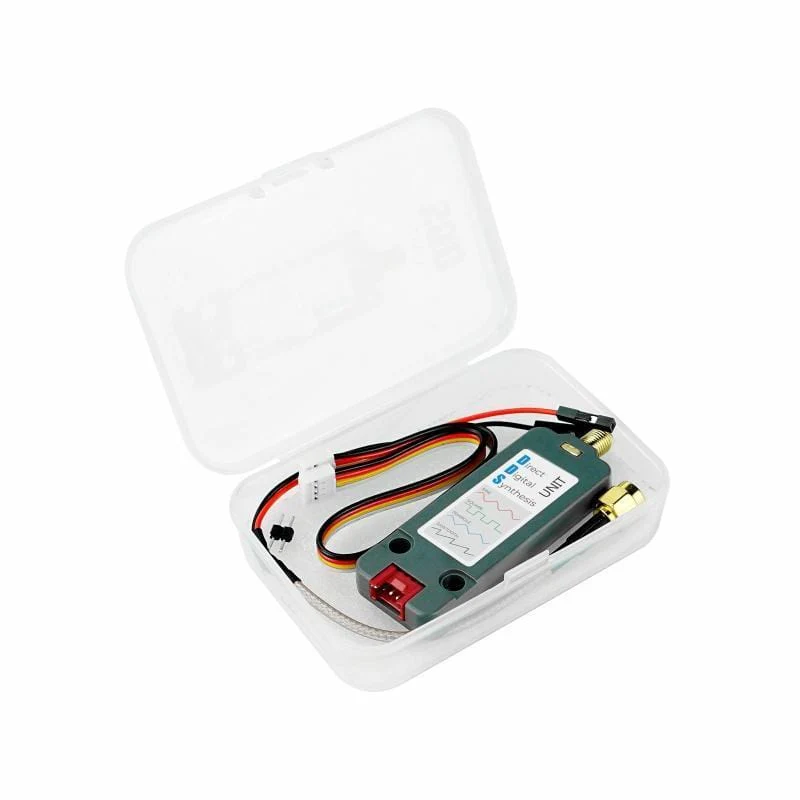

Package Contents

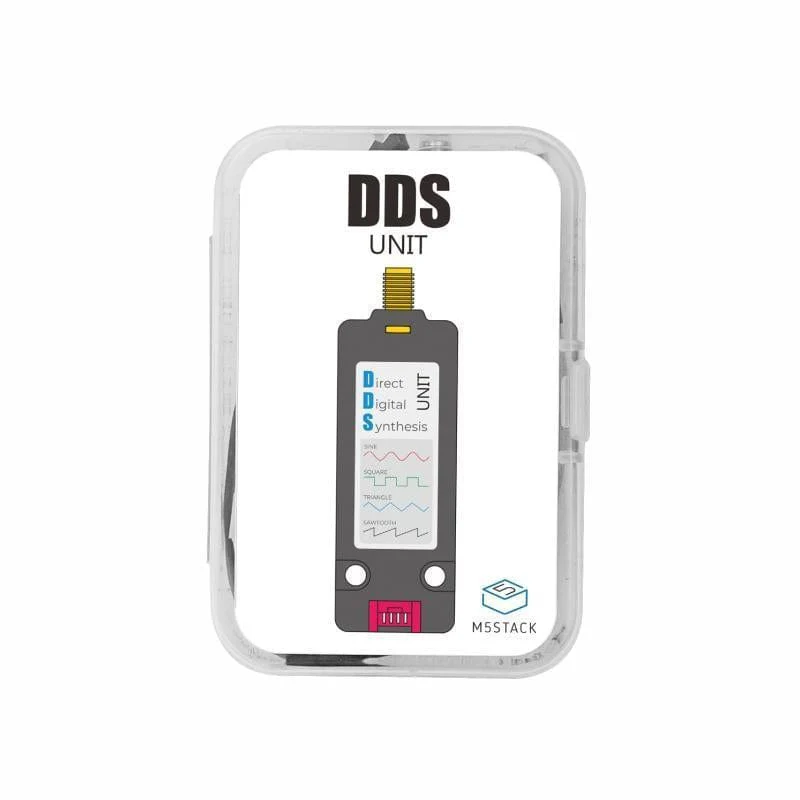

• 1x DDS Unit
• 1x HY2.0-4P cable
• 1x SMA-2.54mm cable

Specification

Specifications	Parameters
Support waveform	Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
Signal output amplitude	0-0.6V
Output frequency range	0MHz to 1MHz (10MHz based on the reference clock)
Frequency resolution	28bit
Phase resolution	11bit
Net weight	11.1g
Gross weight	34.7g
Product size	71*24*8mm
Package size	88.5*60*21mm
